Blower Motor: Notes

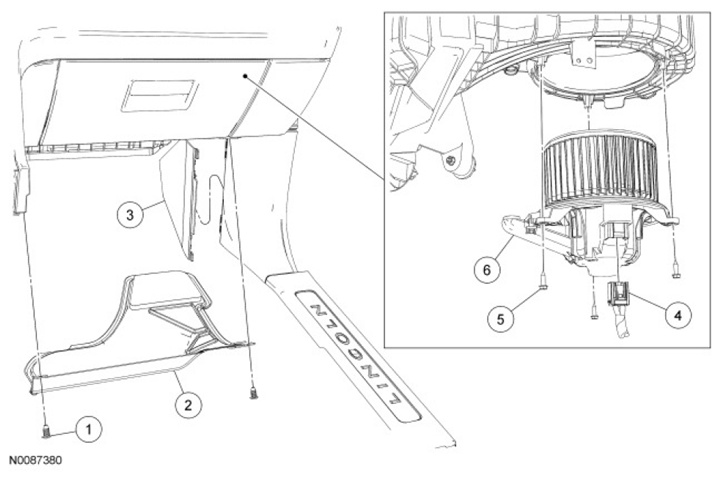

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N811040 | RH lower instrument panel insulator pin-type retainer (2 required) |
| 2 | 78046A24 | RH lower instrument panel insulator |
| 3 | 02348 | Junction box cover |
| 4 | - | Blower motor electrical connector (part of 18B518) |
| 5 | W701696 | Blower motor screw (3 required) |
| 6 | 19805 | Blower motor |
