Heating Ventilation Air Conditioning (HVAC) Module: Notes

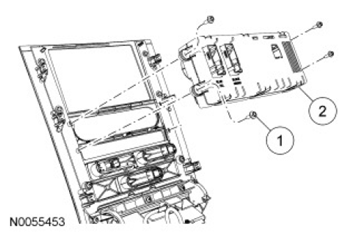

Fig 1: Exploded View Of HVAC Module And Screws
G07456600Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W706952 HVAC module screw (4 required)
2 19980 HVAC module
