Heated Seat Module - Rear Seat

Heated Seat Module - Rear Seat

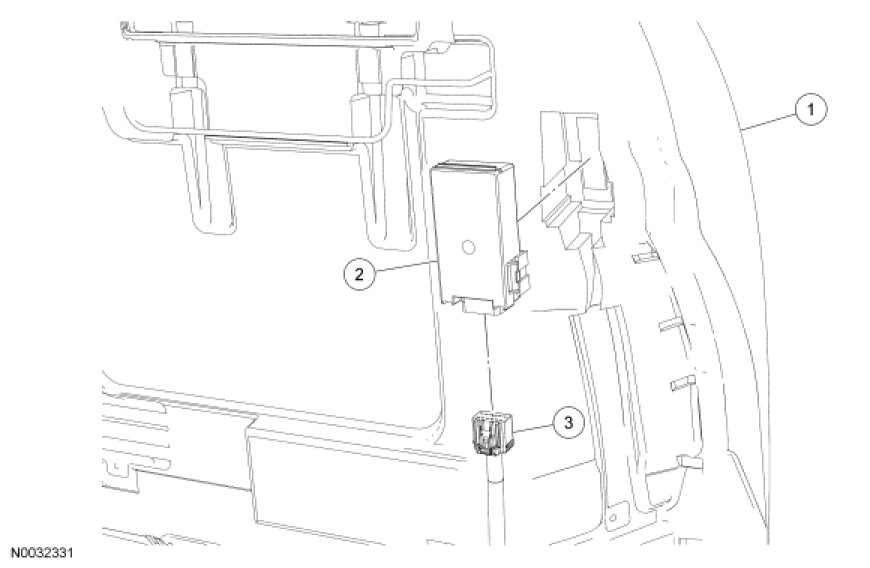

NOTE: LH side shown, RH side similar.

NOTE: Rear of seat backrest shown.











Removal and Installation

1. Remove the rear seat backrest. For additional information, refer to Seat Backrest - Rear Rear Seat.

2. Disconnect the heated seat module electrical connector and remove the module from the hook-and-loop strip.

3. To install, reverse the removal procedure.
