Exterior Lighting Module: Service and Repair

Ballast









Removal and Installation

1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair.

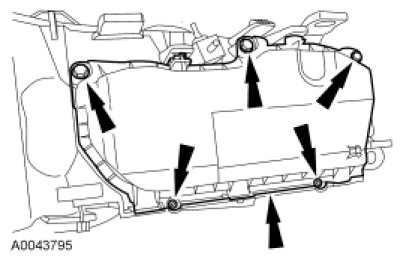

2. Remove the 5 screws and the headlamp bulb protective cover.
- Disconnect the electrical connectors.

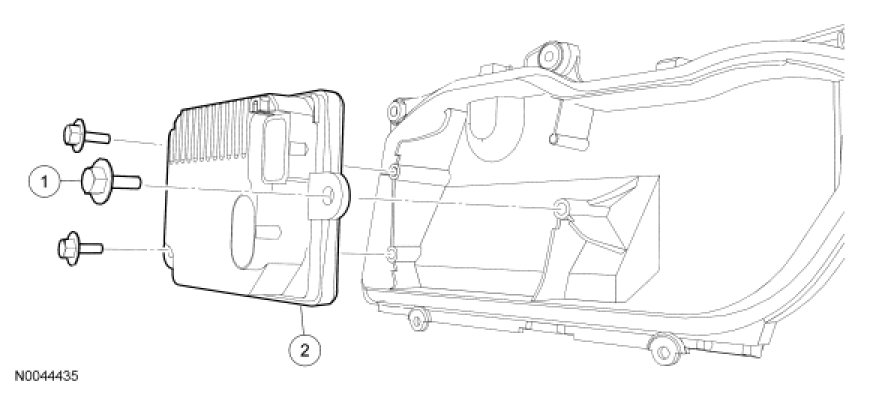

3. Remove the 3 screws and the ballast.

4. To install, reverse the removal procedure.
