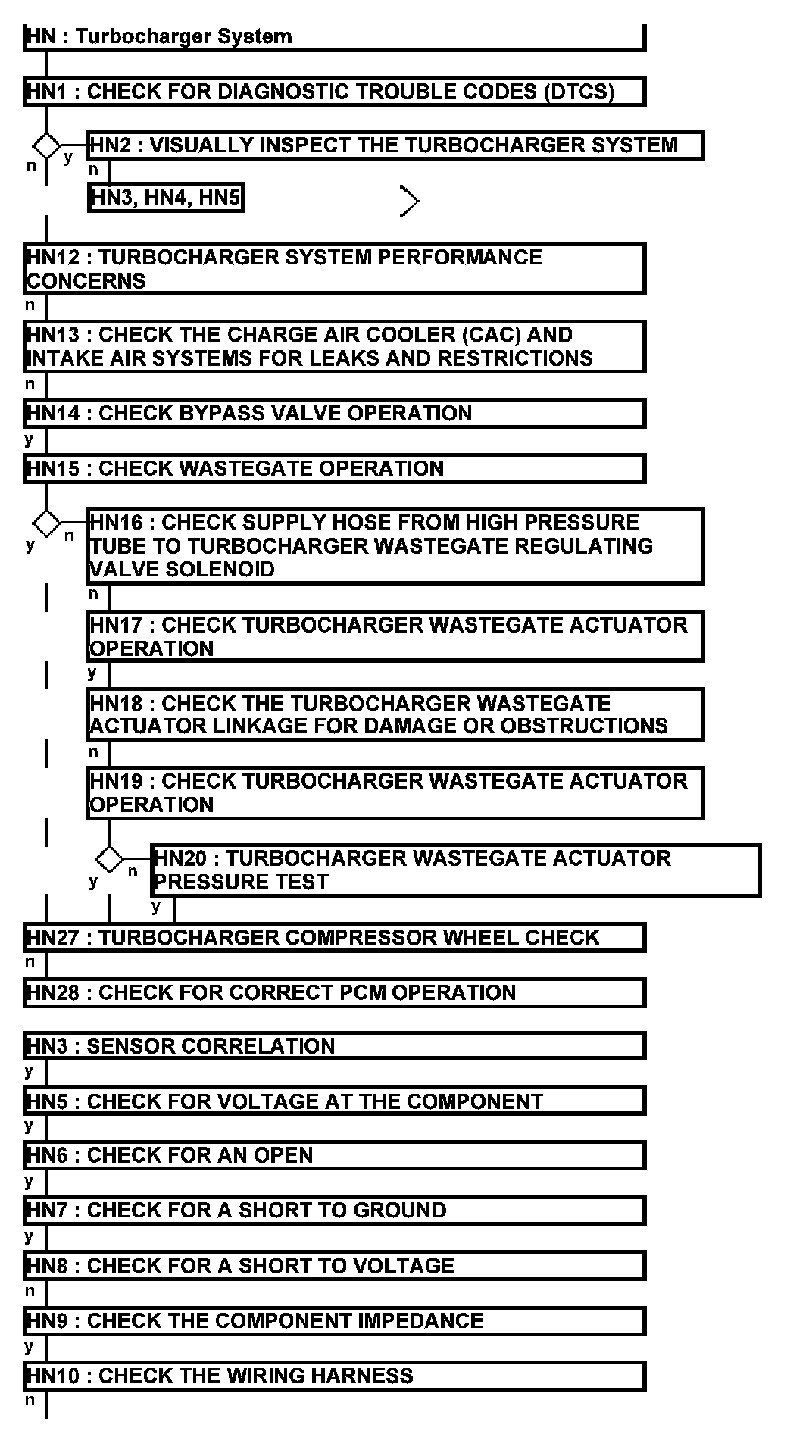

Test HN: Turbocharger System
Turbocharger System

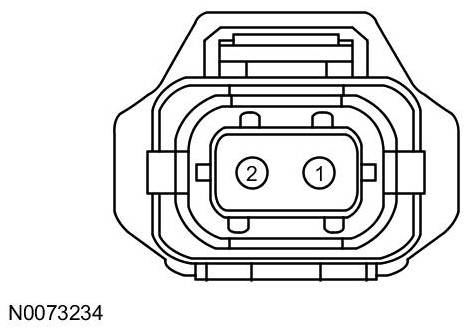

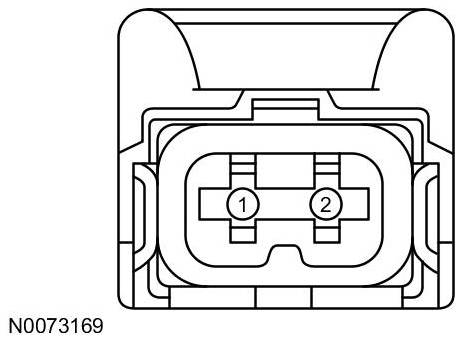

Turbocharger Bypass Valve (TCBY) Connector
Harness Side
Turbocharger Bypass Valve 2 (TCBY2) Connector
Harness Side
Turbocharger Wastegate Regulating Valve Solenoid Connector
Harness Side

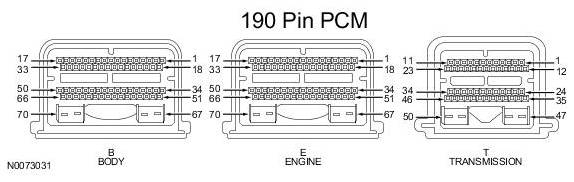

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
