Home >> Lincoln >> 2012 >> MKT FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C310B Restraints Control Module (RCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

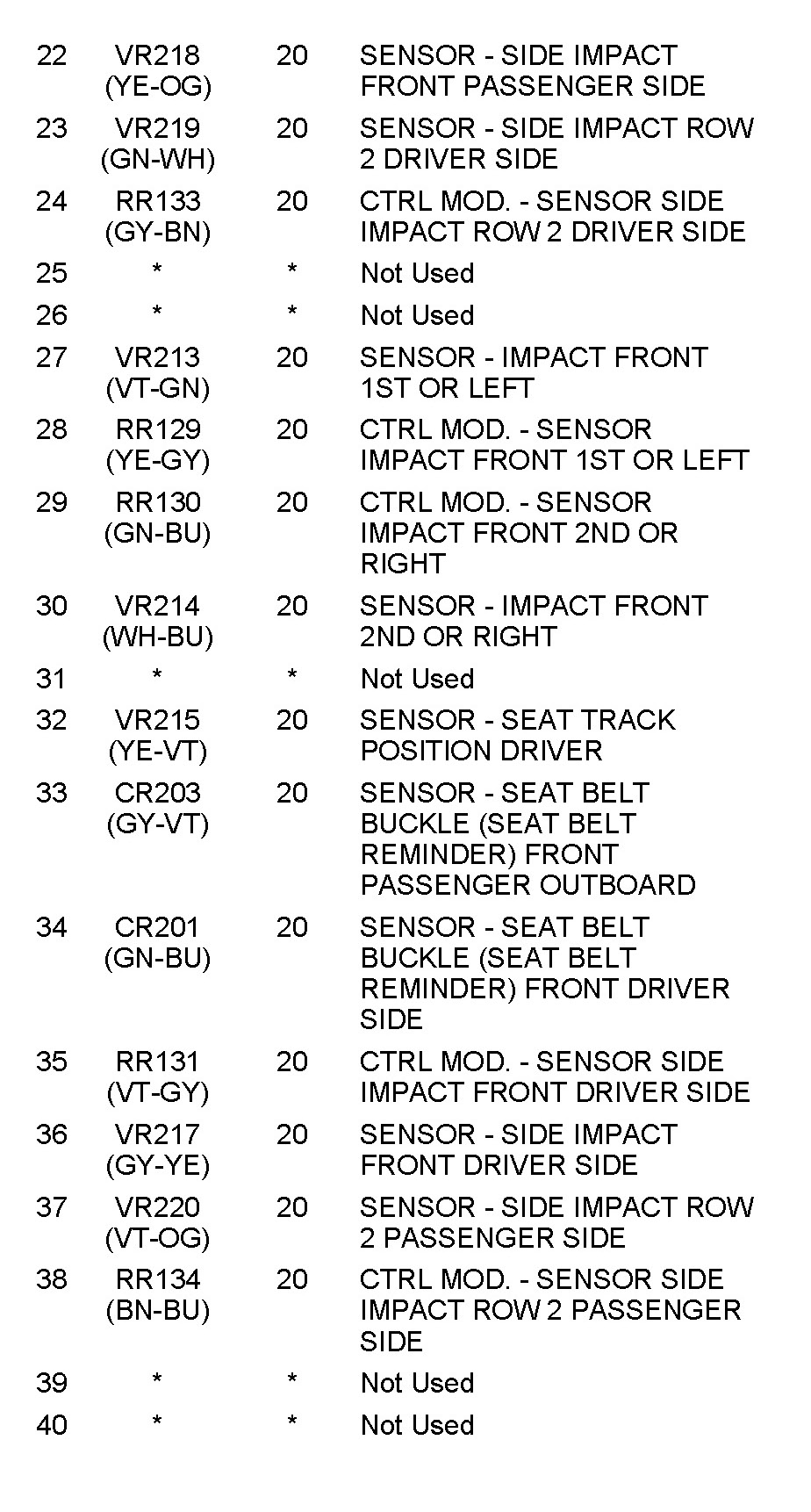

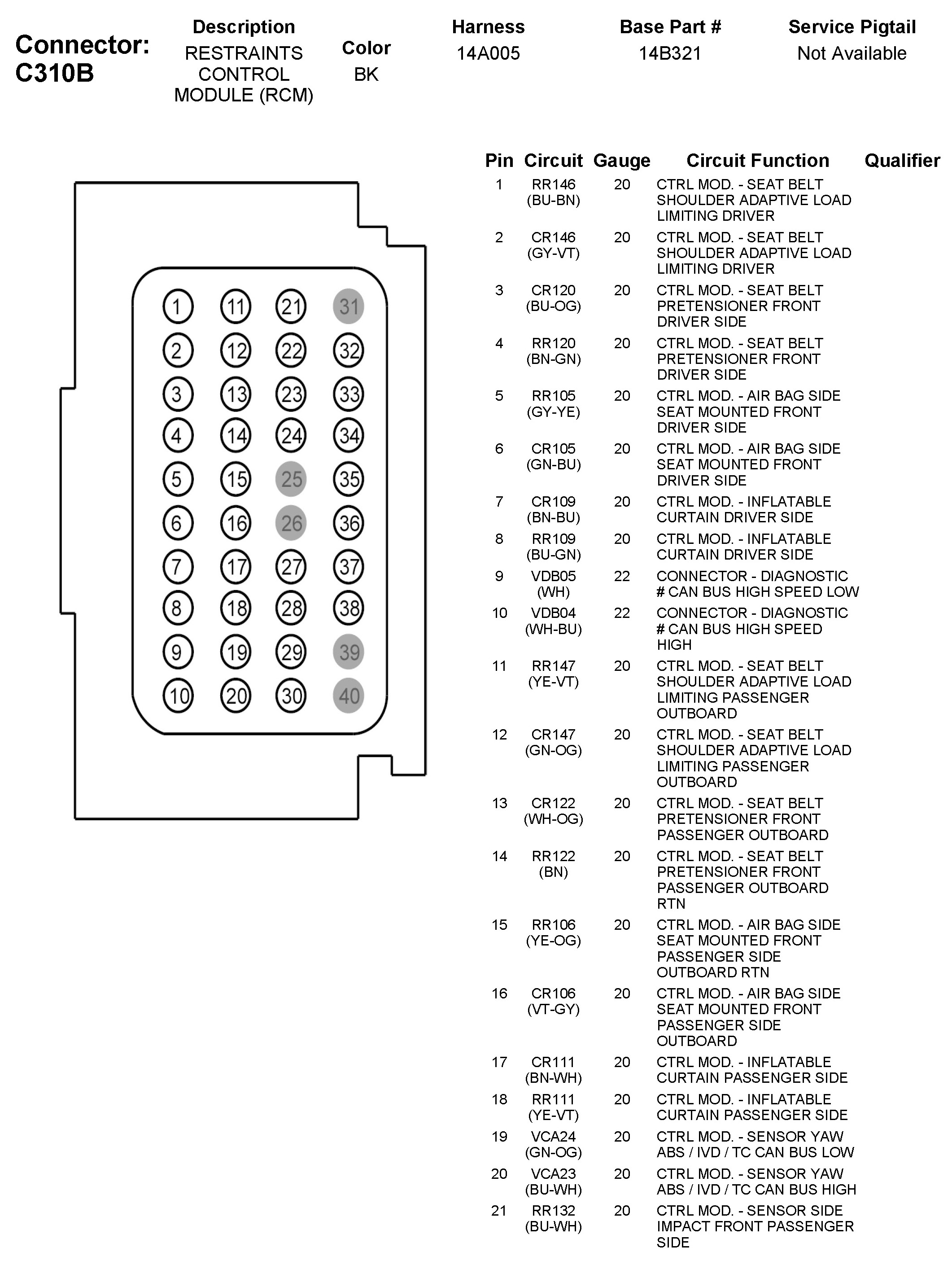

C310B Restraints Control Module (RCM)
