Home >> Lincoln >> 2012 >> MKT FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module >> C4174A Liftgate/Trunk Module (LTM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

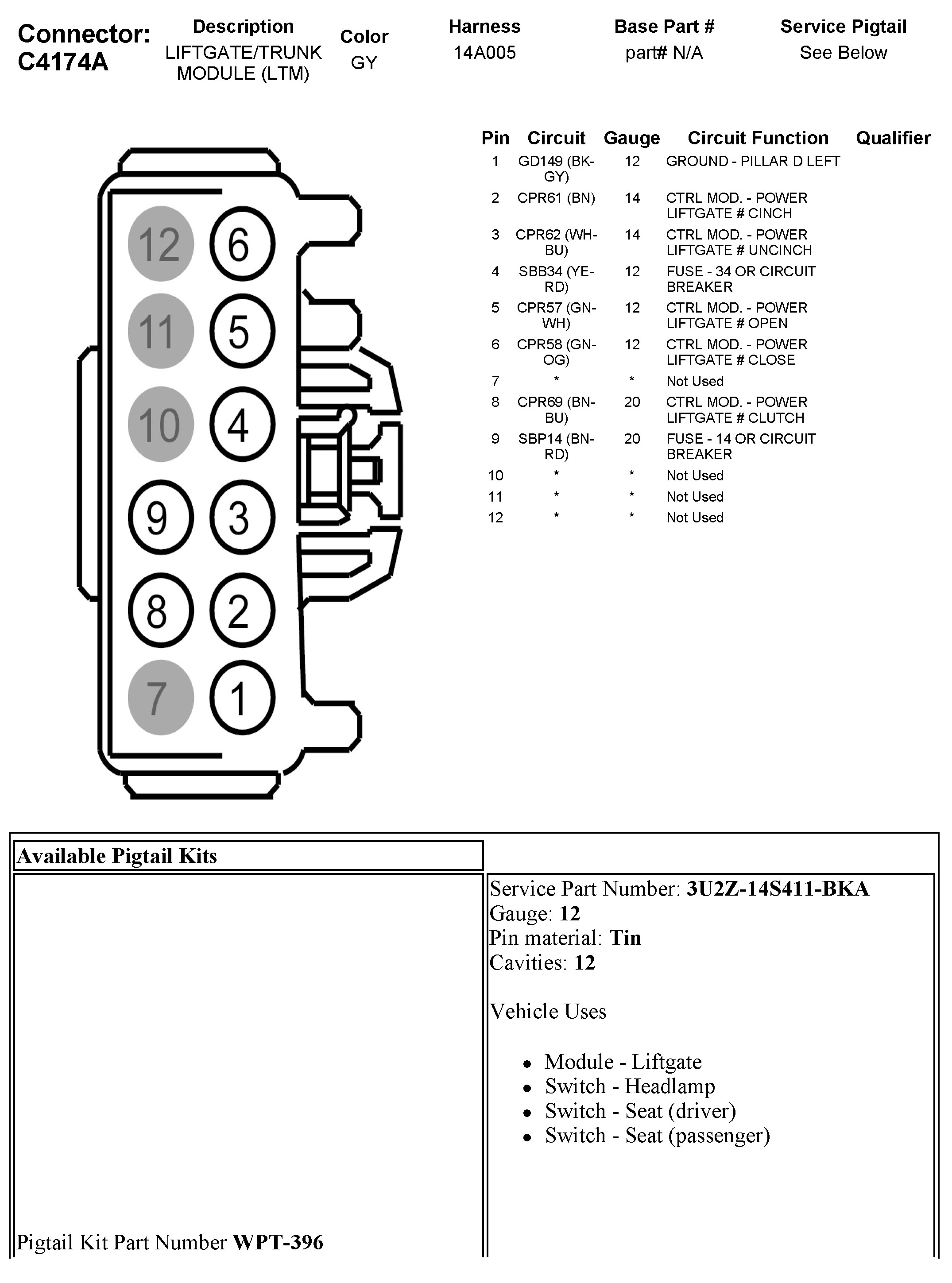

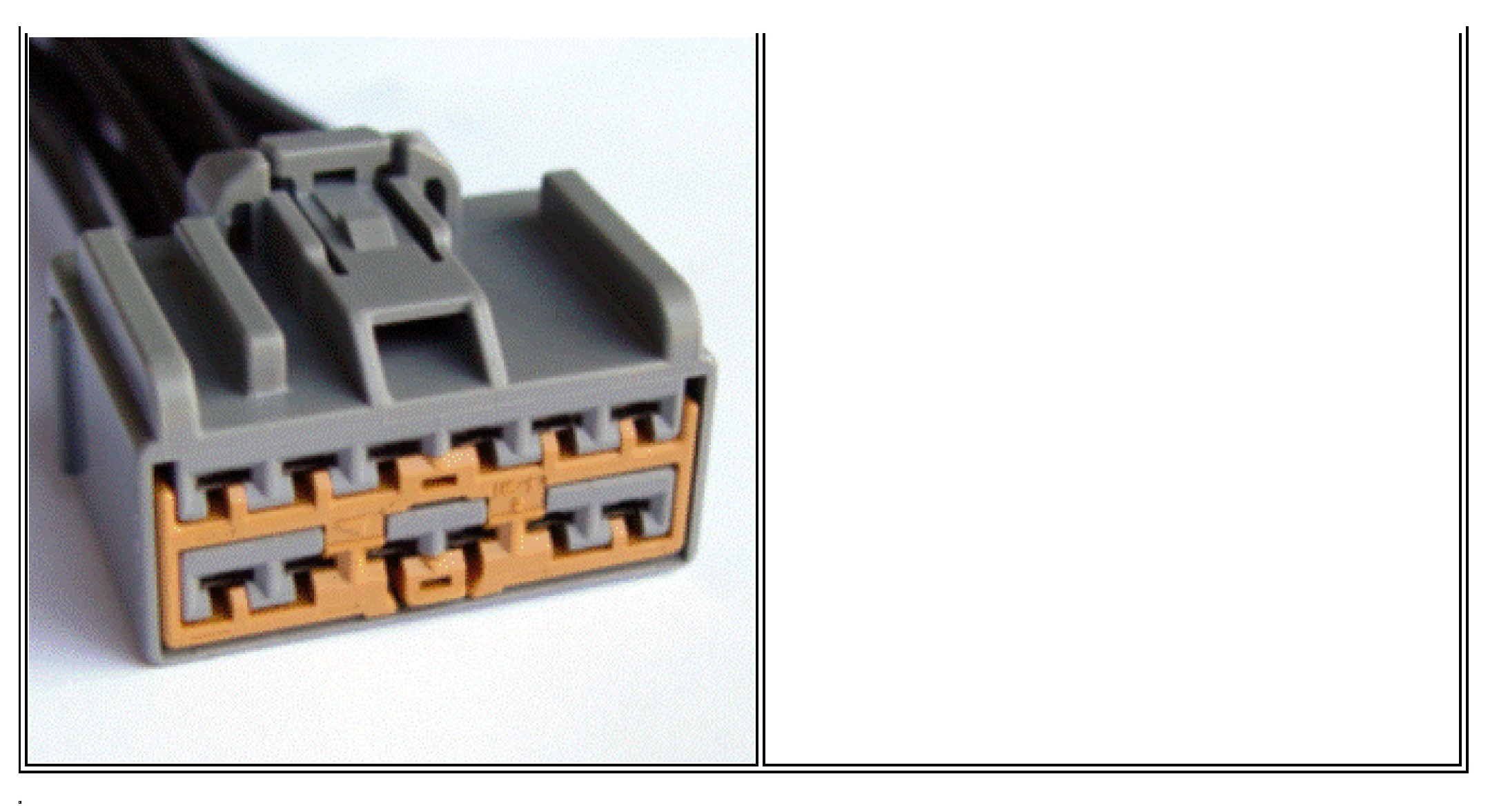

C4174A Liftgate/Trunk Module (LTM)
