In-Vehicle Temperature Sensor

In-Vehicle Temperature Sensor









Removal and Installation

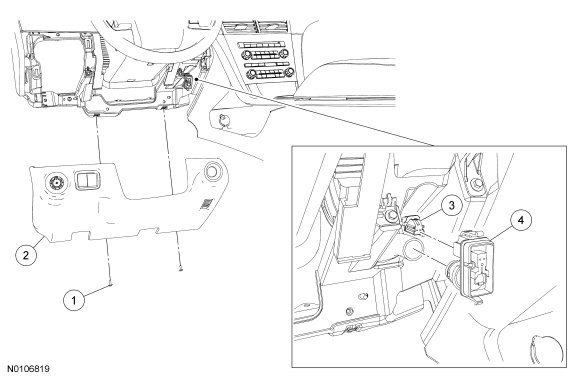

1. Remove the 2 steering column opening trim panel screws.

2. Detach the in-vehicle temperature sensor from the steering column opening trim panel and remove the steering column opening trim panel.
- Disconnect the electrical connector.


3. Disconnect the in-vehicle temperature sensor electrical connector.

4. Rotate the in-vehicle temperature sensor clockwise to disconnect it from the aspirator hose and remove the in-vehicle temperature sensor.

5. To install, reverse the removal procedure.
