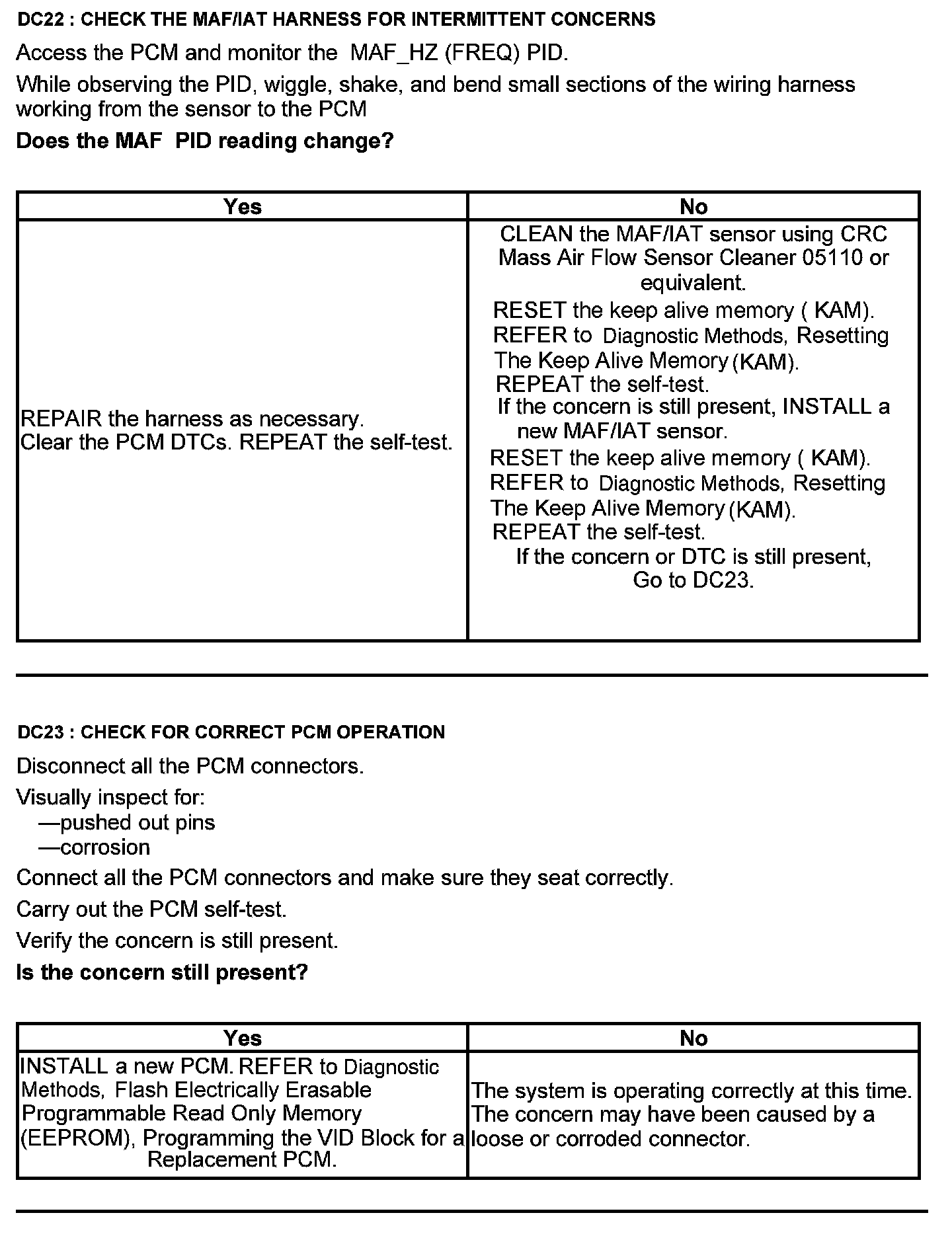

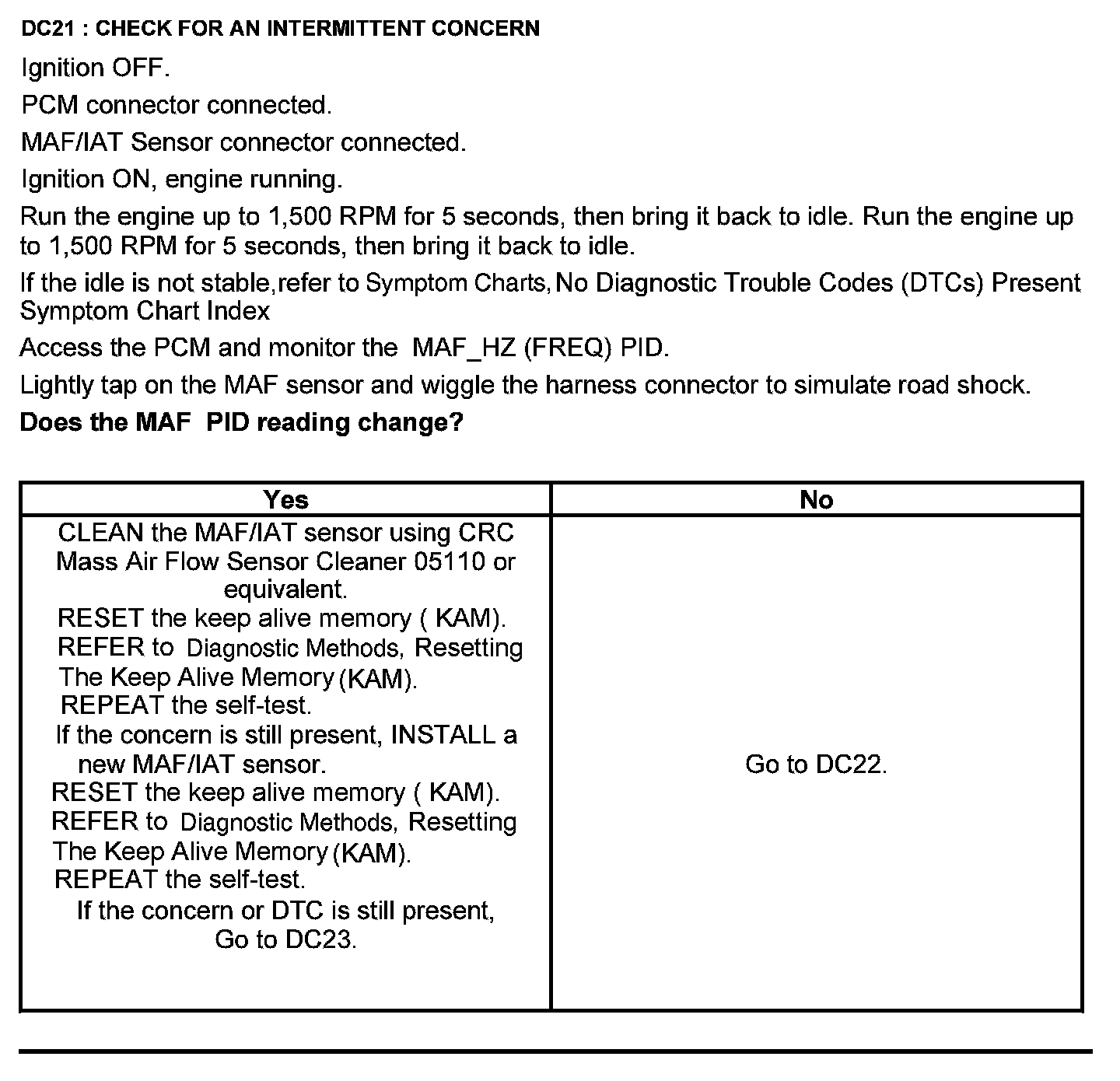

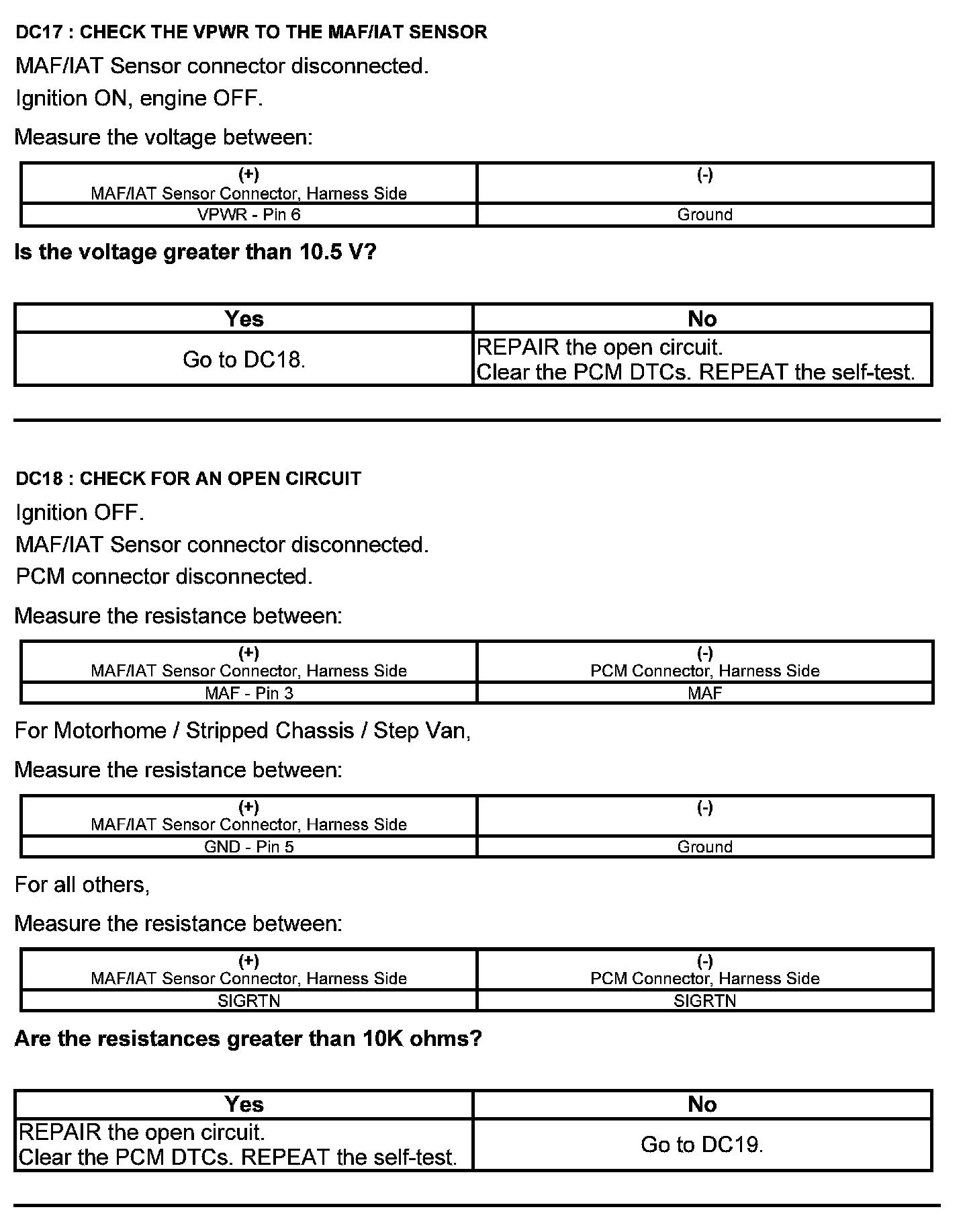

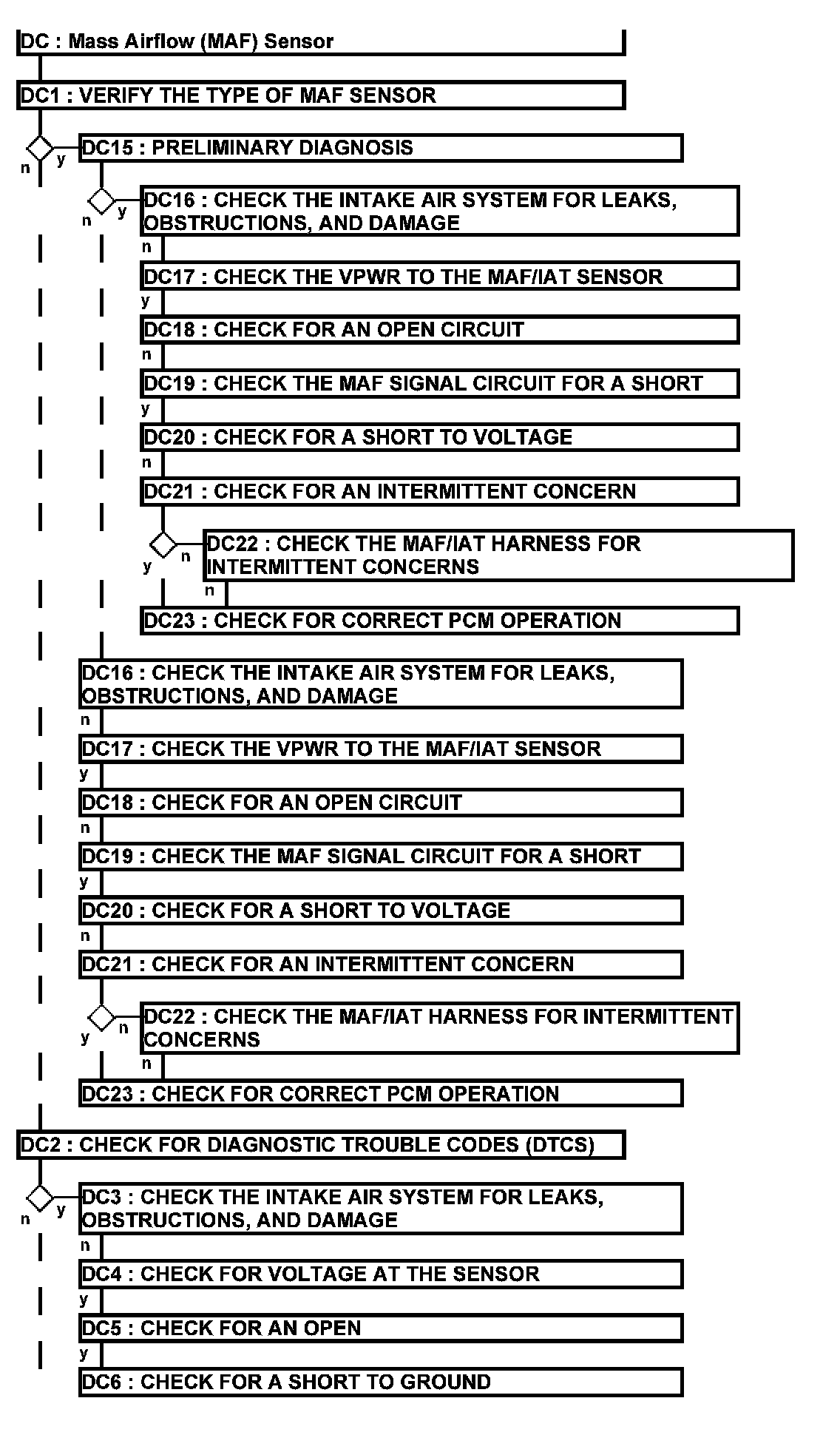

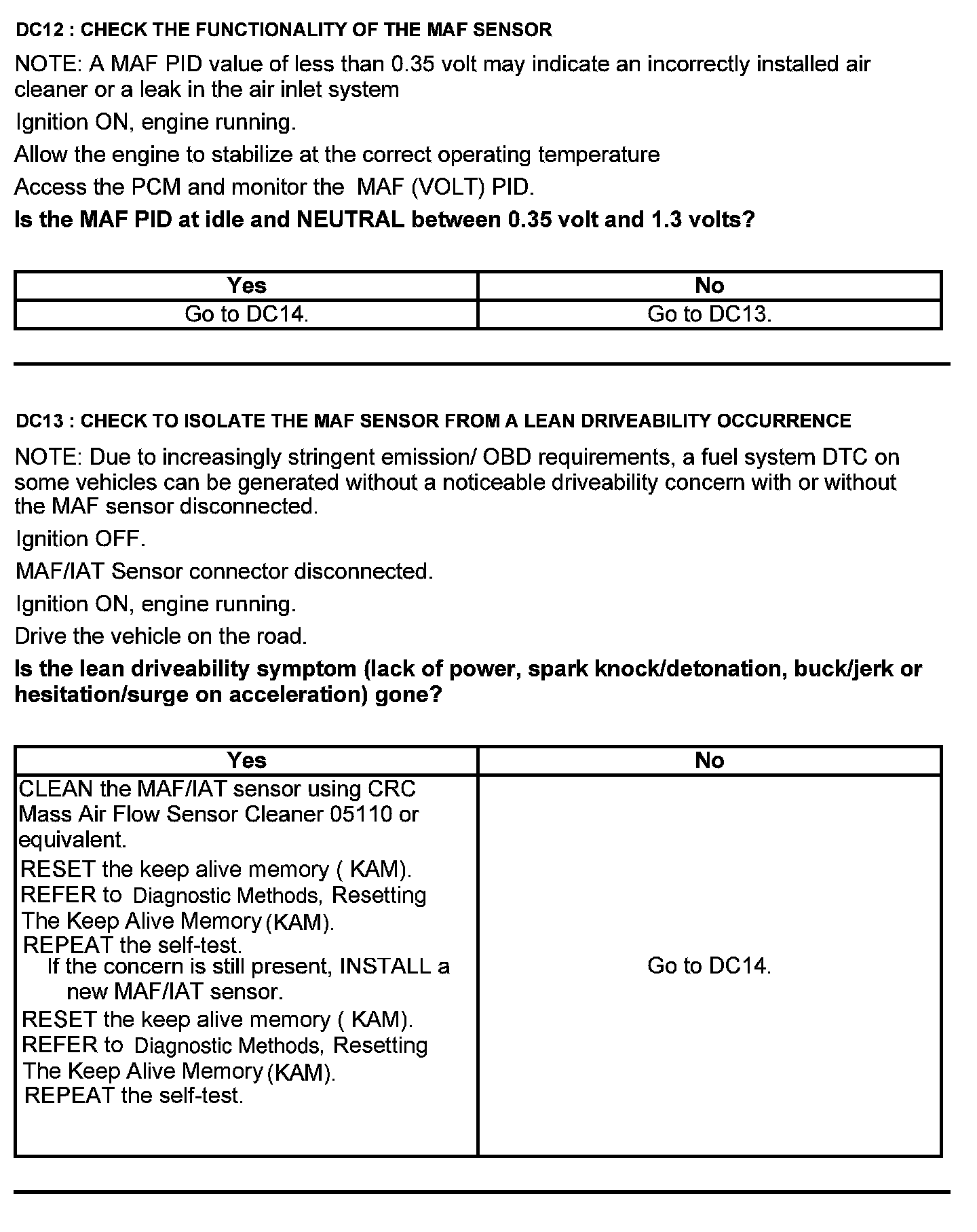

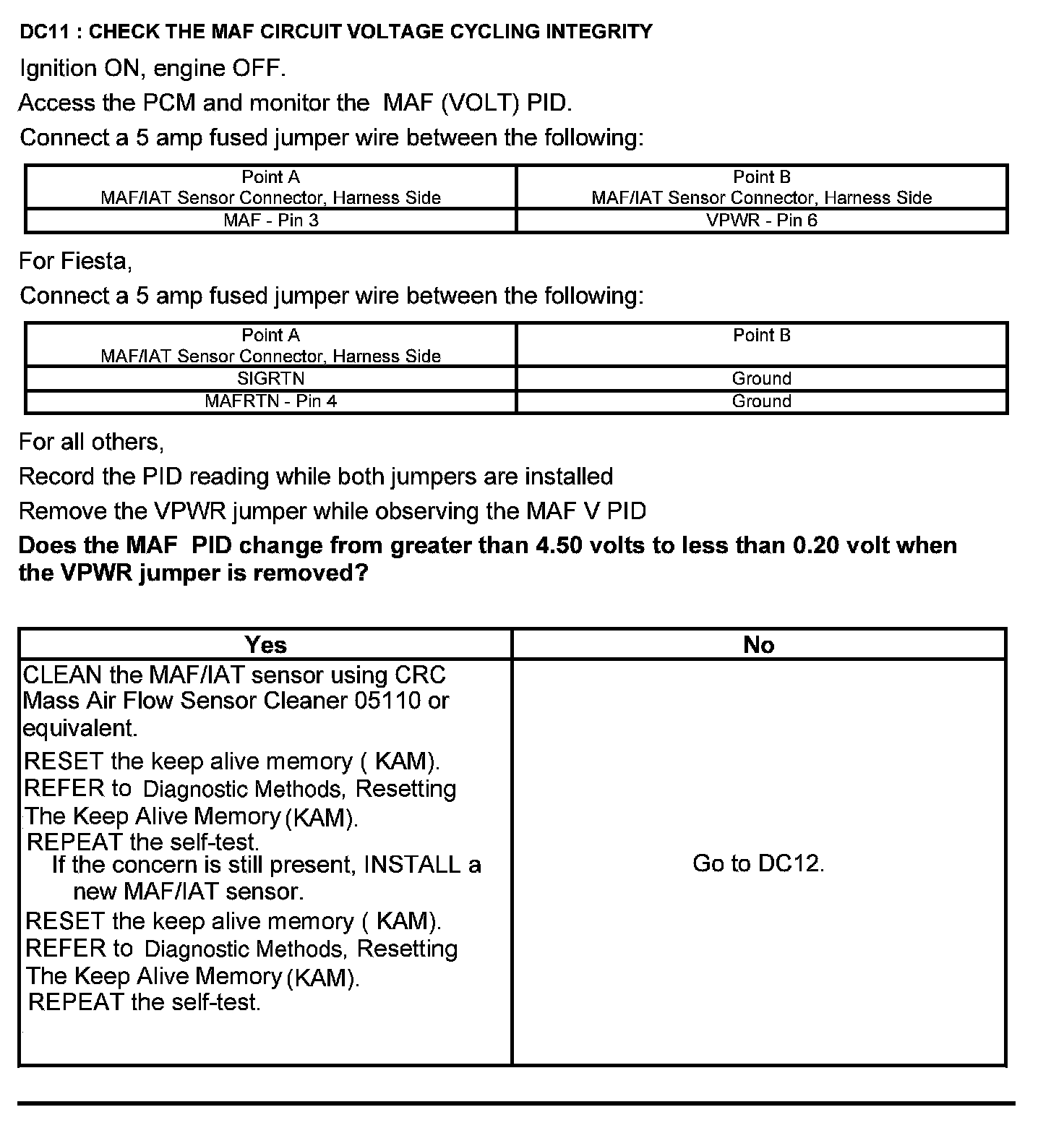

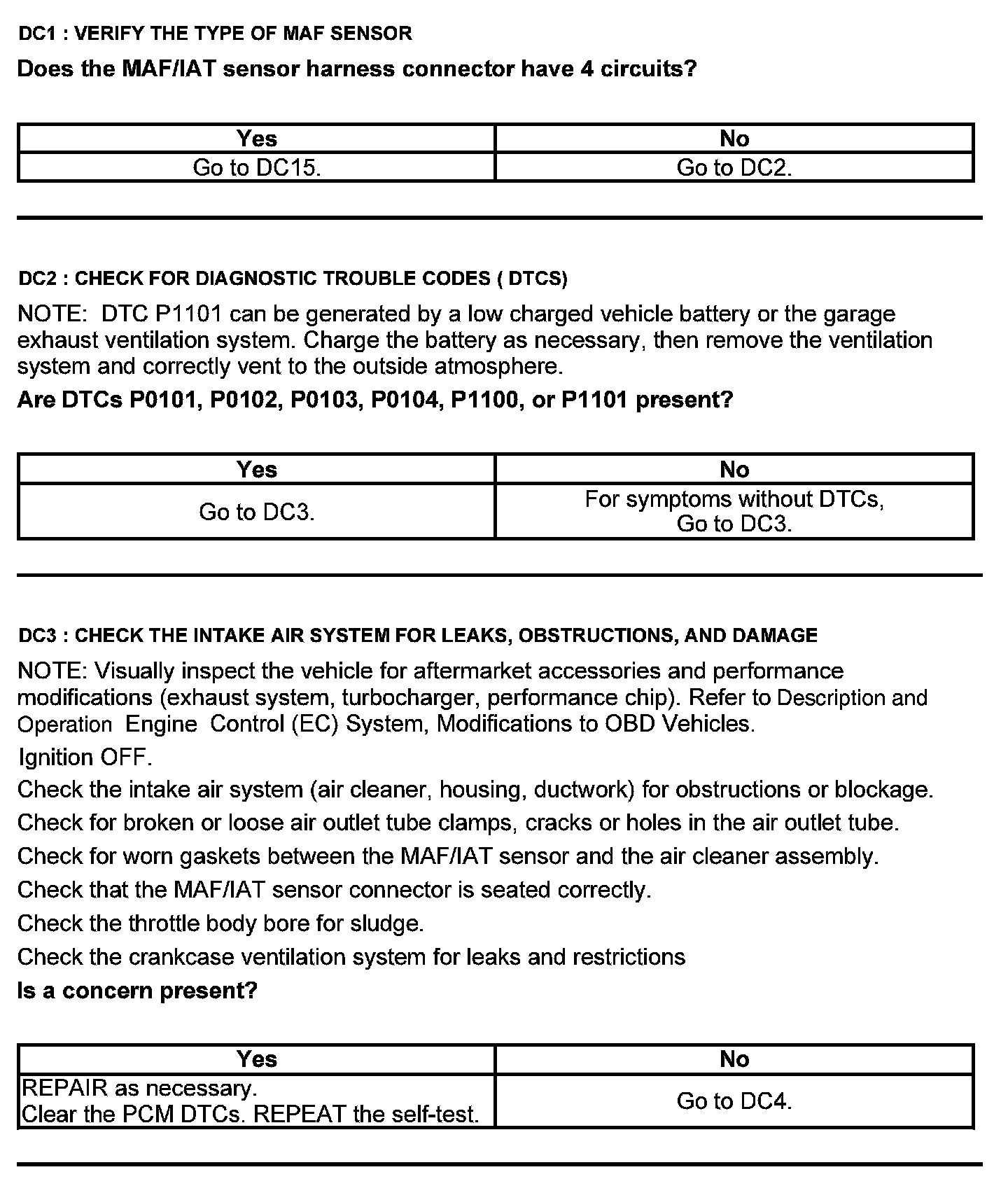

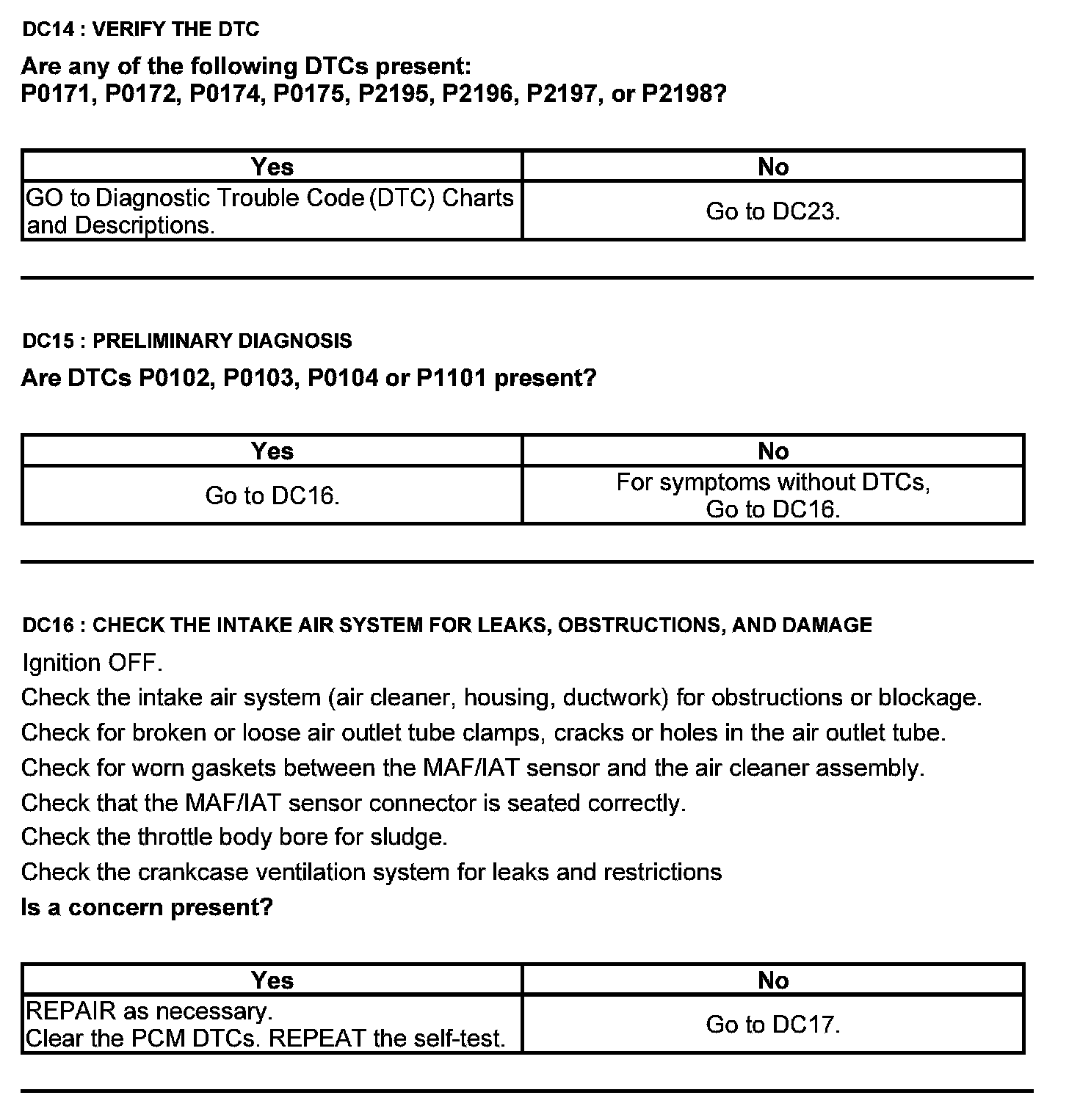

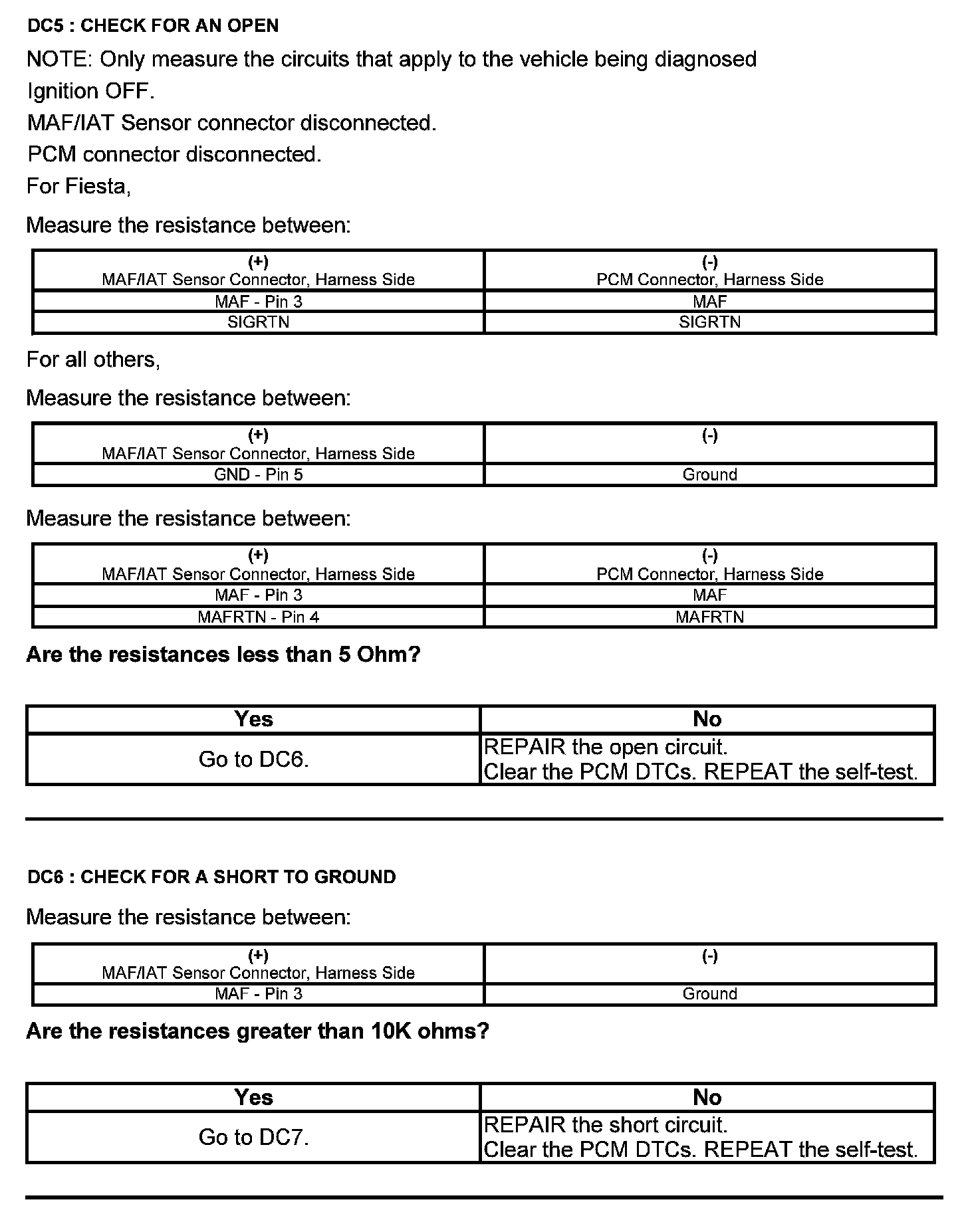

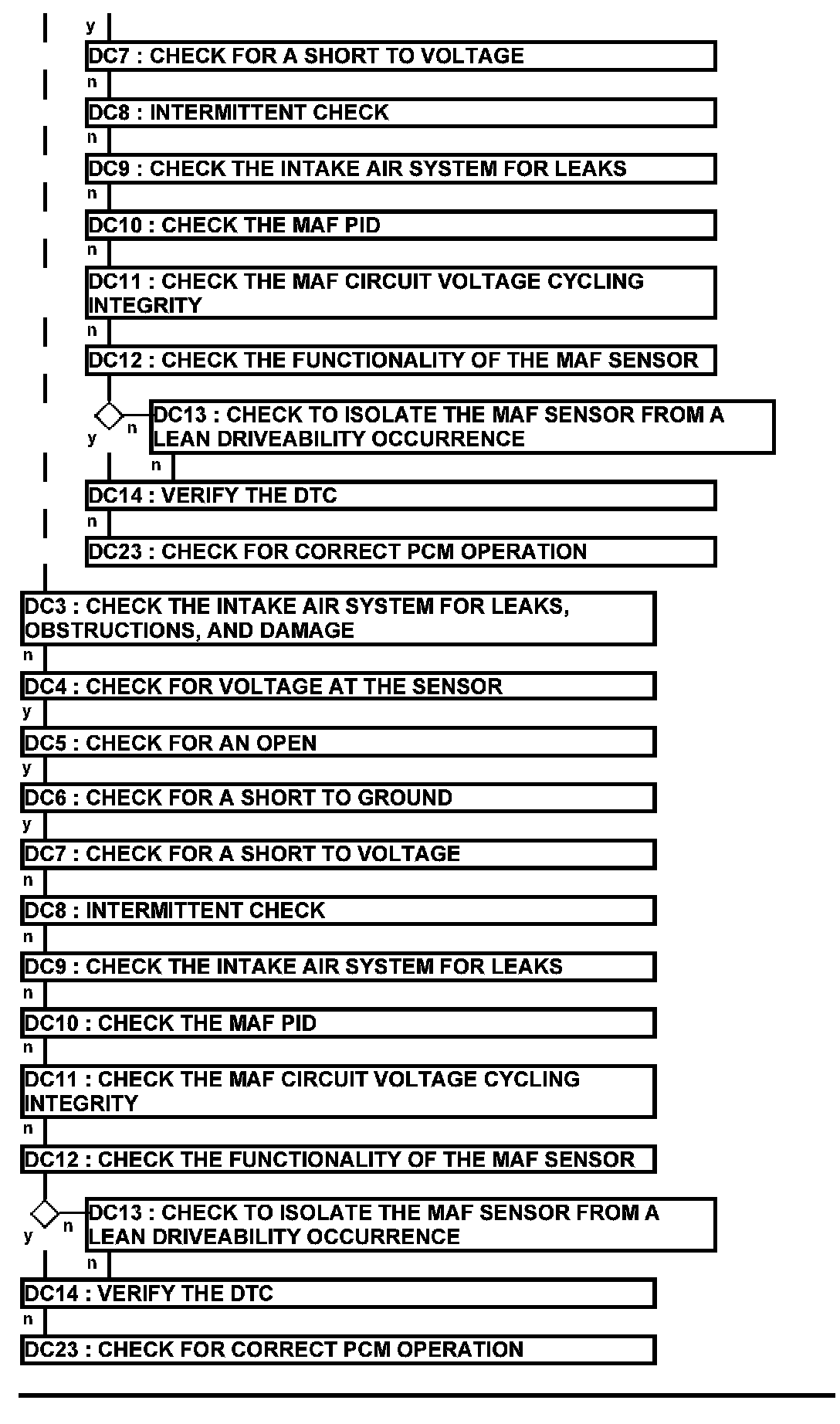

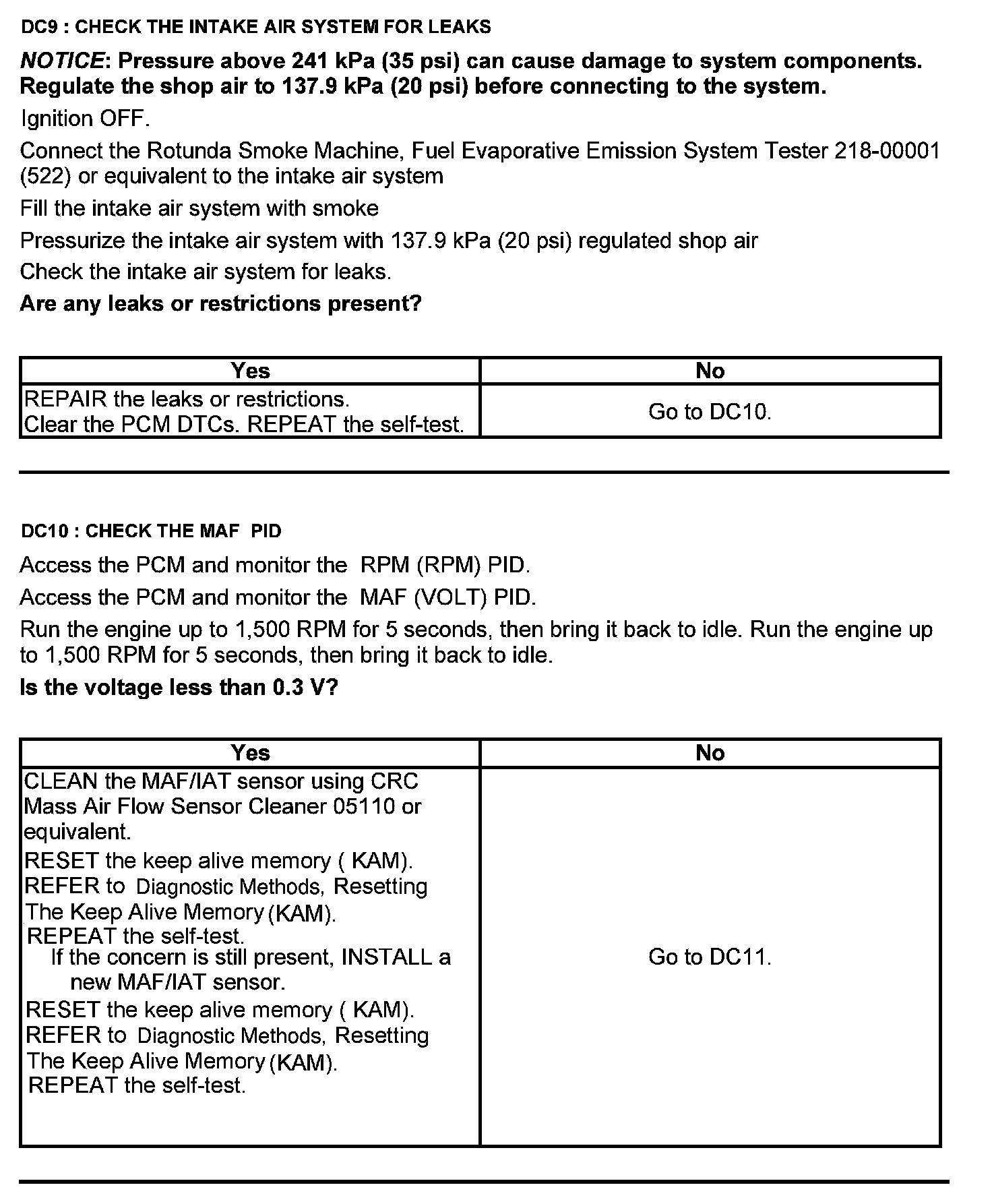

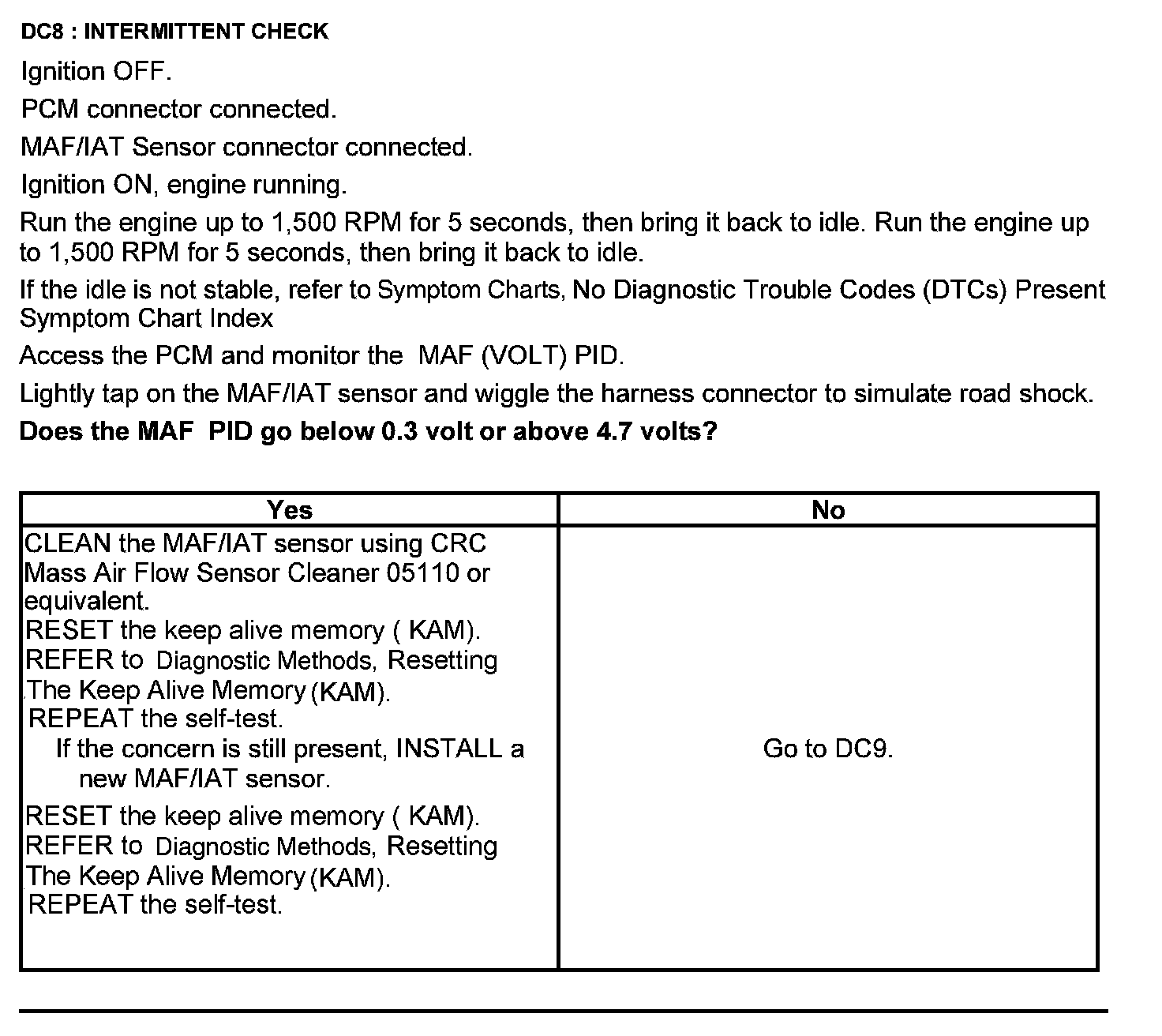

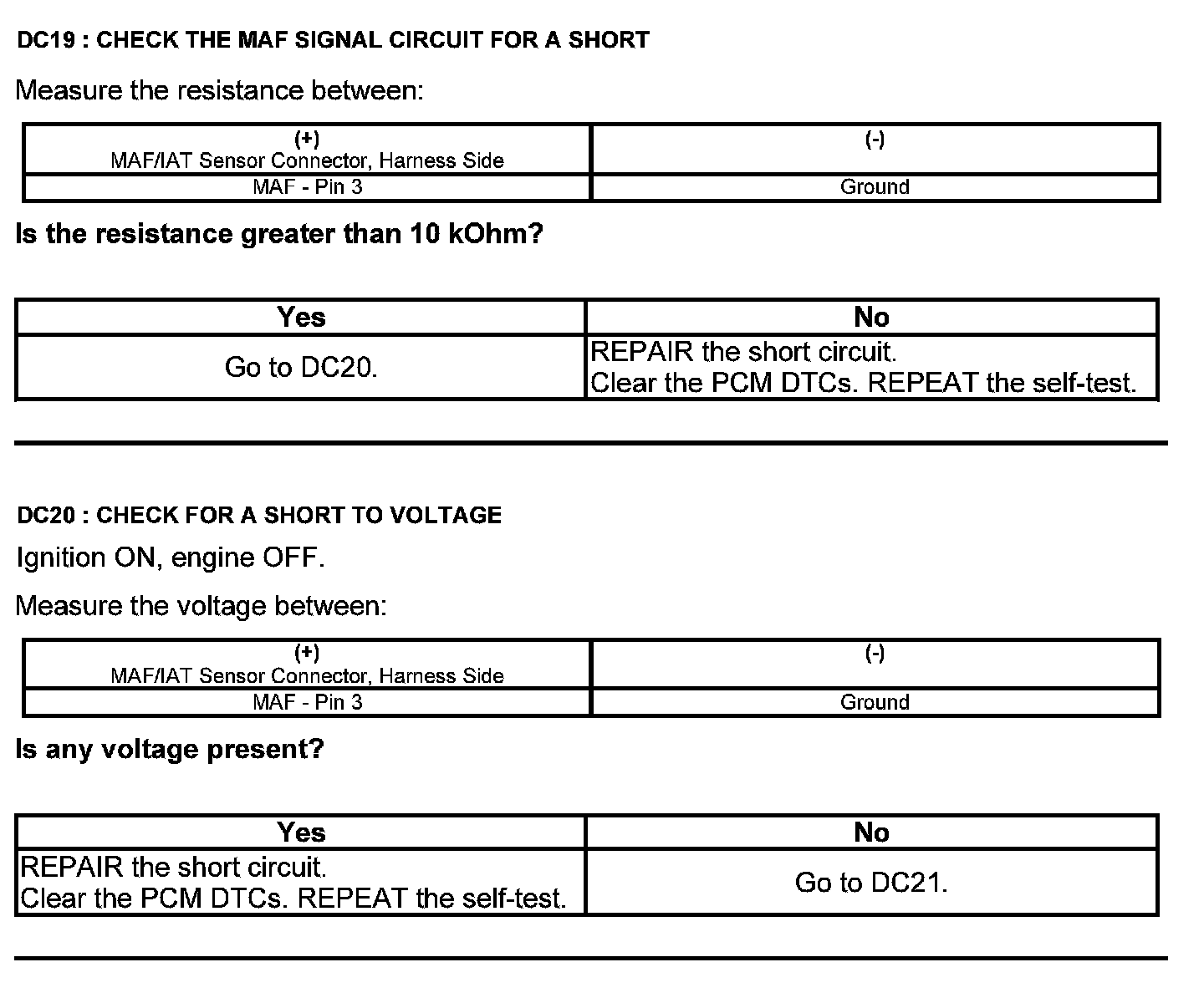

Test DC: Mass Airflow (MAF) Sensor



Mass Airflow (MAF) Sensor

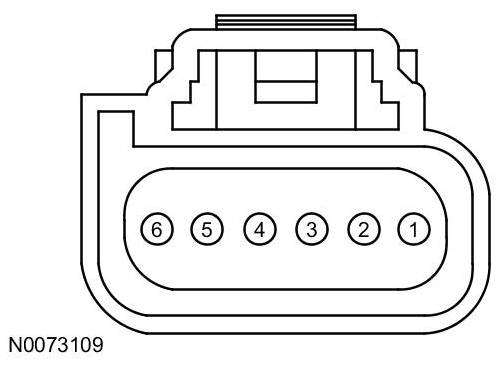

Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector





Harness Side

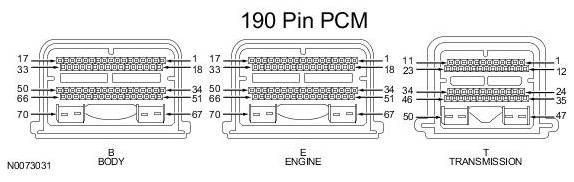

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
