Wheel Speed Sensor - Rear, Front Wheel Drive (FWD): Notes

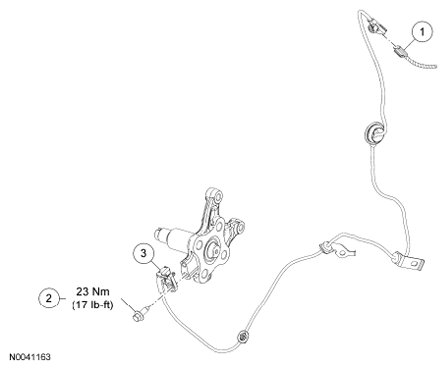

Fig 1: Wheel Speed Sensor And Bolt With Fastener Tightening Torque Specifications Table -- Rear, Front Wheel Drive (FWD)
G06257197Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector (part of 14A227)
2 W500222 Wheel speed sensor bolt
3 2C186 RH/2C187 LH Wheel speed sensor
