Selector Lever: Notes

WARNING: This page is about a different variant/trim than selected.

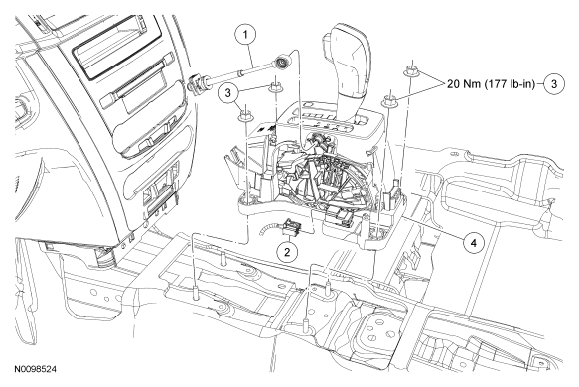

Fig 1: Exploded View Of Selector Lever With Torque Specification
G06275780Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 14489 Selector lever electrical connector
3 W714098 Selector lever nuts (4 required)
4 7K004 Selector lever assembly
