Test H: Fuel Control

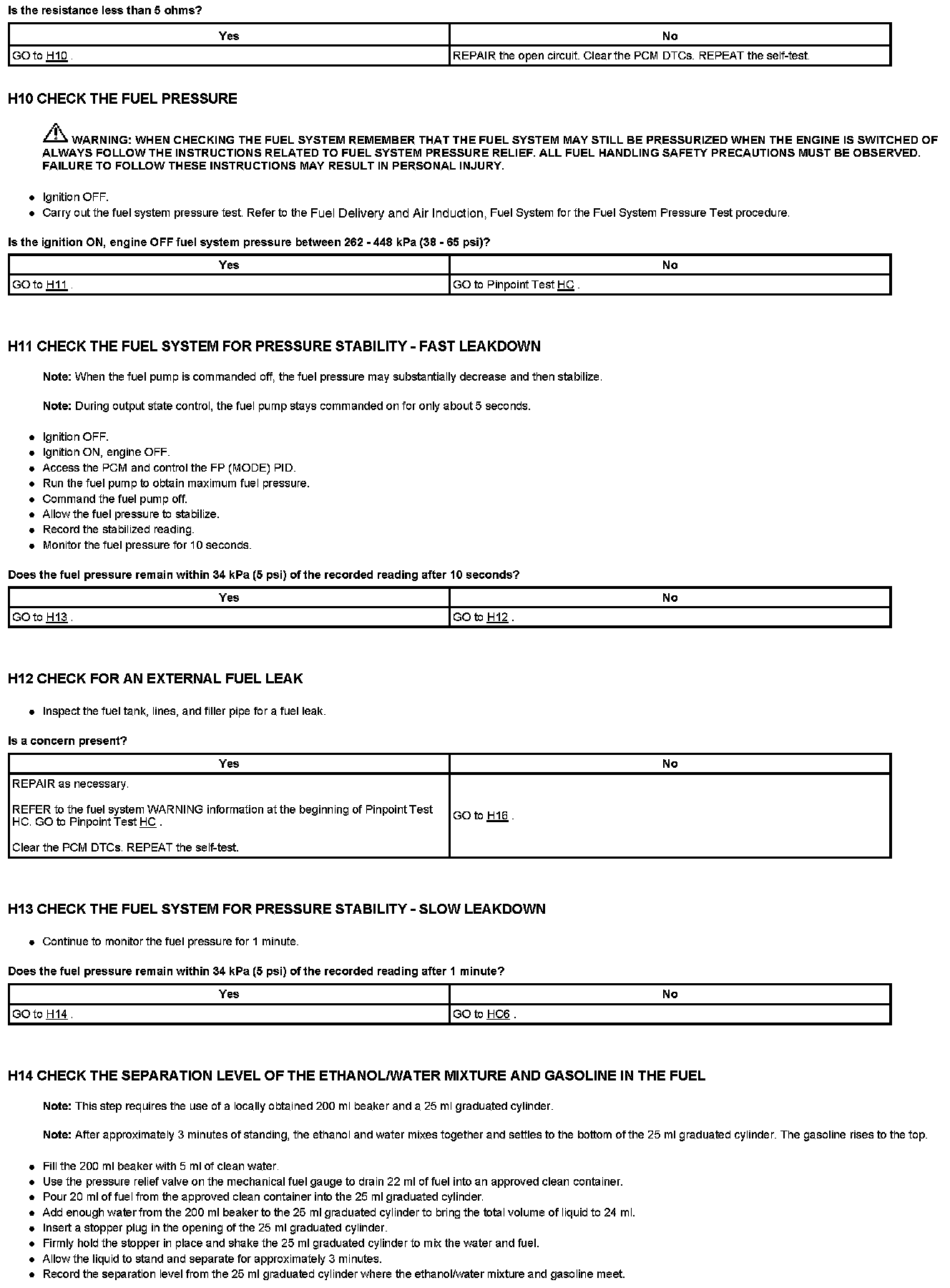

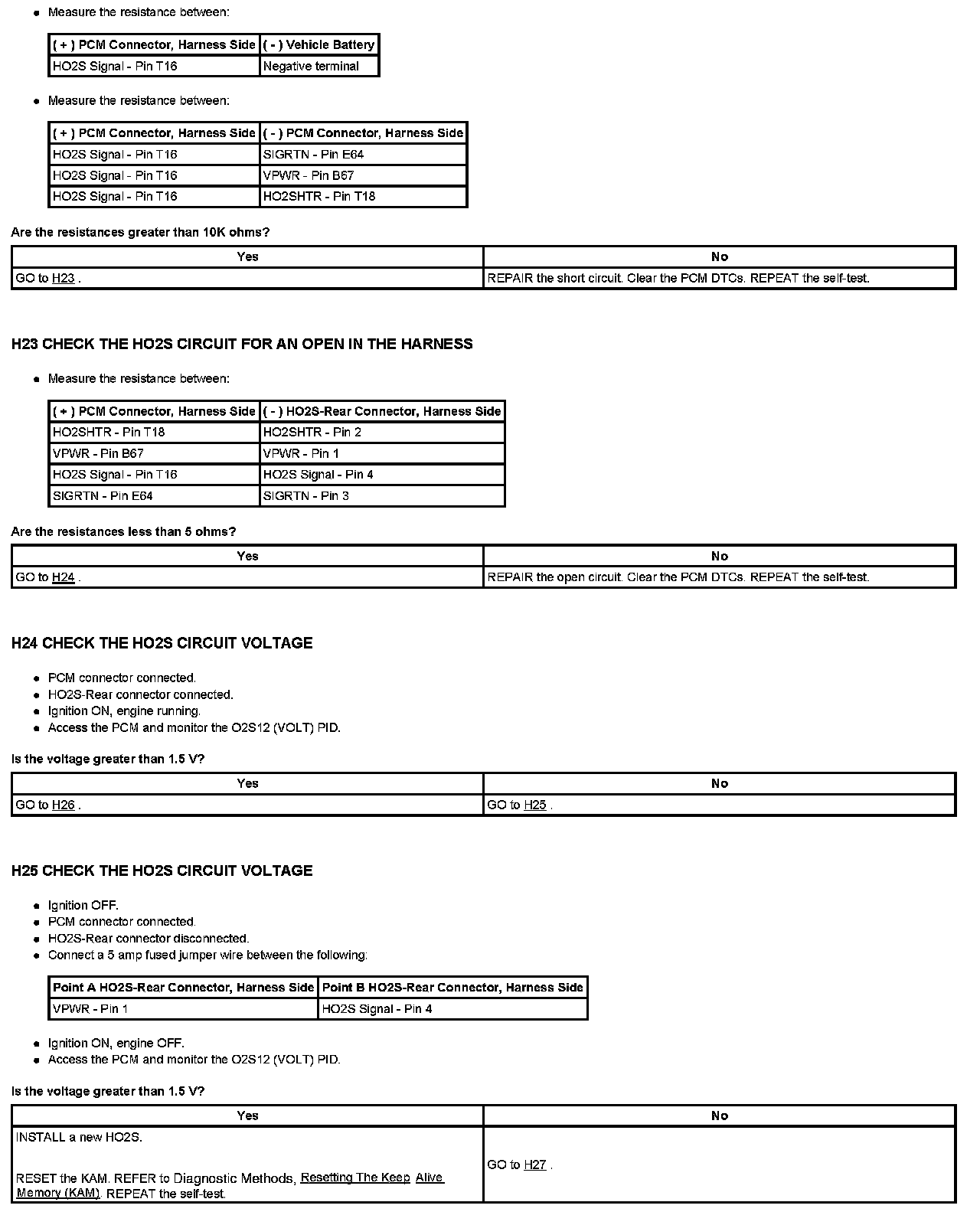

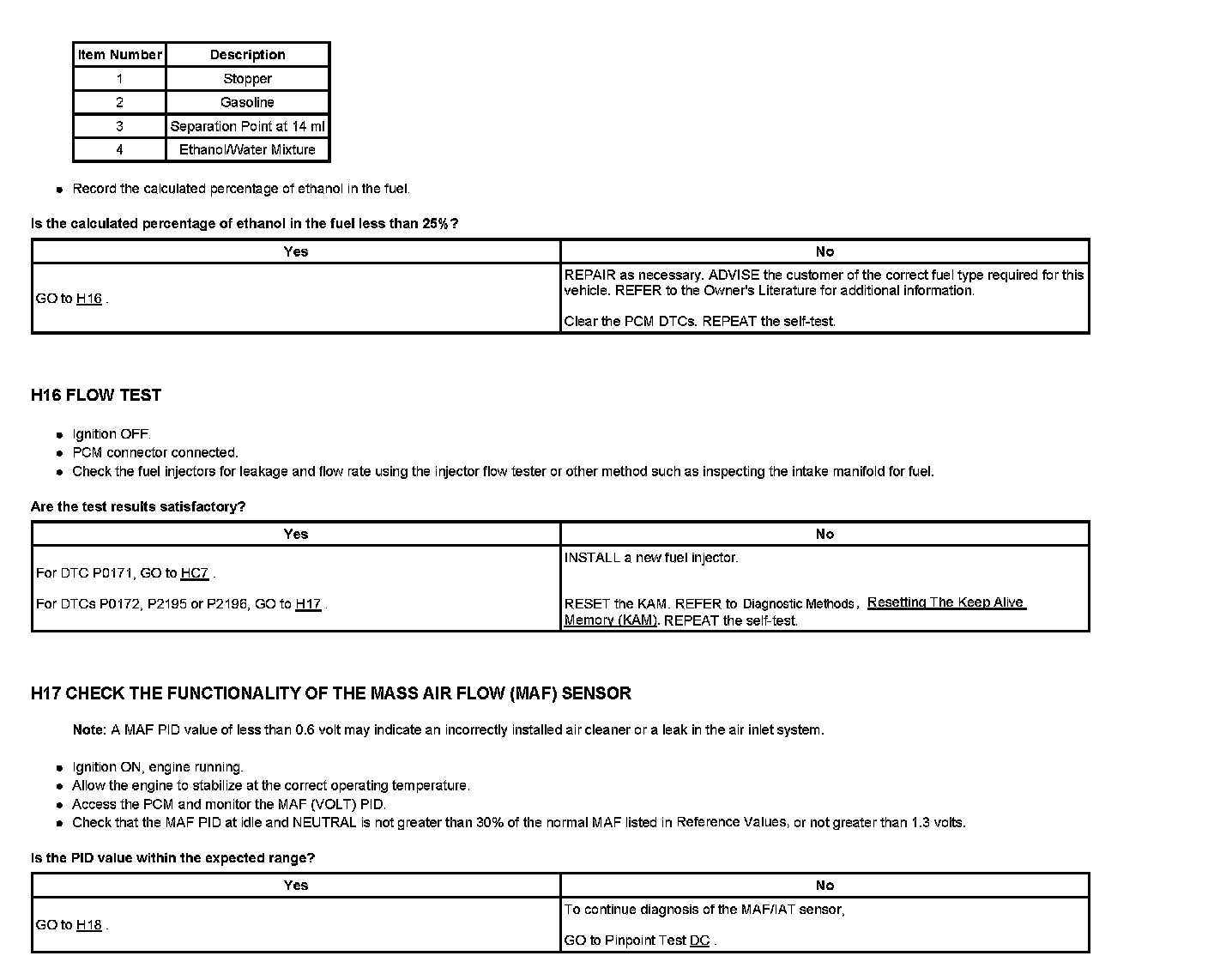

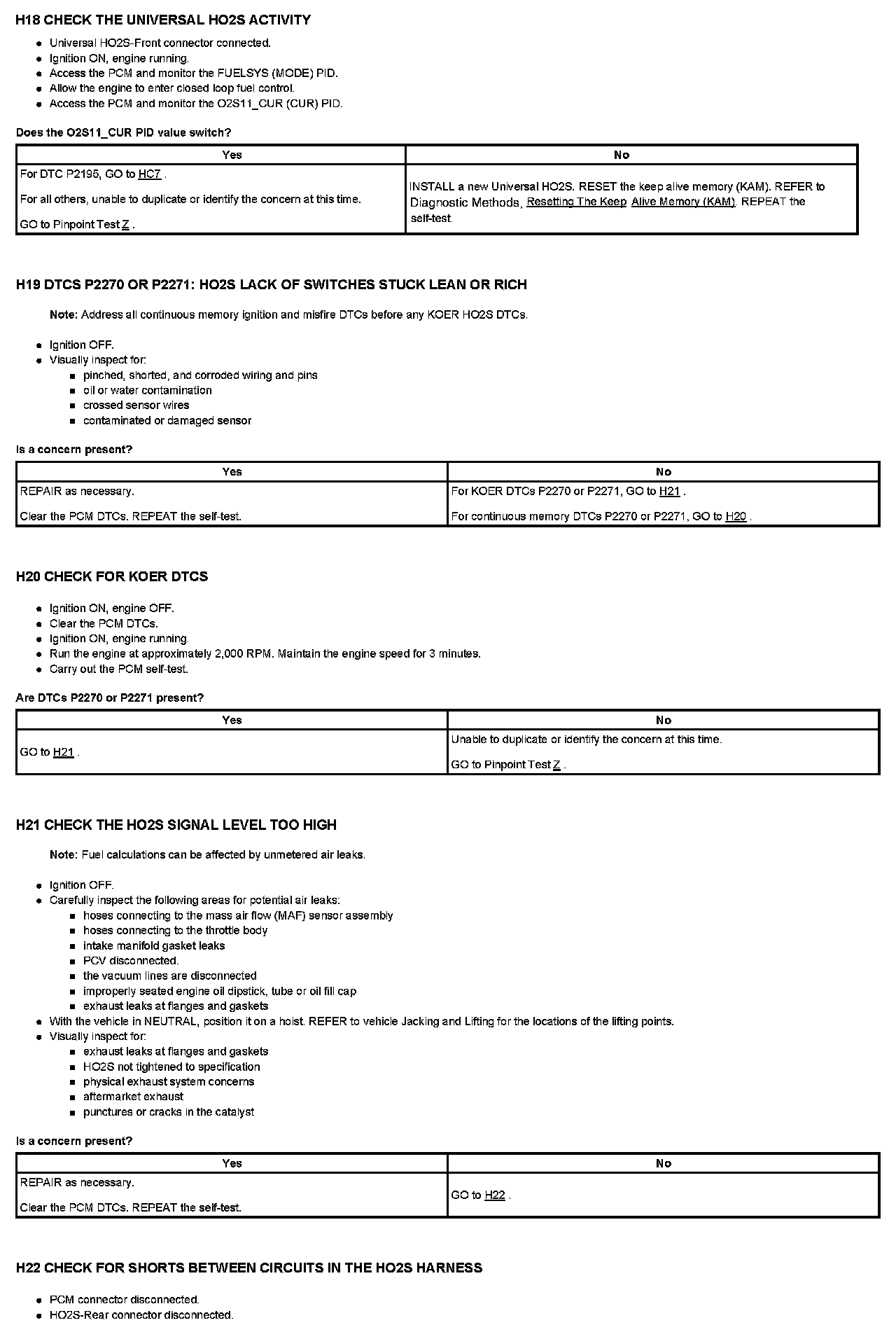

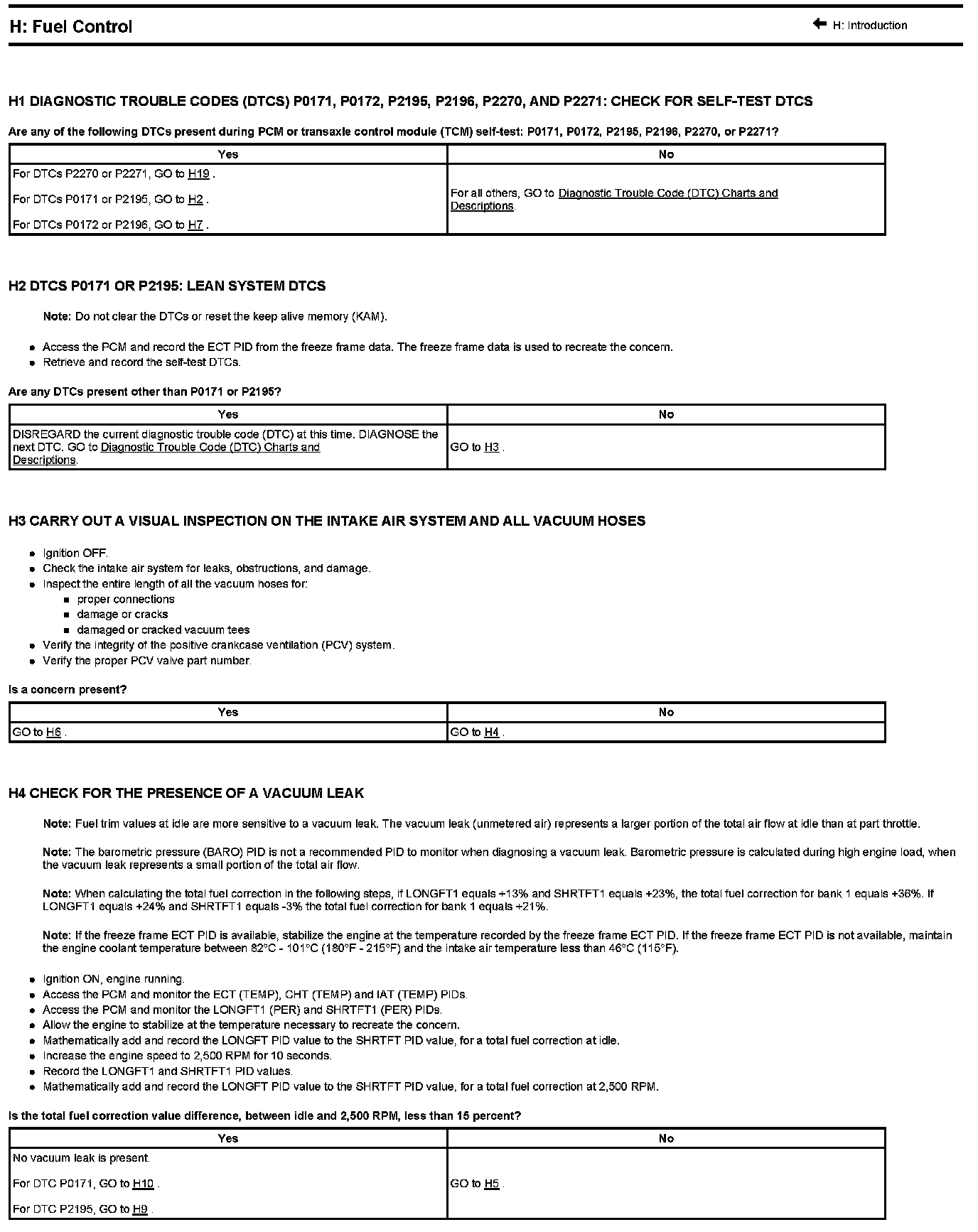

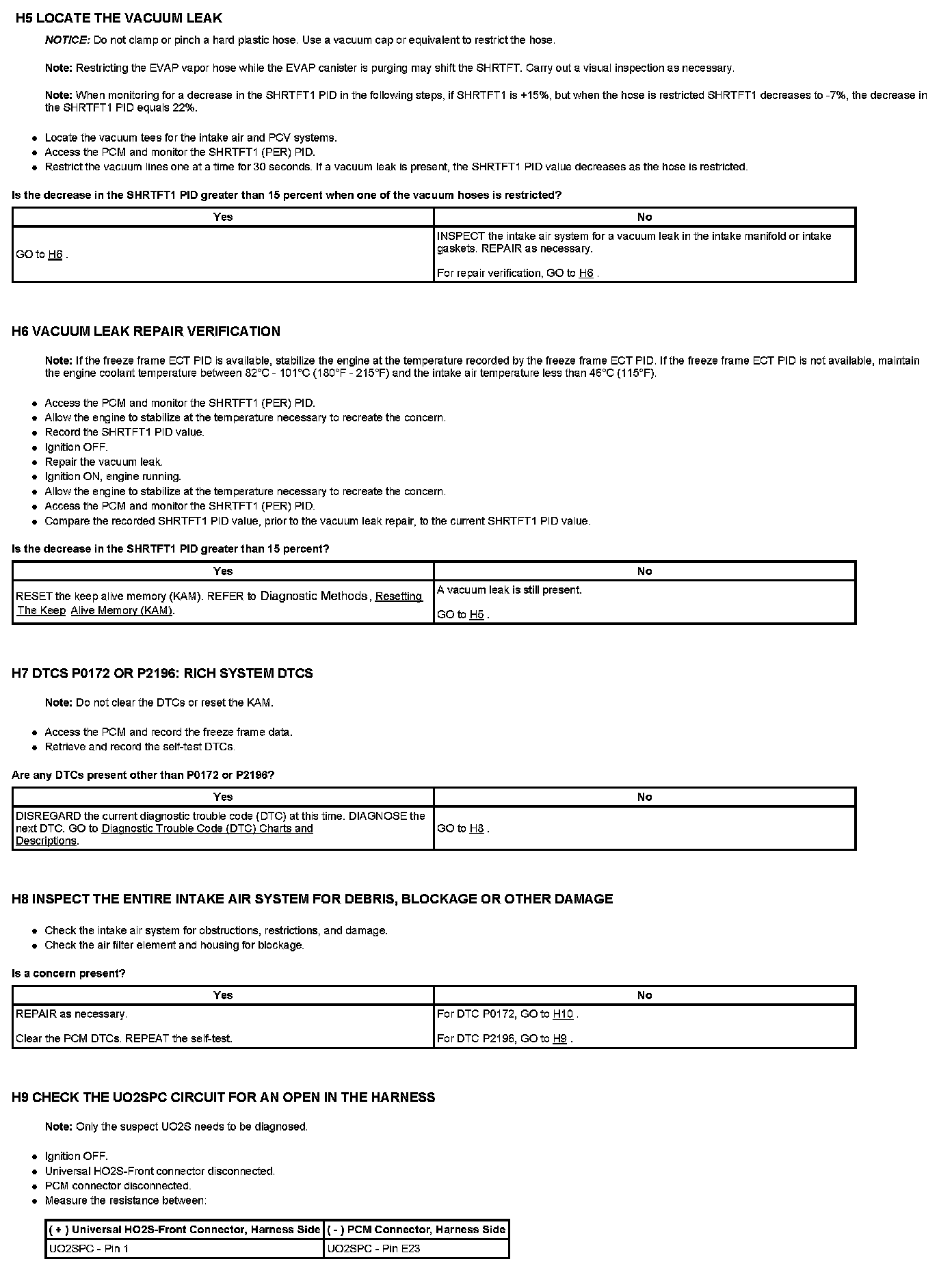

H: FUEL CONTROL







Heated Oxygen Sensor-Rear (HO2S-Rear) Connector












Universal HO2S-Front Connector

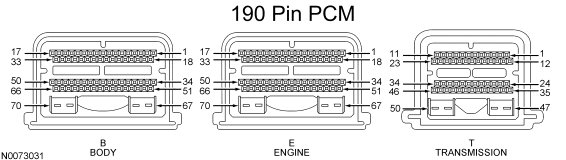

Powertrain Control Module (PCM) Connector
