Exploded Views




Exterior Mirrors - Exploded View

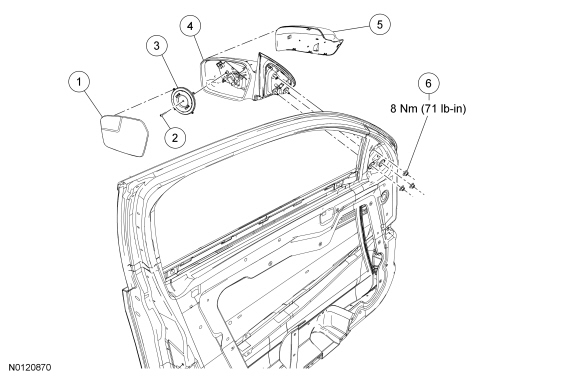

Exterior mirror with Blind Spot Information System (BLIS(R))

NOTE: LH exterior mirror shown, RH exterior mirror similar.

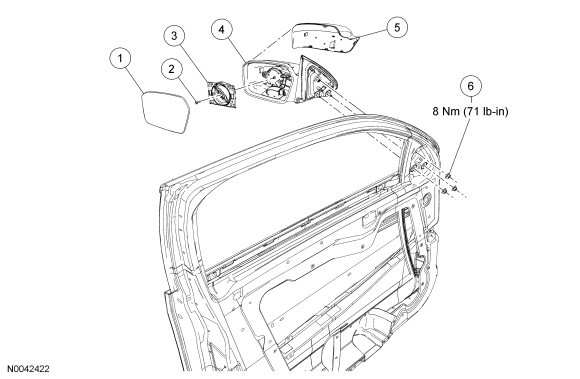

Exterior mirror with integrated spotter mirror

NOTE: LH exterior mirror shown, RH exterior mirror similar.
