Auxiliary Step / Running Board: Service and Repair

Power Running Board (PRB)

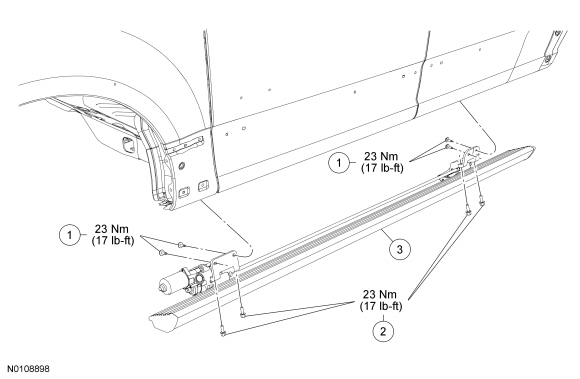

Regular Wagon

NOTE: LH shown, RH similar.

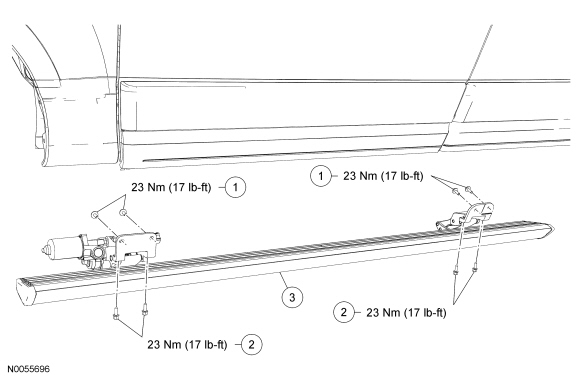

Extended Wagon









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: If the Power Running Board (PRB) cannot be extracted, extend the running board by hand.

Extend the PRB (Power Running Board).


3. Disconnect the PRB (Power Running Board) motor electrical connector.





4. NOTICE: An assistant is required to hold the Power Running Board (PRB) before removing the lower bolts. Failure to follow this instruction may result in damage to the component.

NOTE: Only 3 bolts shown.

Remove the front PRB (Power Running Board) upper and lower bolts.
- To install, tighten to 23 Nm (17 lb-ft).






5. Remove the rear PRB (Power Running Board) upper and lower bolts and remove the PRB (Power Running Board) assembly.
- To install, tighten to 23 Nm (17 lb-ft).






6. To install, reverse the removal procedure.
