Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> C160 Wheel Speed Sensor, Right Front
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

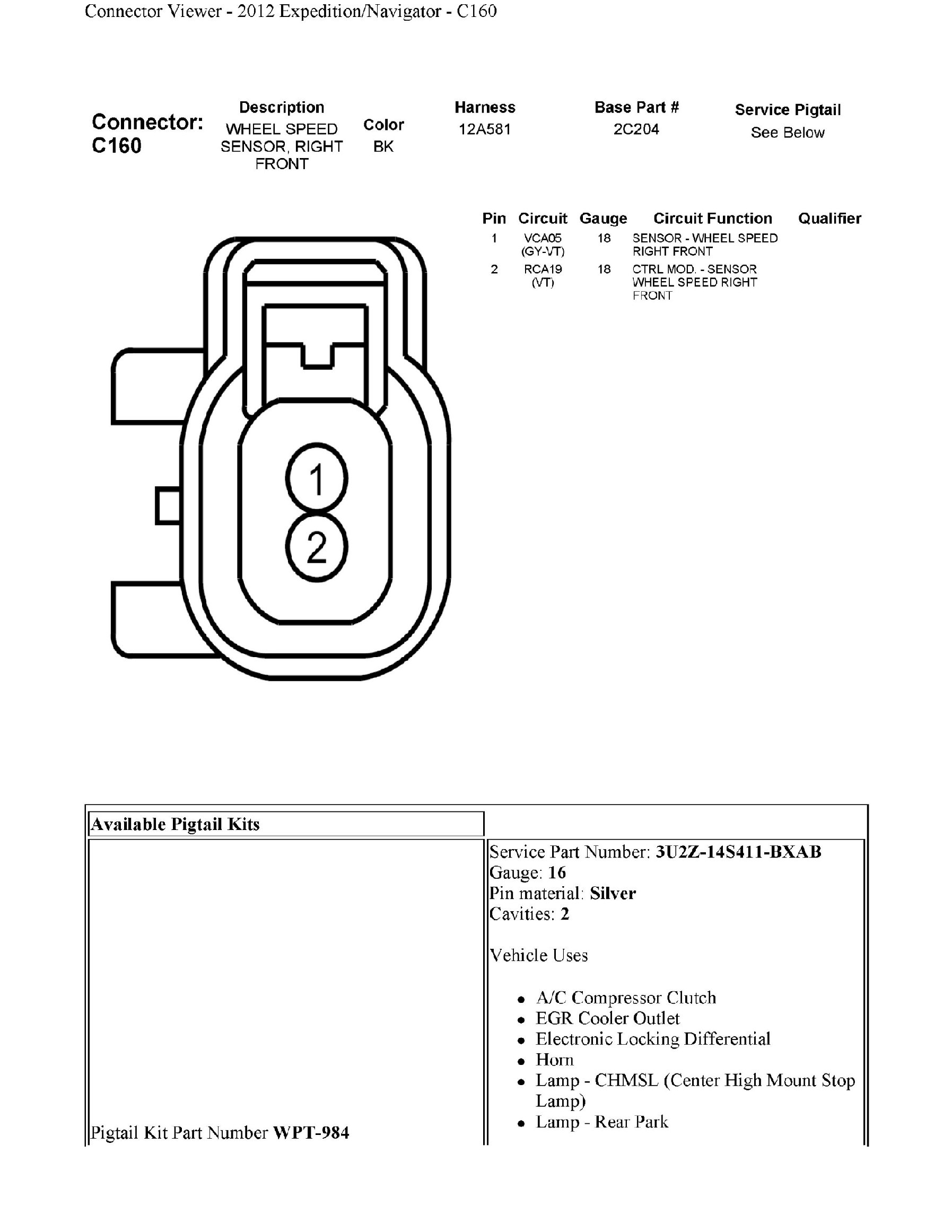

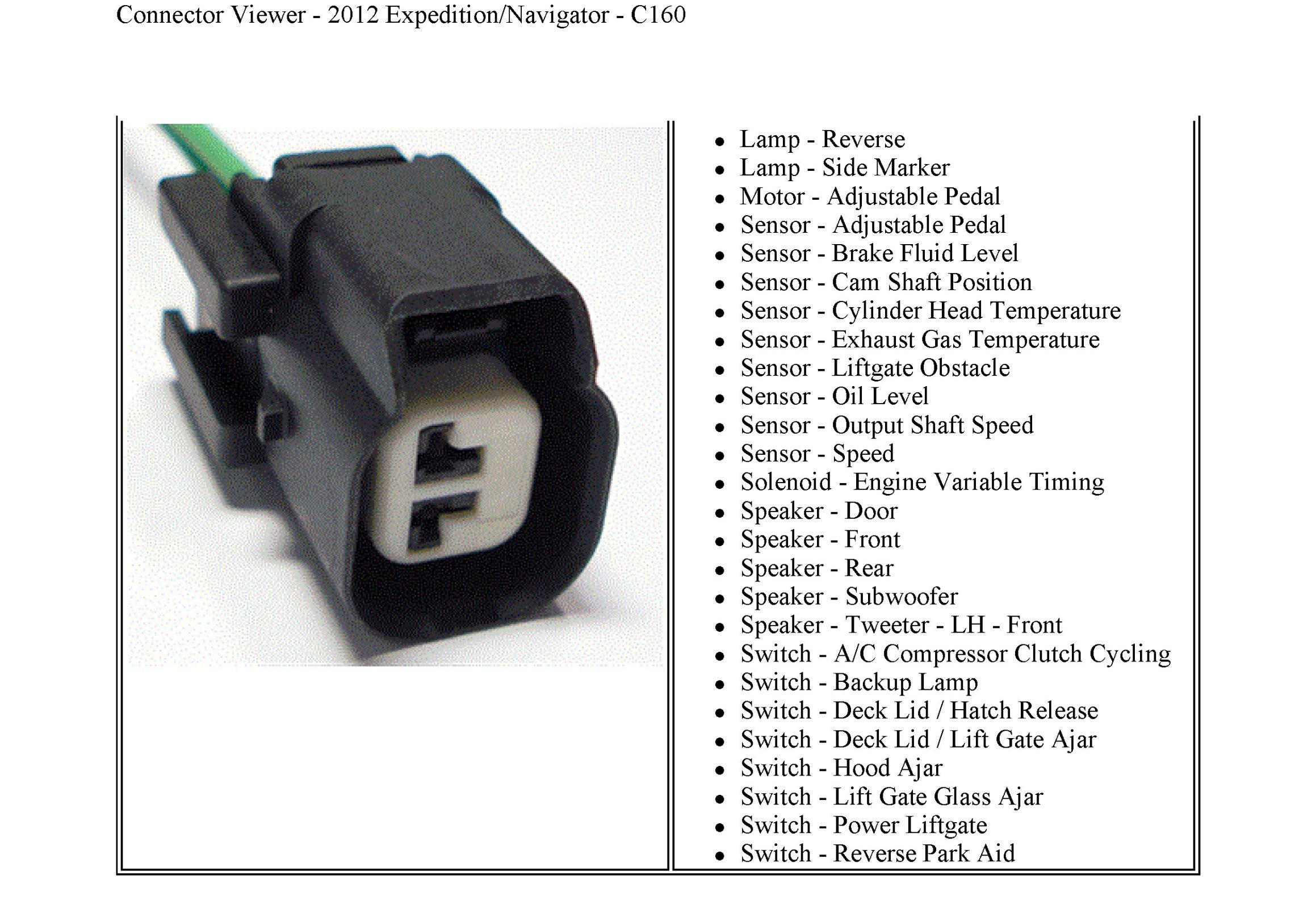

C160 Wheel Speed Sensor, Right Front
