Home >> Lincoln >> 2013 >> MKS Base, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System And Stability Control >> Description And Operation >> Anti-Lock Brake System (ABS) and Stability Control >> System Operation >> System Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

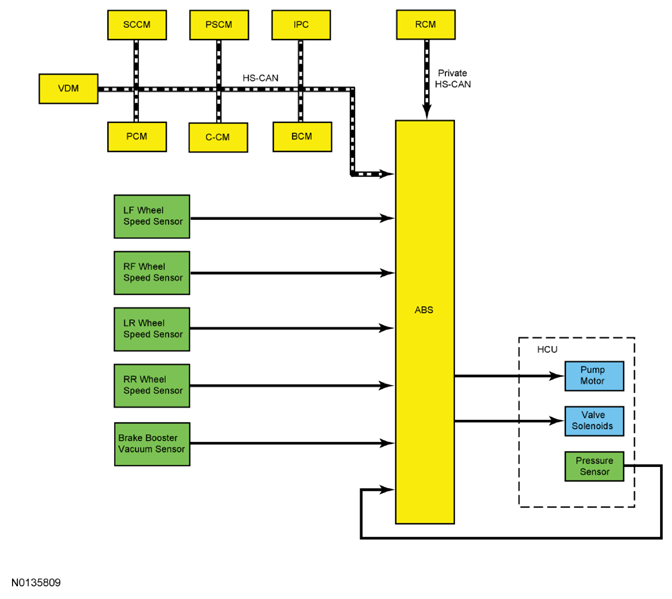

System Diagram

G08746703
