Battery Current Sensor Connector End View (C1646)

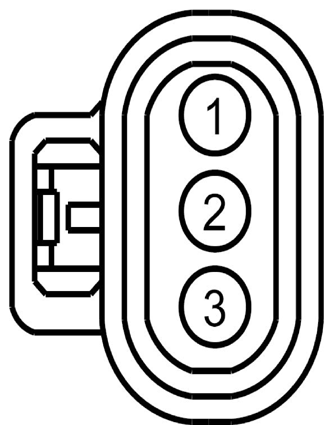

Fig 1: Battery Current Sensor Connector End View (C1646)
G09080772Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 LDC59 (WH-BU) 20 CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR +
2 RDC59 (GY-BN) 20 CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR -
3 SDC57 (OG-BU) 20 CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR
Available Pigtail Kits

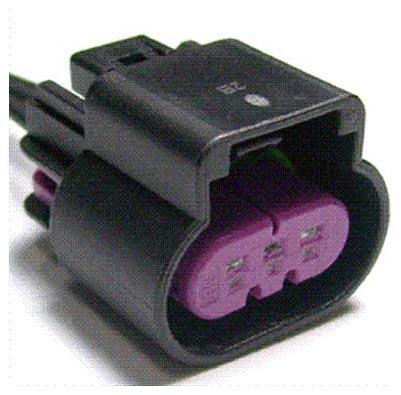

Pigtail Kit Part Number WPT-1144
G09080773
 Service Part Number: BU2Z-14S411-EA
Gauge: 16
Pin material: Tin (greased)
Cavities: 3
Vehicle Uses
  • Sensor - Battery Current
  • Sensor - Fuel Tank Pressure Transducer
