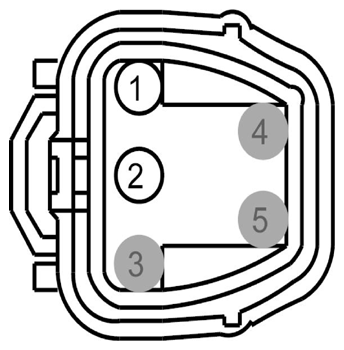

Fuel Level Sensor Connector End View (C3270)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RMC33 (WH-VT) | 20 | CTRL MOD. - SENSOR FUEL LEVEL 2 | |
| 2 | VMC23 (GN-OG) | 20 | SENSOR - FUEL LEVEL 2 (FLI) | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used |

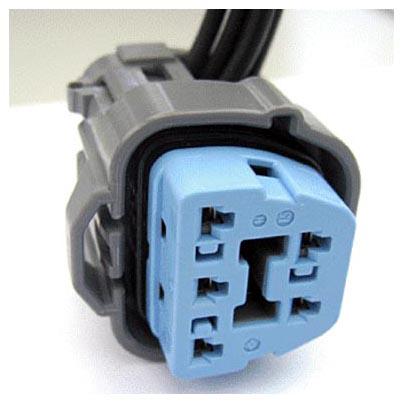

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-909 | Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses
|
