Start/Stop Switch Connector End View (C2195)

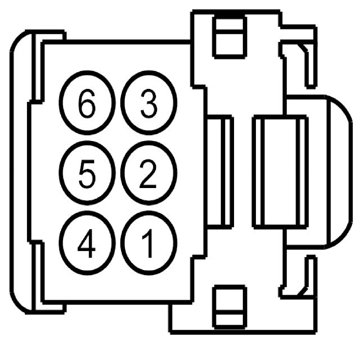

Fig 1: Start/Stop Switch Connector End View (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # START
2	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
3	GD375 (BK-BU)	22	GROUND - TUNNEL # 2ND POINT (BC3T)
4	SBP26 (YE-RD)	26	FUSE - 26 OR CIRCUIT BREAKER
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
6	CPK35 (YE-OG)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +

Available Pigtail Kits

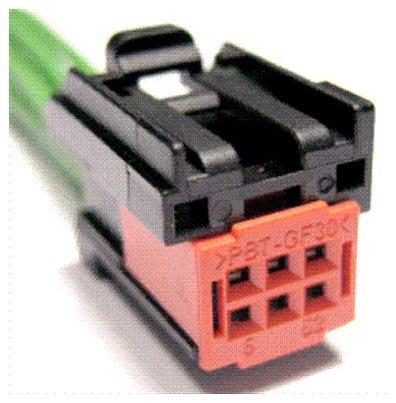

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

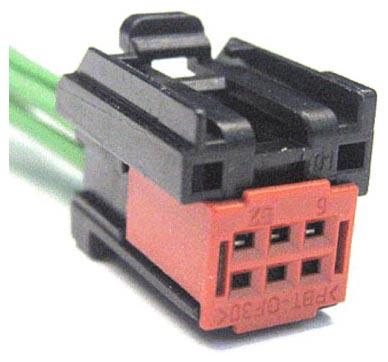

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
