AUTOLAMP/SUNLOAD Sensor Connector End View (C286)

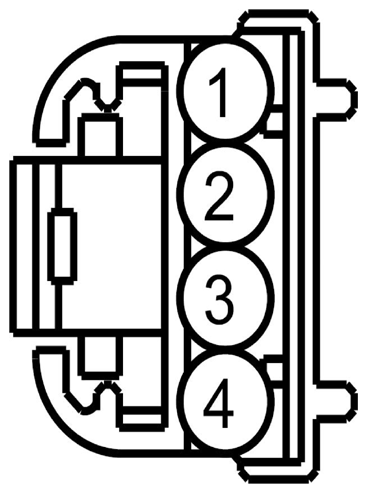

Fig 1: Autolamp/Sunload Sensor Connector End View (C286)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
2	VLF14 (BU-BN)	26	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +
3	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT
4	GD374 (BK-WH)	20	GROUND - TUNNEL (BC3T)

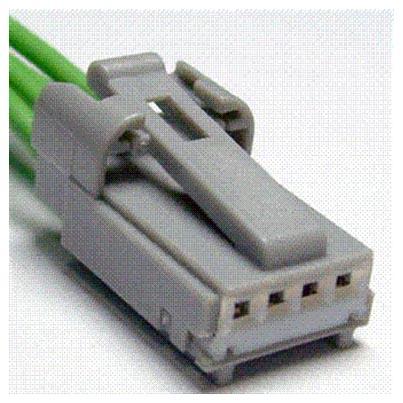

Available Pigtail Kits
Pigtail Kit Part Number WPT-1013	Service Part Number: 9U2Z-14S411-TA  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Sensor - Sunload
