Antenna Module Connector End View (C2086)

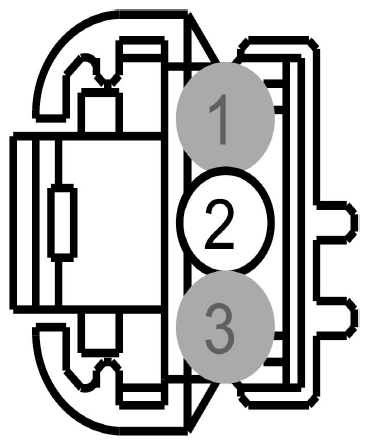

Fig 1: Identifying Antenna Module Connector (C2086)
G08728260Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * * Not Used
2 VME43 (BK) 18 CTRL MOD. - ANTENNA # SATELLITE DIGITAL RADIO
3 * * Not Used
Available Pigtail Kits
Pigtail Kit Part Number WPT-911

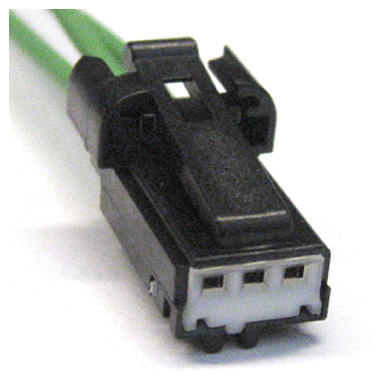

G08728261
 Service Part Number: 8U2Z-14S411-LA
Gauge: 18
Pin material: Silver
Cavities: 3
Vehicle Uses
