Component Location Views

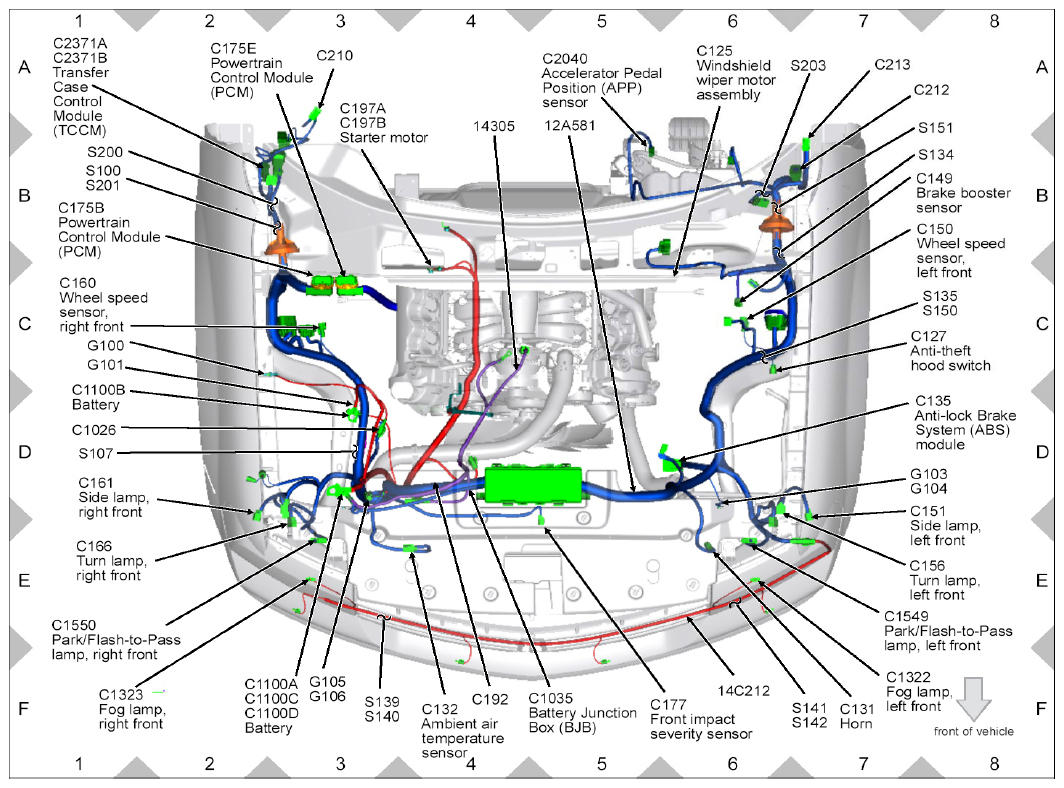

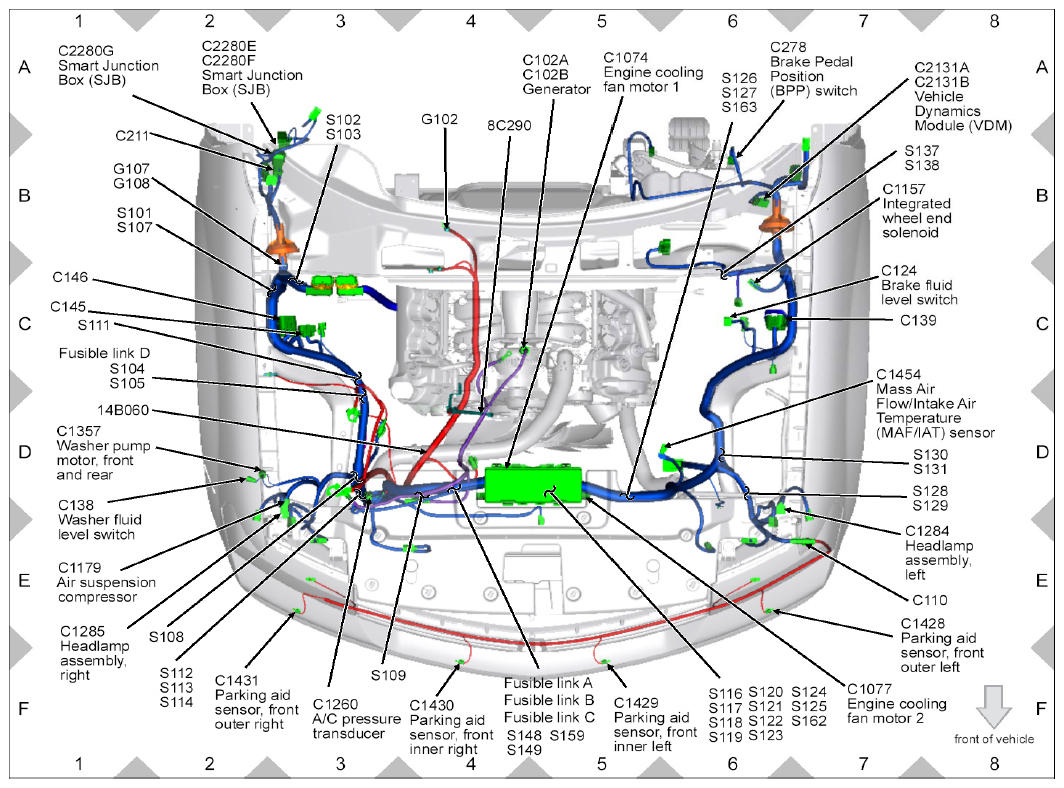

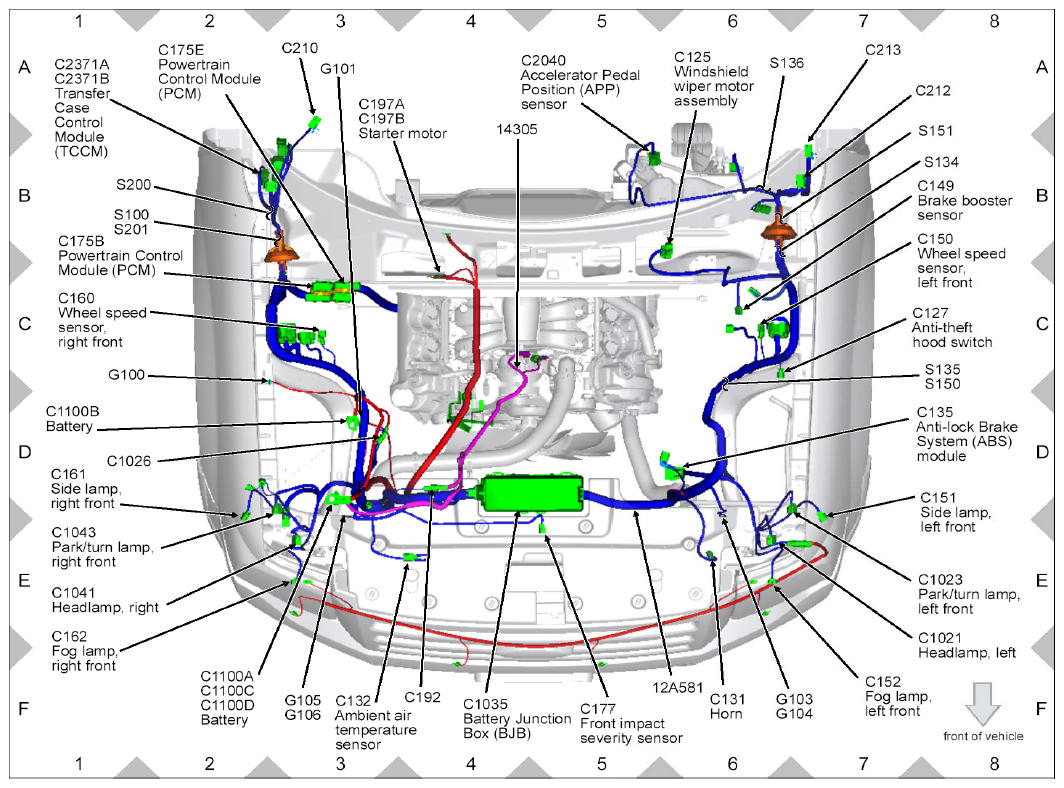

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.

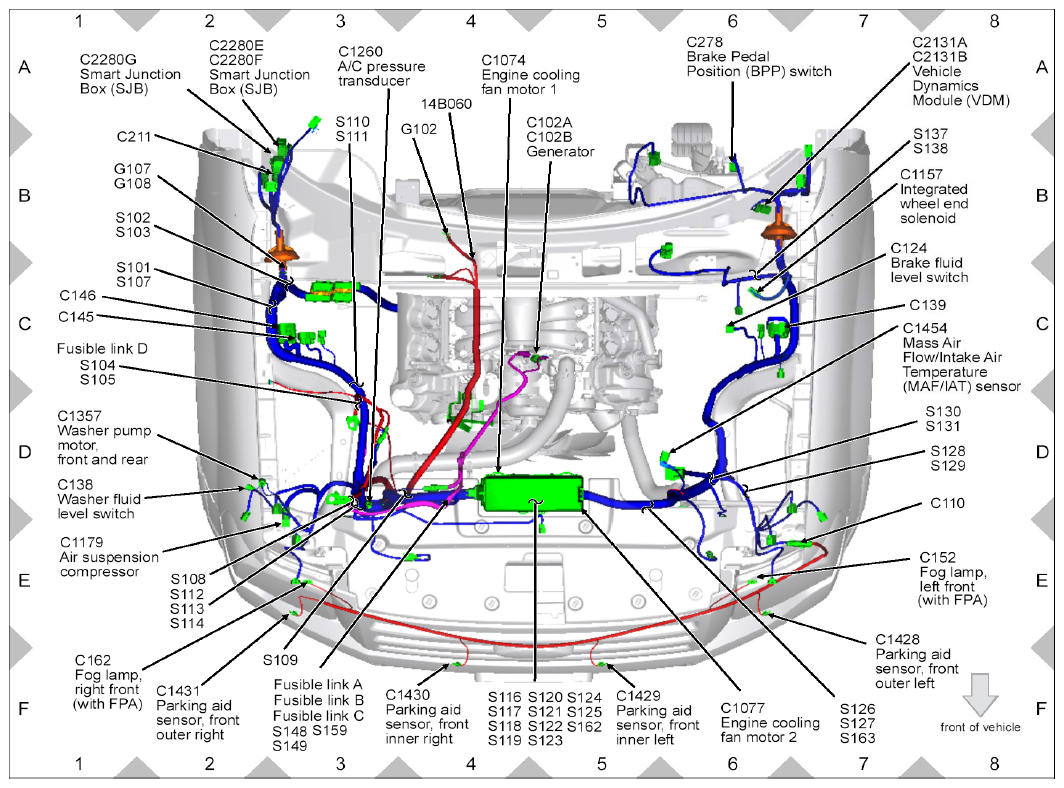

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

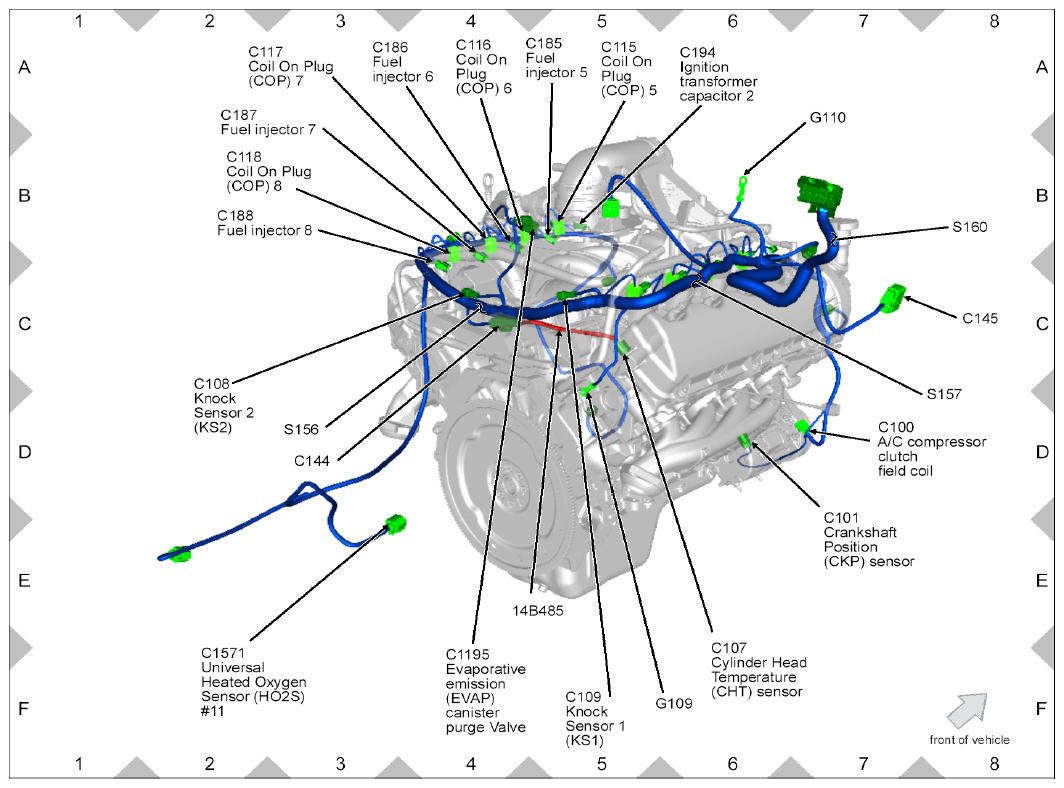

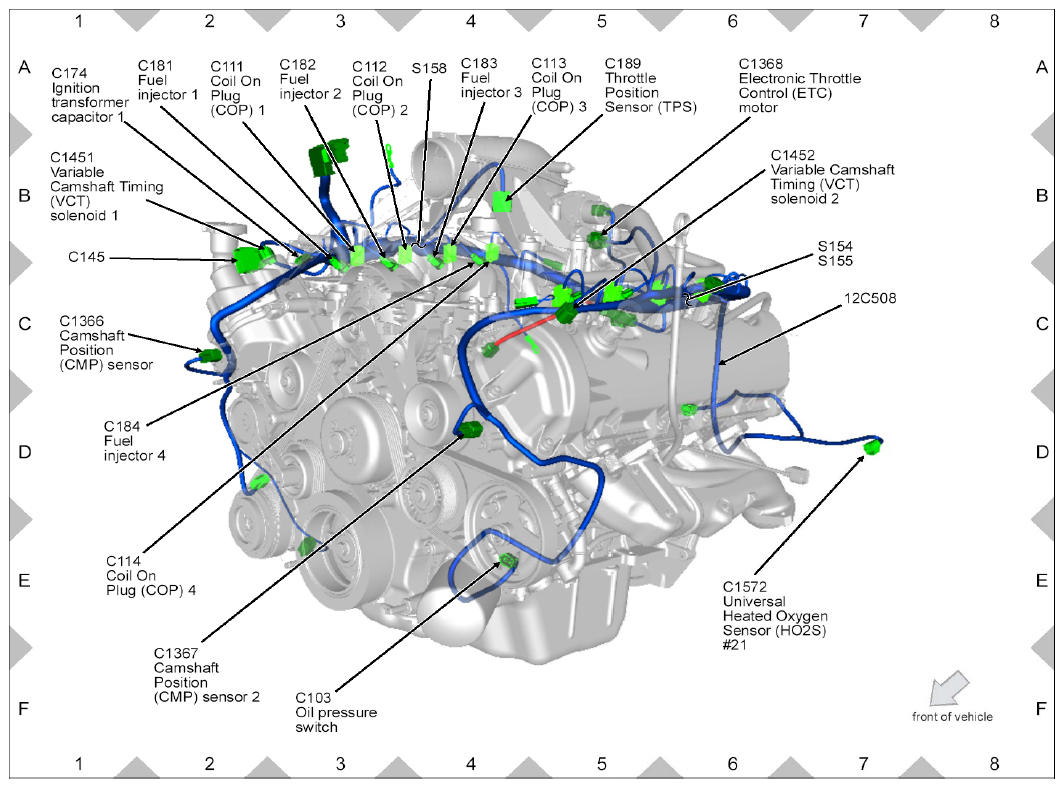

Fig 5: Engine Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

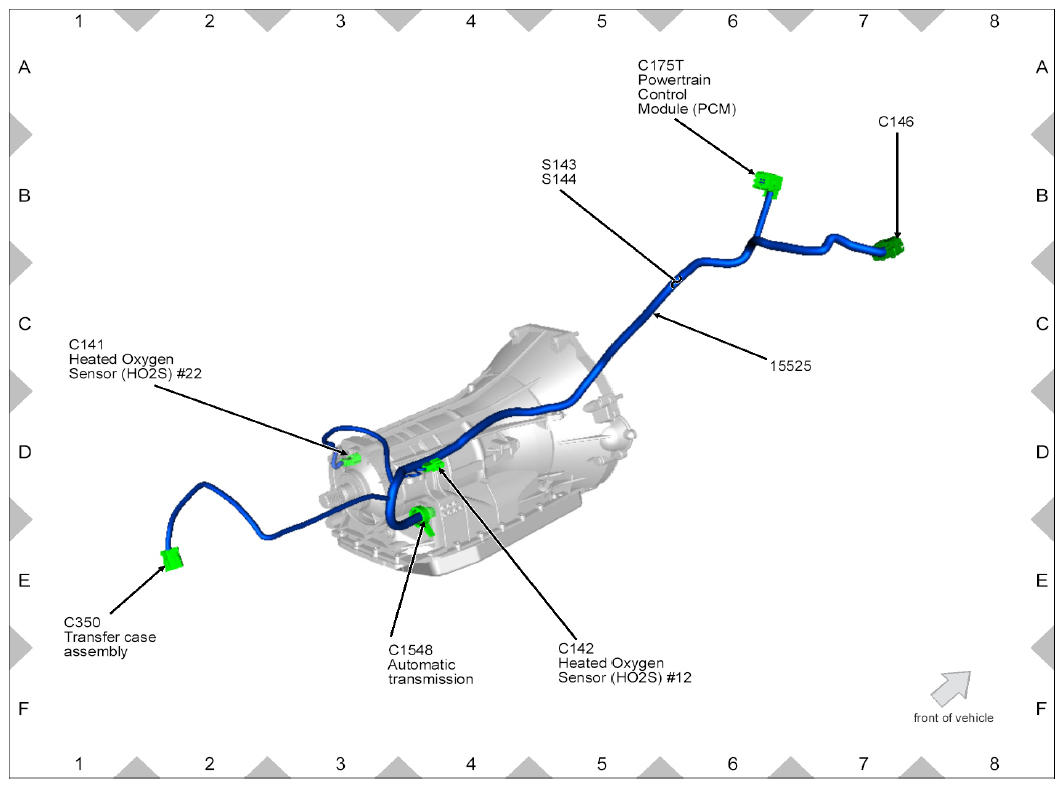

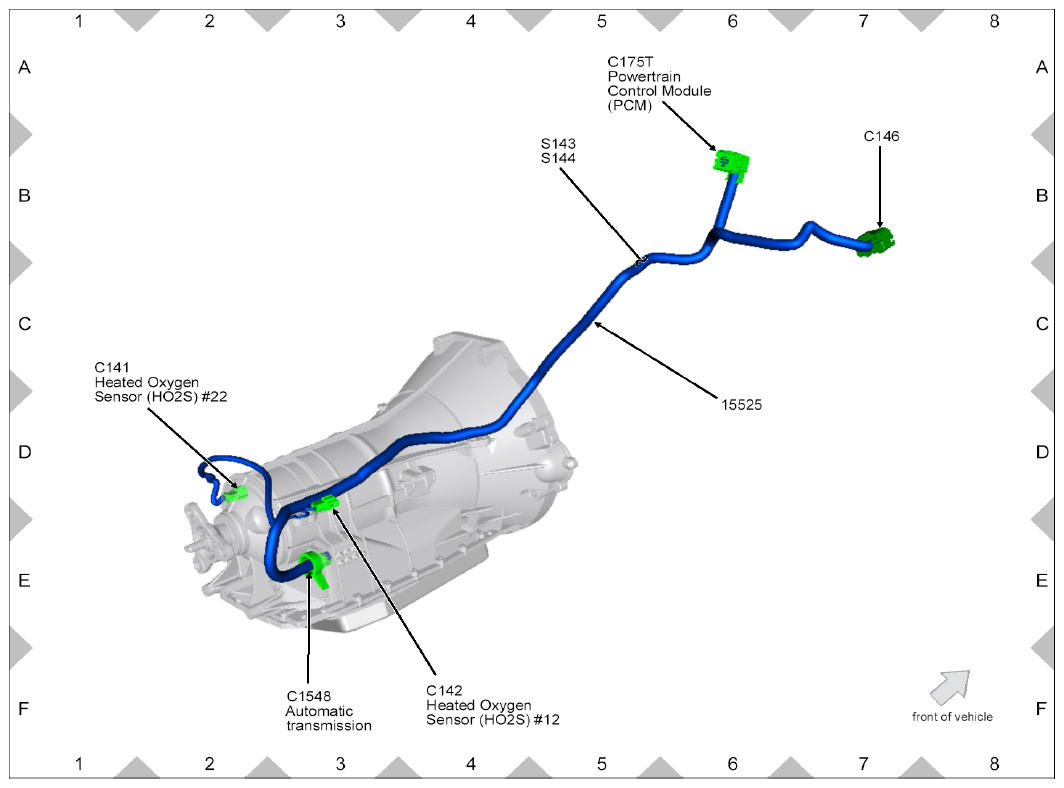

Fig 7: Transmission Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 8: Transmission Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

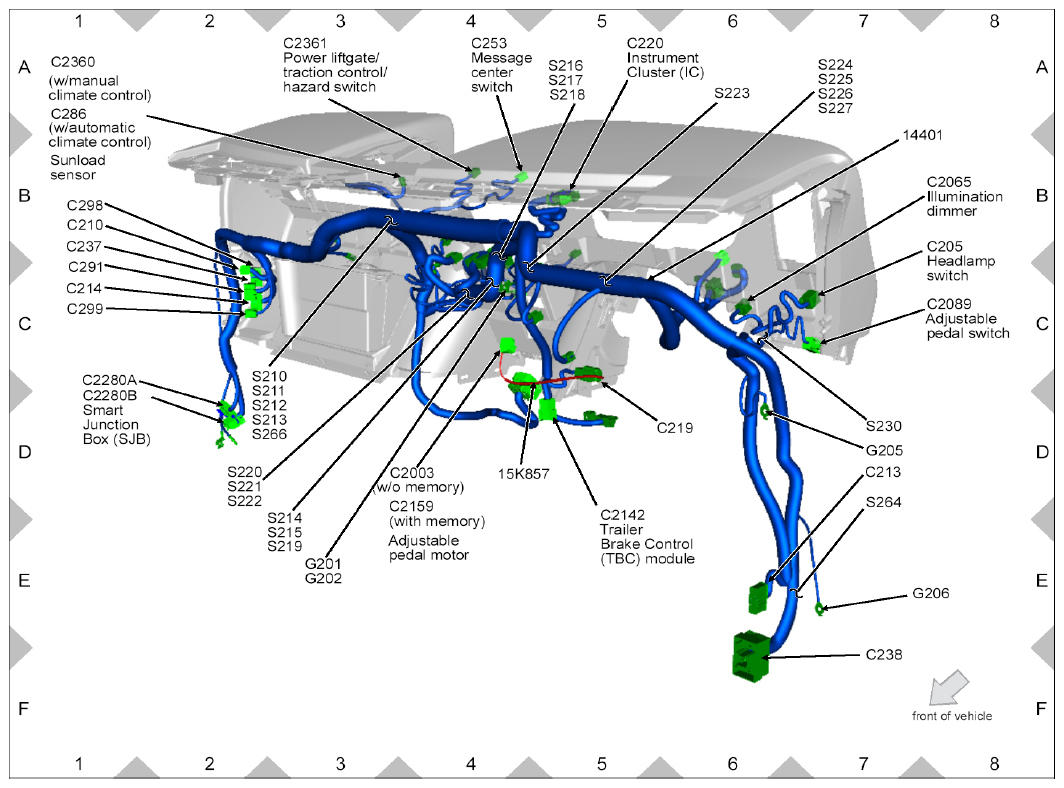

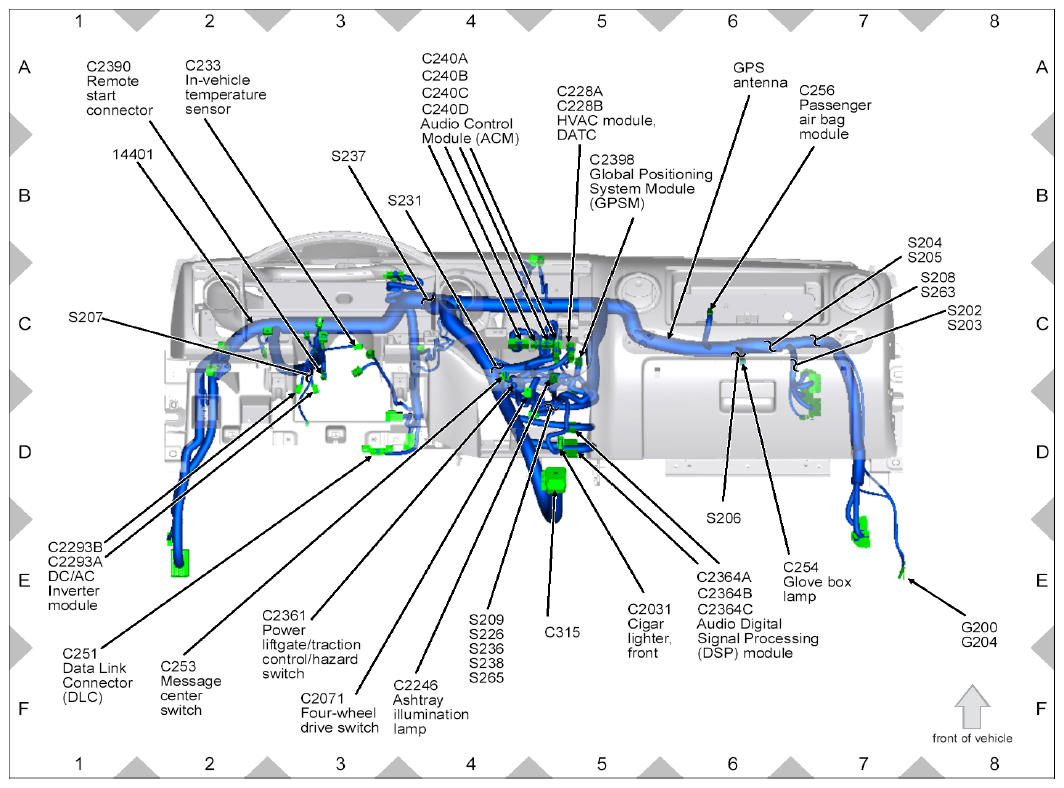

Fig 9: Dash Board Wiring Harness Connectors Location - Back Side
Courtesy of FORD MOTOR CO.

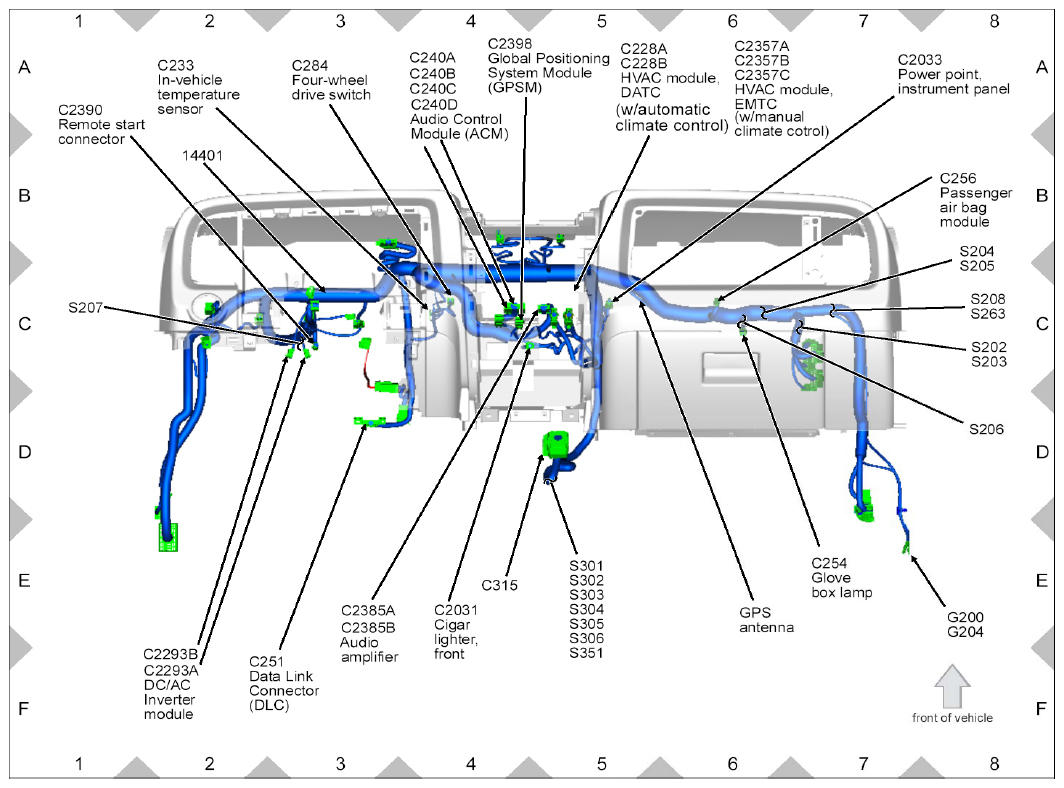

Fig 10: Dash Board Wiring Harness Connectors Location - Front Side
Courtesy of FORD MOTOR CO.

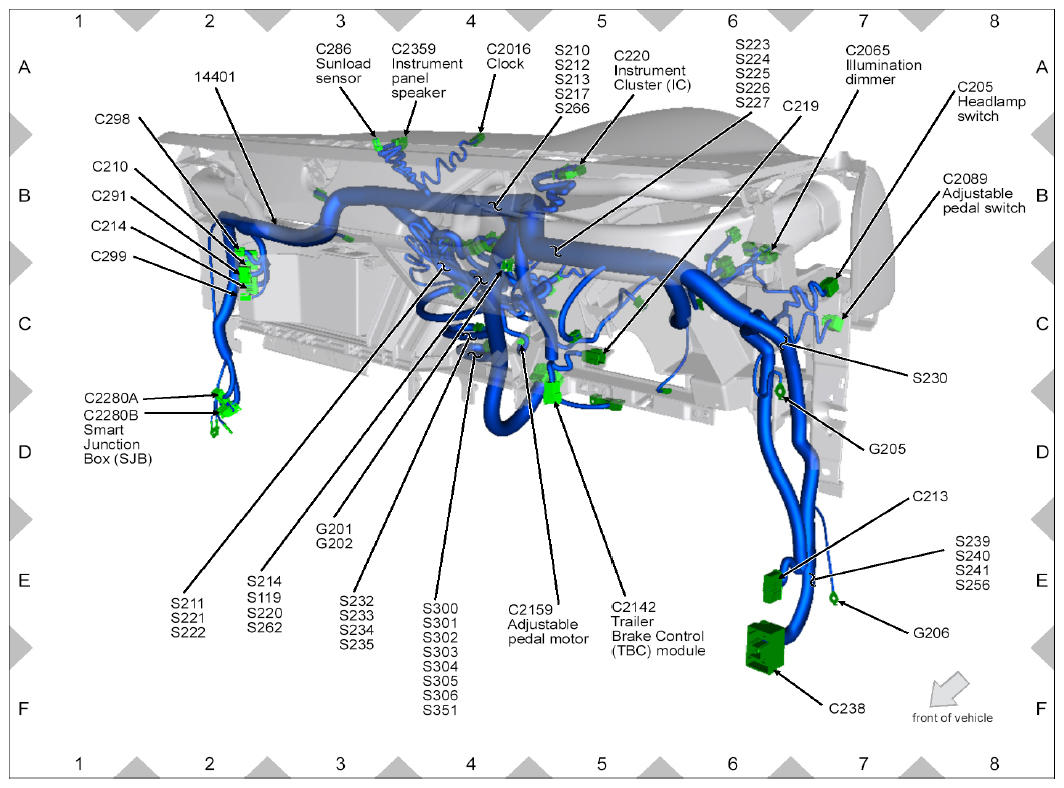

Fig 11: Dash Board Wiring Harness Connectors Location - Back Side
Courtesy of FORD MOTOR CO.
Fig 12: Dash Board Wiring Harness Connectors Location - Front Side
Courtesy of FORD MOTOR CO.

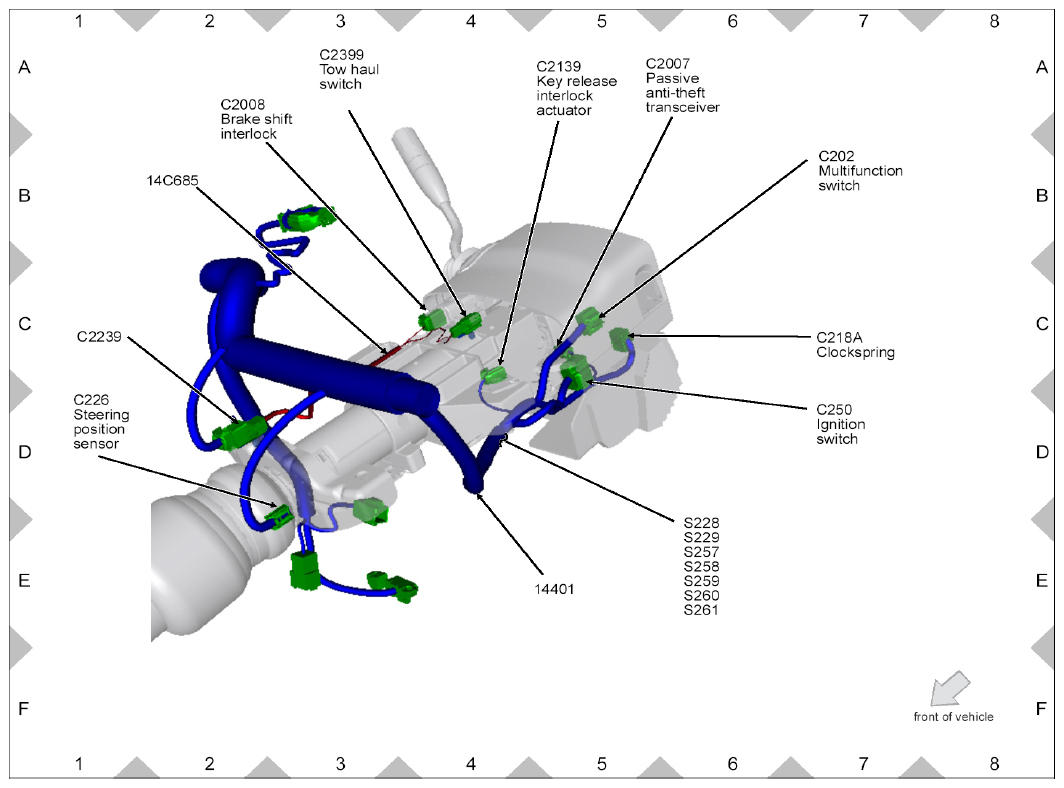

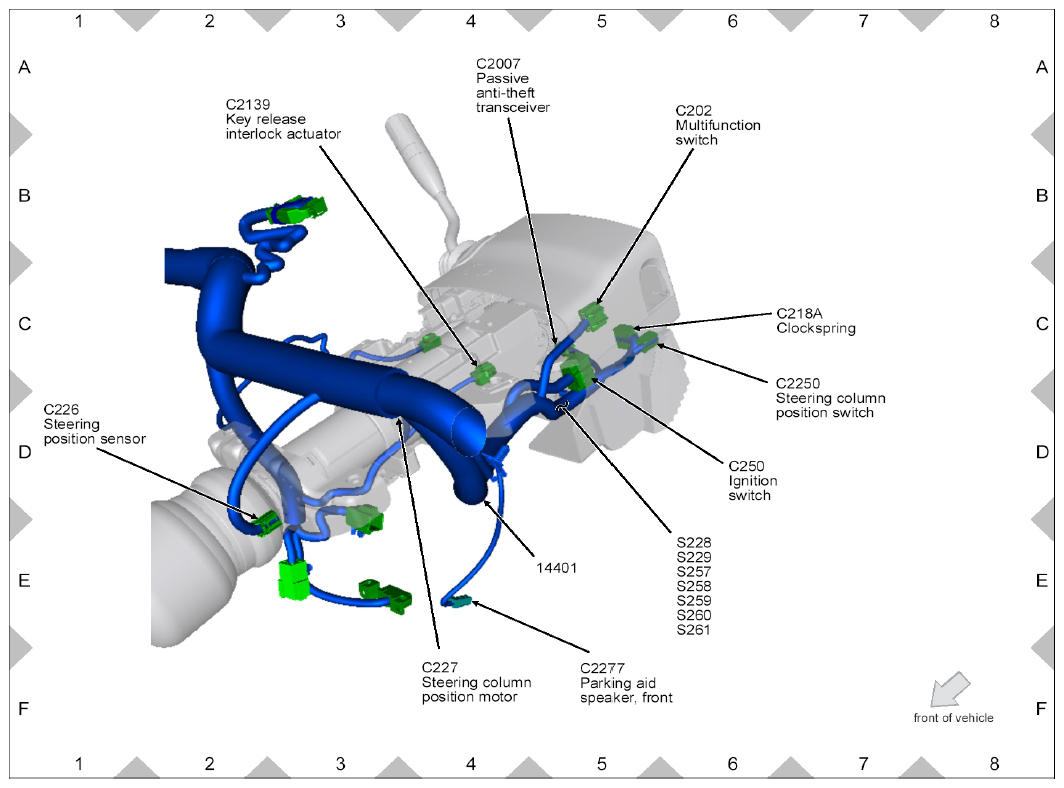

Fig 13: Steering Assembly Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 14: Steering Assembly Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

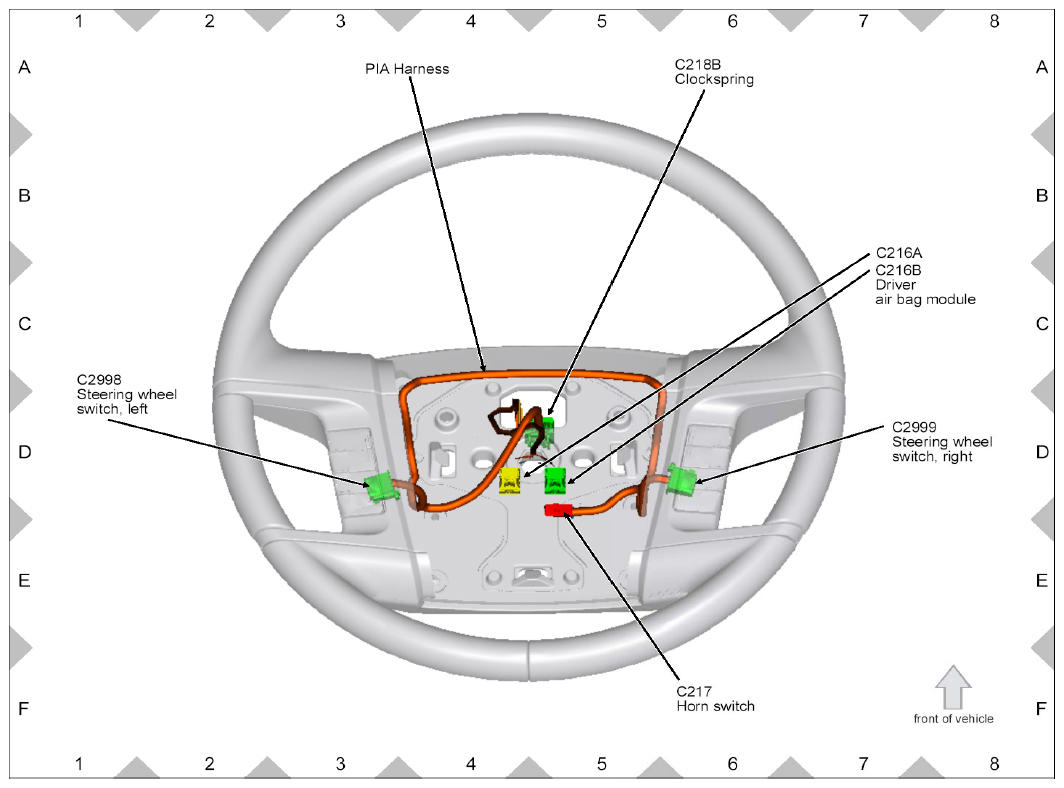

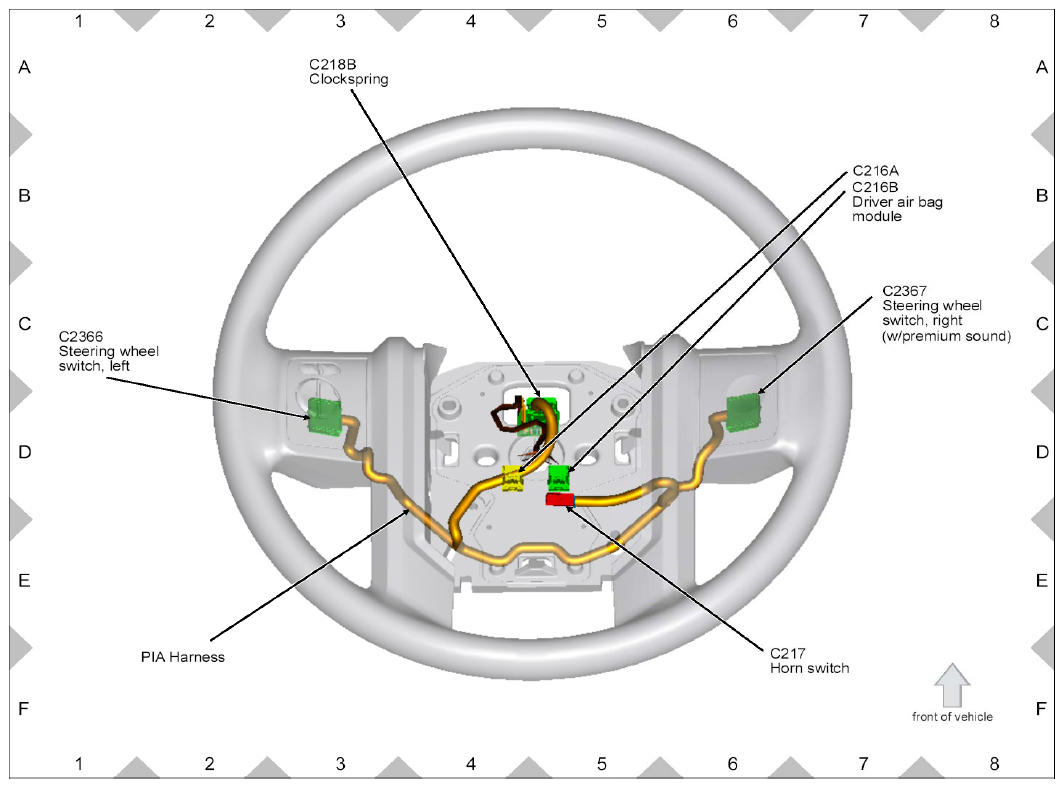

Fig 15: Steering Wheel Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 16: Steering Wheel Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

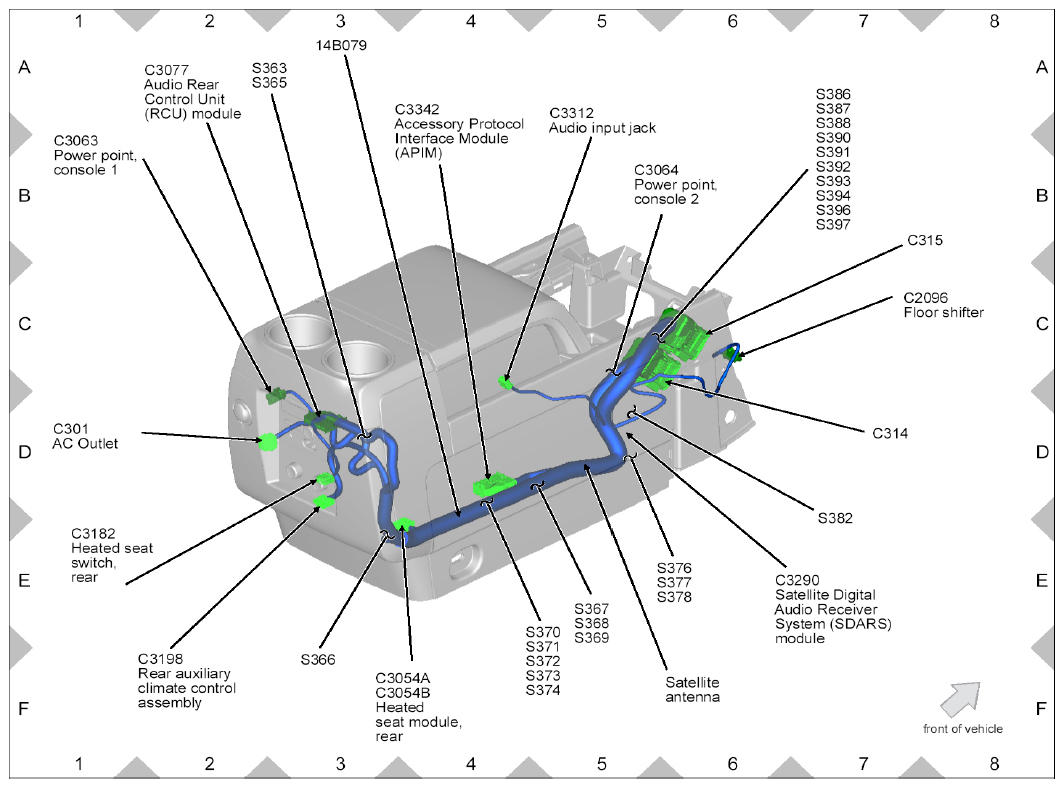

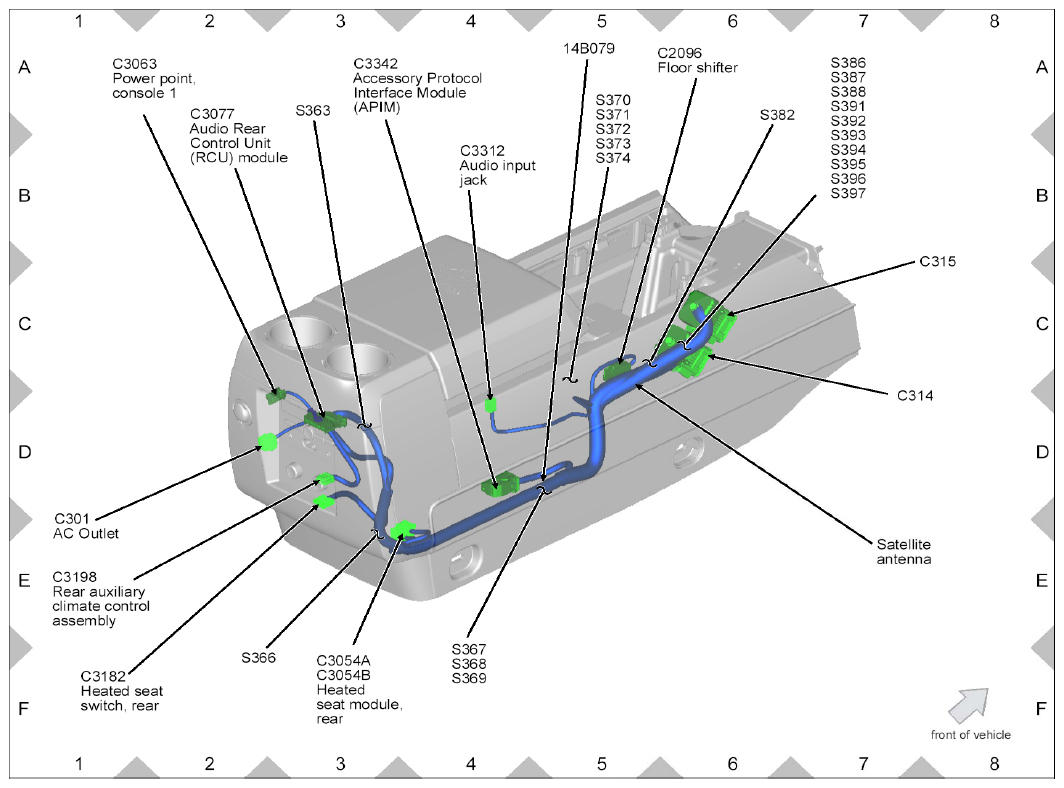

Fig 17: Center Console Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 18: Center Console Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

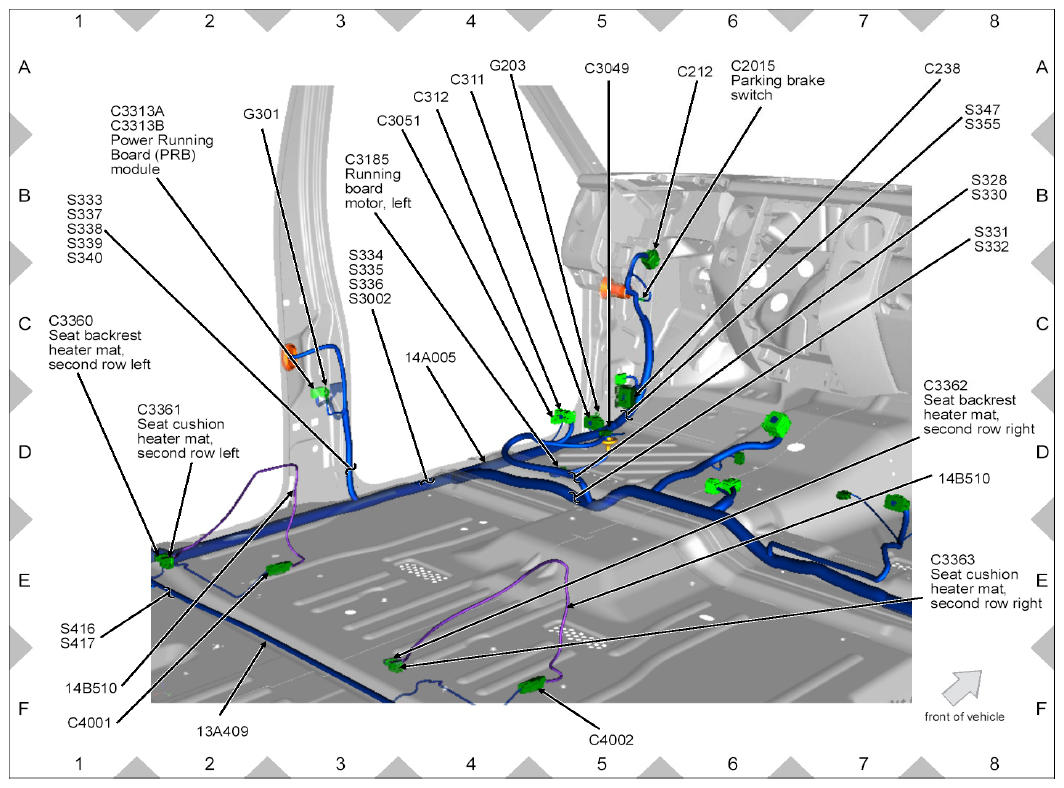

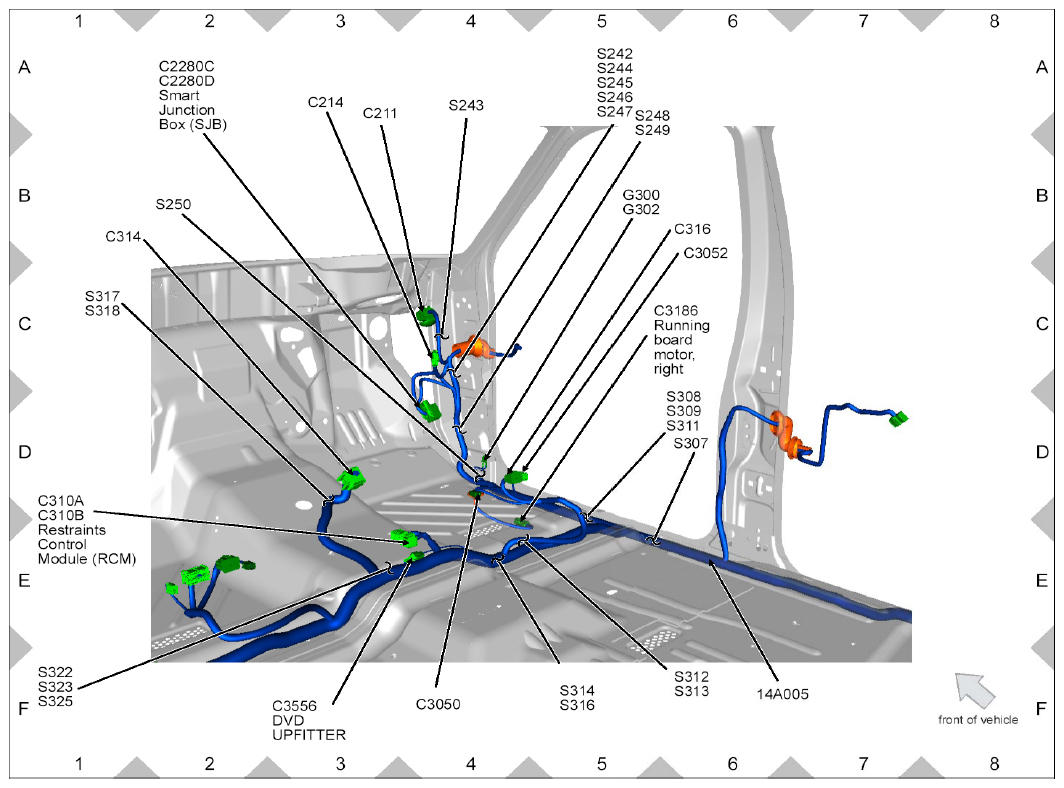

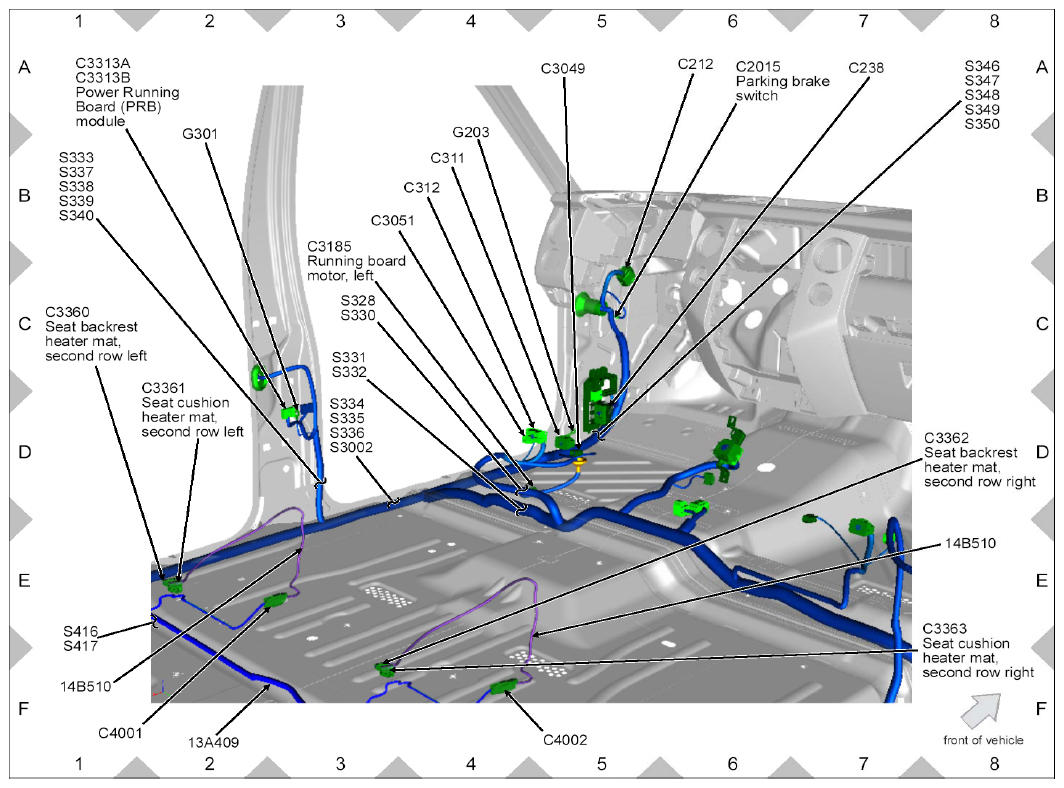

Fig 19: Floor Wiring Harness Connectors Location LH
Courtesy of FORD MOTOR CO.

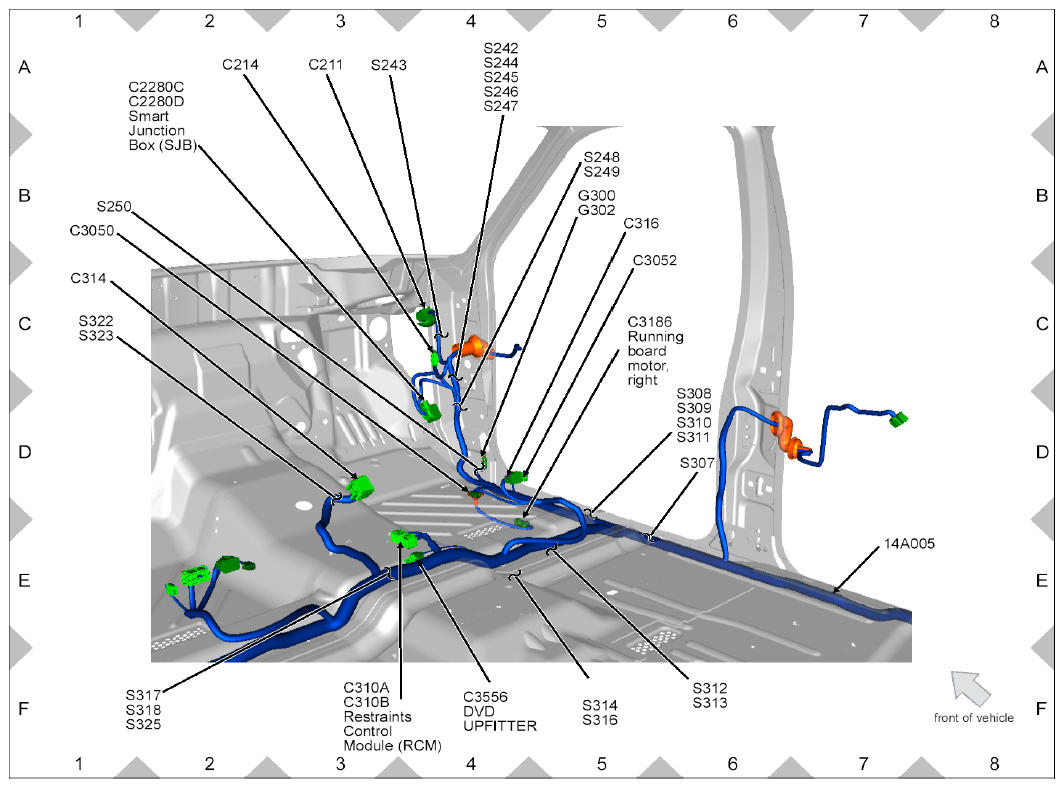

Fig 20: Floor Wiring Harness Connectors Location RH
Courtesy of FORD MOTOR CO.
Fig 21: Floor Wiring Harness Connectors Location LH
Courtesy of FORD MOTOR CO.
Fig 22: Floor Wiring Harness Connectors Location RH
Courtesy of FORD MOTOR CO.
Fig 23: Floor Wiring Harness Connectors Location LH - Rear
Courtesy of FORD MOTOR CO.
Fig 24: Floor Wiring Harness Connectors Location RH - Rear
Courtesy of FORD MOTOR CO.

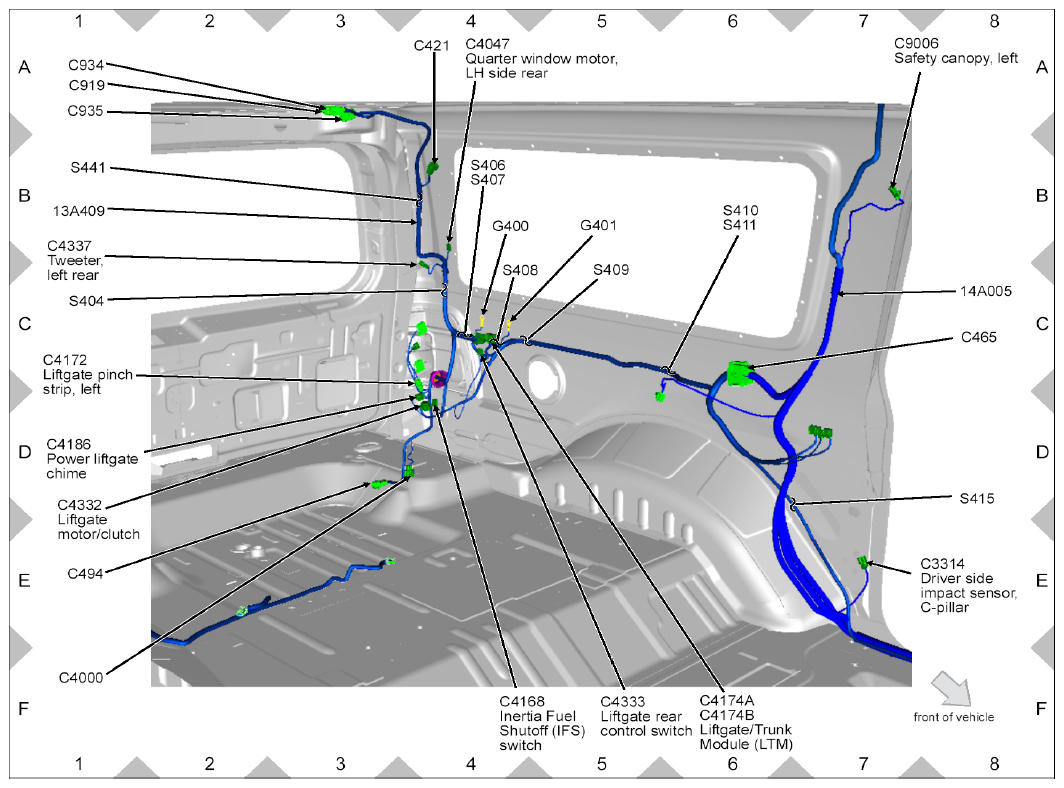

Fig 25: Floor Wiring Harness Connectors Location LH - Rear
Courtesy of FORD MOTOR CO.

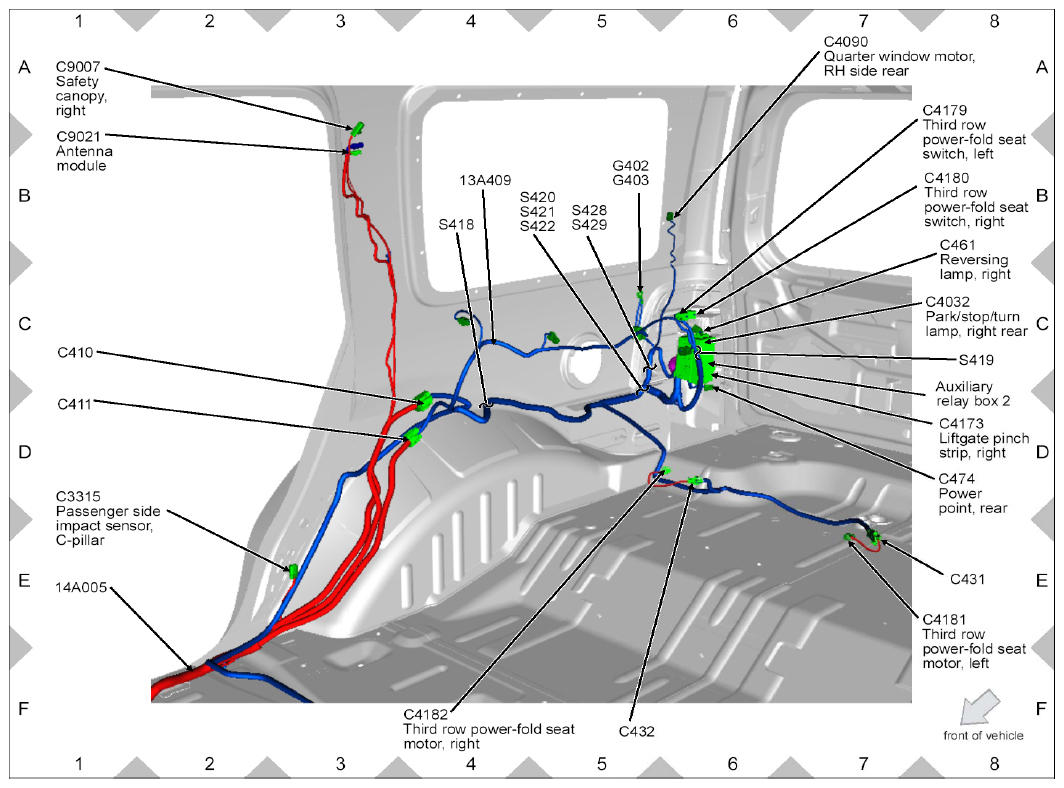

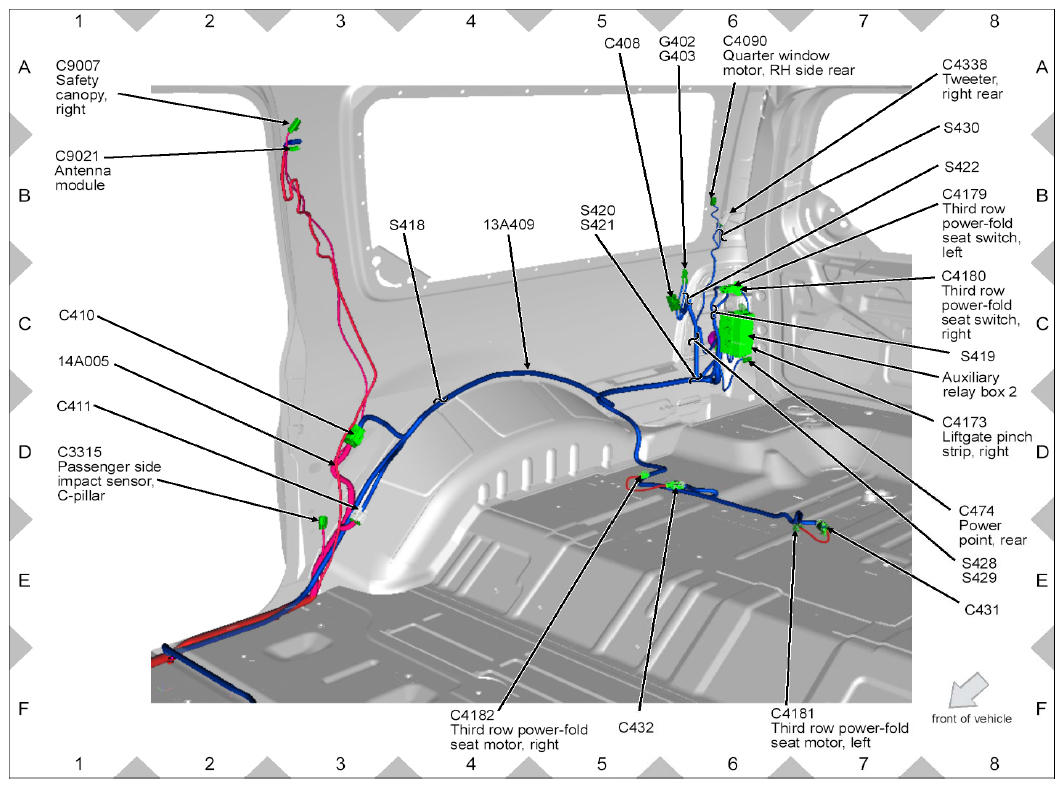

Fig 26: Floor Wiring Harness Connectors Location RH - Rear
Courtesy of FORD MOTOR CO.

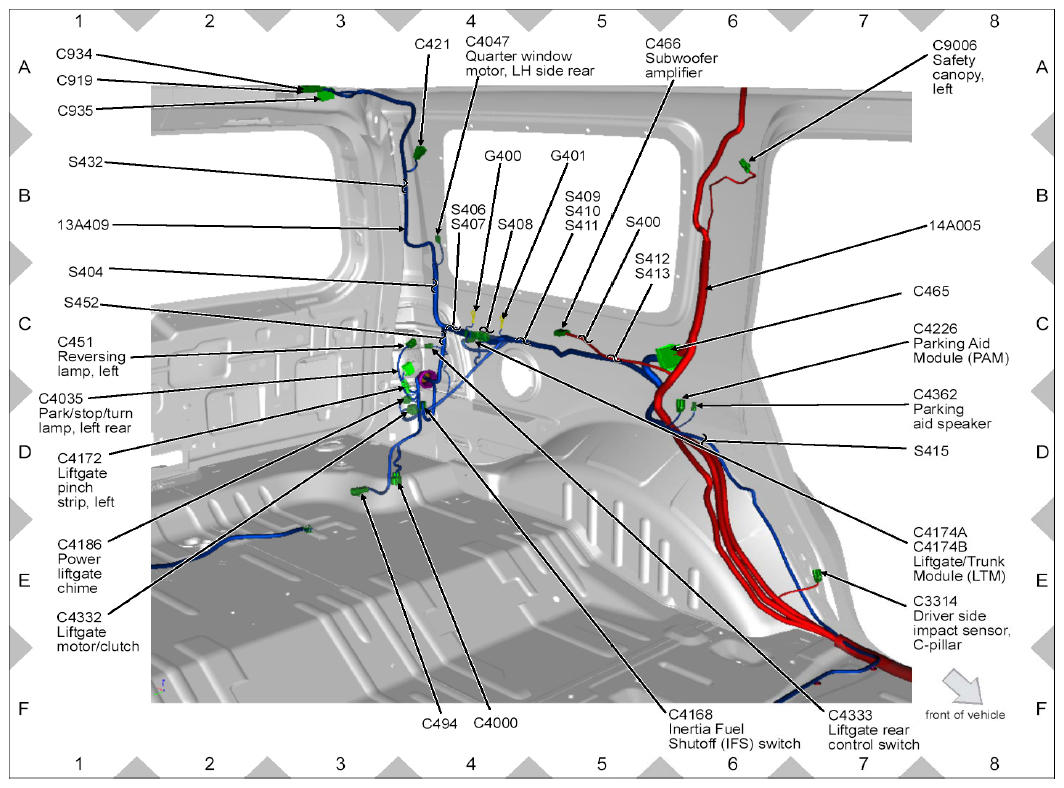

Fig 27: Floor Wiring Harness Connectors Location LH - Rear
Courtesy of FORD MOTOR CO.

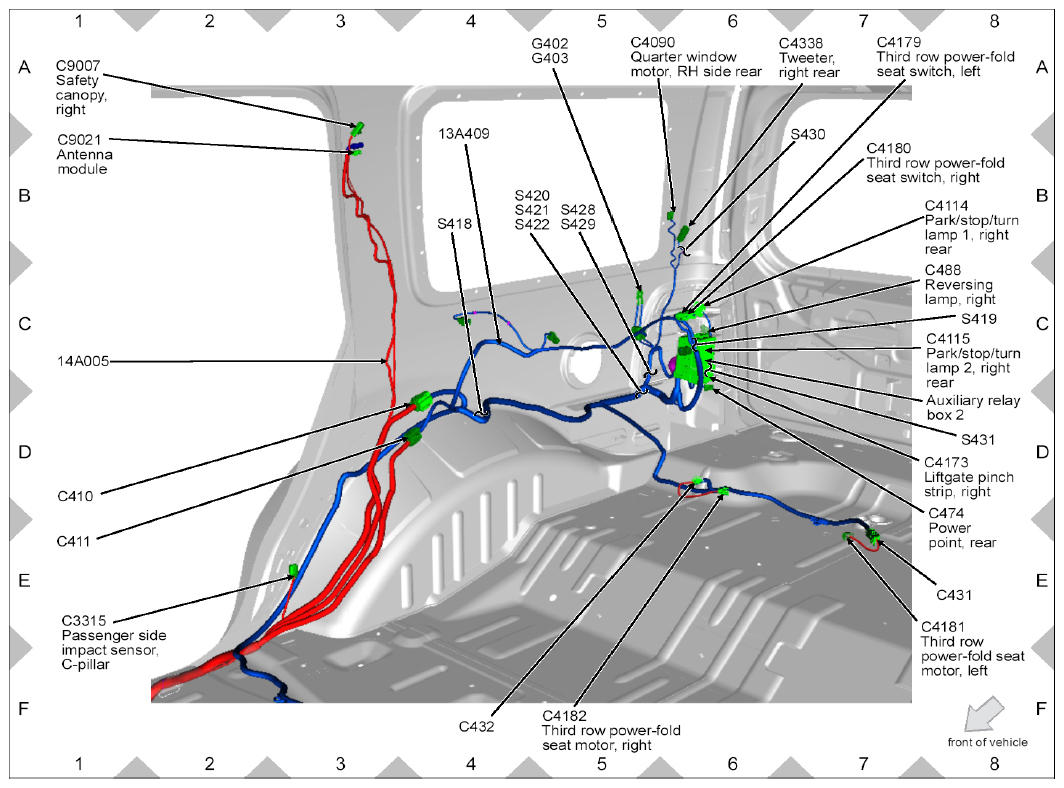

Fig 28: Floor Wiring Harness Connectors Location RH - Rear
Courtesy of FORD MOTOR CO.
Fig 29: Trailer Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

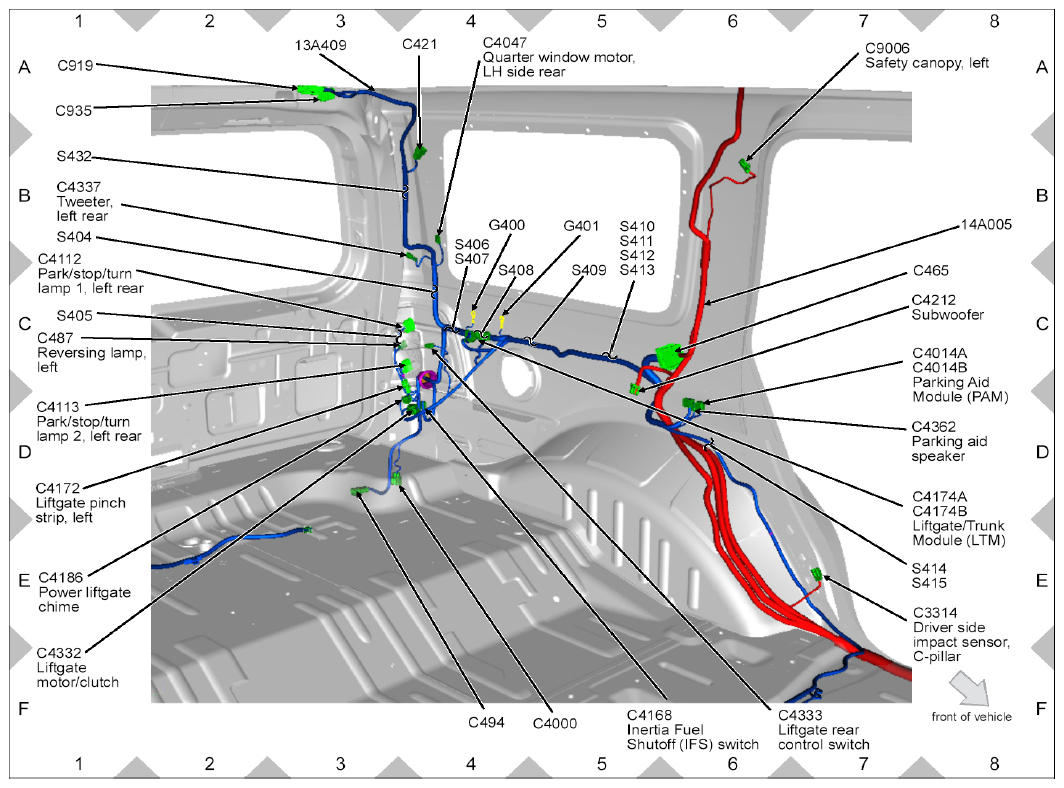

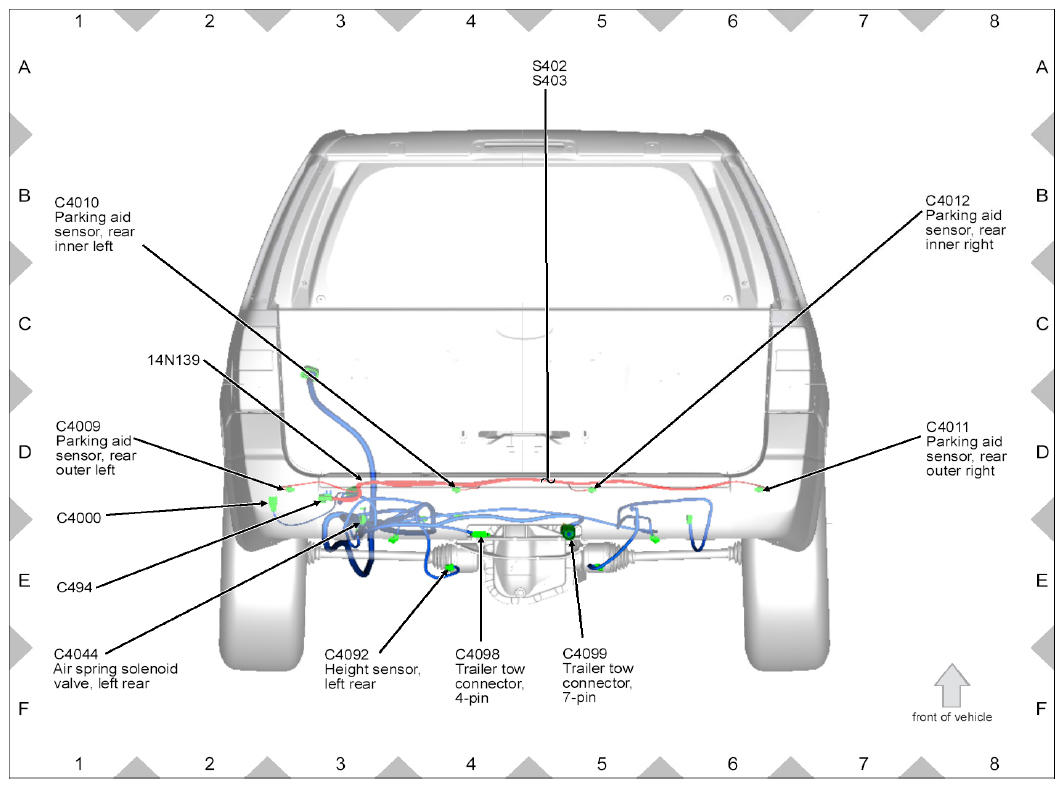

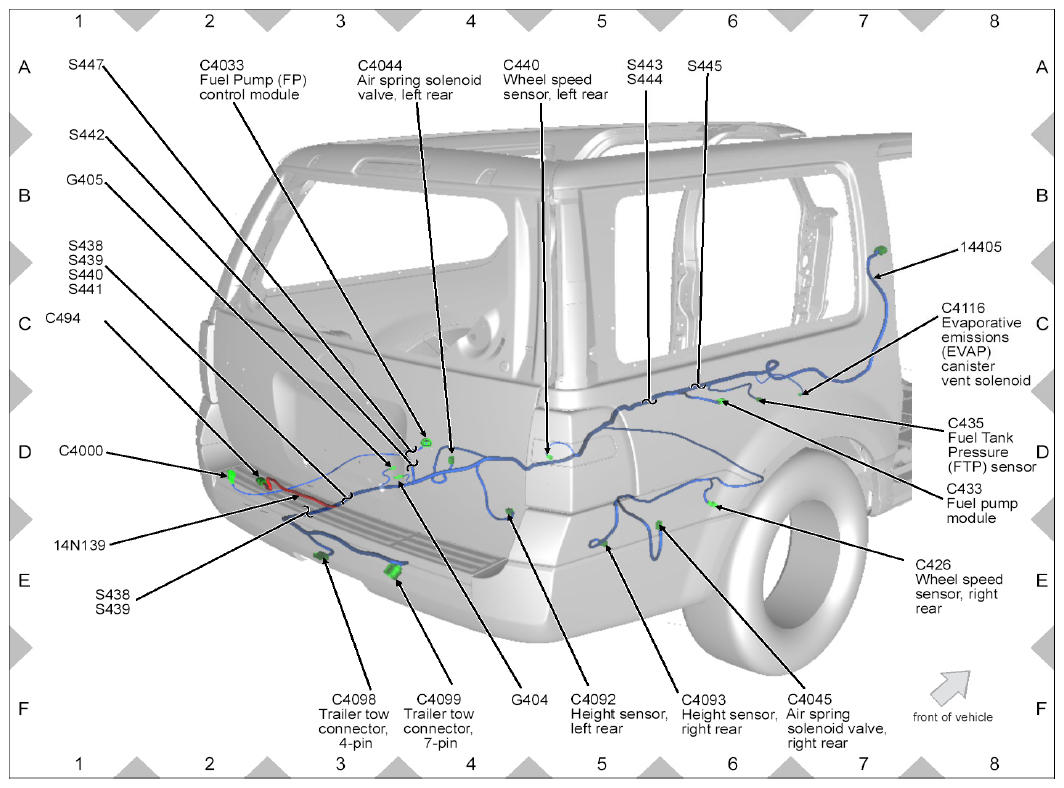

Fig 30: Vehicle Wiring Harness Connectors Location - Rear (1 Of 2)
Courtesy of FORD MOTOR CO.

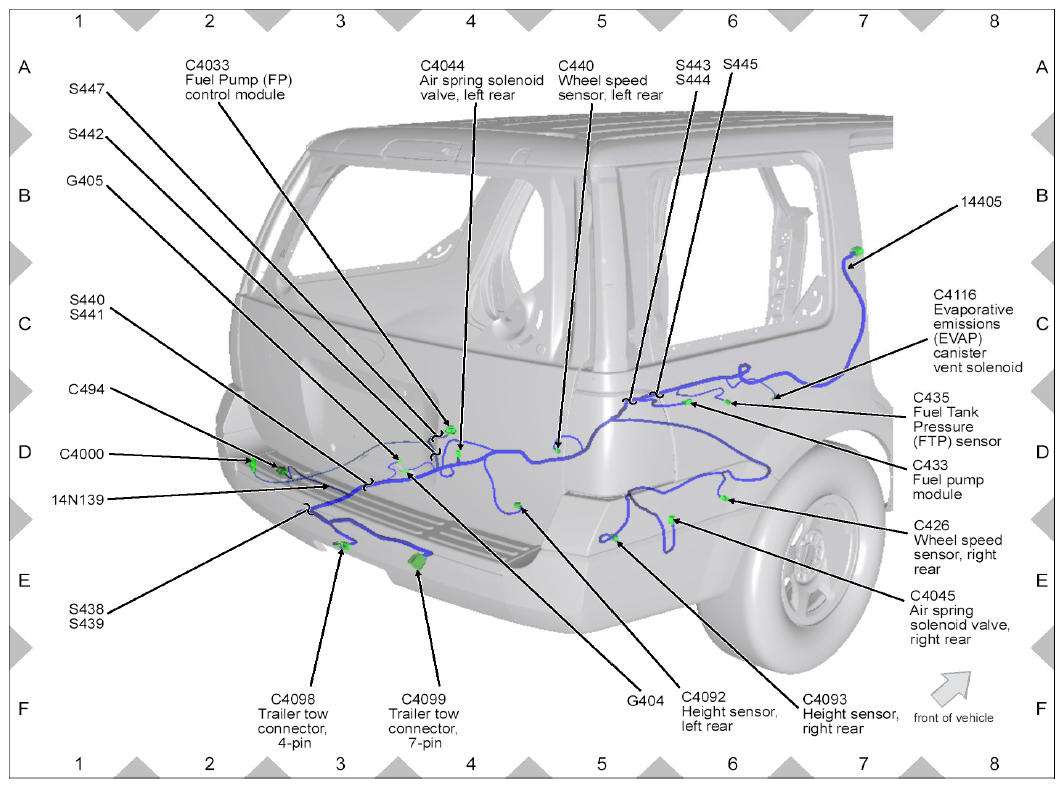

Fig 31: Vehicle Wiring Harness Connectors Location - Rear (2 Of 2)
Courtesy of FORD MOTOR CO.

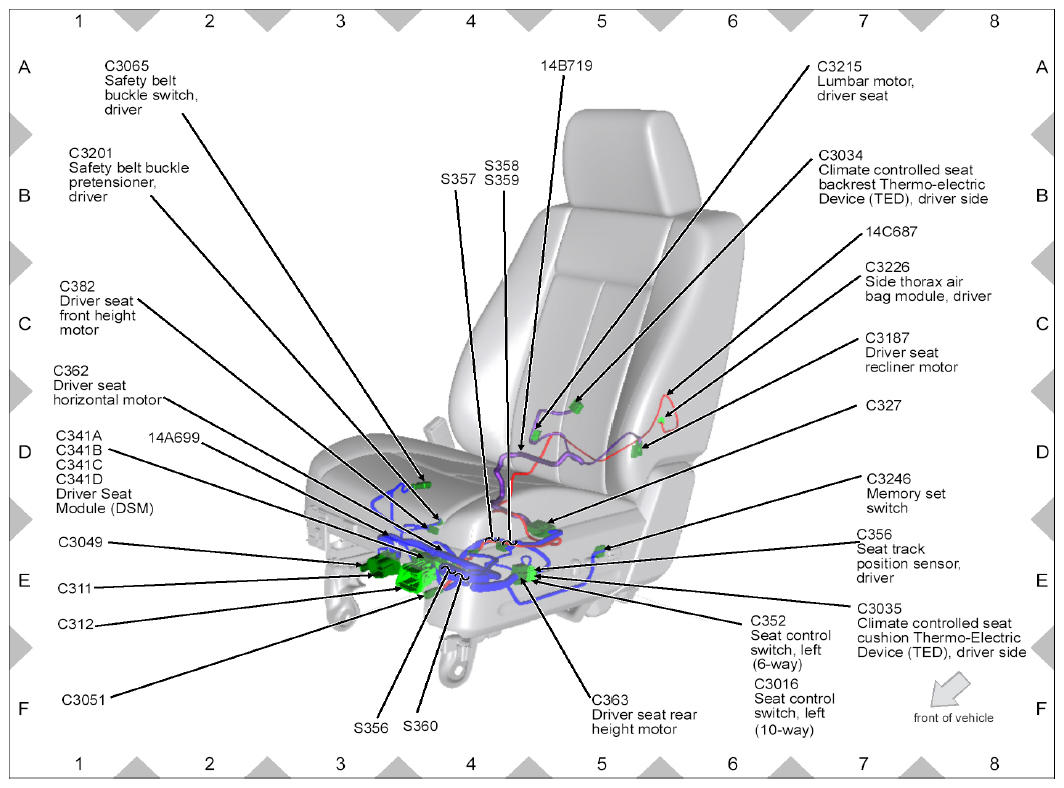

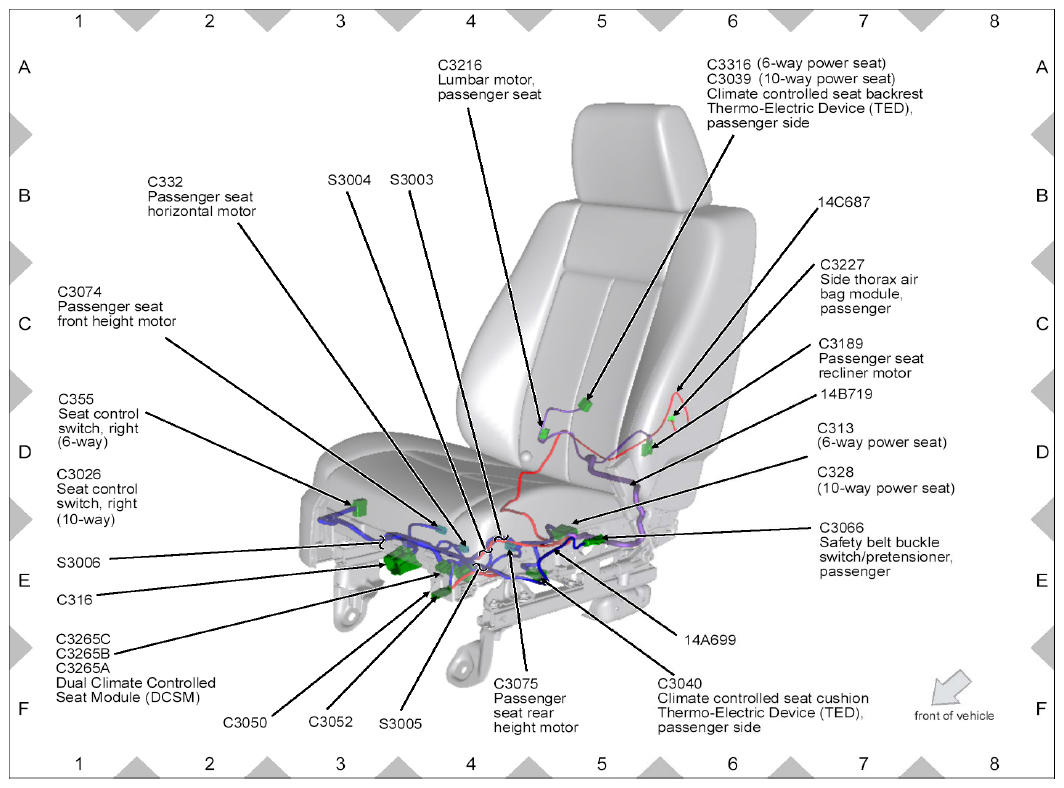

Fig 32: Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 33: Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

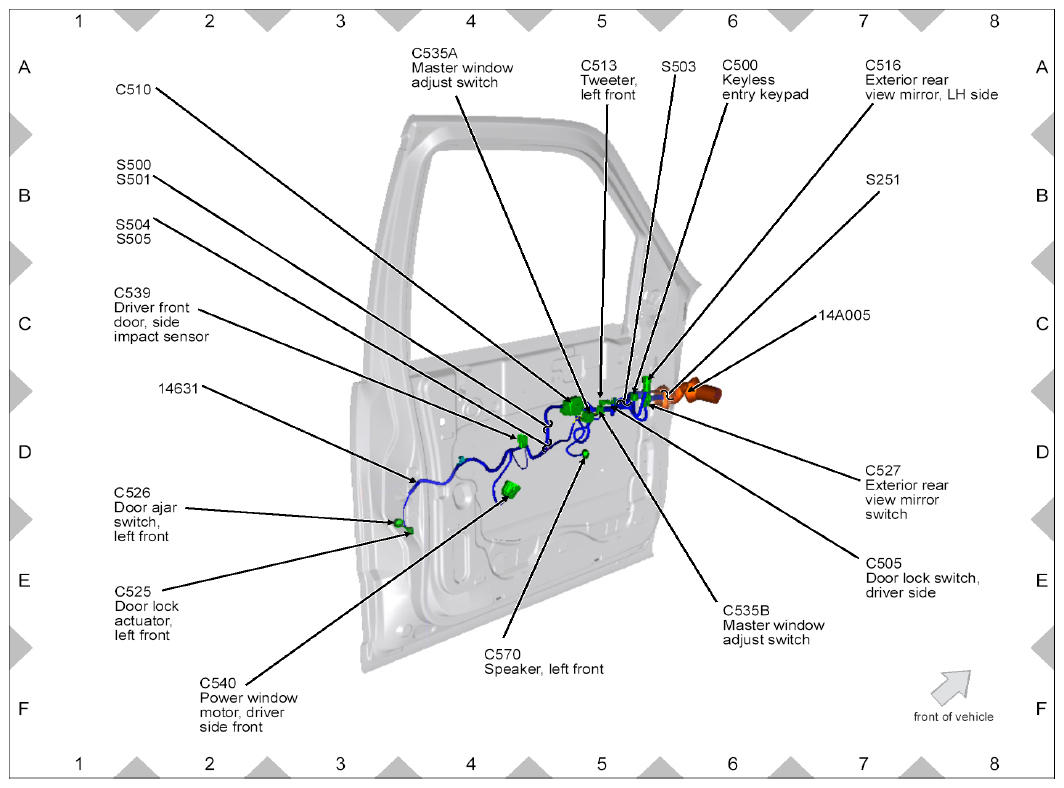

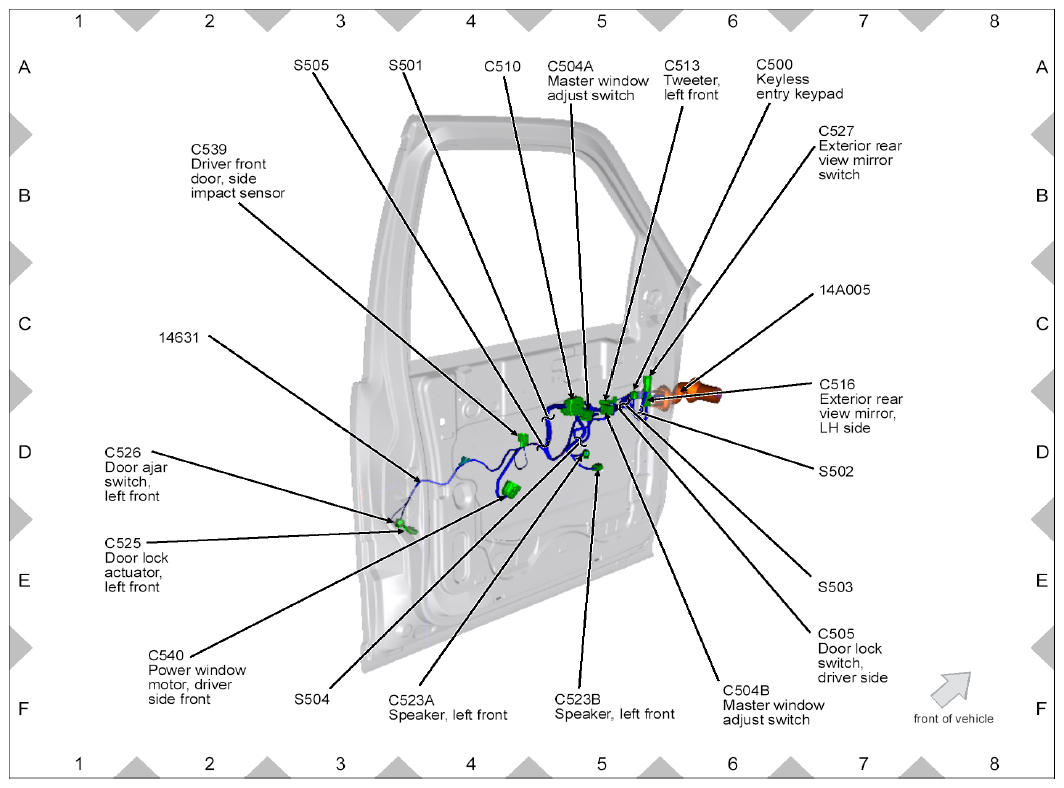

Fig 34: Driver Front Door Side Wiring Harness Connectors Location LH
Courtesy of FORD MOTOR CO.

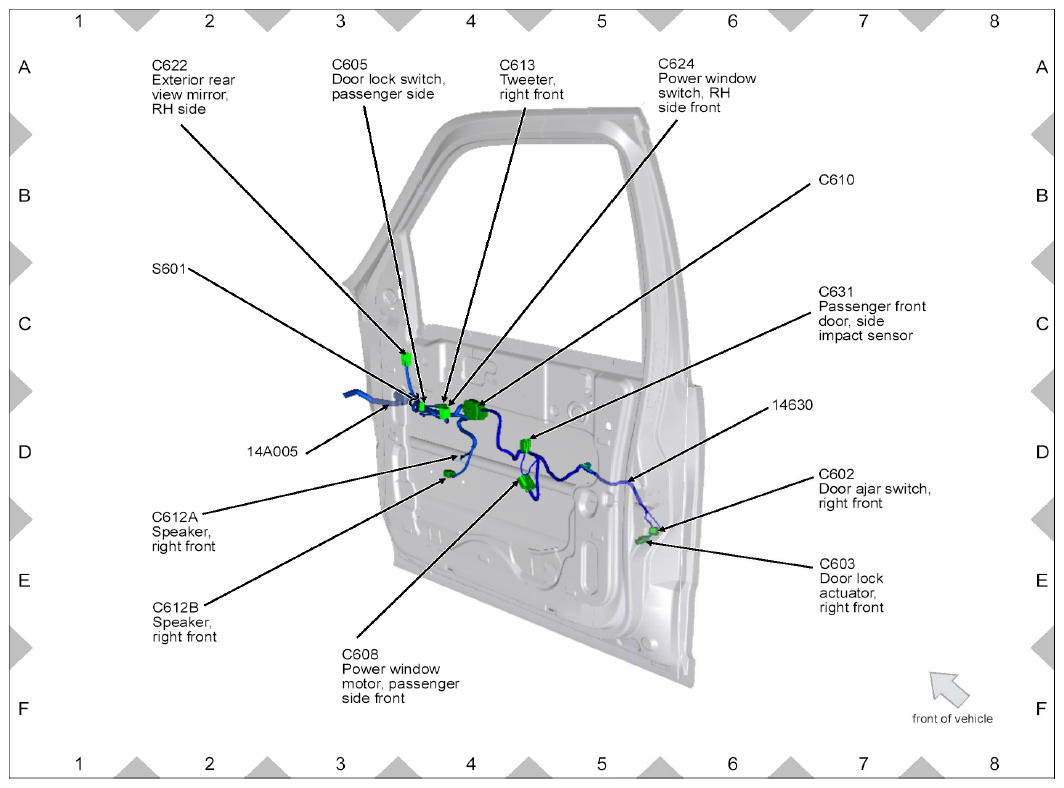

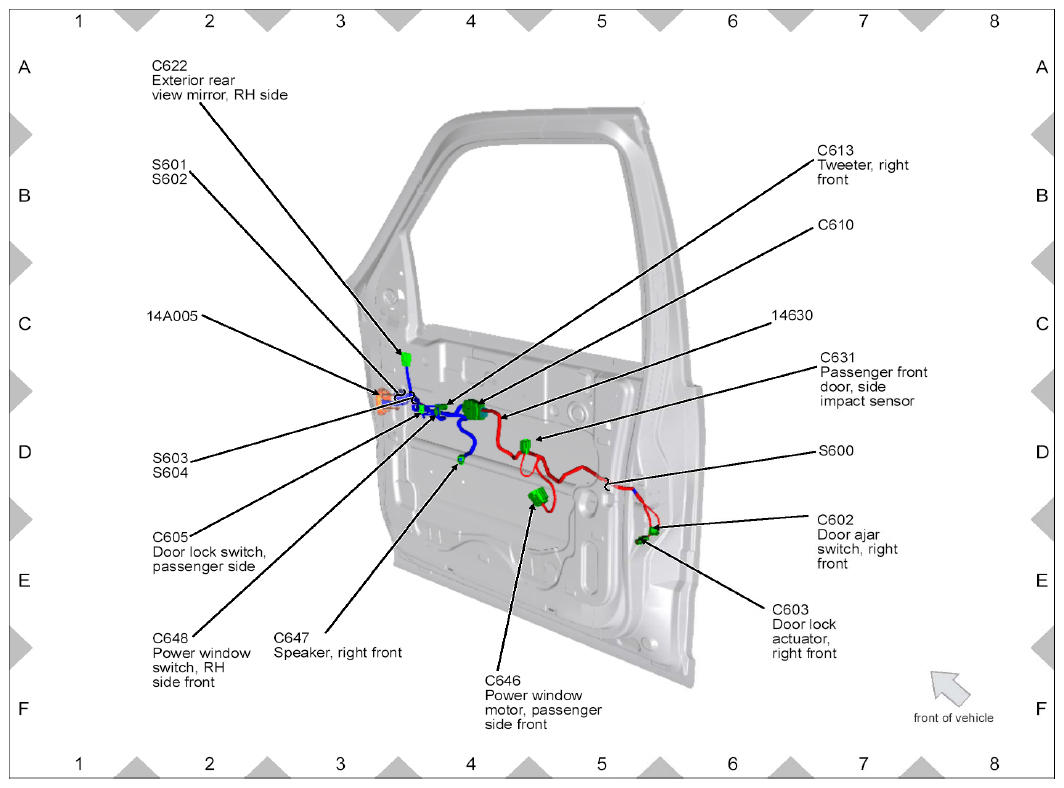

Fig 35: Passenger Front Door Side Wiring Harness Connectors Location RH
Courtesy of FORD MOTOR CO.
Fig 36: Driver Front Door Side Wiring Harness Connectors Location LH
Courtesy of FORD MOTOR CO.
Fig 37: Passenger Front Door Side Wiring Harness Connectors Location RH
Courtesy of FORD MOTOR CO.

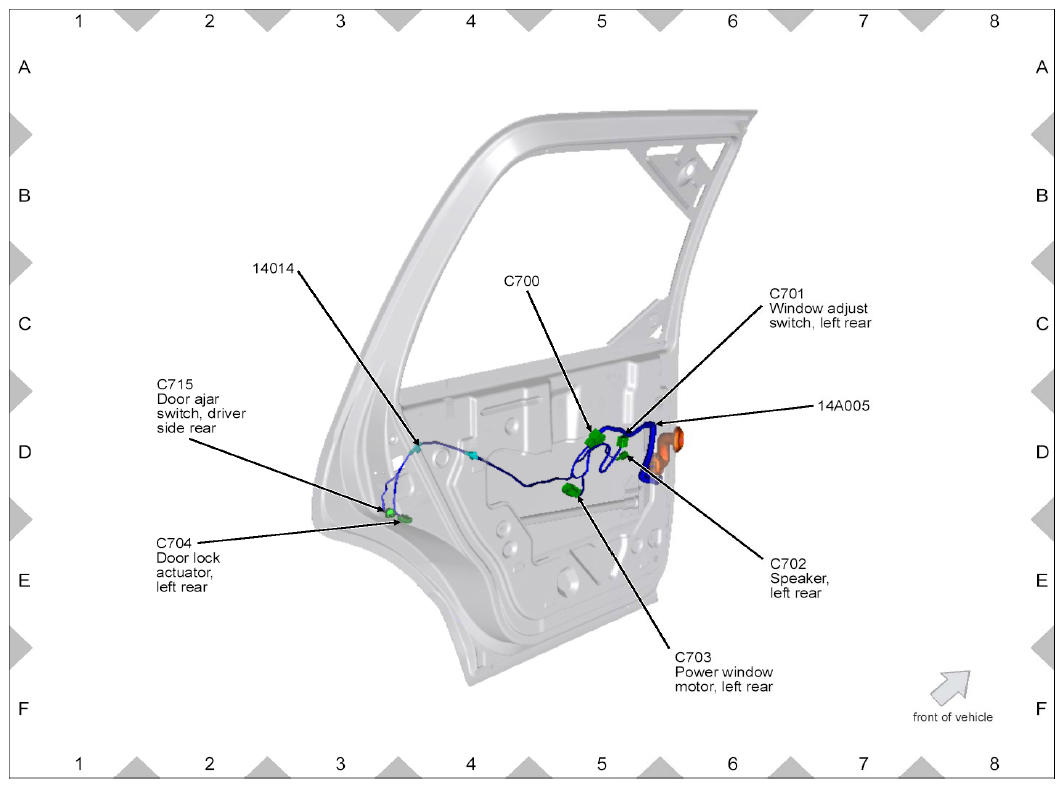

Fig 38: Driver Rear Door Side Wiring Harness Connectors Location LH
Courtesy of FORD MOTOR CO.

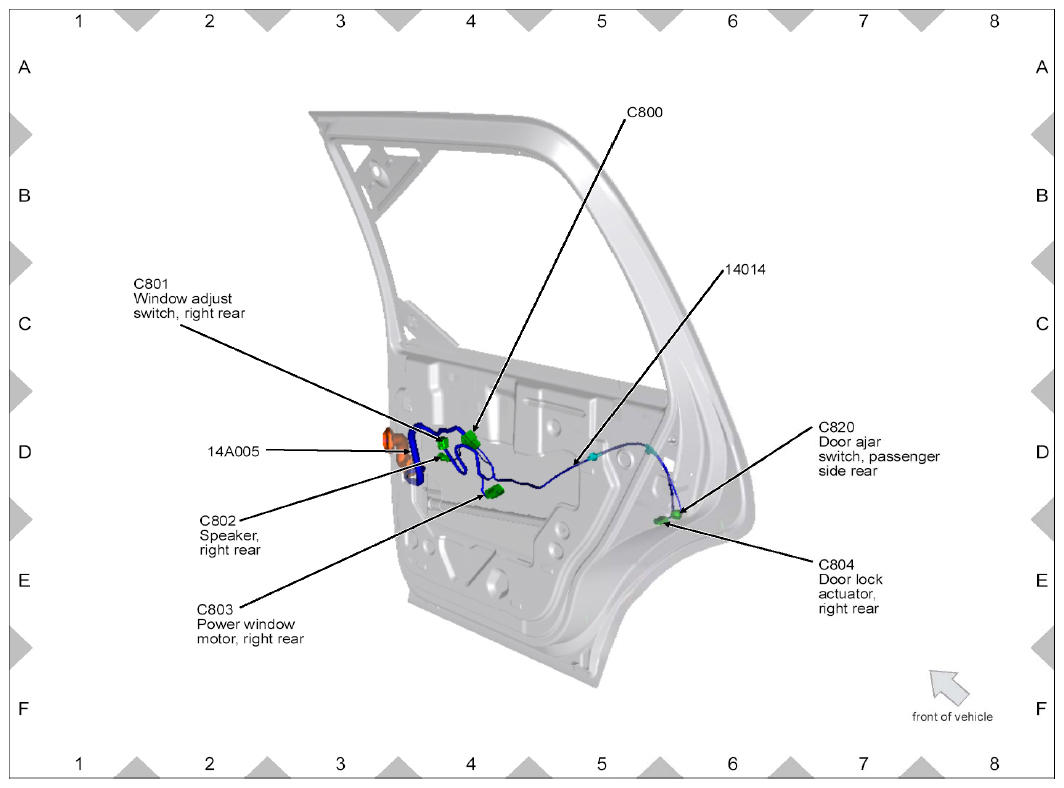

Fig 39: Passenger Rear Door Side Wiring Harness Connectors Location RH
Courtesy of FORD MOTOR CO.

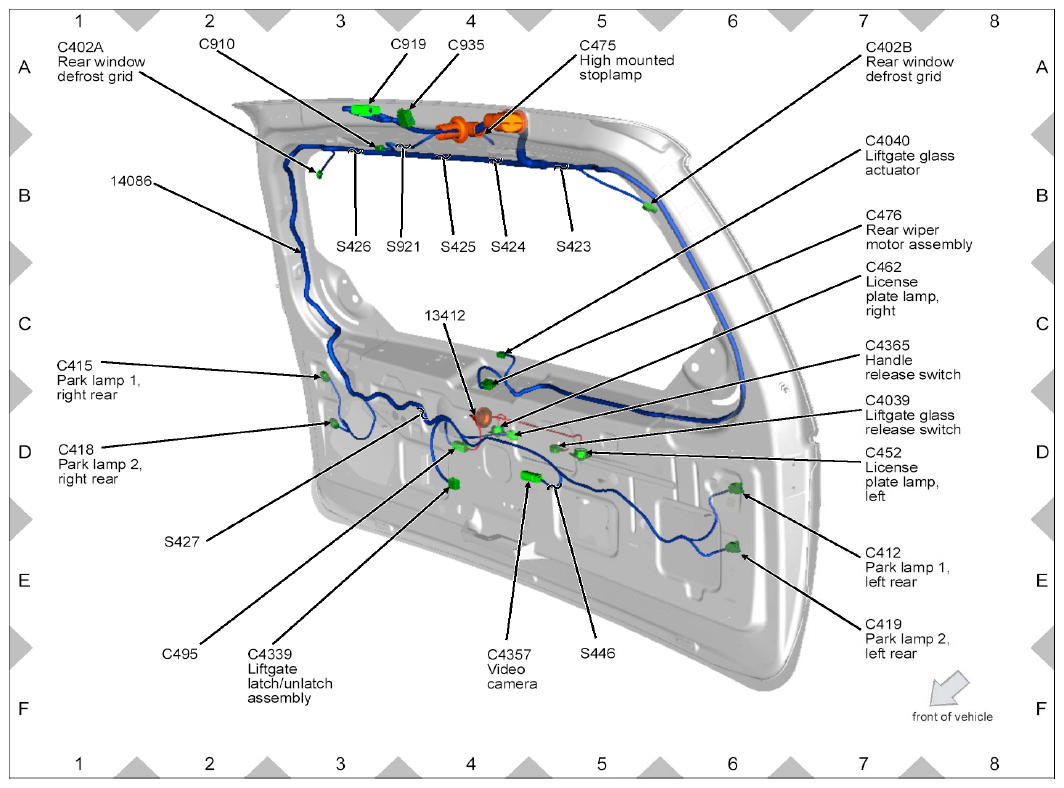

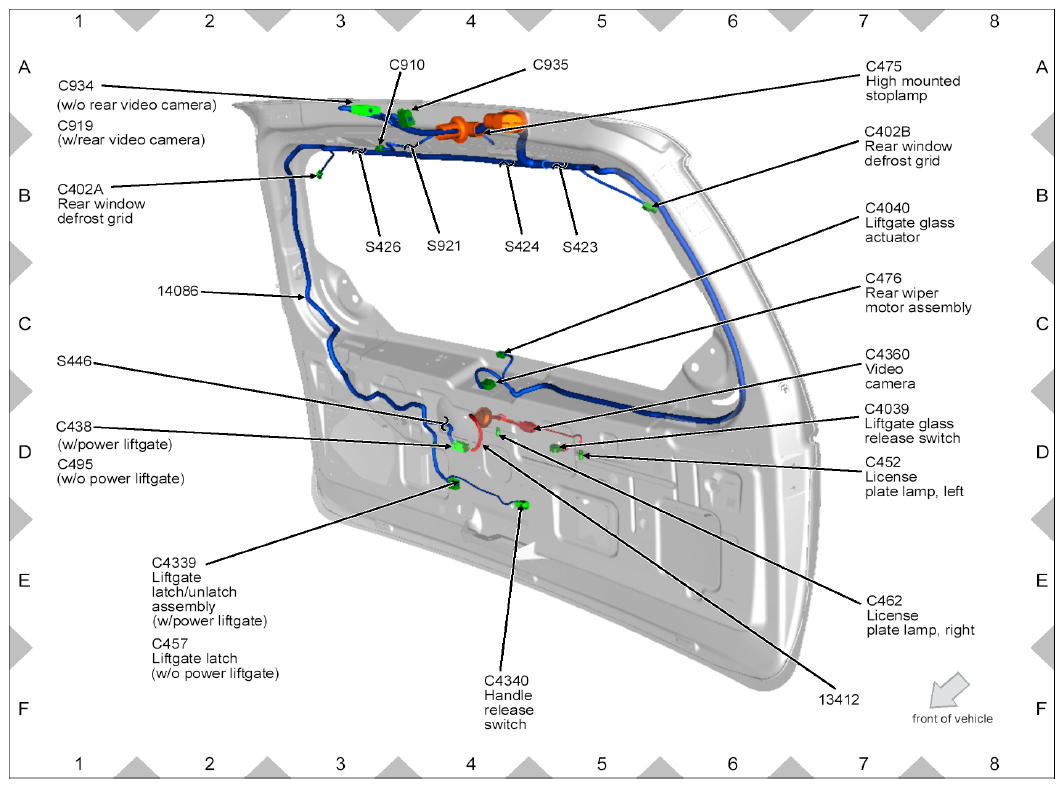

Fig 40: Back Door Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 41: Back Door Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

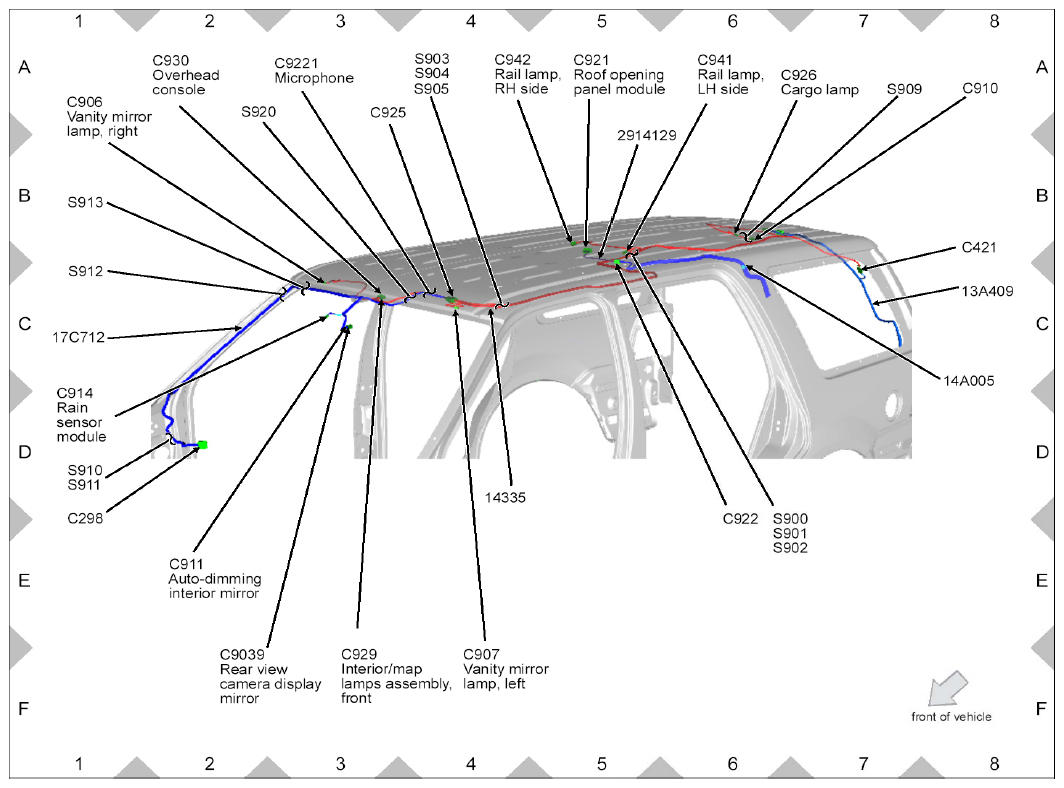

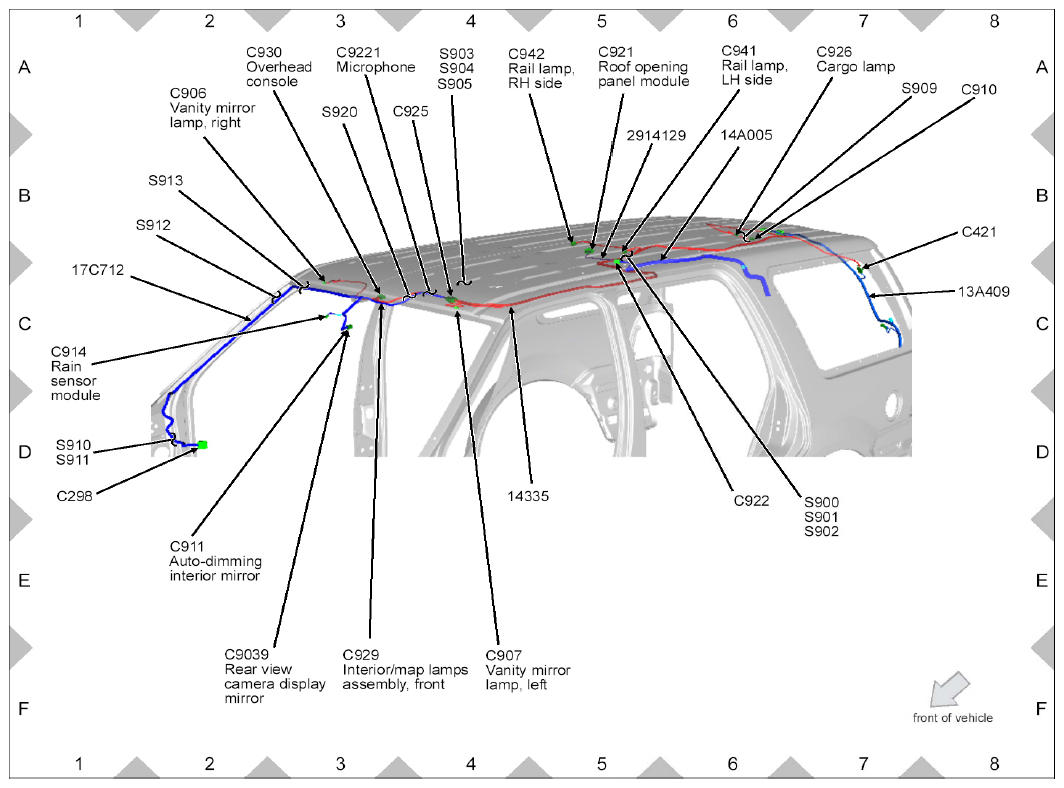

Fig 42: Roof Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 43: Roof Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

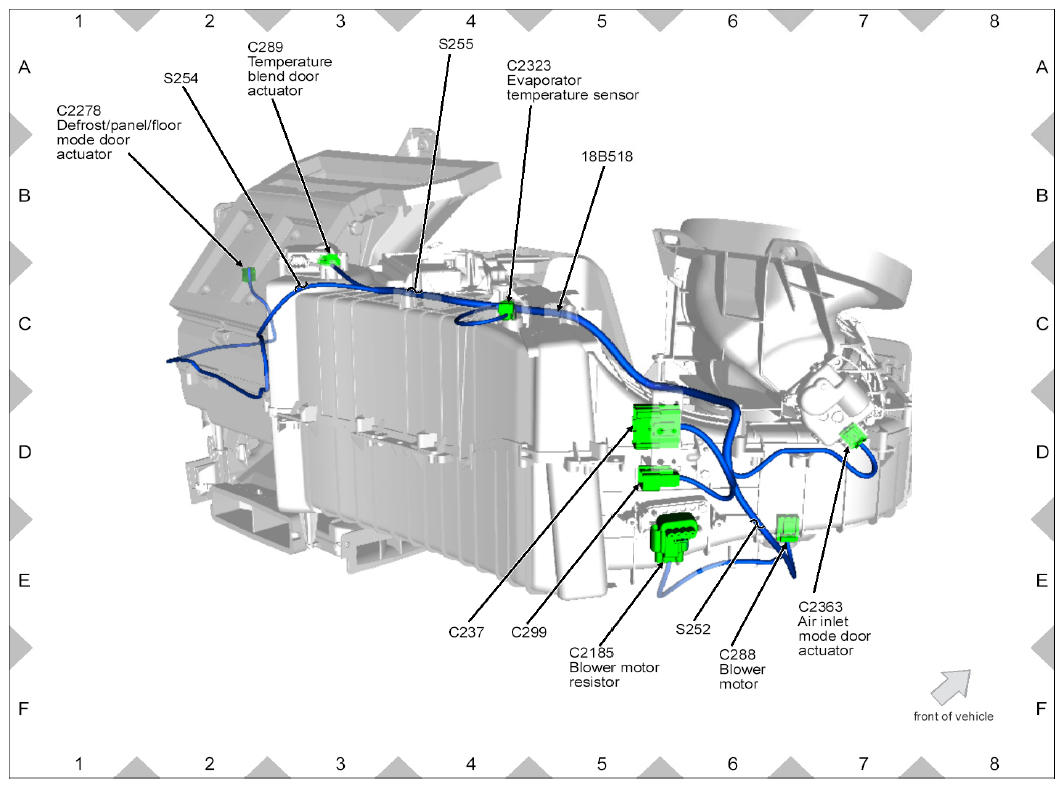

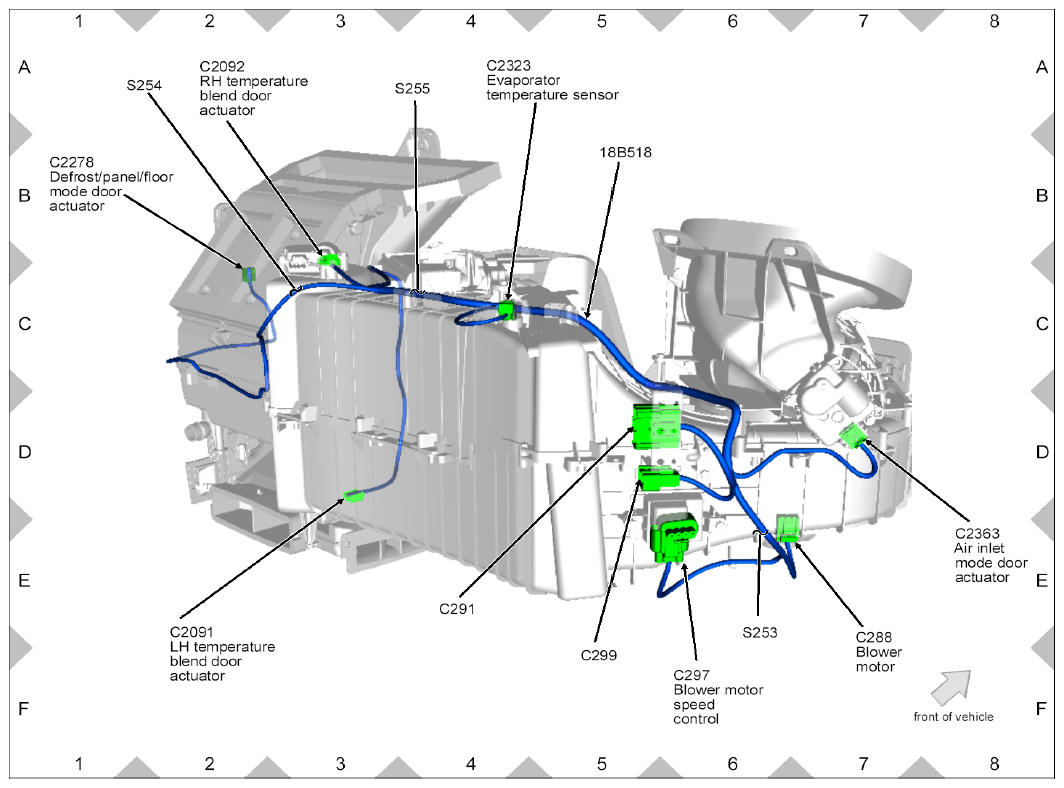

Fig 44: Blower System Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 45: Blower System Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 46: Blower Motor Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

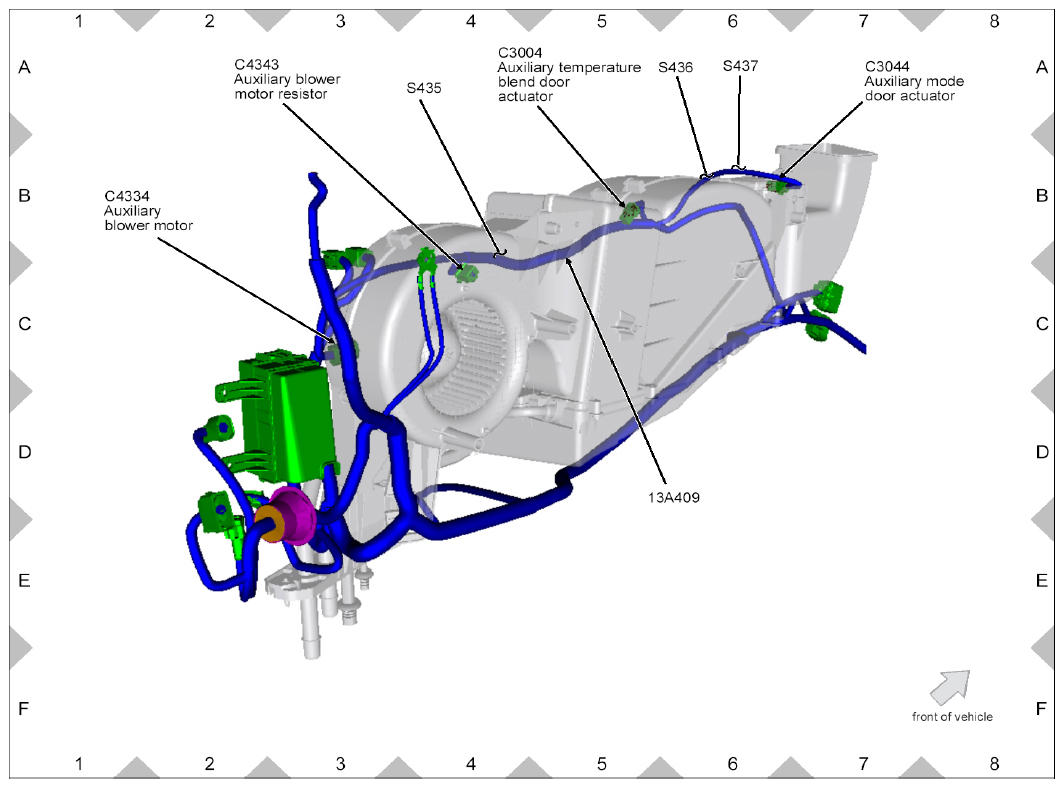

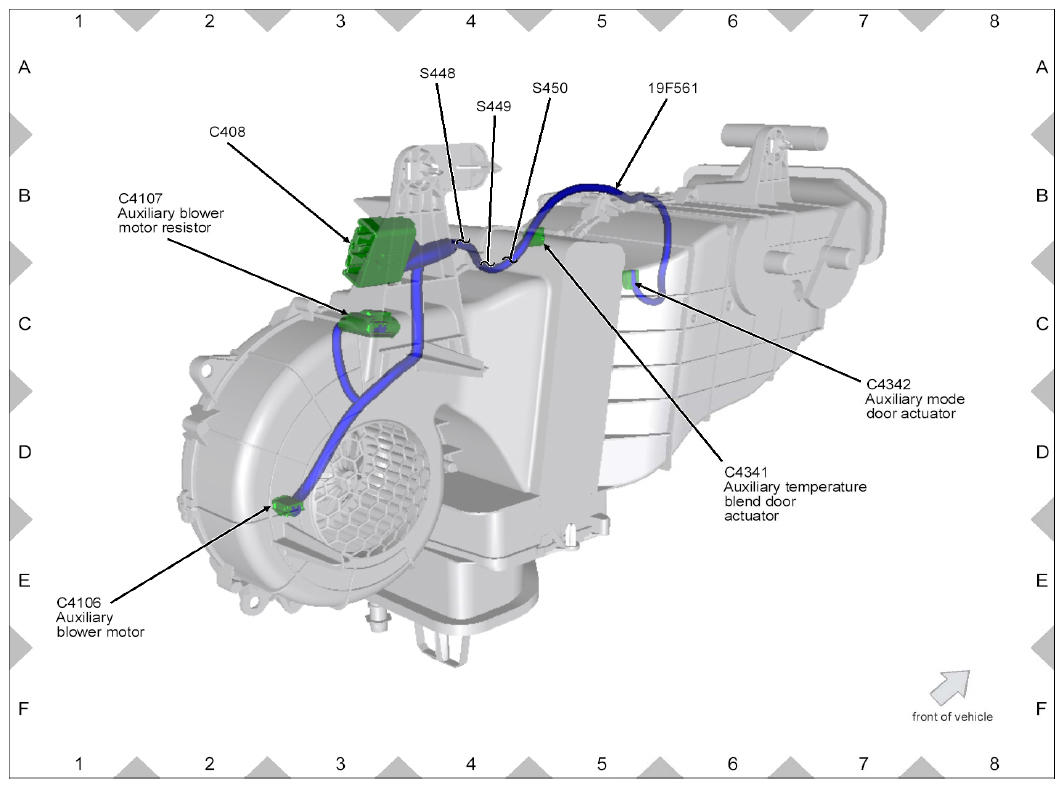

Fig 47: Auxiliary Blower Motor Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
