Active Noise Control Microphone-Rear Connector End View (C9223)

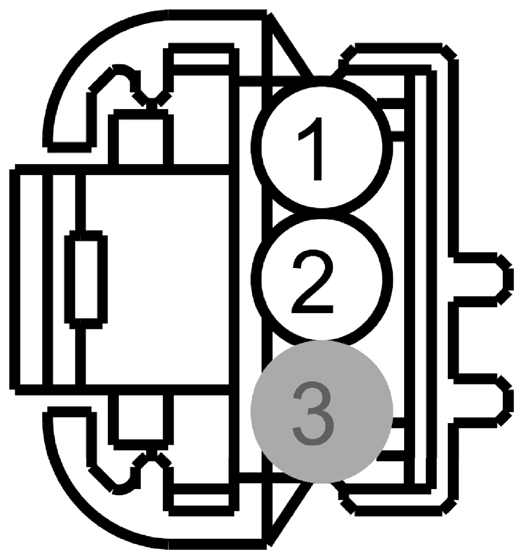

Fig 1: Identifying Active Noise Control Microphone-Rear Connector (C9223)
G09280190Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 VME57 (YE-VT) 22 MICROPHONE - AMBIENT NOISE +
2 RME57 (BU-BN) 22 MICROPHONE - AMBIENT NOISE -
3 * * Not Used
Available Pigtail Kits
Pigtail Kit Part Number WPT-911

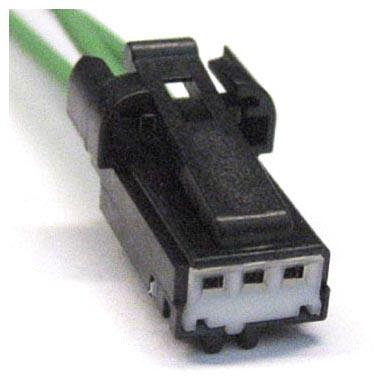

G09280191
 Service Part Number: 8U2Z-14S411-LA
Gauge: 18
Pin material: Silver
Cavities: 3
Vehicle Uses
