Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different variant/trim than selected.

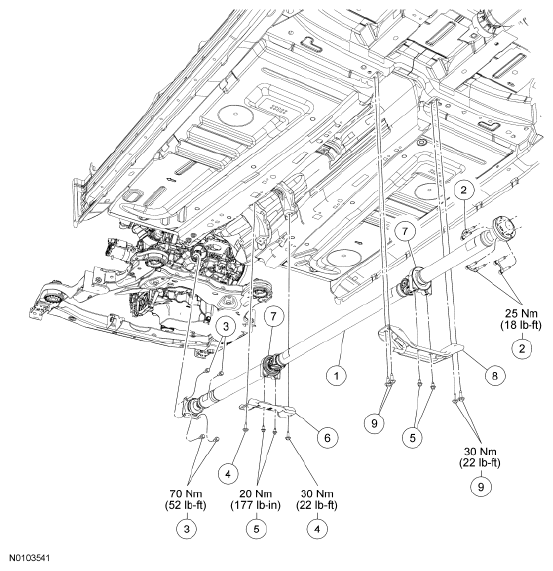

| Item | Part Number | Description |
|---|---|---|
| 1 | 4R602 | Driveshaft assembly |
| 2 | W790063 | Pinion flange bolt and washer assemblies (3 required) |
| 3 | W711918 | Power Transfer Unit (PTU) flange bolts (4 required) |
| 4 | W701834 | Front center bearing bracket outer bolts (2 required) |
| 5 | W500220 | Center bearing bracket inner bolts (4 required) |
| 6 | 4B403 | Front center bearing bracket (part of 4602) |
| 7 | - | Center bearings (2 required) (part of 4602) |
| 8 | 4B403 | Rear center bearing bracket (part of 4602) |
| 9 | W701834 | Rear center bearing bracket outer bolts (4 required) |
