Evaporator Outlet Line
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

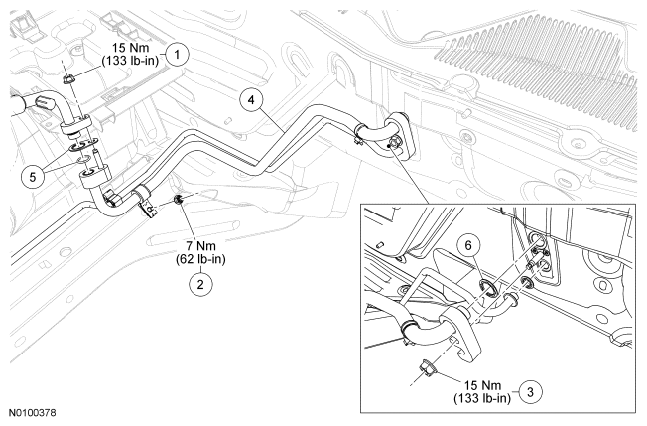

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Evaporator outlet line fitting nut |
| 2 | W520201 | Evaporator outlet line bracket bolt |
| 3 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 4 | 19835 | Evaporator outlet line |
| 5 | 19B596 | Gasket seal and O-ring seal kit |
| 6 | 19B596 | Gasket seal (2 pieces from kit required) |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
