Overdrive Clutch Assembly: Disassembly

  1. Position the Overdrive (O/D) clutch assembly in the Clutch End Play Gauge and remove the T3 thrust bearing.
    G06127432
  2. Remove the O/D  clutch pack snap ring.
    G06127433
  3. Remove the O/D  clutch pack.
    G06171156

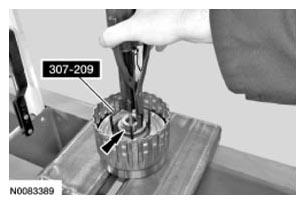

  4. Using the Spring Washer Compressor and a press, remove and discard the O/D  clutch balance piston retaining ring.
    G09380637
  5. Remove the O/D  clutch balance piston.
    G06127447
  6. Remove the O/D  clutch return spring.
    G06127437
  7. Remove the O/D  clutch apply piston.
    G06127438
  8. Remove and discard the outer O-ring seal on the O/D  clutch balance piston.
    G06127439

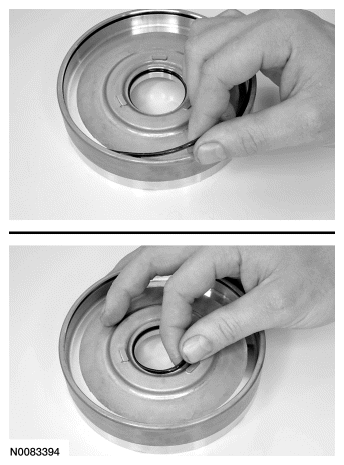

  9. Remove and discard both the inner (one large and one small) O-ring seals on the O/D  clutch apply piston.
    G06456681
  10. Remove and discard the 3 scarf cut seals.
    G06171163
