Description And Operation: Caster: Notes

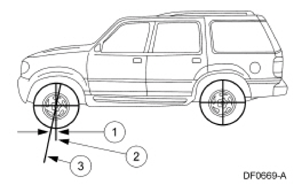

| Item | Description |
|---|---|
| 1 | Positive caster |
| 2 | True vertical |
| 3 | Steering axis |
Caster is the deviation from vertical of an imaginary line drawn through the ball joints when viewed from the side. The caster specifications in this article will give the vehicle the best directional stability characteristics when loaded and driven. The caster setting does not affect tire wear.
