Exterior Mirrors Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

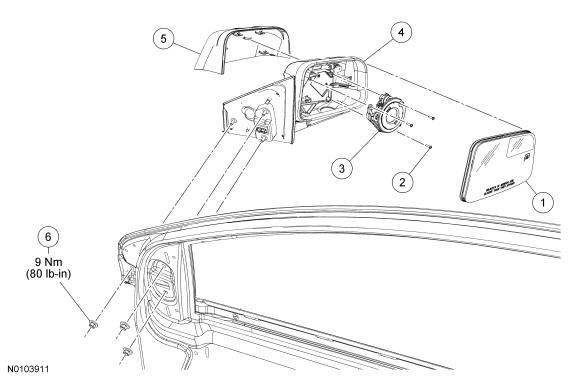

Exterior Mirrors - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screw (part of 17D696) (3 required) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | 17682 RH/ 17683 LH RH/ 17683 LH | Exterior mirror housing |
| 5 | 17D743 LH/ 17D742 RH LH/ 17D742 RH | Exterior mirror cover |
| 6 | N621906 | Exterior mirror nut (3 required) |
