OEM Ground Distribution: Grounds

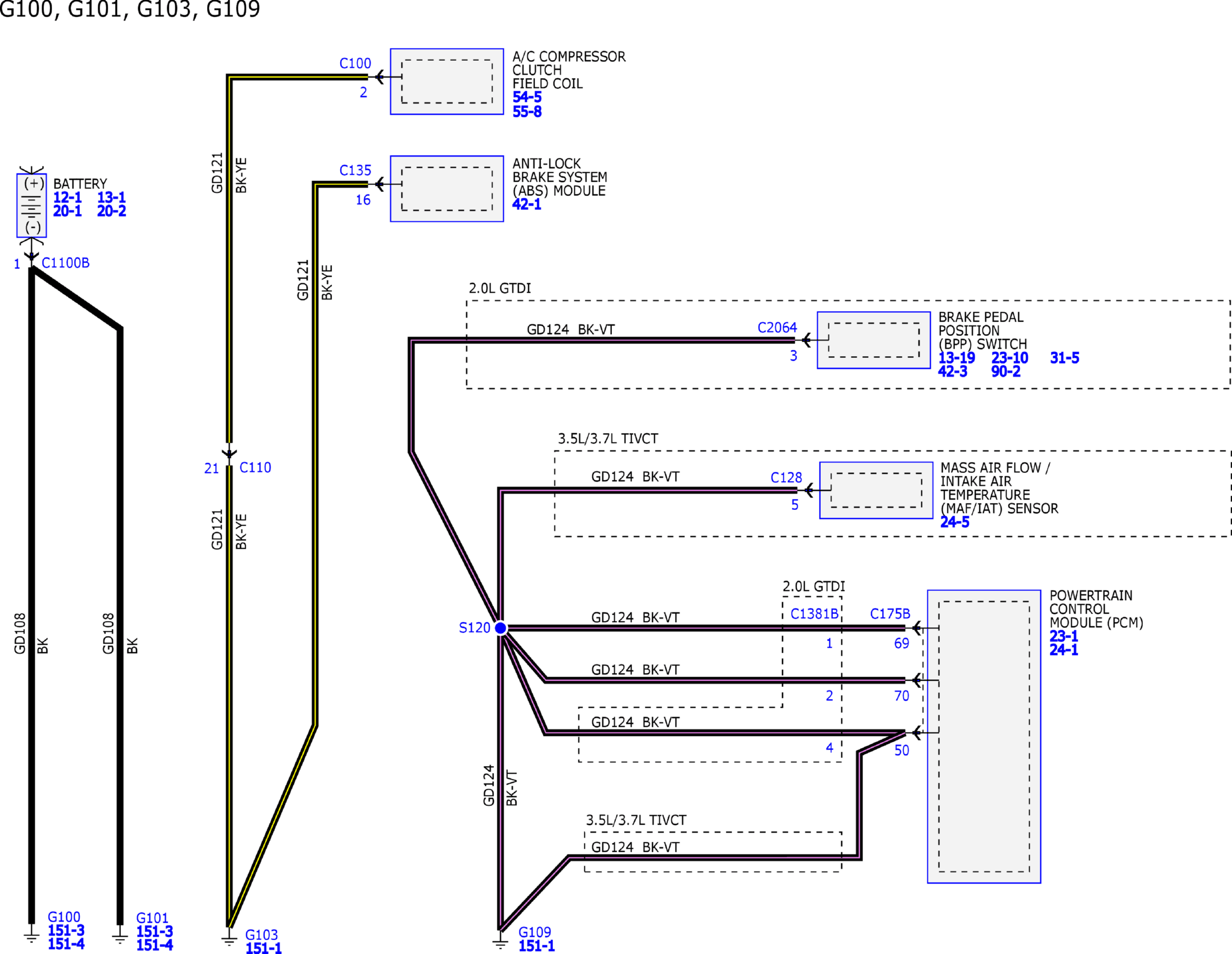

GFDW36624Courtesy of FORD MOTOR COMPANY

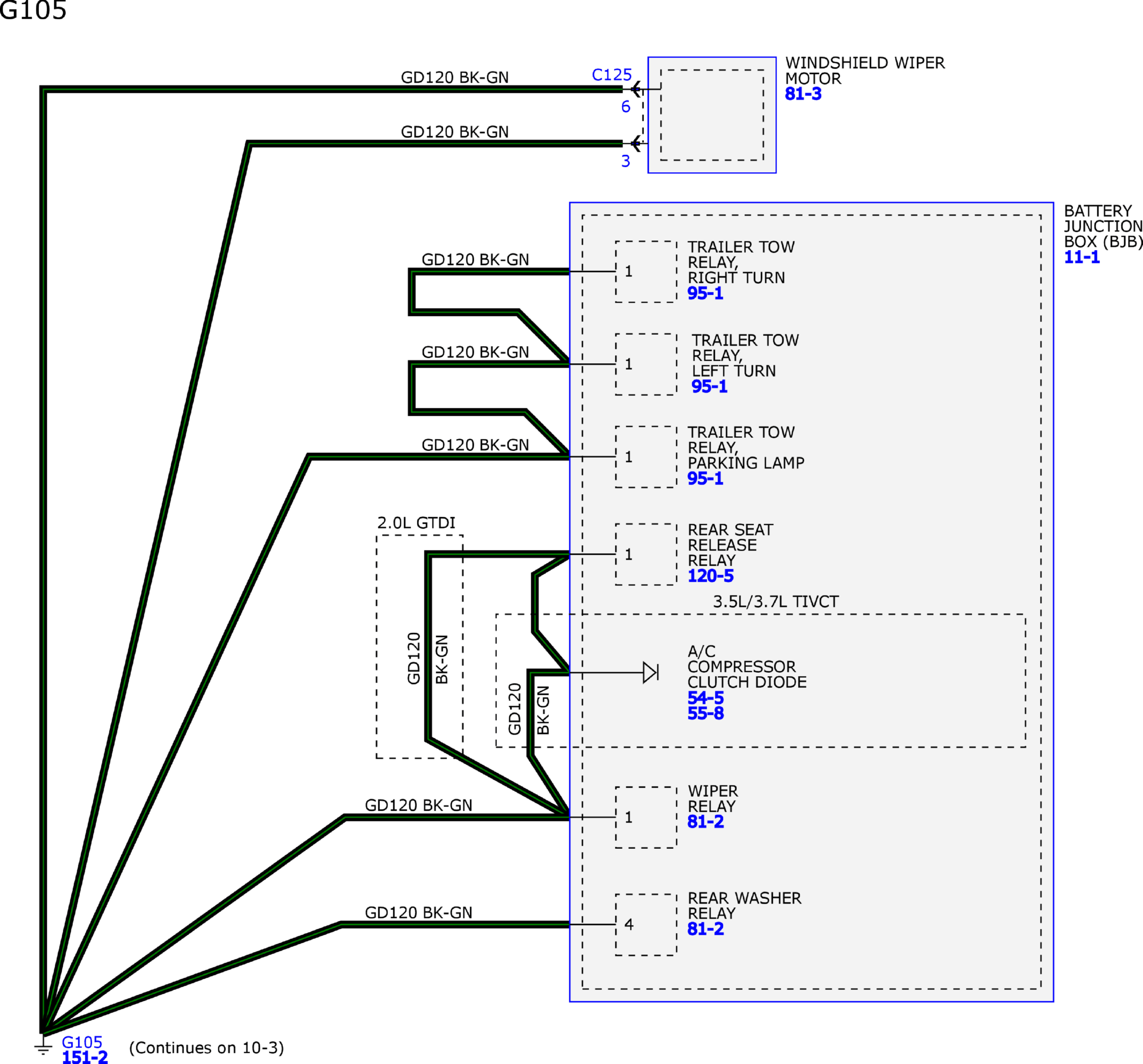

GFDW36625Courtesy of FORD MOTOR COMPANY

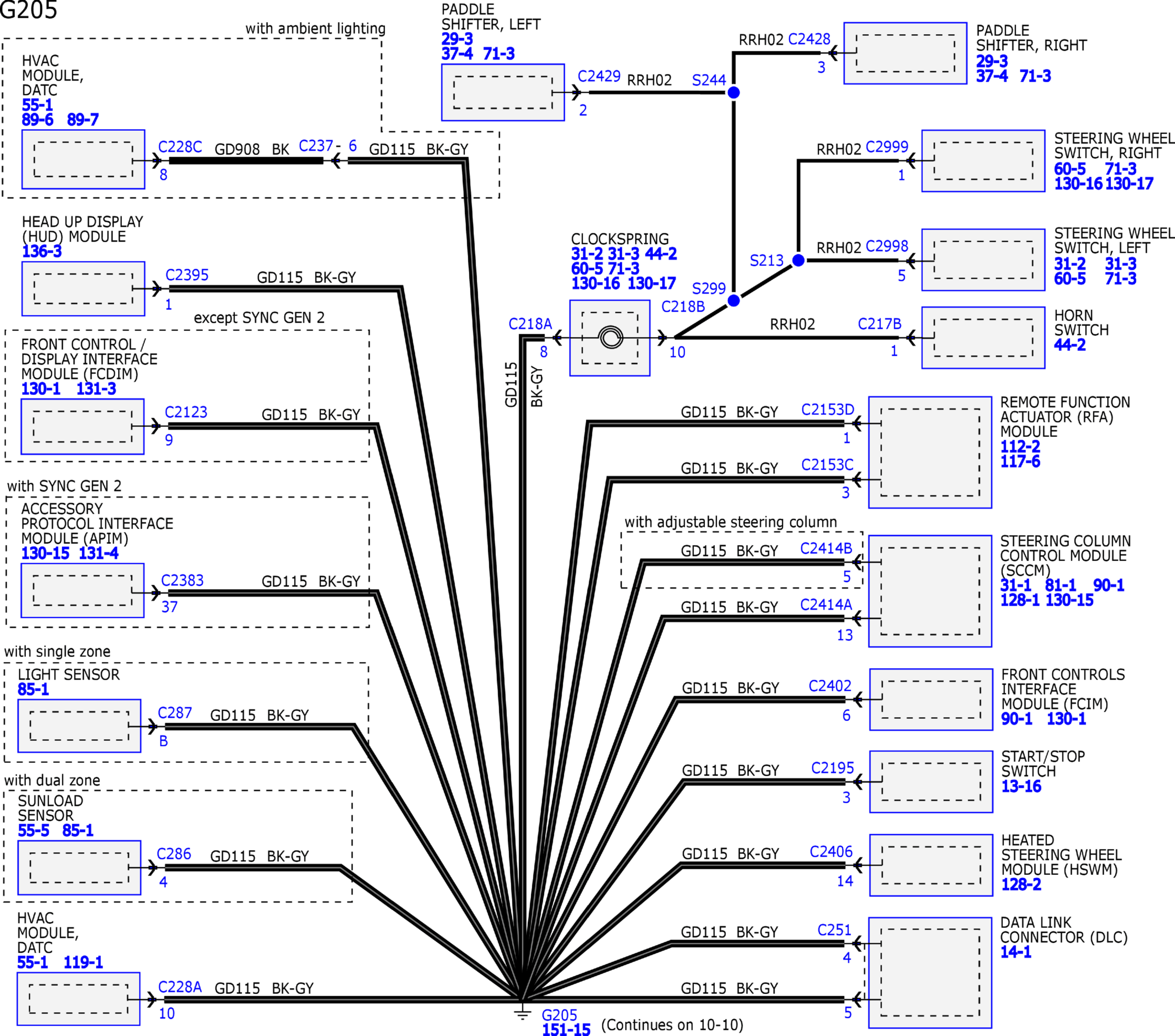

GFDW36626Courtesy of FORD MOTOR COMPANY

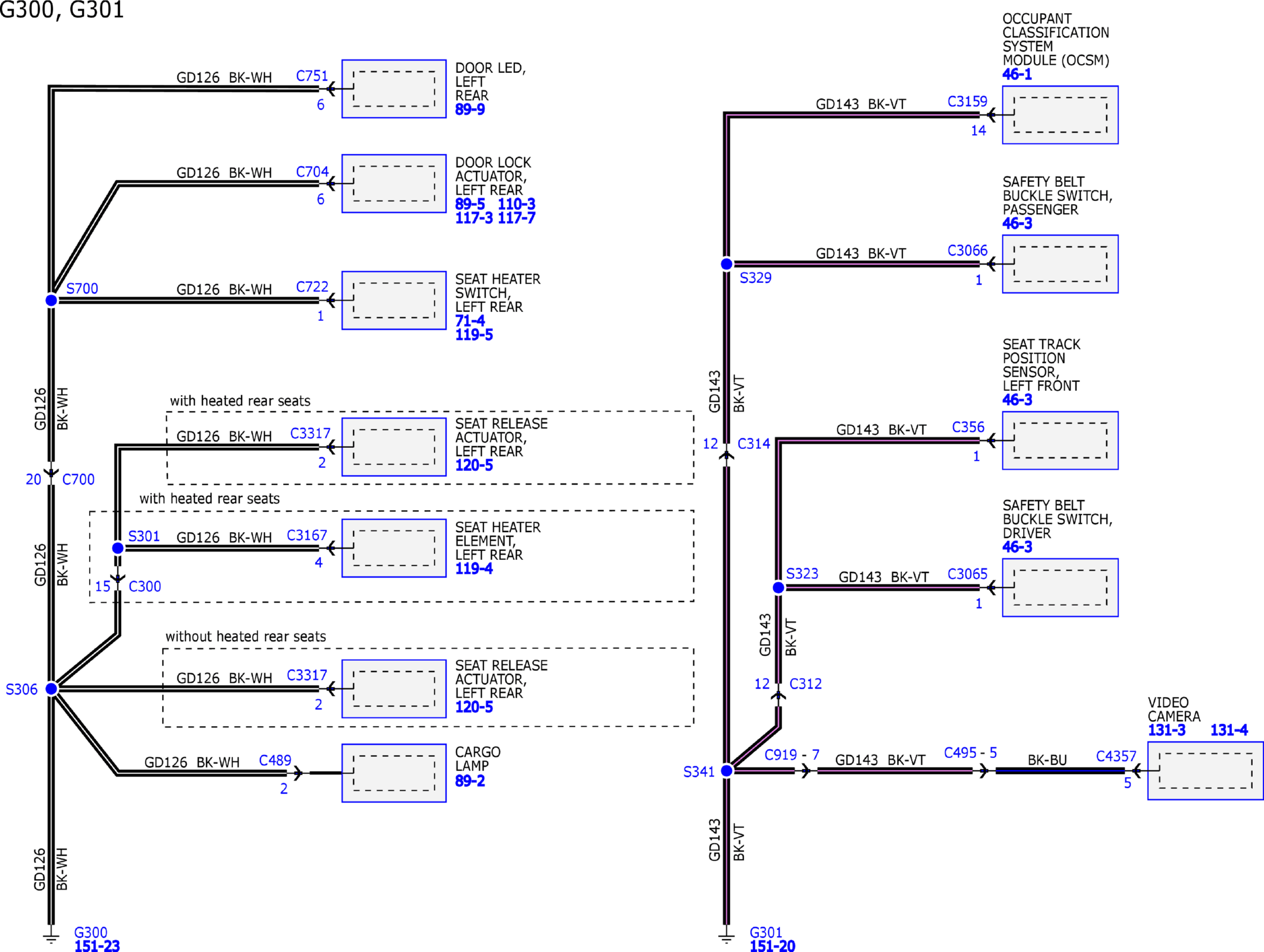

GFDW36627Courtesy of FORD MOTOR COMPANY

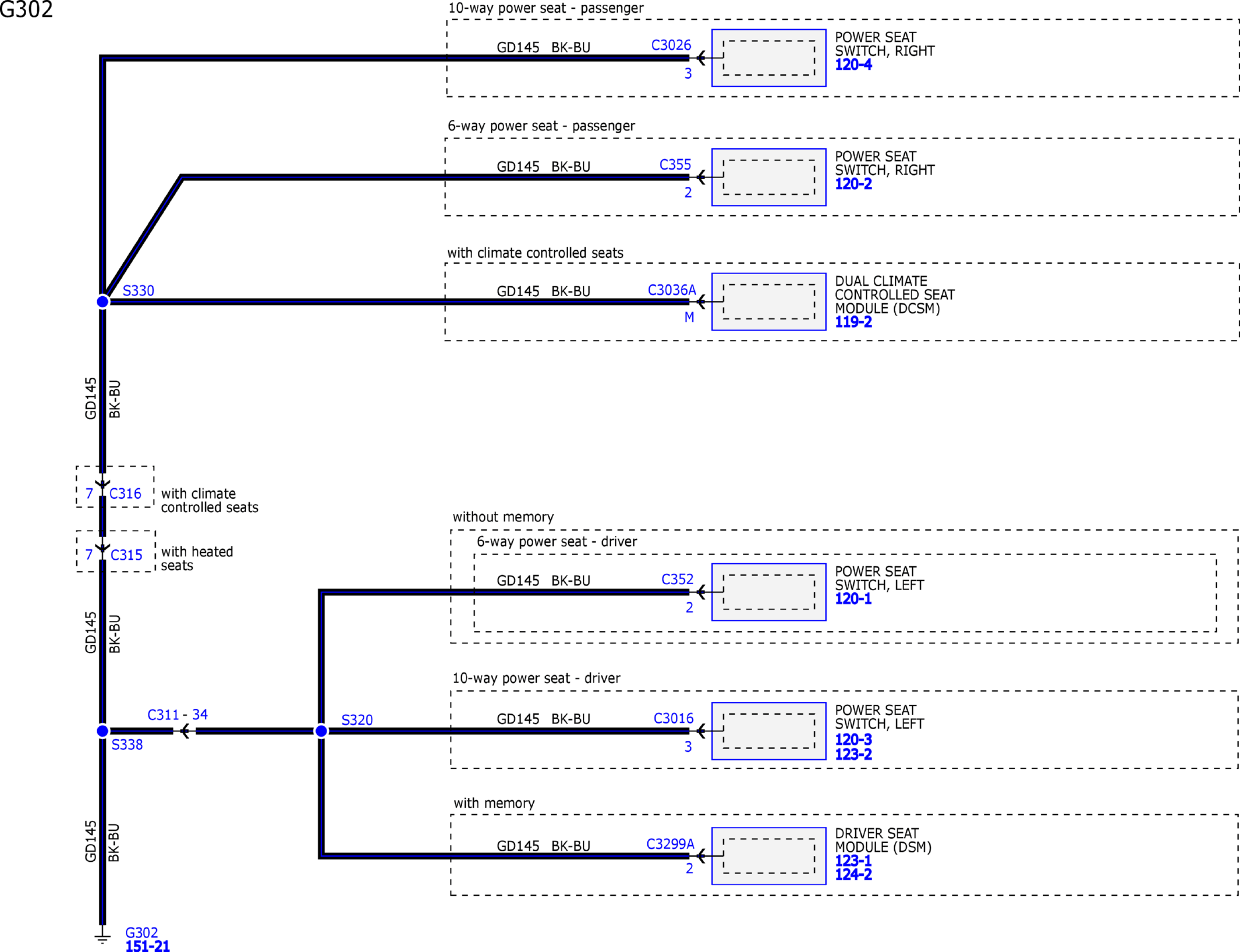

GFDW36628Courtesy of FORD MOTOR COMPANY

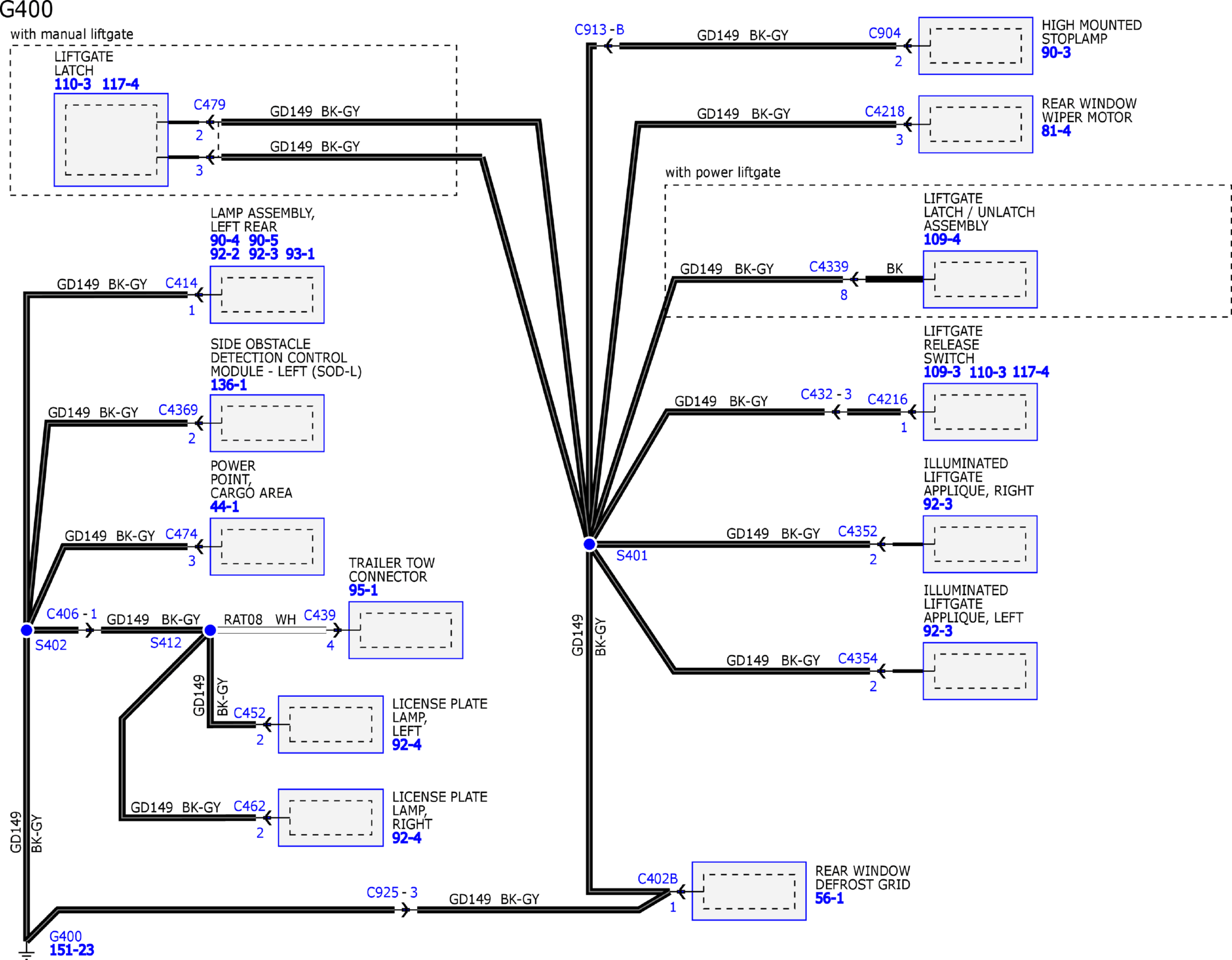

GFDW36629Courtesy of FORD MOTOR COMPANY

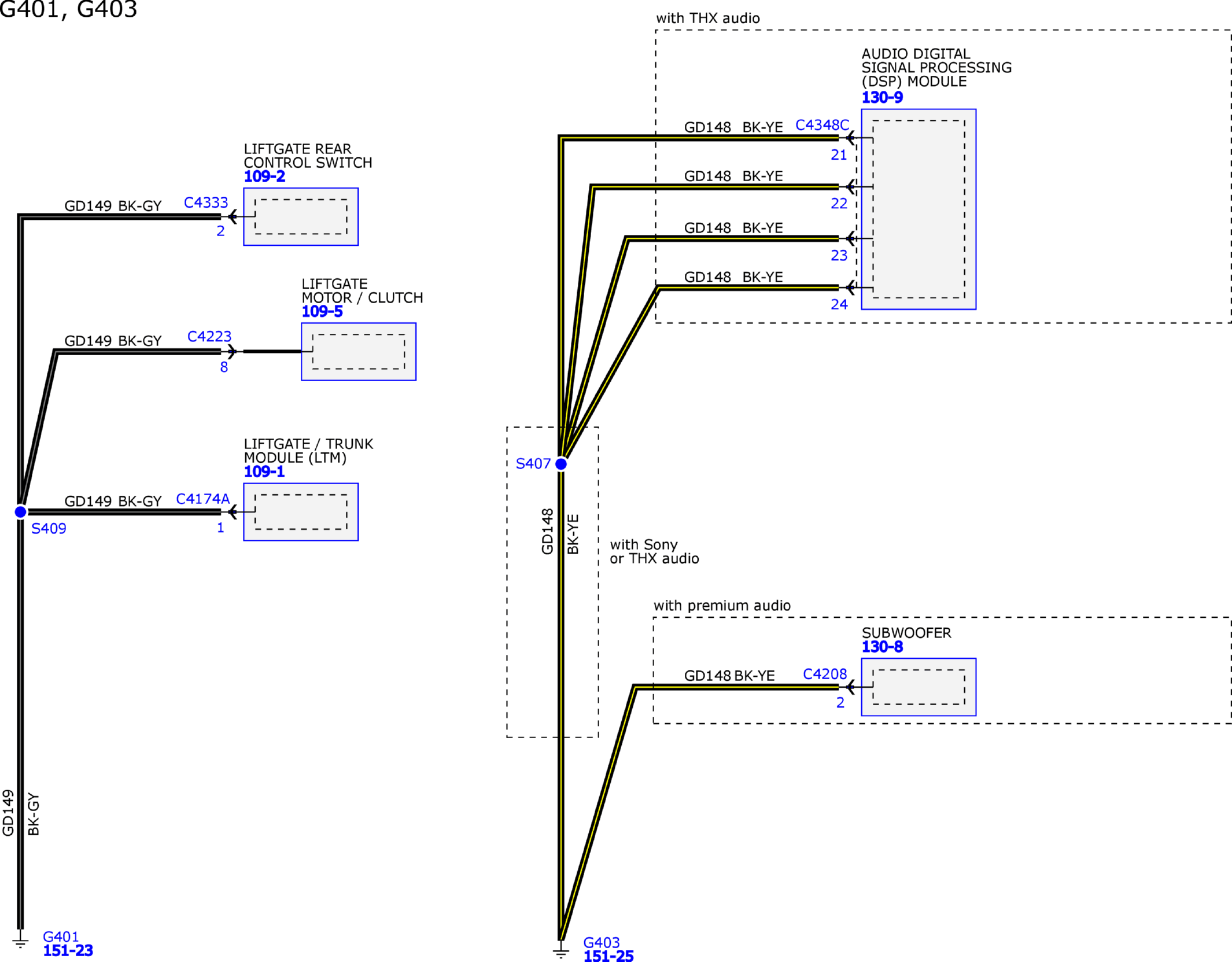

GFDW36630Courtesy of FORD MOTOR COMPANY

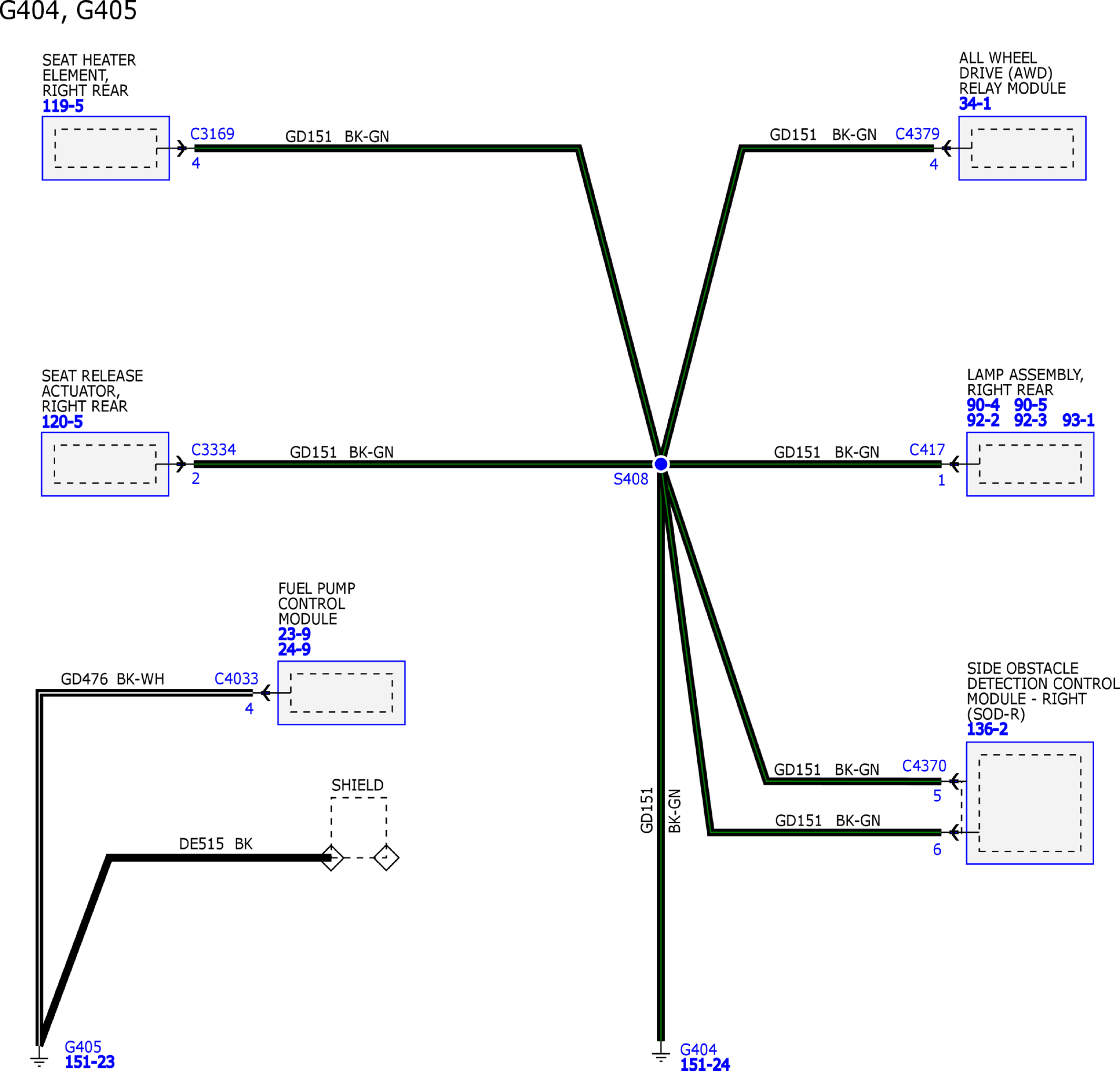

GFDW36631Courtesy of FORD MOTOR COMPANY

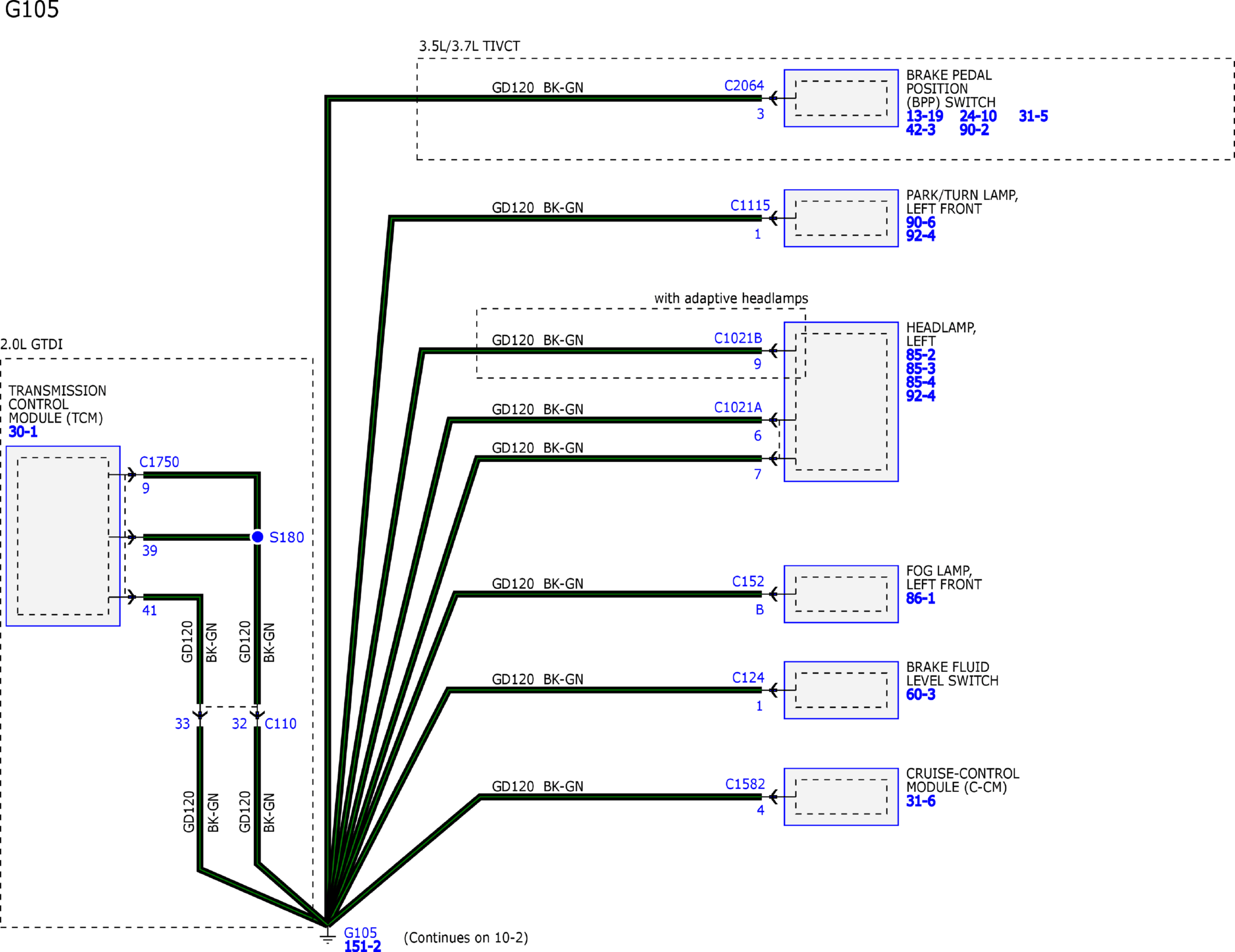

GFDW36632Courtesy of FORD MOTOR COMPANY

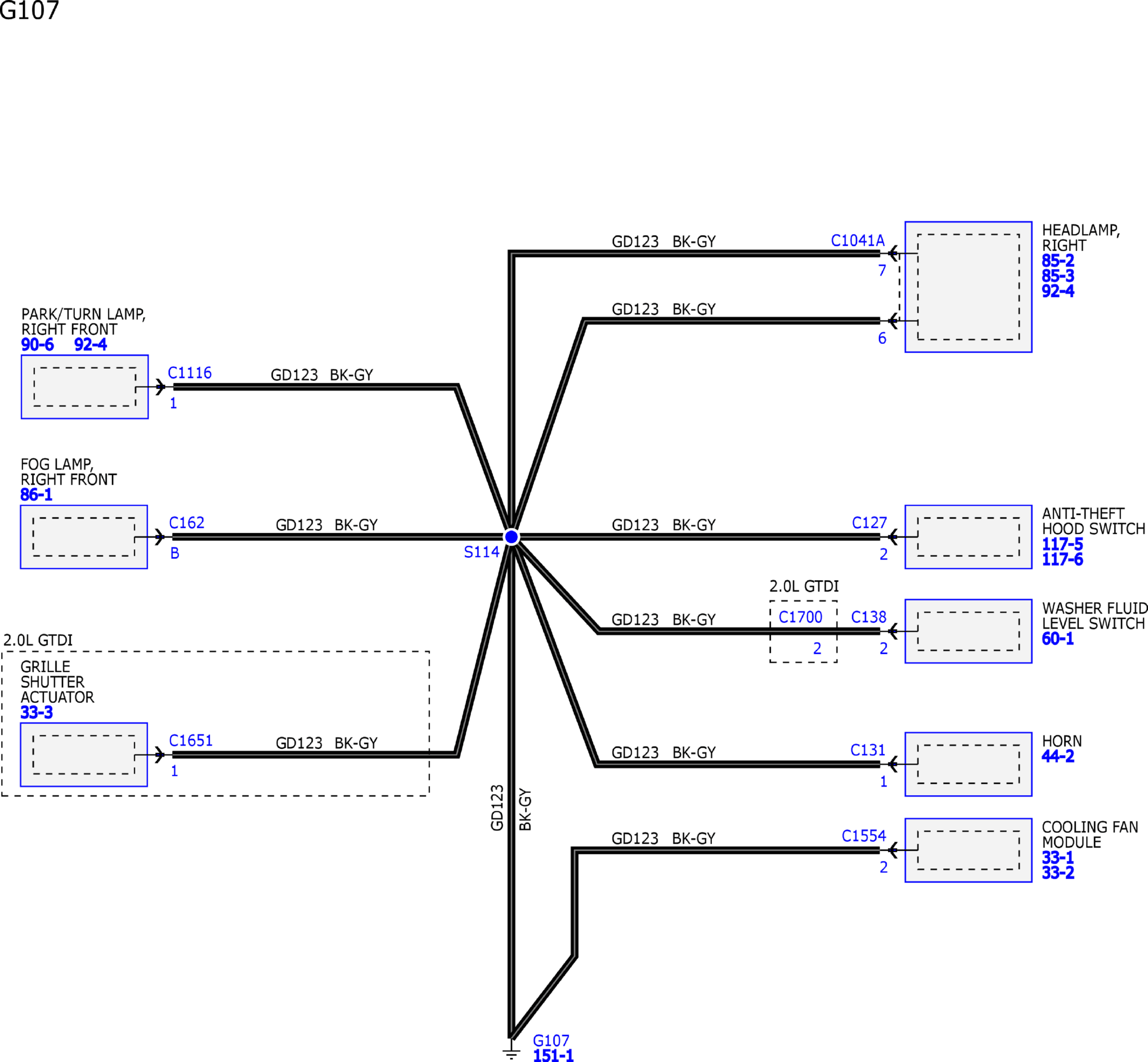

GFDW36633Courtesy of FORD MOTOR COMPANY

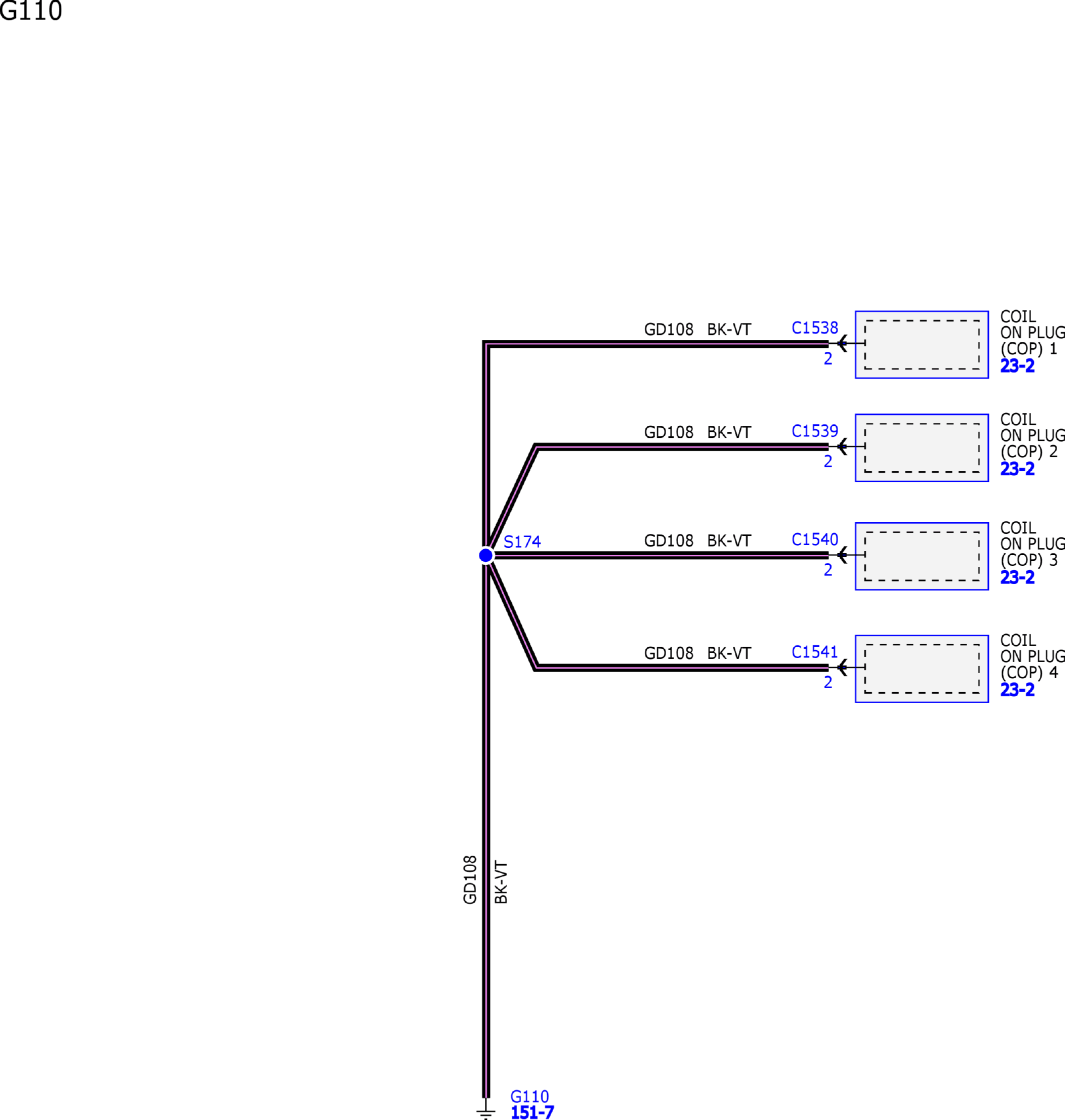

GFDW36634Courtesy of FORD MOTOR COMPANY

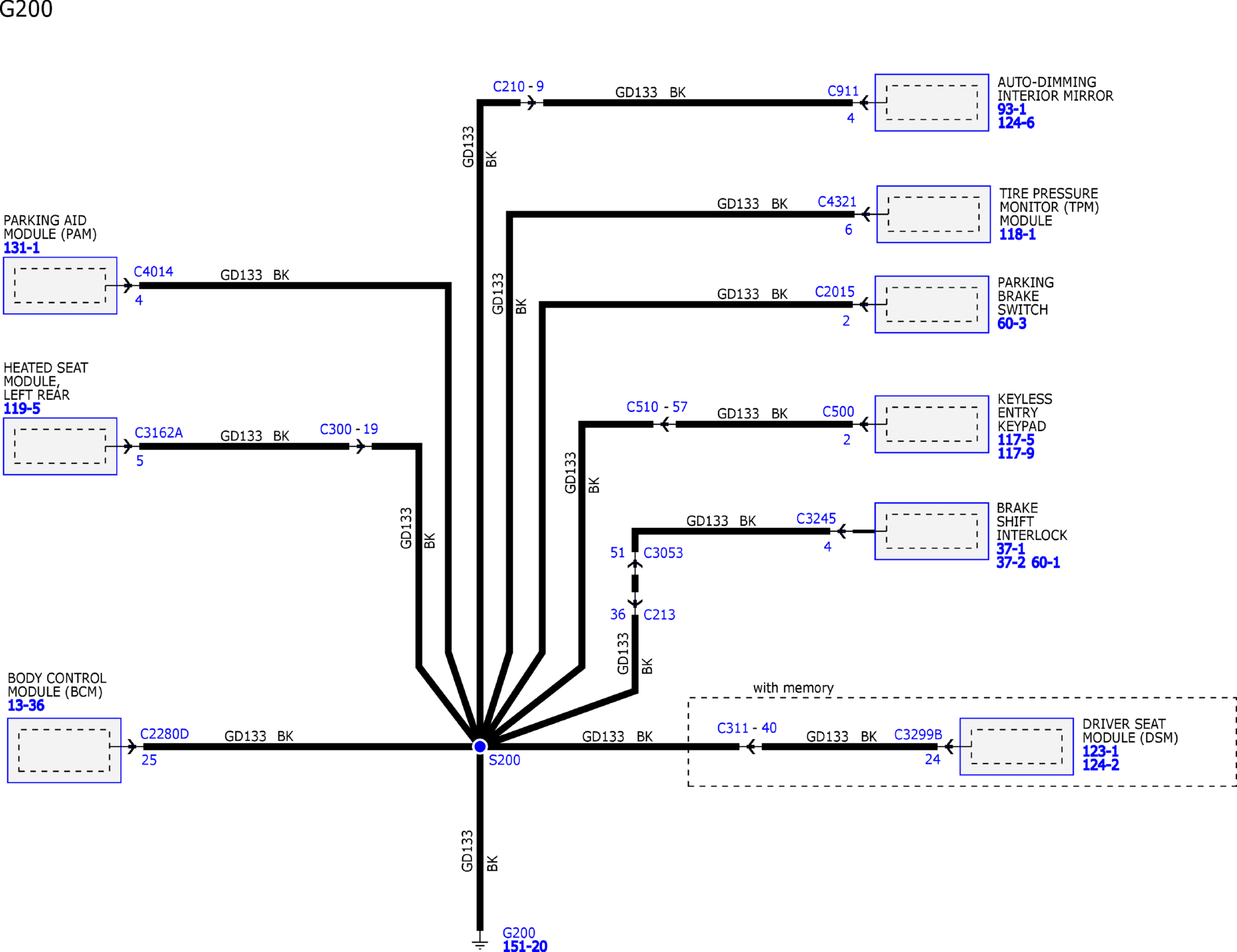

GFDW36635Courtesy of FORD MOTOR COMPANY

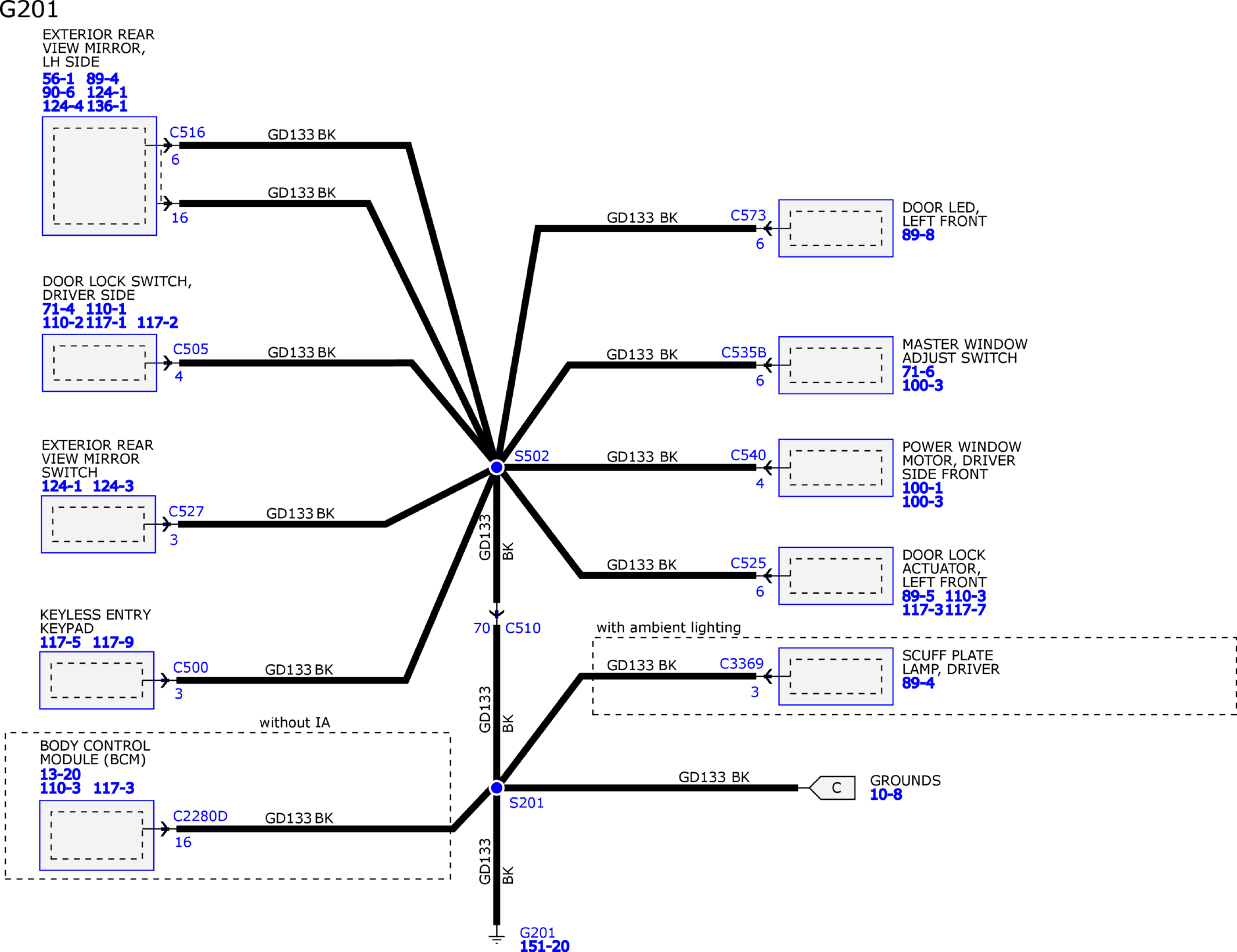

GFDW36636Courtesy of FORD MOTOR COMPANY

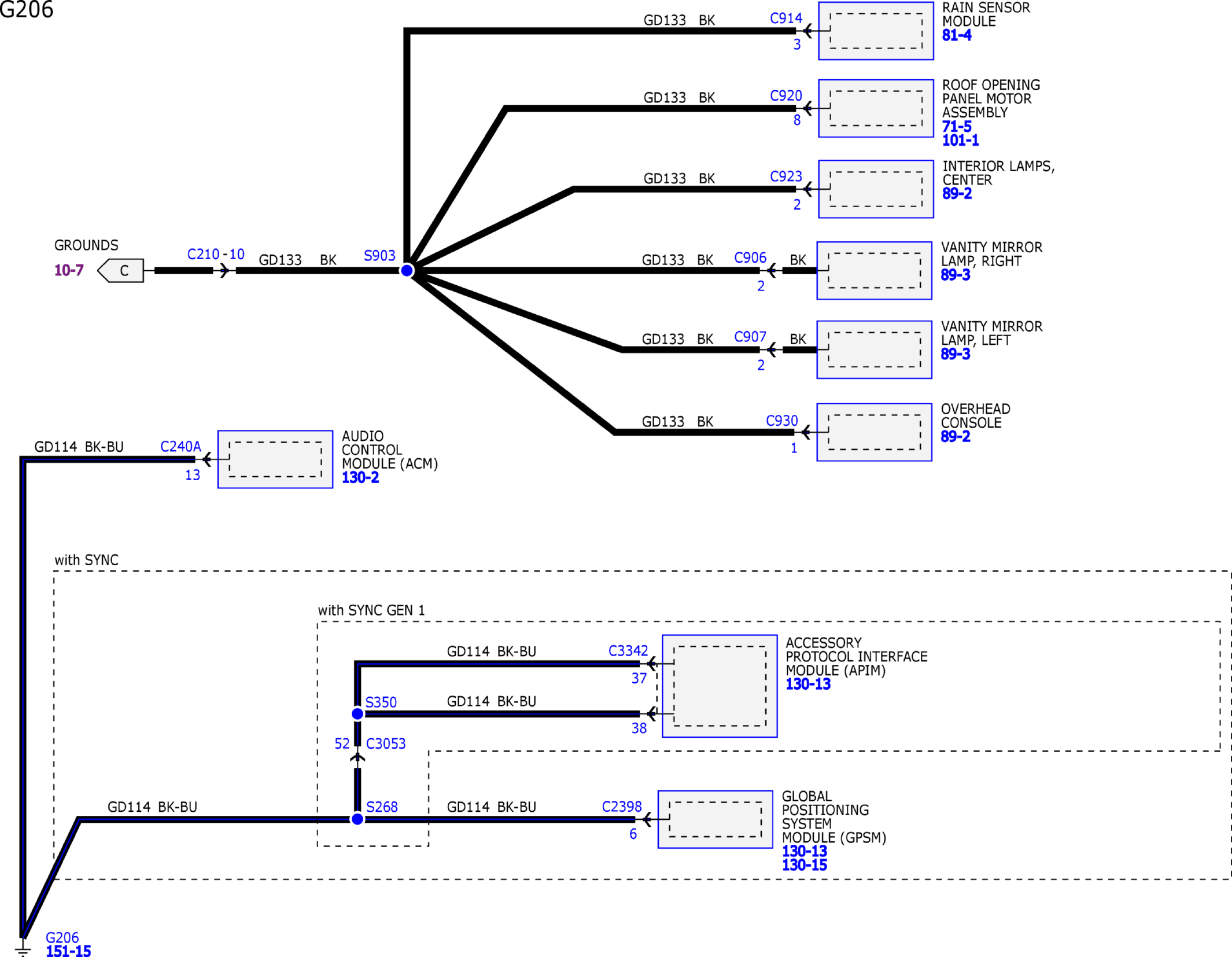

GFDW36637Courtesy of FORD MOTOR COMPANY

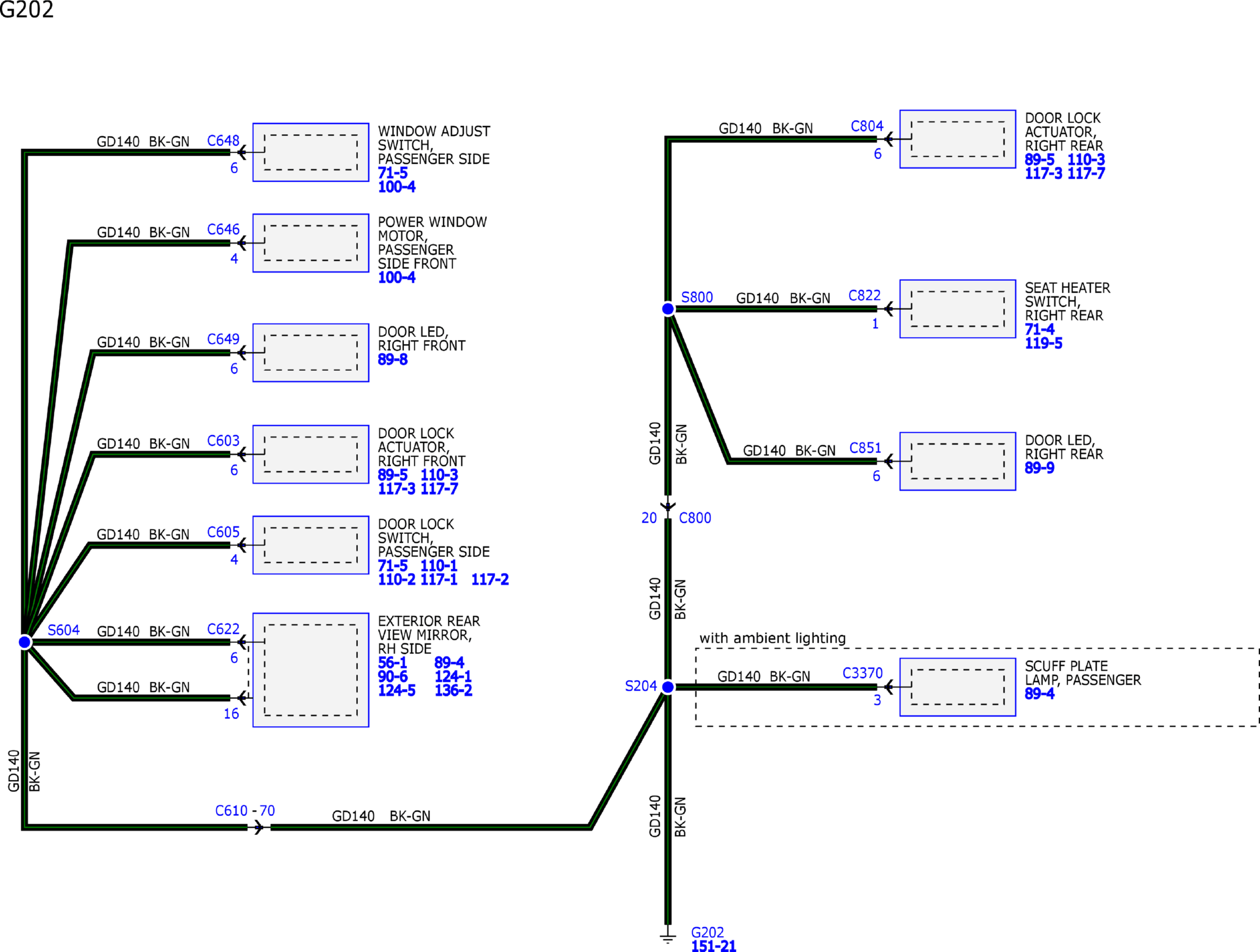

GFDW36638Courtesy of FORD MOTOR COMPANY

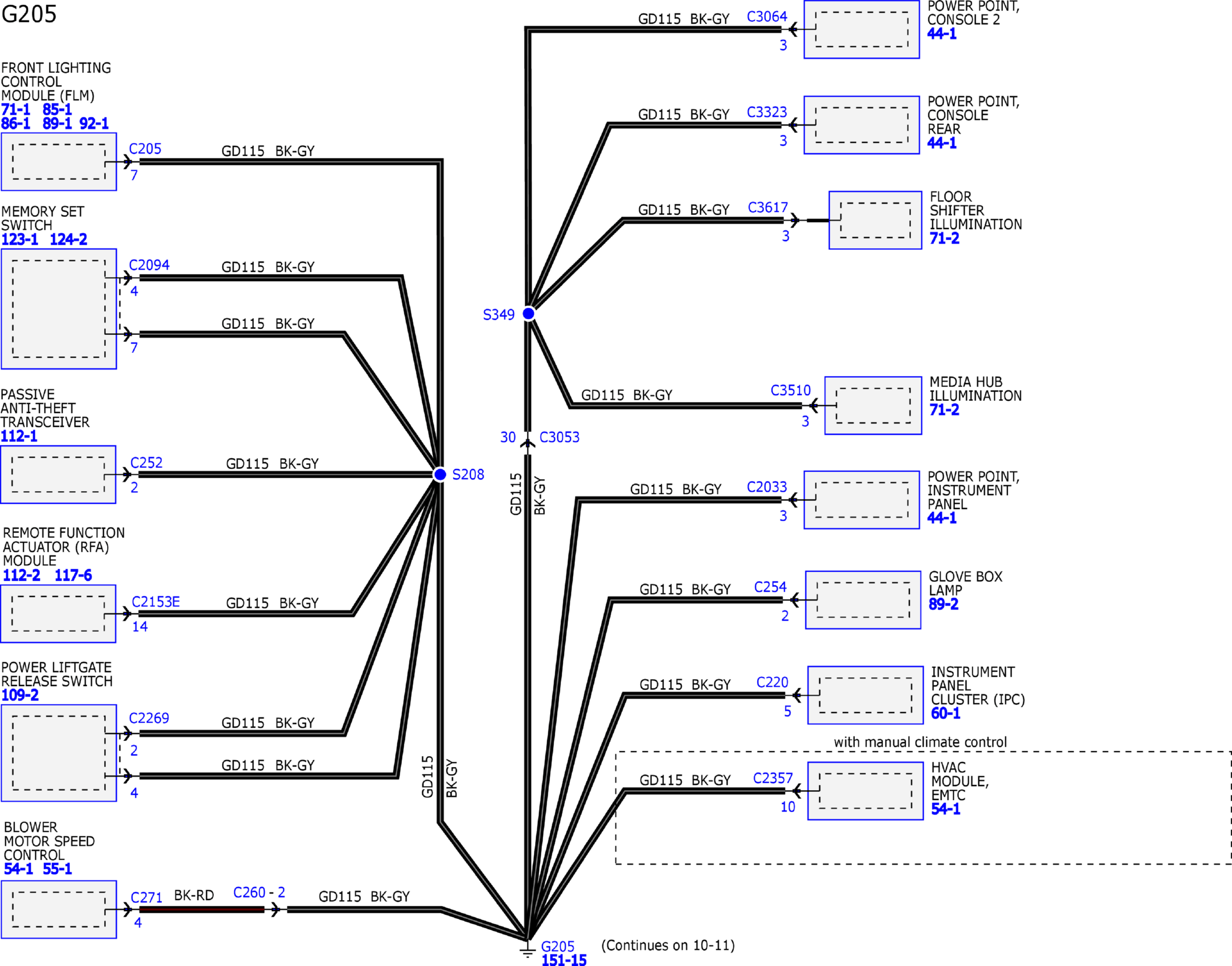

GFDW36639Courtesy of FORD MOTOR COMPANY
