Power Steering System Filling
Special Tool(s)
| Evacuation Cap, Power Steering 211-265 | |
| Fill Adapter Manifold, Power Steering 211-327 | |
| Vacuum Pump Kit 416-D002 (D95L-7559-A) or equivalent |
Material
| Item | Specification |
| Motorcraft ® MERCON ® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) | MERCON ® V |
| Item | Description |
|---|---|
| 1 | Power steering fluid reservoir |
| 2 | Control valve (vacuum side) |
| 3 | Control valve (fluid container side) |
| 4 | Fluid container |
- 1.NOTE: If the air is not purged from the power steering system correctly, premature power steering pump failure may result. The condition can occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.
Remove the power steering fluid reservoir cap.
- 2.

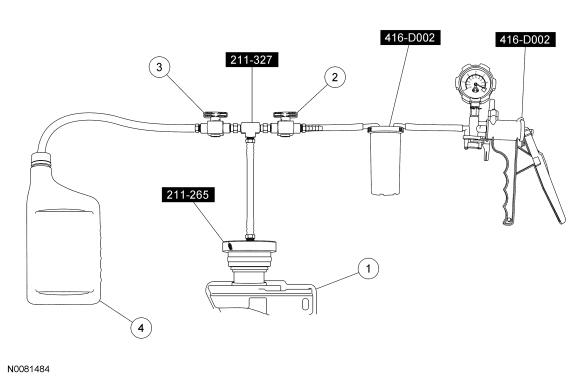

Install the Power Steering Evacuation Cap, Power Steering Fill Adapter Manifold and Vacuum Pump Kit as shown in the illustration.
- 3.NOTE: The Power Steering Fill Adapter Manifold control valves are in the OPEN position when the points of the handles face the center of the Power Steering Fill Adapter Manifold.
Close the Power Steering Fill Adapter Manifold control valve (fluid side).
- 7.
If the Vacuum Pump Kit gauge reading drops more than 3 kPa (0.88 in-Hg), correct any leaks in the power steering system or the Power Steering Evacuation Cap, Power Steering Fill Adapter Manifold and Vacuum Pump Kit before proceeding.
- 8.NOTE: The Vacuum Pump Kit gauge reading will drop slightly during this step.
Slowly open the Power Steering Fill Adapter Manifold control valve (fluid side) until power steering fluid completely fills the hose and then close the control valve.
- 12.
Once power steering fluid enters the fluid reservoir and reaches the minimum fluid level indicator line on the reservoir, close the Power Steering Fill Adapter Manifold control valve (fluid side).
- 13.
Remove the Power Steering Evacuation Cap, Power Steering Fill Adapter Manifold and Vacuum Pump Kit.
- 15.NOTE: Do not hold the steering wheel against the stops for an extended amount of time. Damage to the power steering pump may occur.NOTE: There will be a slight drop in the power steering fluid level in the reservoir when the engine is started.
Start the engine and turn the steering wheel from stop-to-stop.
