Sunload Sensor: Removal
WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Expedition, Expedition EL vehicles
- 1.

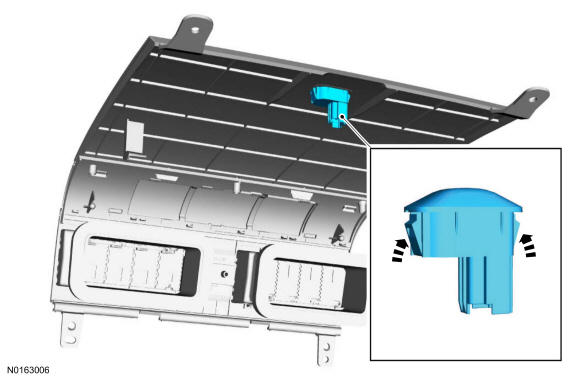

Remove the sunload sensor.- Detach the sunload sensor from the instrument panel.
- Disconnect sunload electrical connector and remove the sunload sensor.
Navigator, Navigator L vehicles
- 2.

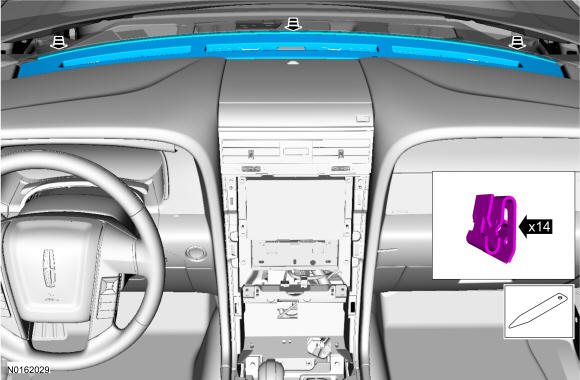

Remove the FCIM. Refer to, Information and Entertainment Systems - AM FM , Information And Entertainment Systems - AM/FM/CD/Sync , Information And Entertainment Systems - Sony Audio System or Information And Entertainment Systems - THX Audio System .
- 4.

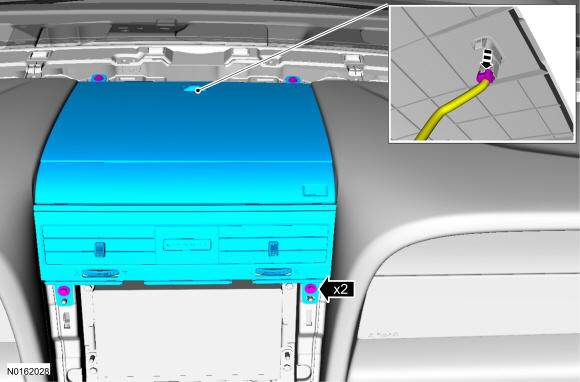

Remove the instrument panel center bezel.- Remove the screws and position aside instrument panel center bezel.
- Disconnect the sunload sensor electrical connector.
- Remove the instrument panel center bezel.
- Tighten to 2.5 Nm (23 lb-in).
