Compressor to Condenser Discharge Line: Removal

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Recover the refrigerant. Refer to Climate Control System - General Information and Diagnostics .

2.

Remove the Right Hand(RH) headlamp assembly. Refer to Exterior Lighting .

3.

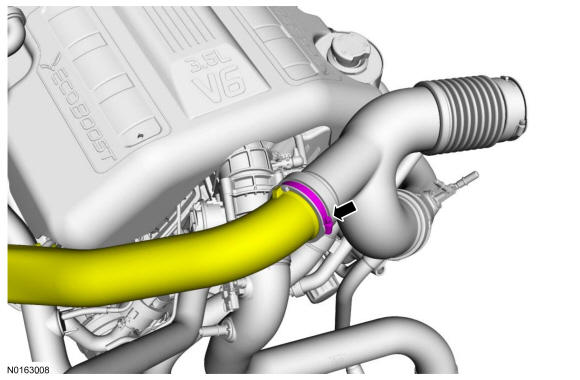

Loosen the Air Cleaner(ACL) outlet pipe clamp and disconnect the ACL outlet pipe.
- Tighten to 5 Nm (44 lb-in).

GFD31441

Courtesy of FORD MOTOR COMPANY

4.

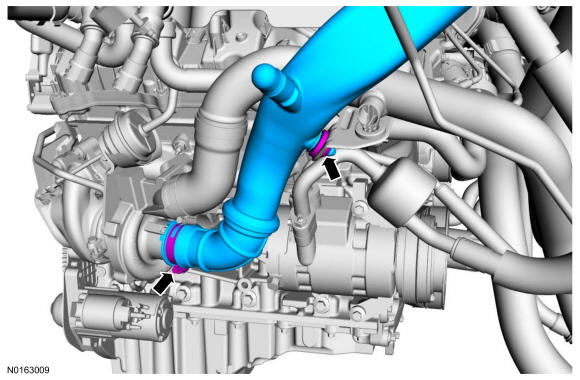

Loosen the ACL outlet pipe clamp and remove the Air Cleaner(ACL) outlet pipe.
- Tighten to 5 Nm (44 lb-in).

GFD31442

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that all openings are sealed.

5.

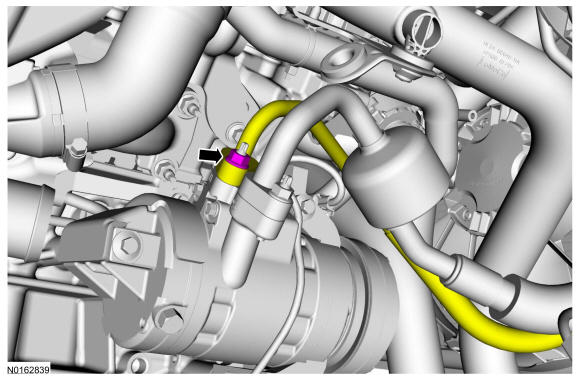

Remove the compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).

GFD31454

Courtesy of FORD MOTOR COMPANY

6.

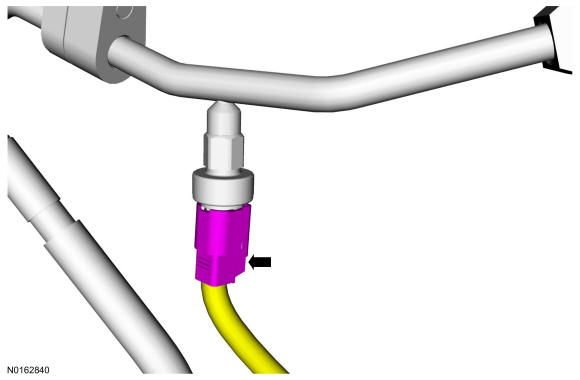

Disconnect the A/C pressure transducer electrical connector.

GFD31455

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that all openings are sealed.

7.

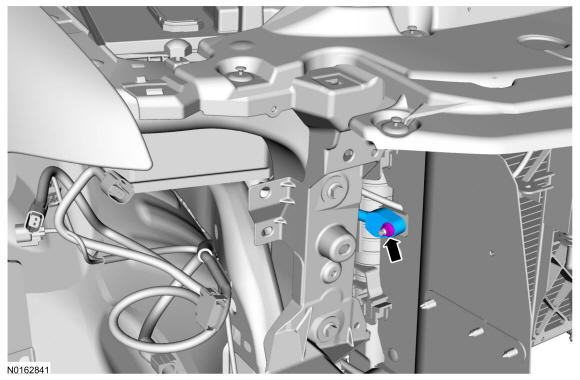

Remove the condenser inlet fitting nut and remove the compressor-to-condenser discharge line.
- Discard the O-ring and gasket seals.
- To install, tighten to 15 Nm (133 lb-in).

GFD31456

Courtesy of FORD MOTOR COMPANY
