Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: RH side shown in illustration, LH side similar.

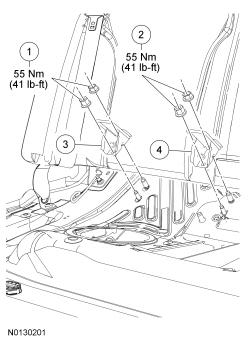

Fig 1: Child Safety Seat Tether Anchor Nuts With Torque Specifications (LATCH)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	N808227	RH lower anchors and tethers for children nuts
2	N808227	Center lower anchors and tethers for children nuts
3	61216	Lower anchors and tethers for children (RH outboard/LH outboard)
4	61216/ 61217/ 61217	Lower anchors and tethers for children (RH center/ LH center)
