Steering Column Motor - Tilt: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

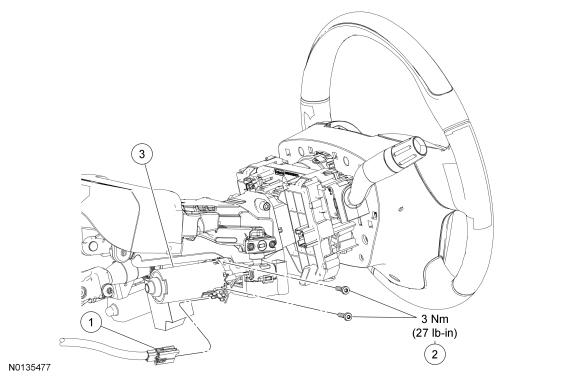

Fig 1: Steering Column Motor - Tilt Replacement Components With Torque Specifications
GFD87090Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Steering column tilt motor electrical connector (part of 14401)
2 W790120 Steering column tilt motor screws (2 required)
3 3D538 Steering column tilt motor
