Removal And Installation: Halfshaft: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL(S)
| Halfshaft Remover 205-832 | |
| Slide Hammer 100-001 T50T-100-A |

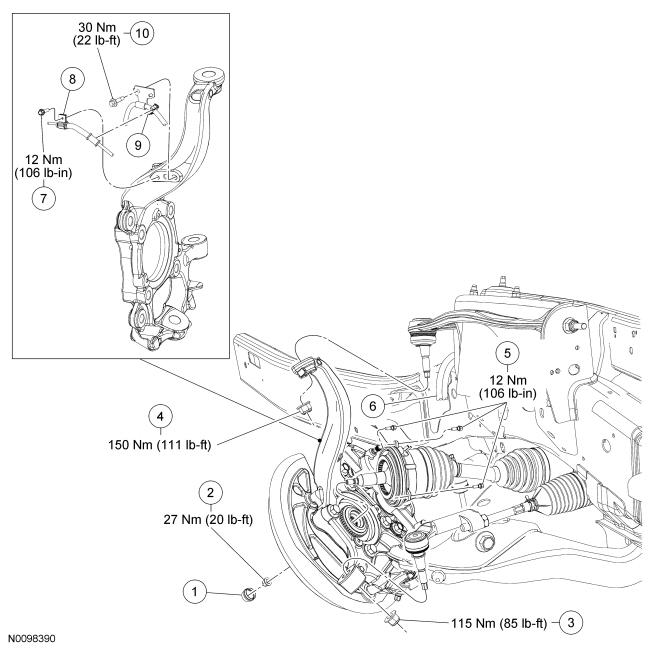

| Item | Part Number | Description |
|---|---|---|
| 1 | 1131 | Dust cap |
| 2 | N802827 | Wheel hub nut |
| 3 | W520215 | Tie-rod nut |
| 4 | W520215 | Upper ball joint nut |
| 5 | W505211 | IWE bolts (3 required) |
| 6 | - | Vacuum vent and apply tube |
| 7 | - | Wheel speed sensor harness bracket bolt |
| 8 | - | Wheel speed sensor harness bracket (part of 2C204) |
| 9 | - | Brake flexible hose retainer (part of 2078) |
| 10 | W611633 | Brake flexible hose bracket bolt |
