Engine Coolant Temperature (ECT) Sensor: Installation

  1. To install, reverse the removal procedure.
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

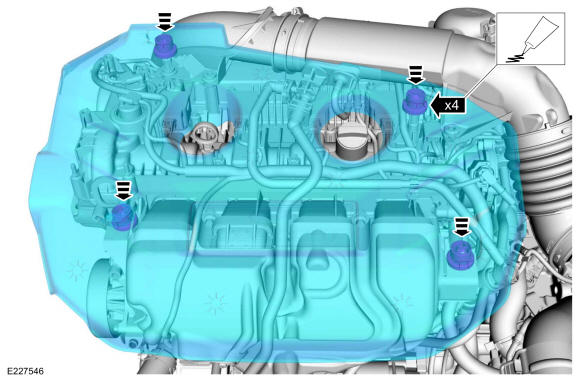

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD227516Courtesy of FORD MOTOR COMPANY
  3. Check the coolant level in the degas bottle and add coolant as necessary.

    Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
