Steering Column: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Steering Wheel .
Refer to: Steering Column Shrouds .

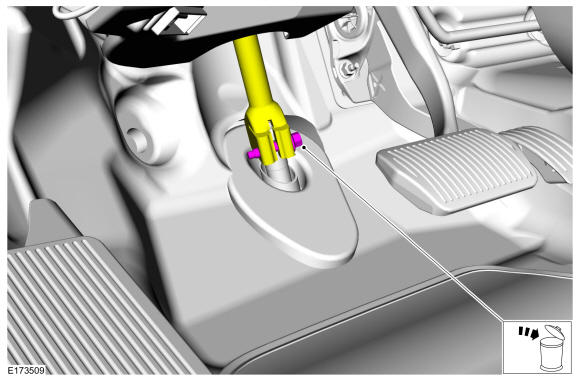

WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Torque:

21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

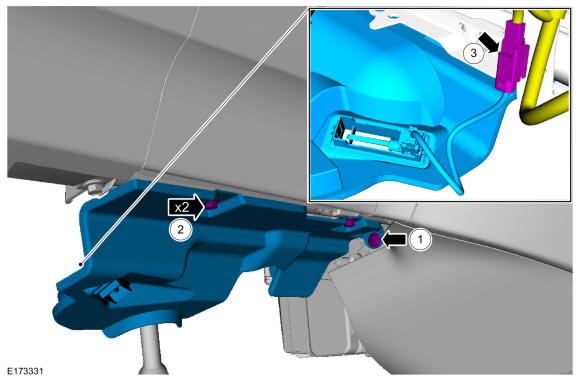

Refer to: Instrument Panel Lower Trim Panel .
NOTE: Power adjustable steering column shown, manual adjustable steering column similar.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Refer to: Steering Column Control Module (SCCM) .

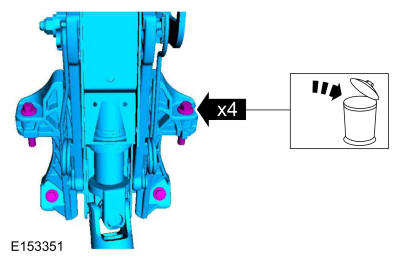

Torque:
21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
