Transaxle Overhaul

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	Actuator Pin (Dia 3/16") 303-D011 (D80L-100-G)
Courtesy of FORD MOTOR COMPANY	Compressor, Forward Clutch Spring 307-574
Courtesy of FORD MOTOR COMPANY	Compressor, Forward/Intermediate Spring 307-584 (includes 307-584/1 and 307-584/2)
Courtesy of FORD MOTOR COMPANY	Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (includes 307-589/1 and 307-589/2)
Courtesy of FORD MOTOR COMPANY	Converter Seal Installer 307-575
Courtesy of FORD MOTOR COMPANY	Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C)
Courtesy of FORD MOTOR COMPANY	Handle 205-153 (T80T-4000-W)
Courtesy of FORD MOTOR COMPANY	Holding Fixture 307-580
Courtesy of FORD MOTOR COMPANY	Input Shaft Support Seal Installer (Back Plate, Multiple Rings) 307-578 (includes 307-578/1, 307-578/2 and 307-578/3)
Courtesy of FORD MOTOR COMPANY	Installer, Cover Axle Seal 307-582A
Courtesy of FORD MOTOR COMPANY	Leak Tester, Torque Converter 307-691
Courtesy of FORD MOTOR COMPANY	Manual Lever Seal Installer 307-581
Courtesy of FORD MOTOR COMPANY	Remover, TRS Retaining Pin 307-696
Courtesy of FORD MOTOR COMPANY	Retainer, Torque Converter 307-346
Courtesy of FORD MOTOR COMPANY	Reverse Clutch Piston and Retaining Ring Set 307-588 (includes 307-588/1, 307-588/2 and 307-588/3)
Courtesy of FORD MOTOR COMPANY	Slide Hammer 100-001 (T50T-100-A)
Courtesy of FORD MOTOR COMPANY	Support Seal Installer 307-585
Courtesy of FORD MOTOR COMPANY	Support Solid Seal Installer (Single Seal) 307-579 (includes 307-579/1, 307-579/2 and 307-579/3)
Courtesy of FORD MOTOR COMPANY	Tool Kit, Torque Converter Flusher 307-732

Material

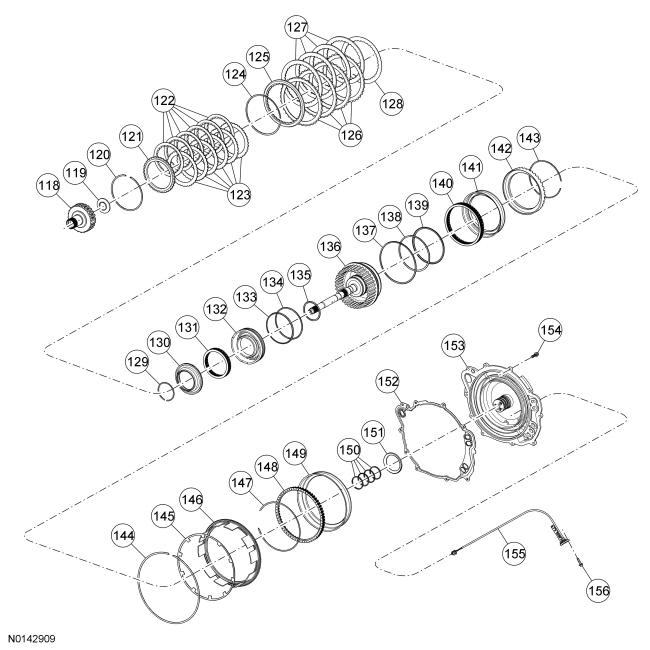

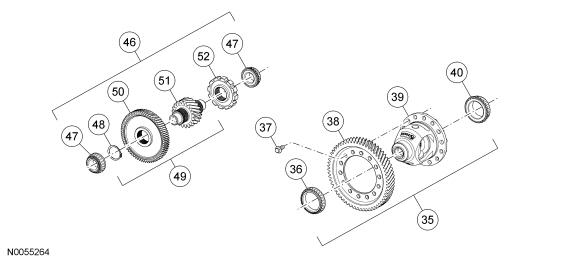

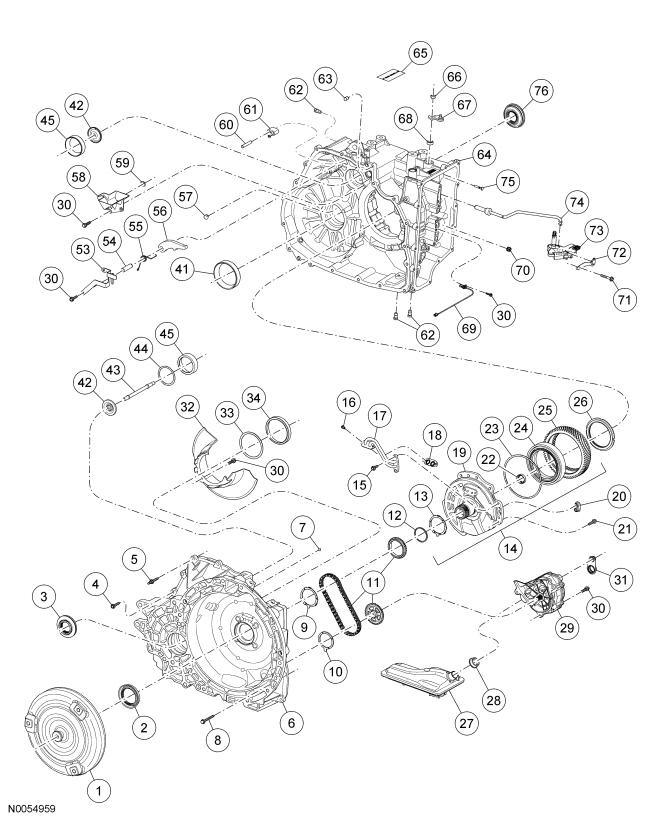

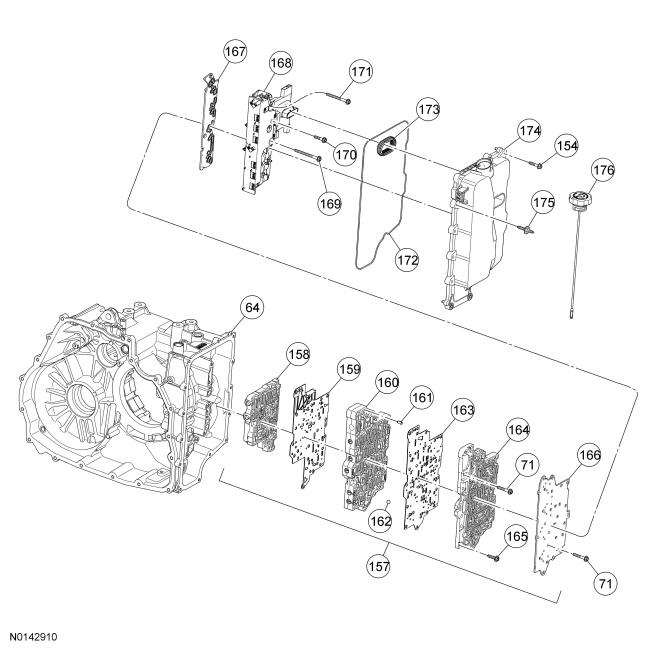

Disassembled Views

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

All vehicles

1. Using the special tool, mount the transmission onto the bench. Special Tool(s): Holding Fixture 307-580

   Courtesy of FORD MOTOR COMPANY

2. Remove the special tool. Special Tool(s): Retainer, Torque Converter 307-346

   Courtesy of FORD MOTOR COMPANY

3. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.
   NOTE: Only thread the bolts 6 to 8 turns or do not exceed 12 mm (0.472 in) into the torque converter. If the bolts are threaded too far, damage to the torque converter clutch surface can occur causing torque converter failure.

   Install two 10 mm x 1.50 bolts into the torque converter 6 to 8 turns to assist in handling the torque converter and remove the torque converter from the transmission.

   Courtesy of FORD MOTOR COMPANY

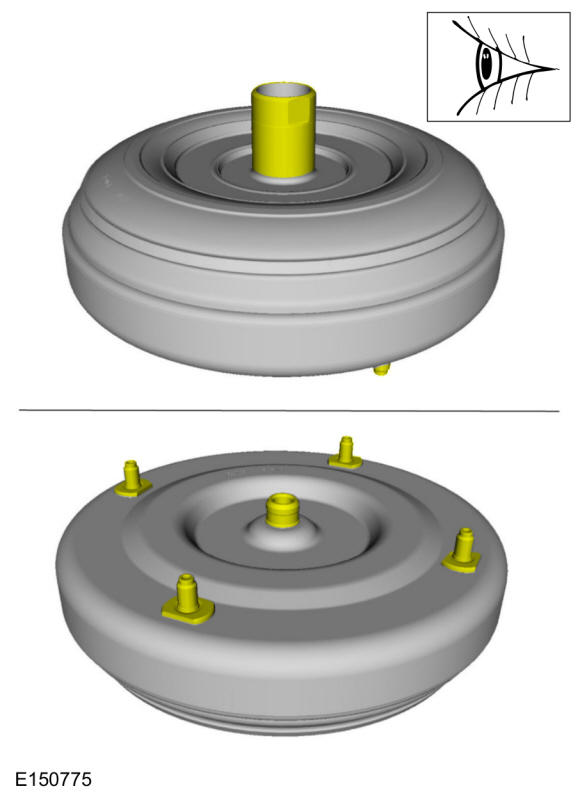

4. A new or remanufactured torque converter must be installed if one or more of the following statements is true:
   • The sealing surface has a groove worn from the seal.
   • A torque converter malfunction has been determined based on complete diagnostic procedures.
   • The torque converter stud or studs, threaded pads, impeller hub or bushing are damaged.
   • The torque converter exhibits external discoloration (due to overheating).
   • There is evidence of water or antifreeze contamination.

   Courtesy of FORD MOTOR COMPANY

   Flush The Torque Converter With The Transmission Cooling System Heated Flusher

5. NOTE: Use transmission fluid specified for this transmission. Do not use any supplemental transmission fluid additives or cleaning agents. The use of these products could cause internal transmission components to fail, which will affect the operation of the transmission.

   The torque converter must be flushed every time the transmission is overhauled. It is mandatory that proper equipment and procedures be followed when flushing the torque converter. The flushing equipment used MUST:

   • Maintain the transmission fluid at 140 °F or above
   • Pulsate the transmission fluid during cleaning
   • Have a GPM flow meter
   • Have a filter with a rating of 100 micron or less
   • Have air purge capability before and after flushing
6. If equipment meeting the specifications above is not available, the torque converter must be flushed by hand. Go to Flush The Torque Converter By Hand steps later in this procedure.
7. Check and top off the transmission fluid level of the transmission cooling system heated flusher with transmission fluid.
8. Turn on the heater and allow the transmission fluid in the transmission cooling system heated flusher 15-30 minutes to heat up to 60 °C (140 °F) before using.
9. Place the torque converter in an arbor press. Support the torque converter on the mounting pads.

   Courtesy of FORD MOTOR COMPANY

10. Using the special tools, assemble the correct turbine shaft simulator to the torque converter flush main hub and place it on the torque converter hub. Special Tool(s): Tool Kit, Torque Converter Flusher 307-732

    Courtesy of FORD MOTOR COMPANY

11. Using the special tool, install the slotted cap. Special Tool(s): Tool Kit, Leak Tester, Torque Converter 307-691

    Courtesy of FORD MOTOR COMPANY

12. Apply enough force from the press to seal the torque converter flush main hub to the torque converter hub.

    Courtesy of FORD MOTOR COMPANY

13. Connect the flush machine to the main hub.
    1. Red hose on top.
    2. Blue hose on bottom.

    Courtesy of FORD MOTOR COMPANY

14. Follow the equipment instructions to purge the transmission fluid from the torque converter prior to starting the flushing procedure.
15. WARNING: The torque converter, adaptor 307-732, and the hoses will be hot.
    NOTE: Maintain visual contact with torque converter during the entire flush procedure. Immediately stop the flush machine if a leak develops. Repeat set up steps to reseal the tool to the converter hub and continue flushing.

    Forward flush the converter for 15 minutes.

16. Monitor GPM flow meter periodically during the flush procedure. Flow rate above 2.0 gallons per minute is required to break up and dislodge any contamination trapped behind the TCC (torque converter clutch) plate. Service flush machine filter(s) if flow rate drops below 2 GPM.
17. Follow the equipment instructions to purge the torque converter.
18. WARNING: The torque converter, adaptor 307-732, and the hoses will be hot.

    Allow torque converter and equipment to cool for 30 minutes before handling.

19. Disconnect the hoses and remove the special tools.

    Flush The Torque Converter By Hand

    NOTE: Do not use water-based cleaners or mineral spirits to clean or flush the torque converter or transmission damage will occur. Use only clean transmission fluid designated for the transmission and torque converter being serviced.
    NOTE: Only flush the torque converter by hand when the transmission cooling system heated flusher is not available.
20. Pour a small amount of transmission fluid from the torque converter onto an absorbent white tissue or through a paper filter.
21. Examine the transmission fluid for contaminants. The transmission fluid must be free of metallic contaminants. If metallic contaminants are present, do not continue with hand flushing. The torque converter must be flushed with the transmission cooling system heated flusher.
22. Drain the remaining transmission fluid from the torque converter.
23. Using only the recommended transmission fluid, add 1.9L (2 qt) of clean transmission fluid into the converter and agitate by hand.

    Courtesy of FORD MOTOR COMPANY

24. Thoroughly drain the transmission fluid.

    All Vehicles

25. NOTE: Note the location of the studbolts for assembly.

    Remove the bolts and the main control cover.

    Courtesy of FORD MOTOR COMPANY

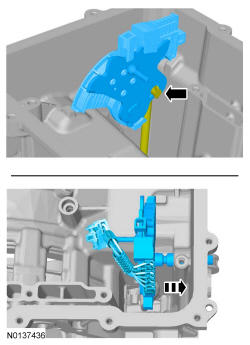

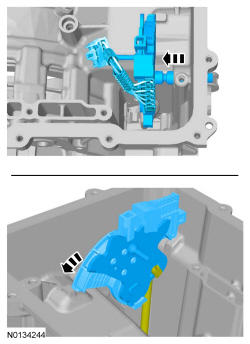

26. Slide the TR sensor electrical connector lock tab over to unlock the connector and disconnect the TR sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

27. Disconnect the TSS sensor and the OSS sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

28. Remove the OSS sensor wire from the retainer.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Handle the solenoid body with care or damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

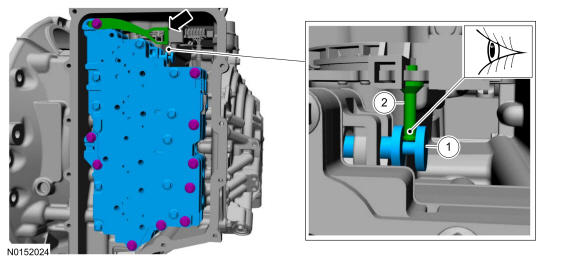

    Remove the bolts and the solenoid body.

    Courtesy of FORD MOTOR COMPANY

30. Remove the main control valve body bolts and the valve body.

    Courtesy of FORD MOTOR COMPANY

31. Clean and inspect the main control valve body for damage. If damage is found install a new main control valve body. If the main control valve body is not damaged, disassemble the main control valve body and clean it. Refer to Main Control - Overhaul .
32. Remove and discard the forward clutch feed seal.

    Courtesy of FORD MOTOR COMPANY

33. Remove the bolt and the OSS sensor.

    Courtesy of FORD MOTOR COMPANY

34. Remove the cover assembly bolts.

    Courtesy of FORD MOTOR COMPANY

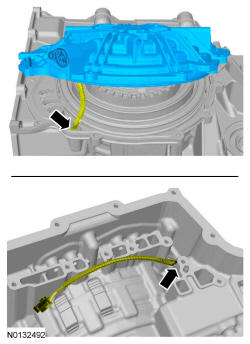

35. Remove the cover assembly and carefully route the TSS sensor wiring harness and electrical connector out of the transmission case.

    Courtesy of FORD MOTOR COMPANY

36. Remove the cover assembly gasket.

    Courtesy of FORD MOTOR COMPANY

37. Remove the No. 1 cover assembly thrust bearing

    Courtesy of FORD MOTOR COMPANY

38. Remove the overdrive/direct clutch hub and turbine shaft assembly.

    Courtesy of FORD MOTOR COMPANY

39. Remove the No. 3 rear sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

40. Remove the intermediate clutch shell and sun gear assembly.

    Courtesy of FORD MOTOR COMPANY

41. Clean and inspect the rear planetary sun gear and shell assembly for damage or wear and install new, as necessary.
    • Gear teeth
    • Shell-to-clutch pack surfaces
    • Thrust bearing surfaces

    Courtesy of FORD MOTOR COMPANY

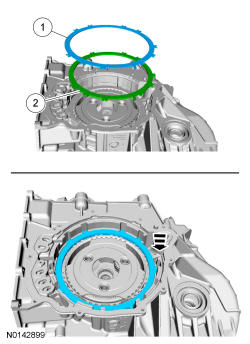

42. Remove the intermediate clutch assembly.

    Courtesy of FORD MOTOR COMPANY

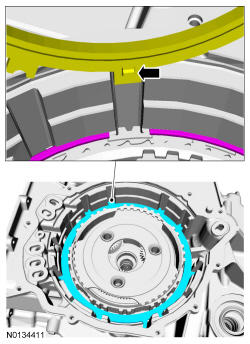

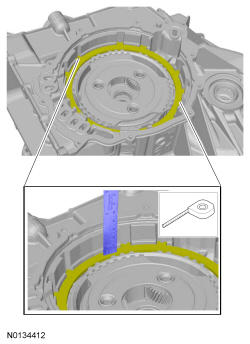

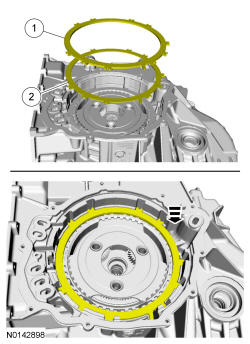

43. NOTE: The location of the tab on the bottom pressure plate is aligned with the gap for the low OWC snap ring.

    Remove the low/reverse clutch assembly.

    Courtesy of FORD MOTOR COMPANY

44. Remove the rear planetary carrier and center ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

45. Clean and inspect the rear planetary gear carrier assembly for damage or wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Spline teeth
    • Thrust bearing
    • Thrust bearing surfaces
    • Ring gear teeth

    Courtesy of FORD MOTOR COMPANY

46. Remove the No. 6 center sun gear and the No. 5 center/rear planetary thrust bearings.

    Courtesy of FORD MOTOR COMPANY

47. Remove the center planetary sun gear.

    Courtesy of FORD MOTOR COMPANY

48. Clean and inspect the center planetary sun gear for damage or wear and install new, as necessary.
    • Sun gear teeth
    • Spline teeth

    Courtesy of FORD MOTOR COMPANY

49. Remove the center planetary carrier and front ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

50. Clean and inspect the center planetary gear carrier assembly for damage or wear and install new, as necessary.
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Thrust bearing surfaces
    • Ring gear teeth

    Courtesy of FORD MOTOR COMPANY

51. Remove the No. 7 center sun gear and the No. 8 front/center planetary gear assembly thrust bearings.

    Courtesy of FORD MOTOR COMPANY

52. Remove the front planetary carrier and rear ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

53. Clean and inspect the front planetary gear carrier assembly for damage or wear and install new, if necessary.
    • Spline teeth
    • Thrust bearing surfaces
    • Ring gear teeth
    • Shell-to-clutch pack surfaces
    • Pinion gear teeth
    • Pinion gear surfaces
    • Pinion gear bearings
    • Thrust bearing

    Courtesy of FORD MOTOR COMPANY

54. Remove the front planetary sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

55. Clean and inspect the front planetary sun gear and shell assembly for damage or wear and install new, if necessary.
    • Sun gear teeth
    • Shell-to-clutch pack surfaces
    • Bearing surfaces

    Courtesy of FORD MOTOR COMPANY

56. Remove the No. 10 front sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

57. Remove the front planetary carrier hub assembly.

    Courtesy of FORD MOTOR COMPANY

58. Clean and inspect the front planetary carrier hub for damage or wear and install new, if necessary.
    • Spline teeth
    • Thrust bearing surfaces
    • Hub-to-stator support surfaces

    Courtesy of FORD MOTOR COMPANY

59. Remove the No. 11 support assembly thrust bearing.

    Courtesy of FORD MOTOR COMPANY

60. NOTE: Note the orientation of the snap ring for assembly. The snap ring gap must fit around the tab of the low/reverse clutch pressure plate.

    Remove the low OWC snap ring.

    Courtesy of FORD MOTOR COMPANY

61. Remove the low OWC.

    Courtesy of FORD MOTOR COMPANY

62. NOTE: Do not clean in water or with water-based solvents. Damage to the component may occur.
    NOTE: The low OWC cannot be disassembled.

    Clean and inspect the low OWC for cracks and damaged splines. The internal splined section should rotate counterclockwise and lock when rotated clockwise. If any damage is found or the clutch does not rotate or lock, install a new low OWC.

    Courtesy of FORD MOTOR COMPANY

63. Inspect the forward clutch surface for damage. If the surface is burned or worn excessively, install a new OWC.

    Courtesy of FORD MOTOR COMPANY

64. Remove the forward clutch assembly.

    Courtesy of FORD MOTOR COMPANY

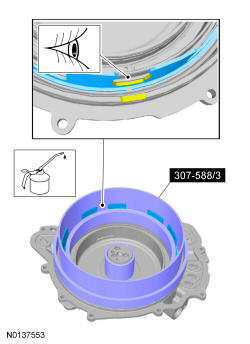

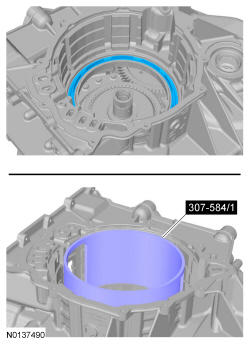

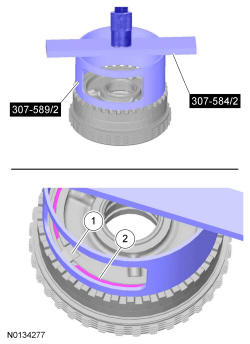

65. NOTE: Install the Compressor, Forward/Intermediate Spring 307-584 (307-584/1 and 307-584/2) with the stepped end of the cylinder facing upward when compressing the forward clutch piston return spring.

    Using the special tools, compress the forward clutch piston return spring. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584 (includes 307-584/1 and 307-584/2), Compressor, Forward Clutch Spring 307-574

    Courtesy of FORD MOTOR COMPANY

66. NOTE: The special tools are not shown for clarity.

    Remove the forward clutch piston return spring snap ring.

    Courtesy of FORD MOTOR COMPANY

67. Remove the forward clutch piston return spring.

    Courtesy of FORD MOTOR COMPANY

68. Remove and discard the forward clutch piston.

    Courtesy of FORD MOTOR COMPANY

69. NOTE: Note the location of the studbolts for assembly.

    Remove the torque converter housing bolts.

    Courtesy of FORD MOTOR COMPANY

70. NOTE: Carefully pry on the transmission torque converter housing and the case to separate the torque converter housing from the case. Do not pry up on the silicone sealant mating surfaces, damage to the mating surfaces may occur. Carefully lift the torque converter housing off the dowel pins.

    Carefully pry the torque converter housing off the transmission case just enough to break the seal of the silicone and remove the torque converter housing from the transmission case.

    Courtesy of FORD MOTOR COMPANY

71. Remove the transmission lube tube.

    Courtesy of FORD MOTOR COMPANY

72. Remove the differential and ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

73. Remove the transfer shaft and gear assembly.

    Courtesy of FORD MOTOR COMPANY

74. NOTE: If a differential bearing is damaged, a new bearing and bearing cup must be installed on both sides of the transfer shaft or excessive noise or transmission failure can occur.

    Inspect the differential for damage or excessive wear. Inspect the bearings for excessive wear or damage and inspect the ring gear for damage. Install new bearings or a ring gear on the differential if damage or excessive wear is found. Refer to Differential Gear Assembly . If the differential bearings are replaced the bearing races in the transmission case and the torque converter housing must also be replaced. Refer to Transaxle Case  and Torque Converter Housing . If the differential ring gear is replaced, the transfer shaft must also be replaced. Refer to Transfer Shaft and Gear .

    Courtesy of FORD MOTOR COMPANY

75. NOTE: If a transfer shaft bearing is damaged, a new bearing and bearing cup must be installed on both sides of the transfer shaft or excessive noise or transmission failure can occur.

    Inspect the transfer shaft for damage or excessive wear. Inspect the bearings for excessive wear or damage and inspect the park pawl wheel, transfer shaft and transfer shaft input gear for damage. Install new bearings, park pawl wheel, transfer shaft or transfer shaft input gear if damage or excessive wear is found. Refer to Transfer Shaft and Gear . If the transfer shaft bearings are replaced the bearing races in the transmission case and the torque converter housing case must also be replaced. Refer to Transaxle Case  and Torque Converter Housing . If the transfer shaft is replaced, the differential ring gear must also be replaced. Refer to Differential Gear Assembly .

    1. Bearings
    2. Transfer shaft input gear
    3. Transfer shaft
    4. Park pawl wheel

    Courtesy of FORD MOTOR COMPANY

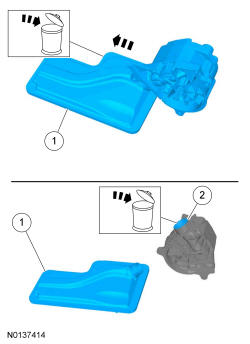

76. Remove and discard the pump-to-case seal.

    Courtesy of FORD MOTOR COMPANY

77. Remove the bolts and the oil reservoir.

    Courtesy of FORD MOTOR COMPANY

78. Remove and discard the reservoir O-ring seal.

    Courtesy of FORD MOTOR COMPANY

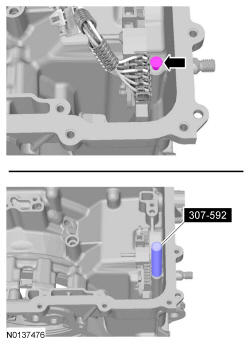

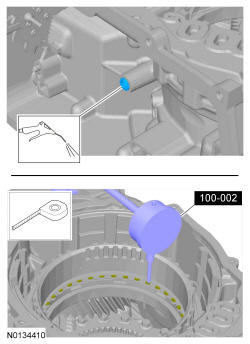

79. NOTE: Gently pry the pin out of the hole from under the head on each side with the special tool or the pin may be broken off in the hole.

    Using the special tool, remove and discard the TR sensor locking pin. Special tool(s): Remover, TRS Retaining Pin 307-696

    Courtesy of FORD MOTOR COMPANY

80. Remove the TR sensor.
    1. Slide the TR sensor out of the transmission case.
    2. Rotate the TR sensor detent plate until it rests against the transmission case.
    3. Remove the park pawl actuator rod from the detent lever and remove the TR sensor.

    Courtesy of FORD MOTOR COMPANY

81. Remove the park pawl actuator rod.

    Courtesy of FORD MOTOR COMPANY

82. Remove and discard the manual lever shaft seal.

    Courtesy of FORD MOTOR COMPANY

83. NOTE: If the transfer shaft bearing cup is damaged, a new bearing and bearing cup must be installed on both sides of the transfer shaft or excessive noise or transmission failure can occur.

    Check the transmission case side transfer shaft bearing cup for damage. If the transmission case side transfer shaft bearing cup is damaged, install a new bearing cup. Refer to Transaxle Case . If a new bearing cup is installed in the transmission case, install a new transfer shaft bearing cup in the torque converter housing. Refer to Torque Converter Housing . Install new bearings on the transfer shaft. Refer to Transfer Shaft and Gear .

    Courtesy of FORD MOTOR COMPANY

84. Remove and discard the halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: If the differential bearing cup is damaged, a new bearing and bearing cup must be installed on both sides of the differential or excessive noise or transmission failure can occur.

    Inspect the transmission case side differential bearing cup for damage. If the transmission case side differential bearing cup is damaged, install a new bearing cup. Refer to Transaxle Case . If a new bearing cup is installed in the transmission case, install a new differential bearing cup in the torque converter housing. Refer to Torque Converter Housing . If a new bearing cup was installed, the differential bearings must also be replaced. Refer to Differential Gear Assembly .

    Courtesy of FORD MOTOR COMPANY

86. Remove the bolt and the fluid baffle from the torque converter housing.

    Courtesy of FORD MOTOR COMPANY

87. Remove the stator support assembly bolts and remove the stator support assembly.

    Courtesy of FORD MOTOR COMPANY

88. Remove the bolts and the fluid pump and filter assembly.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Note the orientation of the fluid filter to the fluid pump.

    Remove and discard the fluid filter.

    1. Pull the filter out of the bore of the fluid pump.
    2. If the filter seal did not come off with the filter, remove the seal from the pump and discard the seal.

    Courtesy of FORD MOTOR COMPANY

90. Clean and inspect the components of the pump assembly for wear or damage. Inspect the fluid drained from the pump for excessive metal or foreign material. If excessive wear, damage or excessive metal is found, replace the fluid pump as an assembly.
91. Remove the fluid pump sprocket and chain assembly.

    Courtesy of FORD MOTOR COMPANY

92. Inspect the pump chain and sprocket assembly for damage or wear and install new components as necessary.
    • Check the drive chain for wear, damage, stretching or tightness of the chain links.
    • Check the chain sprockets for excessive wear in the chain contact areas and thrust washer areas.

    Courtesy of FORD MOTOR COMPANY

93. Remove the fluid pump drive sprocket and driven sprocket thrust washers.

    Courtesy of FORD MOTOR COMPANY

94. NOTE: If the transfer shaft bearing cup is damaged, a new bearing and bearing cup must be installed on both sides of the transfer shaft or excessive noise or transmission failure can occur.

    Inspect the torque converter housing side transfer shaft bearing cup for damage. If the torque converter housing side transfer shaft bearing cup is damaged, install a new bearing cup. Refer to Torque Converter Housing . If a new bearing cup is installed in the torque converter housing, install a new transfer shaft bearing cup in the transmission case. Refer to Transaxle Case . Install new bearings on the transfer shaft. Refer to Transfer Shaft and Gear .

    Courtesy of FORD MOTOR COMPANY

    FWD vehicles

95. Remove and discard the halfshaft seal.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

96. NOTE: If the differential bearing cup is damaged, a new bearing and bearing cup must be installed on both sides of the differential or excessive noise or transmission failure can occur.

    Inspect the torque converter housing side differential bearing cup for damage. If the torque converter housing side differential bearing cup is damaged, install a new bearing cup. Refer to Torque Converter Housing . If a new bearing cup is installed in the torque converter housing, install a new differential bearing cup in the transmission case. Refer to Transaxle Case . If a new bearing cup was installed, the differential bearings must also be replaced. Refer to Differential Gear Assembly .

    Courtesy of FORD MOTOR COMPANY

97. Using a dent puller, remove and discard the torque converter hub seal from the torque converter housing.

    Courtesy of FORD MOTOR COMPANY

98. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
    • Clean and inspect the transmission case and torque converter housing for damage and install a new transmission case or torque converter housing if necessary. If a new transmission case or torque converter housing is installed, refer to Transaxle Case  for bearing cup installation and Torque Converter Housing  for torque converter housing bearing cup installation and differential/transfer gear bearing shim measurement.
    • Make sure that the mating faces are clean and free of foreign material. Refer to RTV Sealing Surface Cleaning and Preparation in Engine System General Information .
    • Clean and inspect the thrust bearings and washers for damage and install new bearings or washers as necessary.

99. Remove the overdrive clutch snap ring.

    Courtesy of FORD MOTOR COMPANY

100. Remove the overdrive clutch hub and clutch assembly.

     Courtesy of FORD MOTOR COMPANY

101. Remove the bottom overdrive clutch steel plate.

     Courtesy of FORD MOTOR COMPANY

102. Remove the No. 2 rear sun gear thrust bearing.

     Courtesy of FORD MOTOR COMPANY

103. Install the special tools on the balance piston. Using a press, compress the overdrive piston return spring. Special Tool(s): Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (307-589/1), Compressor, Forward/Intermediate Spring 307-584 (307-584/2)

     Courtesy of FORD MOTOR COMPANY

104. With the overdrive piston return spring compressed, remove the balance piston snap ring.

     Courtesy of FORD MOTOR COMPANY

105. Remove and discard the balance piston.

     Courtesy of FORD MOTOR COMPANY

106. Remove the overdrive piston return spring.

     Courtesy of FORD MOTOR COMPANY

107. Using petroleum jelly, install the No. 1 thrust bearing on the overdrive/direct clutch assembly.

     Courtesy of FORD MOTOR COMPANY

108. Position the overdrive/direct clutch assembly in the rear cover.

     Courtesy of FORD MOTOR COMPANY

109. Apply air pressure to the overdrive piston port on the rear cover and remove the overdrive piston.

     Courtesy of FORD MOTOR COMPANY

110. Remove and discard the overdrive clutch piston inner seal.

     Courtesy of FORD MOTOR COMPANY

111. Remove and discard the overdrive clutch piston outer seals from the piston.

     Courtesy of FORD MOTOR COMPANY

112. NOTE: Only compress the direct clutch piston return spring far enough to take the tension from the direct clutch cylinder off the snap ring. If the piston is compressed too far, the piston alignment tab may be broken off.

     Install the special tools on the direct clutch cylinder. Using a press, compress the direct clutch piston return spring, and remove the snap ring. Do not contact the overdrive/direct clutch hub and shaft assembly with the direct clutch cylinder to remove the snap ring.

     1. Piston alignment tab
     2. Snap ring
     • Special Tool(s): Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (307-589/2), Compressor, Forward/Intermediate Spring 307-584 (307-584/2)

     Courtesy of FORD MOTOR COMPANY

113. Using petroleum jelly, install the No. 1 thrust bearing on the overdrive/direct clutch assembly.

     Courtesy of FORD MOTOR COMPANY

114. Position the overdrive/direct clutch assembly in the rear cover.

     Courtesy of FORD MOTOR COMPANY

115. Apply 483 kPa (70.05 psi) of air pressure to the direct clutch piston port and remove the direct clutch cylinder from the overdrive/direct clutch assembly.

     Courtesy of FORD MOTOR COMPANY

116. Remove and discard the rear direct clutch cylinder seal.

     Courtesy of FORD MOTOR COMPANY

117. Remove and discard the direct clutch piston.

     Courtesy of FORD MOTOR COMPANY

118. Remove the direct clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

119. Remove and discard the direct clutch piston seals.

     Courtesy of FORD MOTOR COMPANY

120. Remove the direct clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

121. Remove the direct clutch pressure plate, clutch assembly and wave spring.

     Courtesy of FORD MOTOR COMPANY

122. Clean and inspect the overdrive/direct clutch hub and shaft assembly for damage. Install new, if necessary.
123. Install the direct clutch wave spring.

     Courtesy of FORD MOTOR COMPANY

124. Soak the direct clutch pack in clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

125. Install the direct clutch assembly and pressure plate.

     Courtesy of FORD MOTOR COMPANY

126. Install the direct clutch snap ring.

     Courtesy of FORD MOTOR COMPANY

127. Install new direct clutch piston seals and lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

128. Install the direct clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

129. Lubricate a new direct clutch piston with petroleum jelly and install the piston.

     Courtesy of FORD MOTOR COMPANY

130. Install a new rear direct clutch cylinder seal and lubricate it with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

131. Install the direct clutch cylinder.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: Only compress the direct clutch piston return spring far enough to install the direct clutch cylinder snap ring. If the piston is compressed too far, the piston alignment tab may be broken off.
     NOTE: Align the tab on the direct clutch cylinder with the slot on the overdrive/direct clutch hub and shaft assembly.

     Install the special tools on the direct clutch cylinder. Using a press, compress the direct clutch piston return spring and install the snap ring.

     1. Do not contact the overdrive/direct clutch hub and shaft assembly with the direct clutch cylinder.
     2. Install the snap ring.
     • Special Tool(s): Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (307-589/2), Compressor, Forward/Intermediate Spring 307-584 (307-584/2)

     Courtesy of FORD MOTOR COMPANY

133. Install new seals on the overdrive clutch piston and lubricate the seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

134. Install a new overdrive clutch piston inner seal and lubricate the seal with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

135. Install the overdrive clutch piston in the overdrive/direct clutch hub and shaft assembly and push the overdrive clutch piston in the cylinder by hand using the special tool. Special Tool(s): Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (307-589/1)

     Courtesy of FORD MOTOR COMPANY

136. NOTE: Install the overdrive clutch piston return spring so that the holes are facing upward.

     Install the overdrive clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

137. Lubricate the seals on a new balance piston with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

138. Install the new balance piston and install the special tools. Special Tool(s): Compressor, Overdrive Clutch, Balance Piston and Direct Clutch 307-589 (307-589/1), Compressor, Forward/Intermediate Spring 307-584 (307-584/2)

     Courtesy of FORD MOTOR COMPANY

139. Using a press and the special tools, compress the overdrive clutch piston return spring and install the snap ring.

     Courtesy of FORD MOTOR COMPANY

140. Install the No. 2 rear sun gear thrust bearing

     Courtesy of FORD MOTOR COMPANY

141. Install the overdrive clutch hub.

     Courtesy of FORD MOTOR COMPANY

142. Soak the overdrive clutch pack in clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

143. Install the overdrive clutch pack assembly and the pressure plate.

     Courtesy of FORD MOTOR COMPANY

144. Install the overdrive clutch pack snap ring.

     Courtesy of FORD MOTOR COMPANY

145. Remove the bolt and the TSS sensor.

     Courtesy of FORD MOTOR COMPANY

146. Using a press and the special tools, compress the intermediate clutch return spring and remove the snap ring. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584 (307-584/1 and 307-584/2)

     Courtesy of FORD MOTOR COMPANY

147. Remove the intermediate clutch return spring.

     Courtesy of FORD MOTOR COMPANY

148. Remove and discard the intermediate clutch piston.

     Courtesy of FORD MOTOR COMPANY

149. Install the special tools, using a press, compress the low/reverse clutch return spring and remove the snap ring. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584 (307-584/2), Reverse Clutch Piston and Retaining Ring Set 307-588 (307-588/3)

     Courtesy of FORD MOTOR COMPANY

150. Remove the low/reverse clutch return spring.

     Courtesy of FORD MOTOR COMPANY

151. Remove and discard the low/reverse clutch piston.

     Courtesy of FORD MOTOR COMPANY

152. Remove and discard the 4 Teflon ® seals.

     Courtesy of FORD MOTOR COMPANY

153. Clean and inspect the cover for damage. Install a new cover, if damaged.
154. Install the new Teflon ® seals.
     1. Install 307-578 /3 on the cover and adjust 307-578 /3 to align the bottom edge of 307-578 /3 with the top edge of the bottom Teflon ® seal groove.
     2. Install a new Teflon ® seal on 307-578 /3.
     3. Install 307-578 /2 over 307-578 /3. Using 307-578 /2, slide the Teflon ® seal over the cover and into the groove.
     4. Repeat Steps 1 through 3 for the other 3 Teflon ® seals.
     • Special Tool(s): Input Shaft Support Seal Installer (Back Plate, Multiple Rings) 307-578 (307-578/2, 307-578/3)

     Courtesy of FORD MOTOR COMPANY

155. Install the special tool on the cover to size the 4 Teflon ® seals. Special Tool(s): Input Shaft Support Seal Installer (Back Plate, Multiple Rings) 307-578 (307-578/1)

     Courtesy of FORD MOTOR COMPANY

156. Install the special tools. Special Tool(s): Reverse Clutch Piston and Retaining Ring Set 307-588 (307-588/3)

     Courtesy of FORD MOTOR COMPANY

157. NOTE: Make sure the low/reverse piston bleed hole and semicircle area are aligned with the indentation in the cover and the intermediate cylinder fill hole.

     Lubricate the sealing surfaces of the low/reverse piston with petroleum jelly, align the piston bleed hole with the indentation in the cover and push the piston in the cylinder using the special tools. Special Tool(s): Reverse Clutch Piston and Retaining Ring Set 307-588 (307-588/3)

     Courtesy of FORD MOTOR COMPANY

158. Install the low/reverse piston return spring with the tabs facing down.

     Courtesy of FORD MOTOR COMPANY

159. NOTE: Make sure the snap ring is fully seated in the groove before releasing the pressure on the return spring.

     Using the special tools and a press, compress the low/reverse piston return spring and install the snap ring. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584 (307-584/2) and the Reverse Clutch Piston and Retaining Ring Set (307-588) 307-588/3

     Courtesy of FORD MOTOR COMPANY

160. Lubricate the sealing surfaces on the intermediate clutch piston with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

161. Install the intermediate clutch piston.

     Courtesy of FORD MOTOR COMPANY

162. Install the intermediate clutch piston return spring.

     Courtesy of FORD MOTOR COMPANY

163. NOTE: Make sure the snap ring is fully seated in the groove before releasing the pressure on the return spring.

     Install the special tools. Using a press, compress the intermediate clutch piston return spring and install the snap ring. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584

     Courtesy of FORD MOTOR COMPANY

164. Remove the special tool. Special Tool(s): Input Shaft Support Seal Installer (Back Plate, Multiple Rings) 307-578 (307-578/1)

     Courtesy of FORD MOTOR COMPANY

165. Lubricate the O-ring seal on TSS sensor with clean transmission fluid and install the TSS sensor in the cover and install the bolt.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

166. Remove and discard the stator support assembly seal.

     Courtesy of FORD MOTOR COMPANY

167. Assemble the special tools, using the tools remove and discard the input shaft seal. Special Tool(s): Slide Hammer 100-001, Collet 7/8" to 1" 303-D020, Actuating Pin (Dia 3/16") 303-D011

     Courtesy of FORD MOTOR COMPANY

168. Remove the drive sprocket thrust washer.

     Courtesy of FORD MOTOR COMPANY

169. Remove and discard the stator support-to-torque converter seal.

     Courtesy of FORD MOTOR COMPANY

170. NOTE: Note the location of the Torx ® head and the hex head bolts for assembly.

     Remove the bolts and the stator support feed tube.

     Courtesy of FORD MOTOR COMPANY

171. Remove and discard the gasket for the feed tube assembly.

     Courtesy of FORD MOTOR COMPANY

172. Clean and inspect the stator support assembly for damage and install new, if necessary.
173. Install a new stator support-to-torque converter seal.
     1. Install 307-579 /3 on the stator support assembly.
     2. Install a new seal on 307-579 /3.
     3. Install 307-579 /2 on 307-579 /3 and slide the seal in to the groove on the stator support assembly.
     • Special Tool(s): Support Solid Seal Installer (Single Seal) 307-579 (307-579/2 and 307-579/3)

     Courtesy of FORD MOTOR COMPANY

174. Install the special tool. Special Tool(s): Support Solid Seal Installer (Single Seal) 307-579 (307-579/1)

     Courtesy of FORD MOTOR COMPANY

175. Install a new gasket on the stator support assembly.

     Courtesy of FORD MOTOR COMPANY

176. NOTE: Install the Torx ® and the hex bolts in the correct locations as noted during disassembly.

     Position the stator support feed tube assembly in place and install the bolts hand-tight.

     Courtesy of FORD MOTOR COMPANY

177. Tighten the stator support feed tube Torx ® head bolts.
     • Tighten to 7 Nm (62 lb-in).

     Courtesy of FORD MOTOR COMPANY

178. Tighten the stator support feed tube hex-head bolts.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

179. Install a new input shaft seal on the special tool. Special Tool(s): Support Seal Installer 307-585

     Courtesy of FORD MOTOR COMPANY

180. Using the special tool, install the input shaft seal. Special Tool(s): Support Seal Installer 307-585

     Courtesy of FORD MOTOR COMPANY

181. Remove the special tool from the stator support assembly. Special Tool(s): Support Solid Seal Installer (Single Seal) 307-579 (307-579/1)

     Courtesy of FORD MOTOR COMPANY

182. Install the drive sprocket thrust washer.

     Courtesy of FORD MOTOR COMPANY

183. Install a new stator support assembly seal.

     Courtesy of FORD MOTOR COMPANY

184. NOTE: The solenoid body should be handled with care or damage to the solenoid body may occur.
     NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
     NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transmission will occur if the solenoid body is not correctly aligned.

     Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.

     Courtesy of FORD MOTOR COMPANY

185. Remove and discard the solenoid body assembly electrical connector seal.

     Courtesy of FORD MOTOR COMPANY

186. Clean and inspect the solenoid body assembly for damage and install new if necessary.

     Courtesy of FORD MOTOR COMPANY

187. If replacing the solenoid body, install the replacement service tag on the transmission case over the current solenoid body strategy tag.

     Courtesy of FORD MOTOR COMPANY

188. Install a new solenoid body assembly electrical connector seal.

     Courtesy of FORD MOTOR COMPANY

189. NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
     NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transmission will occur if the solenoid body is not correctly aligned.
     NOTE: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transmission will occur if the filter passages are not clean.

     Install a new solenoid body filter assembly by pushing it straight down onto the alignment tabs.

     Courtesy of FORD MOTOR COMPANY

190. Slide the park pawl over and install the park pawl actuator rod.

     Courtesy of FORD MOTOR COMPANY

191. Using the special tool, install the manual lever shaft seal in the transmission case.
     1. Lubricate a new manual shaft seal and the special tool with petroleum jelly.
     2. Install the seal on the special tool and install the seal in the transmission case.
     • Special Tool(s): Manual Lever Seal Installer 307-581

     Courtesy of FORD MOTOR COMPANY

192. Install the TR sensor.
     1. Position the park pawl actuating rod in the TR sensor detent plate.
     2. Install the TR sensor in the transmission case.

     Courtesy of FORD MOTOR COMPANY

193. Install a new TR sensor locking pin in the transmission case.
     • Use the special tool to drive the TR sensor locking pin into the transmission case.
     • Special Tool(s): Manual Lever Seal Installer 307-581

     Courtesy of FORD MOTOR COMPANY

194. Install a new O-ring seal on the reservoir. Lubricate the seal with clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

195. Install the transmission fluid reservoir and the bolts.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

196. Install a new pump-to-case seal.

     Courtesy of FORD MOTOR COMPANY

197. Install the transfer shaft and gear assembly.

     Courtesy of FORD MOTOR COMPANY

198. Tilt the transfer shaft and gear assembly over and install the differential assembly.

     Courtesy of FORD MOTOR COMPANY

199. Install a new torque converter hub seal on the special tool. Special Tool(s): Converter Seal Installer 307-575

     Courtesy of FORD MOTOR COMPANY

200. NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.

     Using the special tool and a dead blow hammer, install the torque converter hub seal in the torque converter housing. Special Tool(s): Converter Seal Installer 307-575

     Courtesy of FORD MOTOR COMPANY

     FWD vehicles

201. Assemble the special tools and install a new RH halfshaft seal on the special tool. Special Tool(s): Handle 205-153 (T80T-4000-W), Installer, Cover Axle Seal 307-582A

     Courtesy of FORD MOTOR COMPANY

202. NOTE: Support the torque converter housing using blocks of wood or damage to the torque converter housing may occur.

     Using the special tools, install the new RH halfshaft seal in the torque converter housing. Special Tool(s): Handle 205-153 (T80T-4000-W), Installer, Cover Axle Seal 307-582A

     Courtesy of FORD MOTOR COMPANY

     All vehicles

203. Install the pump drive sprocket and driven sprocket thrust washers.

     Courtesy of FORD MOTOR COMPANY

204. NOTE: The dot on the pump sprocket is installed facing upward.

     Install the pump sprocket and chain assembly.

     Courtesy of FORD MOTOR COMPANY

205. Flush the pump with clean transmission fluid. Rotate the pump shaft by hand to clean the old transmission fluid out of the pump.
206. NOTE: Lubricate the seal with clean transmission fluid.

     Install the fluid filter seal in the fluid pump.

     Courtesy of FORD MOTOR COMPANY

207. NOTE: Install the filter in the correct orientation as noted in removal.

     Install the fluid filter in the fluid pump.

     Courtesy of FORD MOTOR COMPANY

208. Position the pump and filter assembly in place and install the bolts.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

209. NOTE: Be sure that the pump drive chain is correctly engaged on both sprockets.

     Position the stator support assembly in place on the torque converter housing. Install the stator support bolts. Tighten in the sequence shown.

     • Tighten to 41 Nm (30 lb-ft).
     Fig 1: Stator Support Bolt Tightening Sequence

     Courtesy of FORD MOTOR CO.
210. Position the differential carrier baffle in place and install the bolt.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

211. Lubricate the ends of the transmission fluid tube with petroleum jelly and install it in the transmission.

     Courtesy of FORD MOTOR COMPANY

212. NOTE: Be sure the sealing surfaces of the torque converter housing and the transmission housing are free of oil before applying silicone.

     Apply a bead of the Ultra Silicone Sealant.

     Courtesy of FORD MOTOR COMPANY

213. NOTE: Install the 2 studbolts in the correct location as noted during disassembly.

     Install the torque converter housing on top of the transmission case and install the bolts hand tight.

     Courtesy of FORD MOTOR COMPANY

214. NOTE: The studbolts are 1 and 16 in the tightening sequence.

     Tighten the bolts in the sequence shown.

     • Tighten to 24 Nm (18 lb-ft).
     Fig 2: Torque Converter Housing Bolt Tightening Sequence

     Courtesy of FORD MOTOR CO.
215. Assemble the special tools, install a new halfshaft seal on the special tool. Special Tool(s): Handle 205-153 (T80T-4000-W), Installer, Cover Axle Seal 307-582A

     Courtesy of FORD MOTOR COMPANY

216. Using the special tools, install the new halfshaft seal in the transmission case. Special Tool(s): Handle 205-153 (T80T-4000-W), Installer, Cover Axle Seal 307-582A

     Courtesy of FORD MOTOR COMPANY

217. Lubricate the forward clutch piston seals with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

218. NOTE: Install the Compressor, Forward/Intermediate Spring 307-584/1 with the stepped end of the cylinder facing downward when pushing the forward clutch piston into the bore.

     Position the forward clutch piston in place in the transmission case. Using the special tool, push the forward clutch piston down into the bore. Special Tool(s): Compressor, Forward/Intermediate Spring 307-584 (307-584/1)

     Courtesy of FORD MOTOR COMPANY

219. NOTE: Install the Compressor, Forward/Intermediate Spring with the stepped end of the cylinder facing upward when compressing the forward clutch piston return spring.

     Install the forward clutch piston return spring with the tabs facing downward.

     Courtesy of FORD MOTOR COMPANY

220. NOTE: Install the Forward/Overdrive Spring Compressor with the stepped end of the cylinder facing upward when compressing the forward clutch piston return spring.
     NOTE: Before compressing the forward clutch piston return spring, make sure the spring is centered.

     Install the special tools and compress the forward clutch piston return spring. Special Tool(s): Compressor, Forward Clutch Spring 307-574 Compressor, Forward/Intermediate Spring 307-584 (includes 307-584/1 and 307-584/2)

     Courtesy of FORD MOTOR COMPANY

221. NOTE: The special tools not shown for clarity.

     Install the forward clutch piston return spring snap ring.

     • Install the snap ring.
     • The snap ring gap should be at the top of the transmission case.

     Courtesy of FORD MOTOR COMPANY

222. Install the forward clutch wave spring.

     Courtesy of FORD MOTOR COMPANY

223. Soak the forward clutch pack in clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

224. Install the forward clutch pack assembly.
     1. Position the forward clutch pack assembly in the case.
     2. Make sure the alignment tab on the clutch pack is positioned in the correct location.

     Courtesy of FORD MOTOR COMPANY

225. Install the low OWC.

     Courtesy of FORD MOTOR COMPANY

226. NOTE: The low OWC snap ring gap must be positioned as shown so that the low/reverse clutch pressure plate tab fits into the gap when it is installed later in this procedure.

     Install the low OWC snap ring.

     Courtesy of FORD MOTOR COMPANY

227. Compare the position of the low OWC snap ring gap with the tab on the low/reverse clutch pressure plate to be sure that the gap is in the right position.

     Courtesy of FORD MOTOR COMPANY

228. Install the special tool on the transmission case and position the plunger on a top friction disc tab. Special Tool(s): Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C)

     Courtesy of FORD MOTOR COMPANY

229. Install a new forward clutch feed seal.

     Courtesy of FORD MOTOR COMPANY

230. Apply 483 kPa (70 psi) of air pressure to the forward clutch piston port while recording the clutch pack clearance on the Dial Indicator. The clearance should be between 0.85 mm (0.033 in) and 2.41 mm (0.094 in). If the clearance is out of range, check the forward clutch pack and low OWC for correct installation. If the forward clutch pack and low OWC is correctly installed, install a new forward clutch pack. Special Tool(s): Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C)

     Courtesy of FORD MOTOR COMPANY

231. Install the No. 11 stator support thrust bearing.

     Courtesy of FORD MOTOR COMPANY

232. Install the front planetary carrier hub.

     Courtesy of FORD MOTOR COMPANY

233. Install the No. 10 front sun gear thrust bearing.

     Courtesy of FORD MOTOR COMPANY

234. Install the front sun gear and shell assembly.

     Courtesy of FORD MOTOR COMPANY

235. Install the front carrier and rear ring gear assembly.

     Courtesy of FORD MOTOR COMPANY

236. Install the No. 8 front/center planetary gear assembly and the No. 7 center sun gear thrust bearings.

     Courtesy of FORD MOTOR COMPANY

237. Install the center planetary carrier and front ring gear assembly.

     Courtesy of FORD MOTOR COMPANY

238. NOTE: The groove on the center sun gear is installed facing up.

     Install the center planetary sun gear.

     Courtesy of FORD MOTOR COMPANY

239. Install the No. 6 center sun gear and the No. 5 center/rear planetary thrust bearings.

     Courtesy of FORD MOTOR COMPANY

240. Install the rear planetary gear carrier assembly.

     Courtesy of FORD MOTOR COMPANY

241. NOTE: Failure to align the tab on the bottom of the low/reverse pressure plate with the gap in the low OWC snap ring may result in damage to the transmission.

     Install the low/reverse clutch pressure plate.

     1. Make sure the tab on the bottom of the pressure plate fits in the gap of the low OWC snap ring.
     2. Install the low/reverse clutch pressure plate.

     Courtesy of FORD MOTOR COMPANY

242. Measure the depth of the low/reverse clutch pressure plate where the tab fits into the gap of the low OWC snap ring and directly across from it. If the pressure plate is seated correctly, the depth should be the same. If the depths are different, rotate the snap ring so that the gap fits around the tab on the pressure plate.

     Courtesy of FORD MOTOR COMPANY

243. Soak the low/reverse clutch pack with clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

244. Install the low/reverse clutch pack.

     Courtesy of FORD MOTOR COMPANY

245. NOTE: The low/reverse clutch wave spring and pressure plate are temporarily reversely installed to measure the low/reverse clutch clearance.

     Temporarily install the low/reverse clutch wave spring and pressure plate with the pressure plate on top of the wave spring.

     1. Pressure plate
     2. Wave spring

     Courtesy of FORD MOTOR COMPANY

246. Using a straightedge and the Depth Micrometer, measure and record as measurement A, the distance from the transmission case deck surface to the low/reverse pressure plate. Special Tool(s): Depth Micrometer 303-D075 D92P-4201-A

     Courtesy of FORD MOTOR COMPANY

247. Using the same straightedge and the Depth Micrometer, measure and record as measurement B, the distance from the low/reverse clutch piston to the cover assembly deck surface. Special Tool(s): Depth Micrometer 303-D075 D92P-4201-A

     Courtesy of FORD MOTOR COMPANY

248. Subtract measurement B from measurement A and add 1.6 mm (0.062 in), to compensate for the thickness of the gasket, to get the low/reverse clutch clearance. The clearance should be between 0.83 mm (0.032 in) and 2.43 mm (0.095 in). If the clearance is out of range, check the low/reverse clutch pack for correct installation. If the low/reverse clutch pack is correctly installed, install a new low/reverse clutch pack.

     Description	Reading
     Measurement A
     Measurement B
     Subtract measurement B from measurement A and add 1.6 mm (0.062 in) to get the low/reverse clutch clearance.

249. NOTE: When the low/reverse clutch is correctly installed, the wave spring is on top.

     Correctly install the low/reverse clutch wave spring and pressure plate.

     1. Wave spring
     2. Pressure plate

     Courtesy of FORD MOTOR COMPANY

250. Install the intermediate clutch pressure plate.

     Courtesy of FORD MOTOR COMPANY

251. Soak the intermediate clutch pack assembly in clean transmission fluid.

     Courtesy of FORD MOTOR COMPANY

252. Install the intermediate clutch pack assembly.

     Courtesy of FORD MOTOR COMPANY

253. Install the intermediate clutch pack wave spring.

     Courtesy of FORD MOTOR COMPANY

254. Using a straightedge and the Depth Micrometer, measure and record as measurement A, the distance from the transmission case deck surface to a low point on the intermediate clutch wave spring. Special Tool(s): Depth Micrometer 303-D075 D92P-4201-A

     Courtesy of FORD MOTOR COMPANY

255. Using the straightedge and the Depth Micrometer, measure and record as measurement B, the distance from the intermediate clutch piston to the cover assembly deck surface. Special Tool(s): Depth Micrometer 303-D075 D92P-4201-A

     Courtesy of FORD MOTOR COMPANY

256. Subtract measurement B from measurement A and add 1.6 mm (0.062 in), to compensate for the thickness of the gasket, to get the intermediate clutch clearance. The clearance should be between 0.99 mm (0.038 in) and 2.56 mm (0.1 in). If the clearance is out of range, check the intermediate clutch pack for correct installation. If the intermediate clutch pack is correctly installed, install a new intermediate clutch pack.

     Description	Reading
     Measurement A
     Measurement B
     Subtract measurement B from measurement A and add 1.6 mm (0.062 in) to get the intermediate clutch clearance.

257. Install the rear sun gear and shell assembly.

     Courtesy of FORD MOTOR COMPANY

258. Install the No. 3 rear sun gear thrust bearing.

     Courtesy of FORD MOTOR COMPANY

259. Using petroleum jelly, install the No. 1 thrust bearing on the overdrive/direct clutch assembly.

     Courtesy of FORD MOTOR COMPANY

260. Position the overdrive/direct clutch assembly in the cover assembly, install the Dial Indicator plunger on the overdrive clutch pressure plate. Apply 483 kPa (70 psi) of air pressure to the overdrive clutch piston port while recording the clutch pack clearance on the Dial Indicator. The clearance should be between 1.13 mm (0.044 in) and 2.28 mm (0.089 in). If the clearance is out of range, check the overdrive clutch pack for correct installation. If the overdrive clutch pack is correctly installed, install a new overdrive clutch pack. Special Tool(s): Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C)

     Courtesy of FORD MOTOR COMPANY

261. Position the Dial Indicator plunger on the direct clutch pressure plate. Apply 483 kPa (70 psi) of air pressure to the direct clutch piston port while recording the clutch pack clearance on the Dial Indicator. The clearance should be between 0.98 mm (0.038 in) and 2.34 mm (0.092 in). If the clearance is out of range, check the direct clutch pack for correct installation. If the direct clutch pack is correctly installed, install a new direct clutch pack. Special Tool(s): Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C)

     Courtesy of FORD MOTOR COMPANY

262. Install the overdrive/direct clutch hub and turbine shaft assembly.

     Courtesy of FORD MOTOR COMPANY

263. Install the No. 1 cover assembly thrust bearing.

     Courtesy of FORD MOTOR COMPANY

264. Install the cover assembly gasket.

     Courtesy of FORD MOTOR COMPANY

265. Route the TSS sensor harness through the transmission case to the valve body area and install the cover assembly.

     Courtesy of FORD MOTOR COMPANY

266. Install the cover assembly bolts and tighten the bolts in the sequence shown.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

267. Install the OSS sensor and the bolt.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

268. NOTE: Be careful not to pinch the TSS, OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.
     NOTE: Make sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.

     Position the TSS, OSS and TR sensor wiring harnesses aside, align the manual pin in the manual valve, install the main control valve body and loosely install the bolts.

     1. Manual valve
     2. Manual pin

     Courtesy of FORD MOTOR COMPANY

269. Install the main control valve body bolts. Tighten the bolts in the sequence shown.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

270. NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses behind the solenoid body when positioning the solenoid body in place.
     NOTE: Install the different length bolts in the locations noted during disassembly.

     Install the solenoid body bolts hand-tight.

     1. 42 mm (1.653 in) bolt
     2. 63 mm (2.48 in) bolts
     3. 80 mm (3.149 in) bolts
     4. 95 mm (3.74 in) bolts

     Courtesy of FORD MOTOR COMPANY

271. Tighten the solenoid body bolts in the sequence shown.
     • Tighten to 12 Nm (106 lb-in).

     Courtesy of FORD MOTOR COMPANY

272. Route the OSS sensor wiring harness into the retainer.

     Courtesy of FORD MOTOR COMPANY

273. Connect the TSS and OSS sensor electrical connectors.

     Courtesy of FORD MOTOR COMPANY

274. Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.

     Courtesy of FORD MOTOR COMPANY

275. Inspect the transmission main control cover seal for damage and install new if necessary.

     Courtesy of FORD MOTOR COMPANY

276. NOTE: Install the studbolts in the correct locations as noted during disassembly.

     Install the transmission main control cover and loosely install the bolts.

     Courtesy of FORD MOTOR COMPANY

277. Tighten the main control cover bolts in the sequence shown.
     • Tighten to 12 Nm (106 lb-in).
     Fig 3: Main Control Cover Bolt Tightening Sequence

     Courtesy of FORD MOTOR CO.
278. NOTE: Only thread the bolts 6 to 8 turns or do not exceed 12 mm (0.472 in) in the torque converter. If the bolts are threaded too far, damage to the torque converter clutch surface can occur, causing torque converter failure.

     Install two 10 mm x 1.50 bolts into the torque converter 6 to 8 turns to assist in handling the torque converter and install the torque converter in the transmission.

     Courtesy of FORD MOTOR COMPANY

279. Install the special tool. Special Tool(s): Retainer, Torque Converter 307-346

Courtesy of FORD MOTOR COMPANY
