Front Seat Track Motor: Installation

All seats

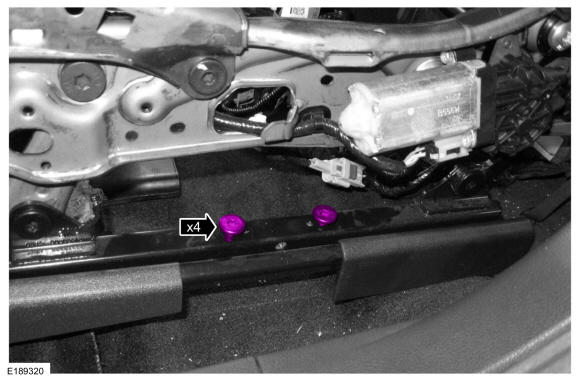

1. NOTE: Typical seat track shown, other seat tracks similar.
   NOTE: Use the bolts from the old seat track motor.
   NOTE: Seat side shield removed for clarity.

   On both sides. Install the seat track motor bolts.

   Torque: 21 lb.ft (28 Nm)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops, otherwise a new seat track must be installed.
   NOTE: Typical seat track shown, other seat tracks similar.
   NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
   NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

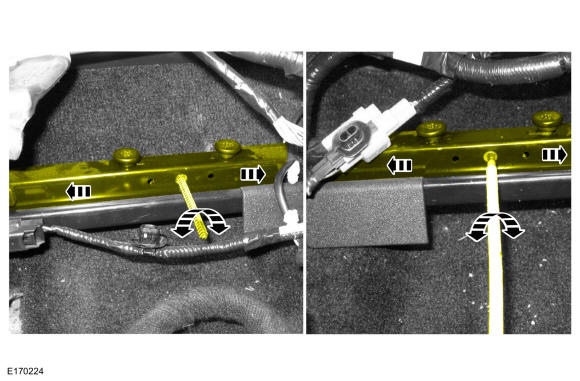

   Insert the original seat track motor drive cables and drive the gearbox and seat track uniformly until the rear edge of the upper and lower seat tracks are aligned. Use the General Equipment: Electric Drill.

   Courtesy of FORD MOTOR COMPANY

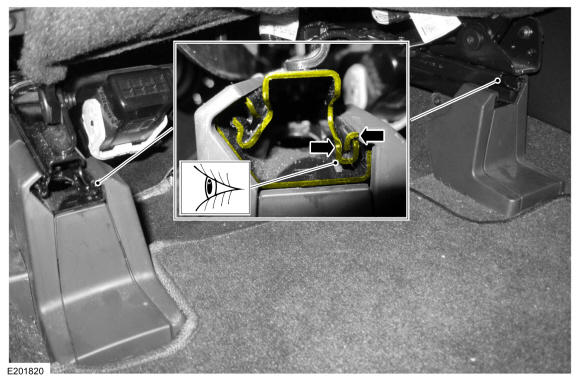

3. NOTE: Typical seat track shown, other seat tracks similar.

   The rear edges of the upper and lower seat track rails must align with each other on both sides of the seat.

   Courtesy of FORD MOTOR COMPANY

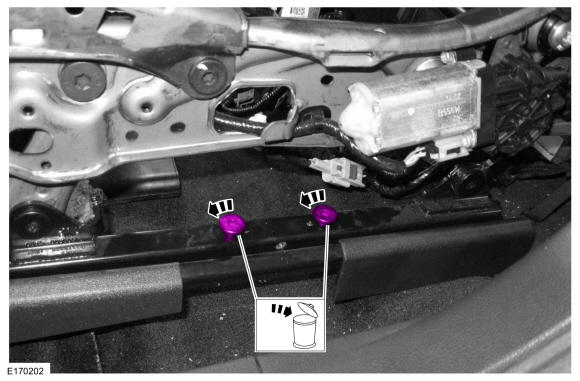

4. NOTE: Typical seat track shown, other seat tracks similar.
   NOTE: Seat side shield removed for clarity.

   Both sides. Remove the seat track motor bolts.

   Courtesy of FORD MOTOR COMPANY

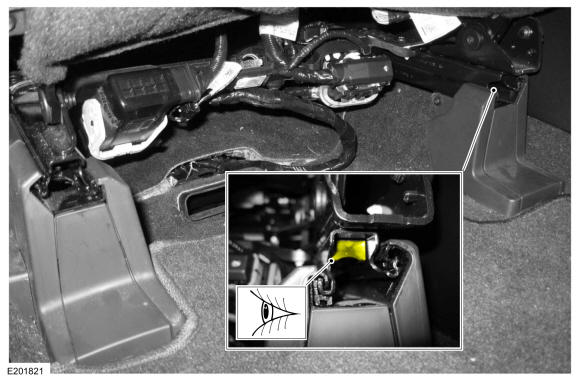

5. NOTE: Typical seat track shown, other seat tracks similar.
   NOTE: Install a new seat track if the block is not in place.

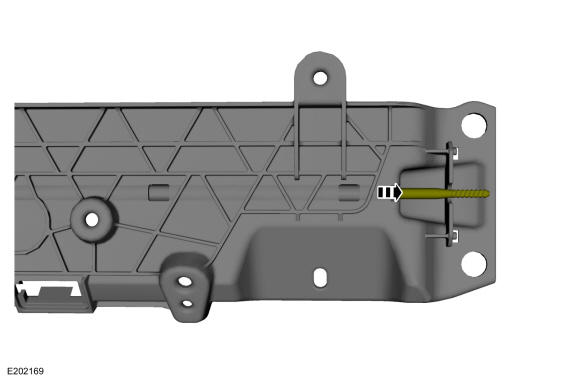

   Verify the block is in place at the rear of the inboard seat track rail.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Typical seat track shown, other seat tracks similar.

   To aid installation. Pull the long drive cable on the new motor assembly out of the sheathing.

   Courtesy of FORD MOTOR COMPANY

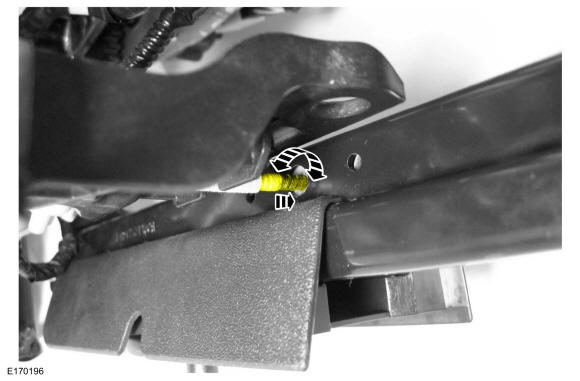

7. NOTE: Typical seat track shown, other seat tracks similar.

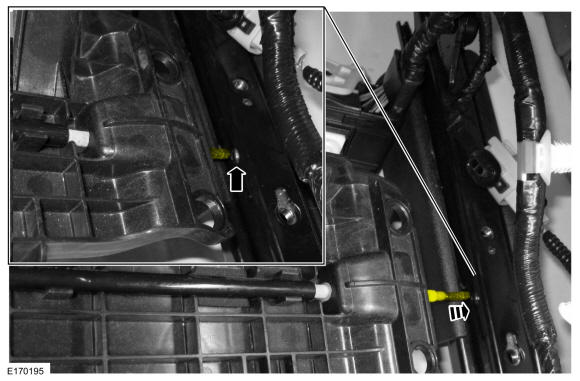

   Insert the long drive cable into the seat track gearbox.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Typical seat track shown, other seat tracks similar.

   Rotate the long drive cable to verify engagement to seat track gearbox.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Do not severely bend the short drive cable during installation or damage to the cable will occur.
   NOTE: Typical seat track shown, other seat tracks similar.

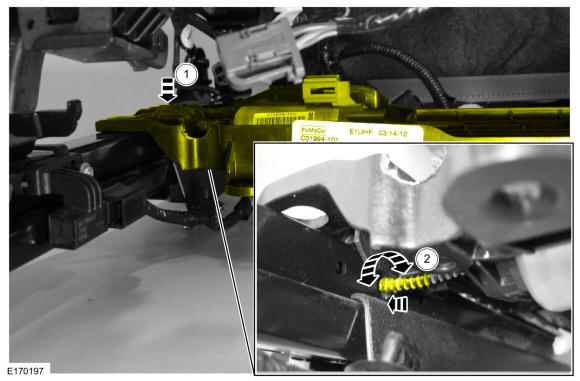

   Insert the short drive cable into the seat track gearbox.

   1. Position the seat track motor while inserting the short cable into the seat track gearbox.
   2. Rotate the short drive cable to verify engagement to the seat track gearbox.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Do not cross-thread the bolts, they are load-bearing. If the bolts are cross-threaded, a new seat track must be installed.
    NOTE: Seat track components and wiring harness are removed for clarity.

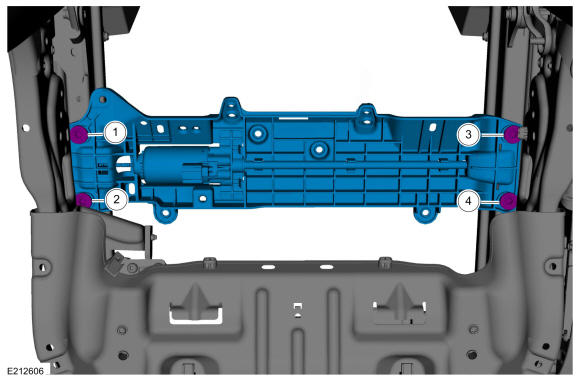

    Install the seat track motor and install the new bolts in the sequence shown.

    Torque: 21 lb.ft (28 Nm)

    Fig 1: Seat Track Motor Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
11. Attach the electrical connectors and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

12. Install the lamp and connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

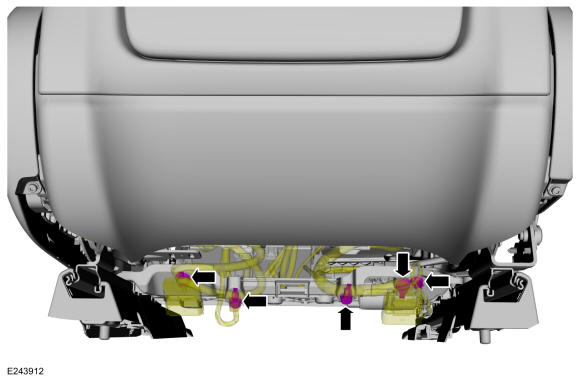

13. NOTE: Seat components are removed for clarity.

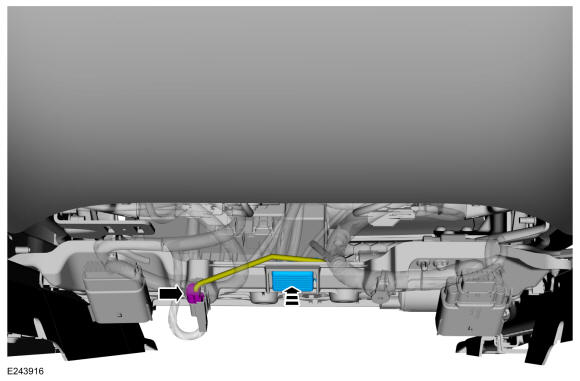

    Connect the electrical connectors and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

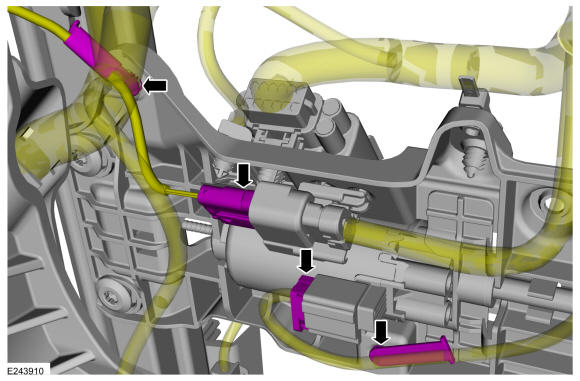

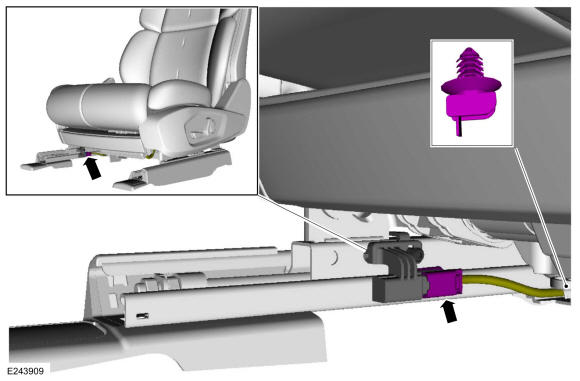

14. Connect the electrical connector and attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

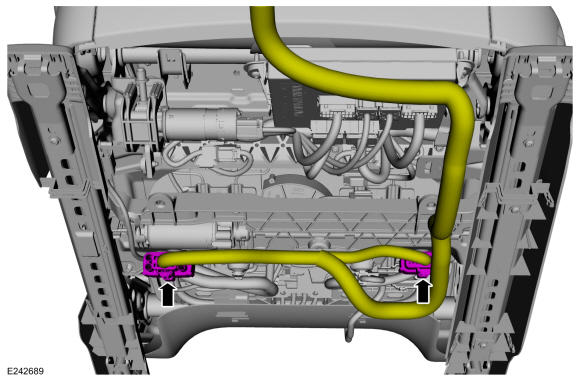

15. Connect the seat harness electrical connector(s).

    Courtesy of FORD MOTOR COMPANY

16. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .

    Driver seat

17. NOTE: Only carry out this step if the component has been replaced.

    Operate the seat track horizontal motor in all directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
