Front Seat Climate Control Module [SCME]: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

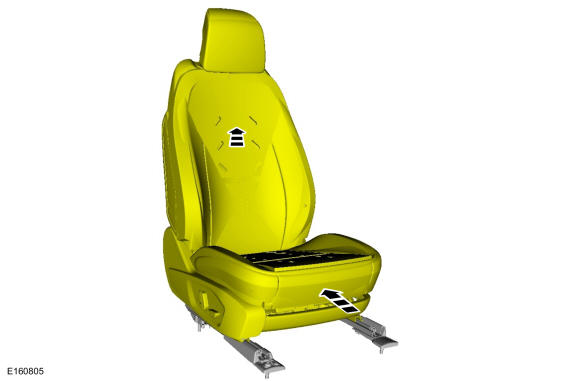

Position the front passenger seat to the full upward and full rearward positions.

Courtesy of FORD MOTOR COMPANY

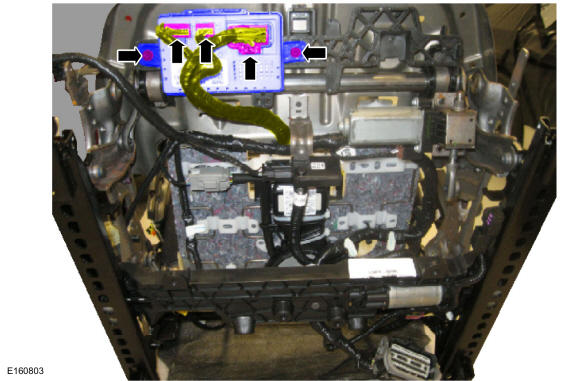

Remove the SCME.
- Remove the screws.
- Release the locking wedges and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
