Driver Door Window Control Switch: Removal

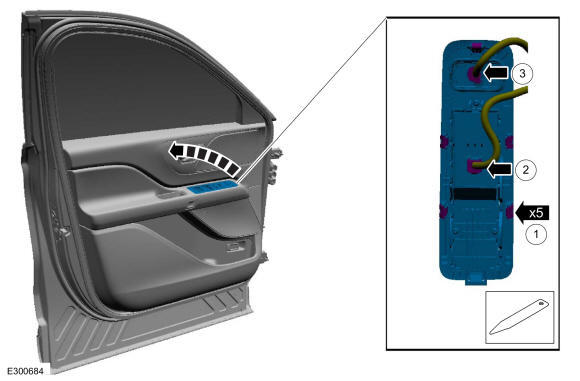

  1. Remove the driver door window control switch bezel assembly.

    1. Release the clips. Use the General Equipment: Interior Trim Remover
    2. Disconnect the driver door window control switch electrical connector.
    3. Disconnect the door lock control switch electrical connector and remove the driver door window control switch bezel assembly.

    GFD534851Courtesy of FORD MOTOR COMPANY

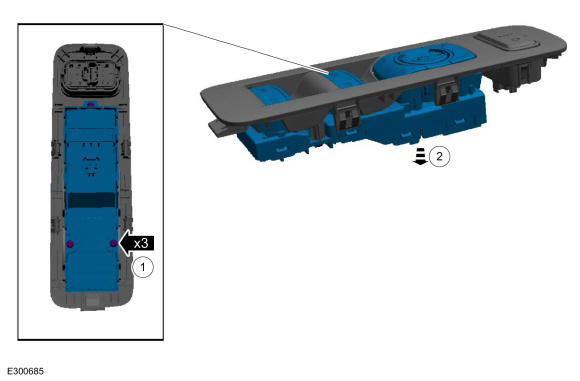

  2. NOTE: This step is only necessary when installing a new component.

    Remove the driver door window control switch.

    1. Remove the screws from driver door window control switch.
    2. Remove the driver door window control switch from the bezel assembly.

GFD534852Courtesy of FORD MOTOR COMPANY
