Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Route the wheel speed sensor/parking brake actuator motor harness as shown in illustration or contact with the wheel may occur causing damage to harness.

NOTE: Use the white stripe on rear wheel speed sensor harness for orientation purposes, making sure the harness is not twisted during installation.

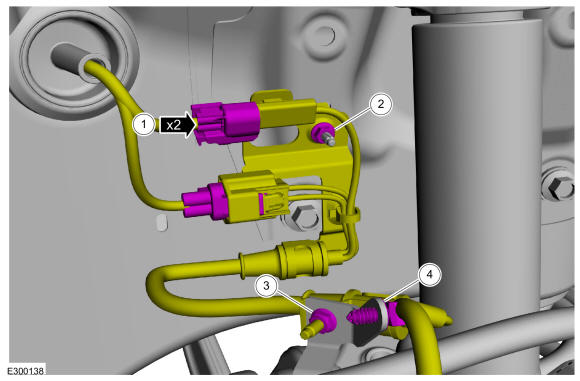

1. Disconnect the electrical connectors.
2. Remove the nut.
  Torque: 62 lb.in (7 Nm)
3. Remove the nut
  Torque: 62 lb.in (7 Nm)
4. Detach the pin-type retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

Using compressed air, clean the sensor housing area.

Courtesy of FORD MOTOR COMPANY

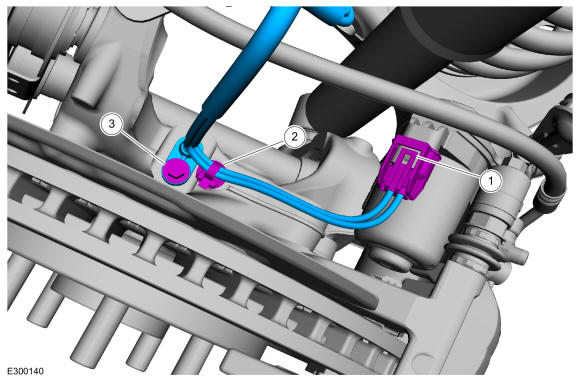

1. Disconnect the electrical connector.
2. Detach the pin-type retainer.
3. Remove the bolt and the rear wheel speed sensor.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
