Receiver Drier: Removal

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the CAC. Refer to: Charge Air Cooler (CAC) 2.0L EcoBoost .
NOTE: Make sure that all openings are sealed.

NOTE: Discard the O-ring seals.

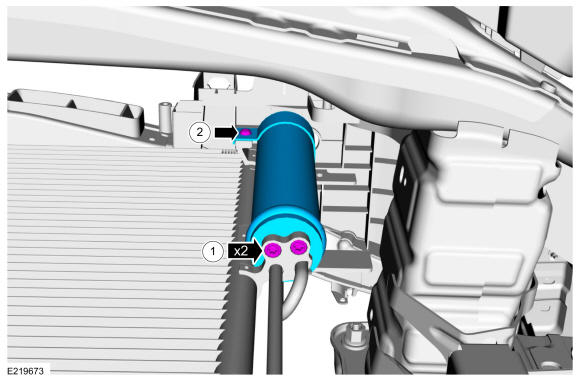

1. Remove the bolts.
  Torque: 80 lb.in (9 Nm)
2. Remove the retainer and the receiver drier.

Courtesy of FORD MOTOR COMPANY
