WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

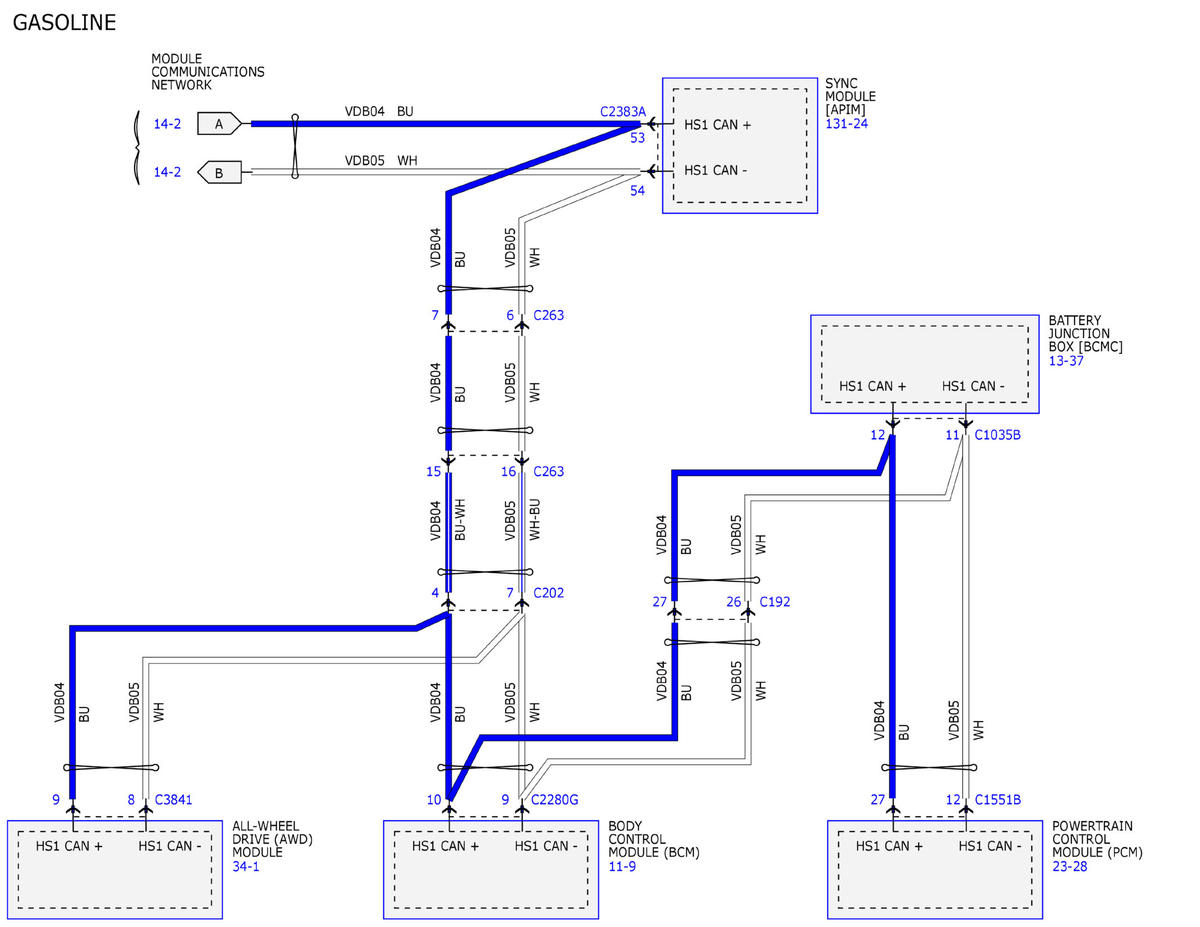

Fig 1: Module Communications Network Wiring Diagram (1 Of 29)
Courtesy of FORD MOTOR COMPANY

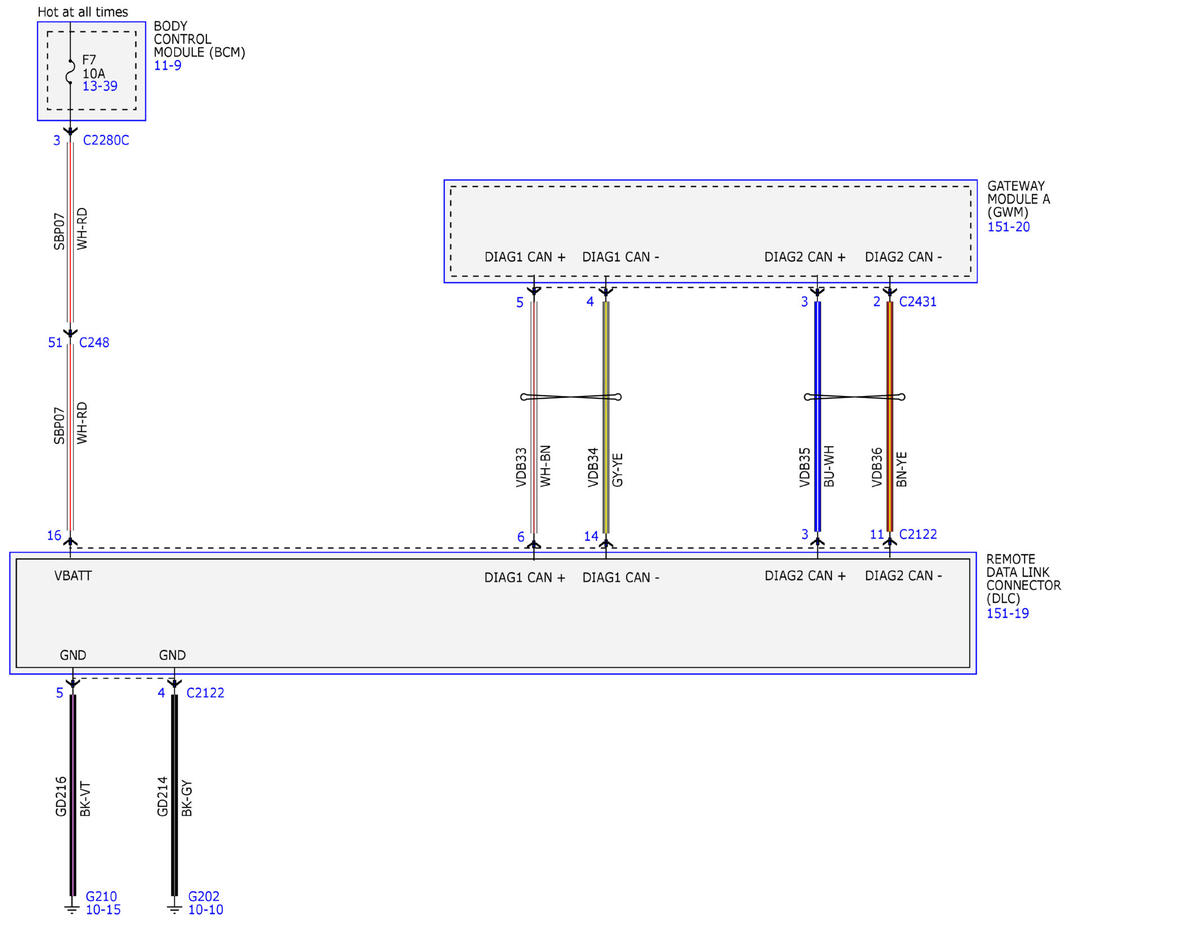

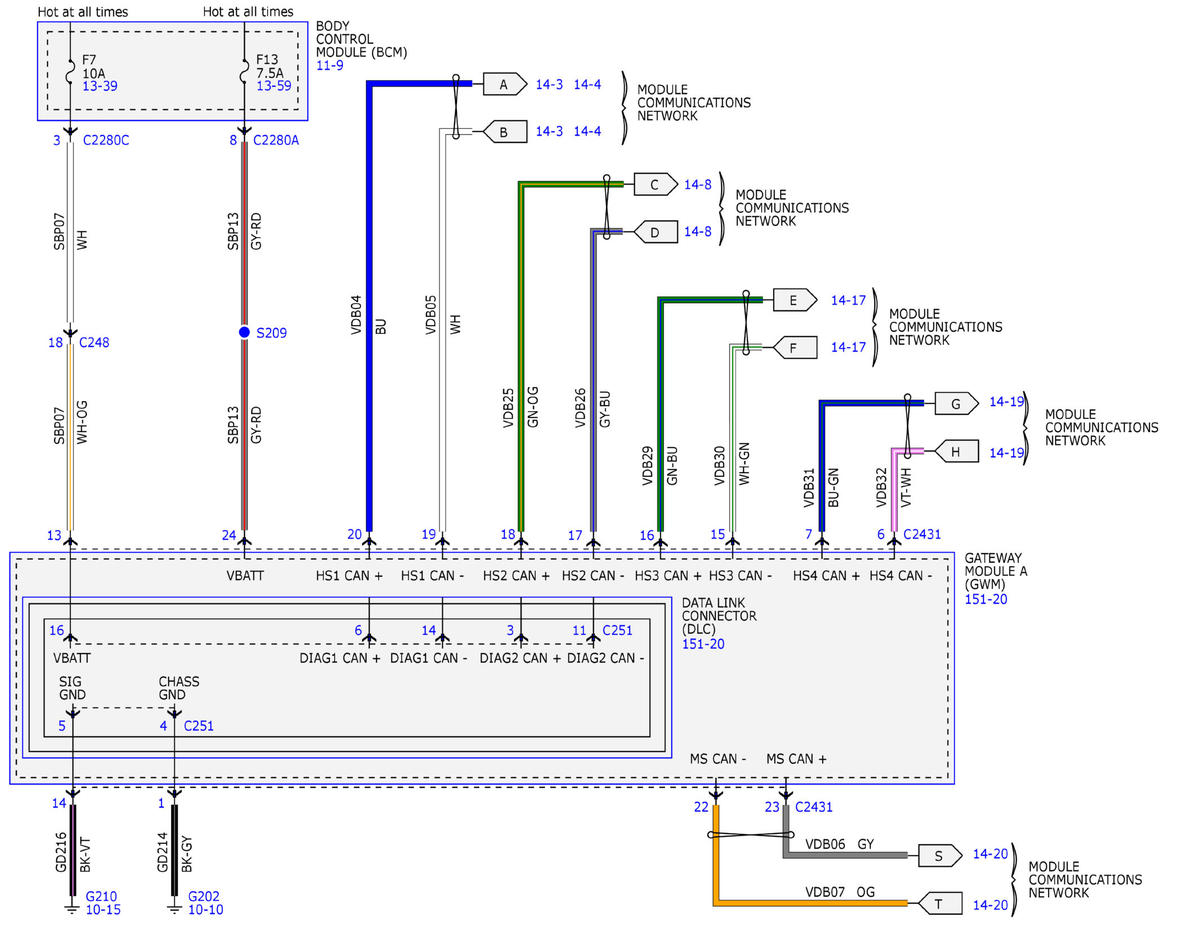

Fig 2: Module Communications Network Wiring Diagram (2 Of 29)
Courtesy of FORD MOTOR COMPANY

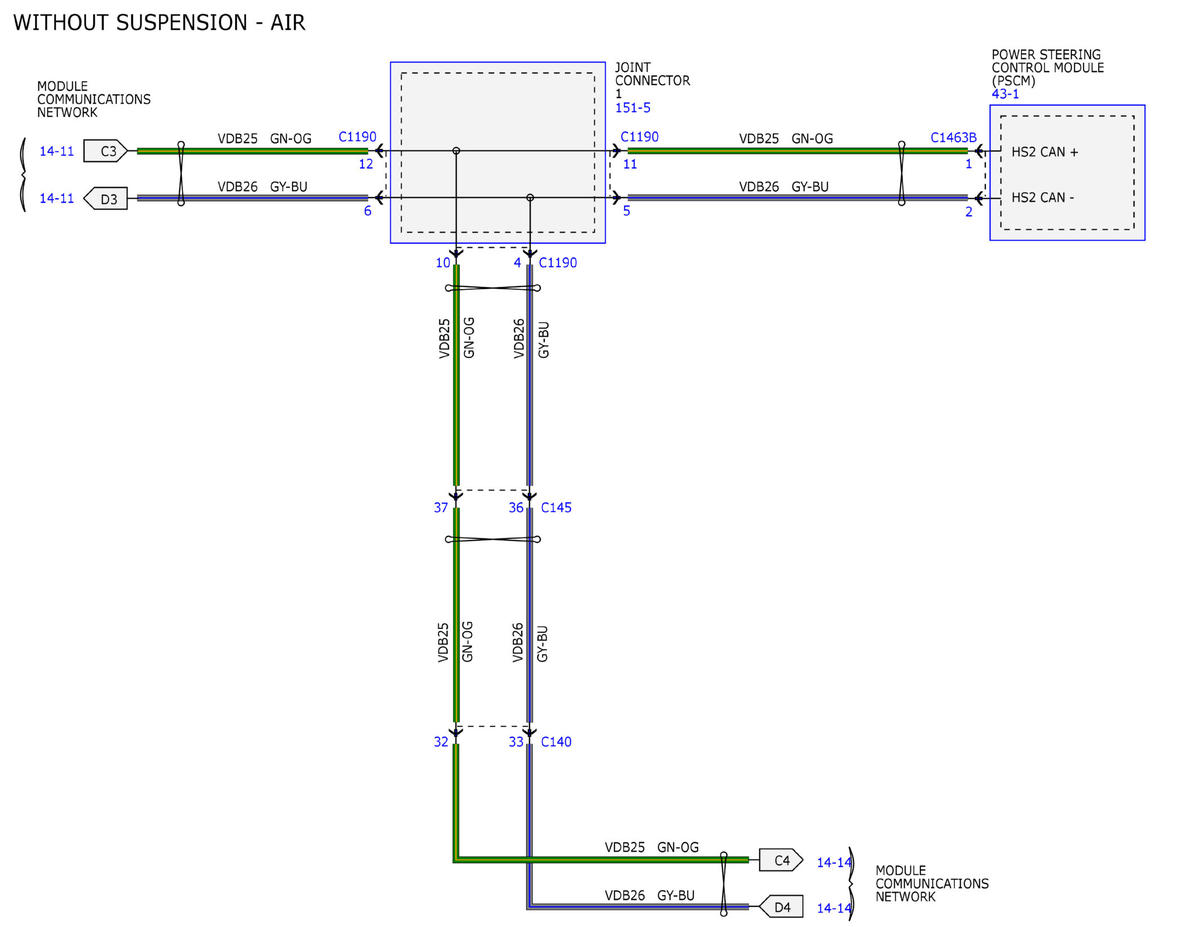

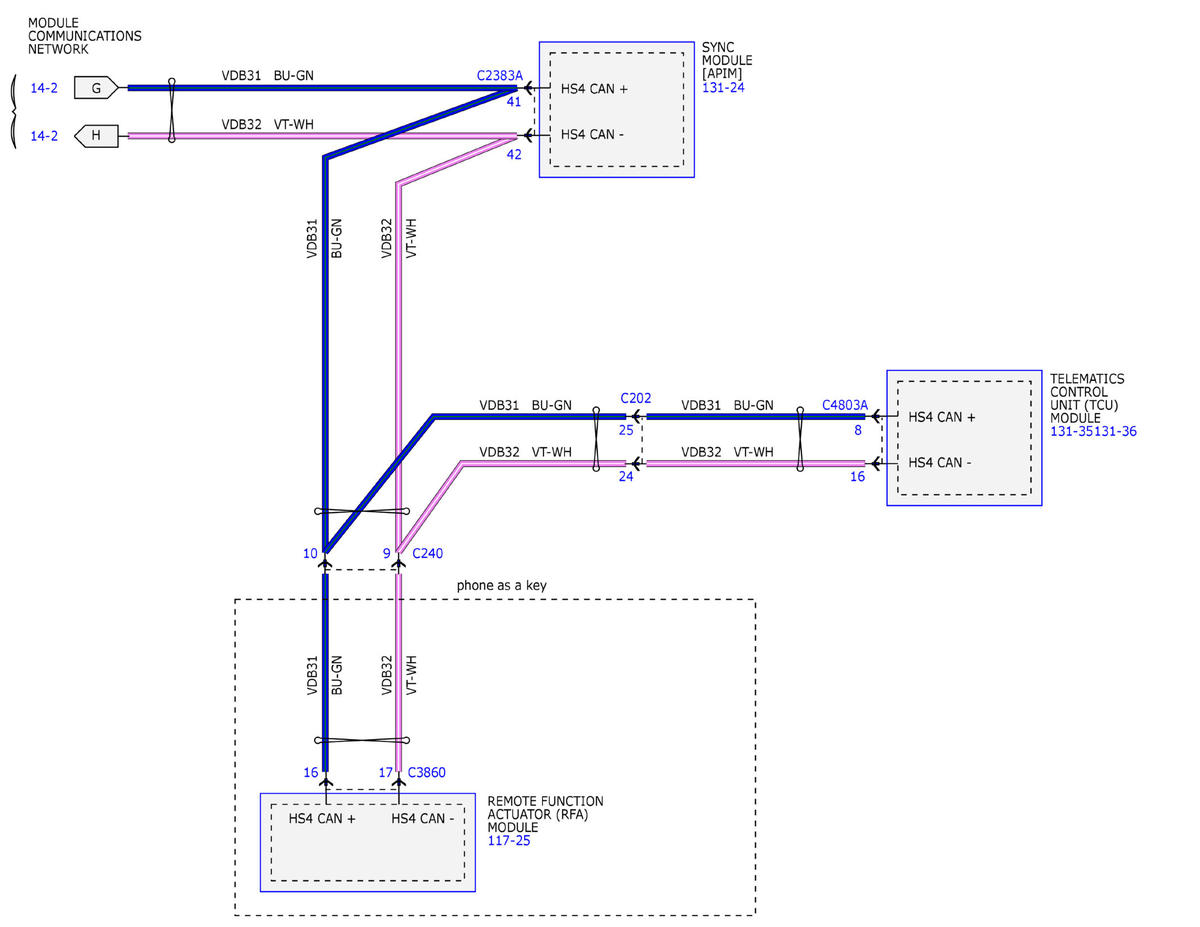

Fig 3: Module Communications Network Wiring Diagram (3 Of 29)
Courtesy of FORD MOTOR COMPANY

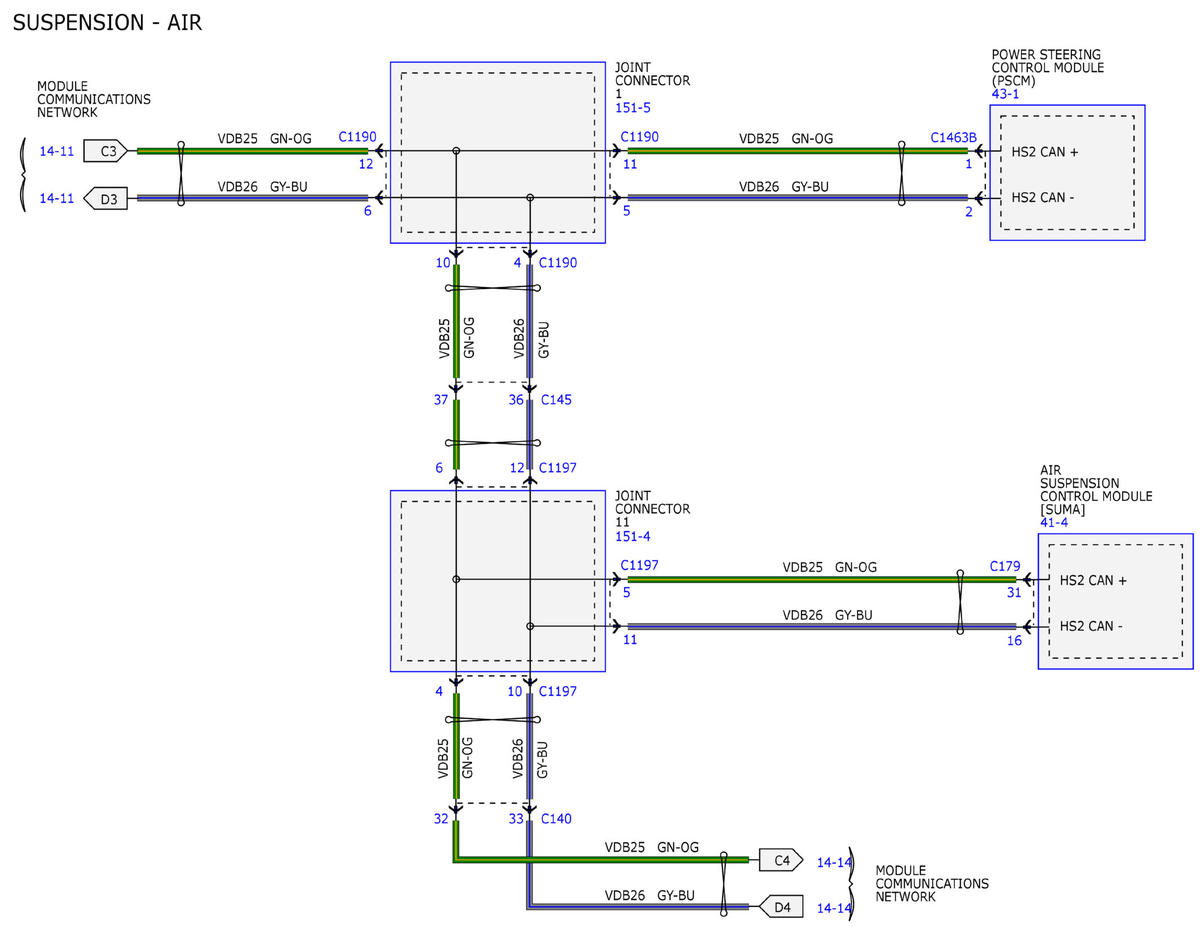

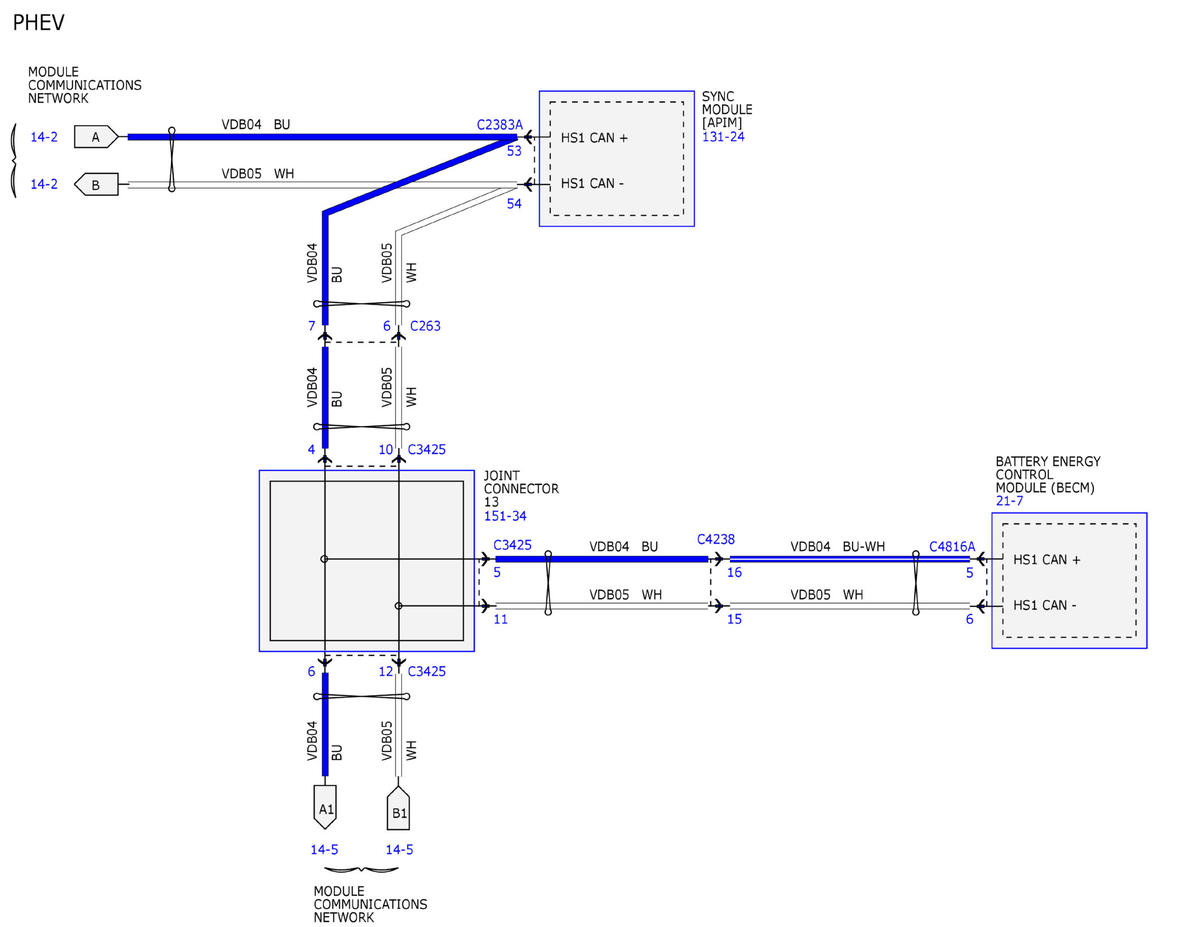

Fig 4: Module Communications Network Wiring Diagram (4 Of 29)
Courtesy of FORD MOTOR COMPANY

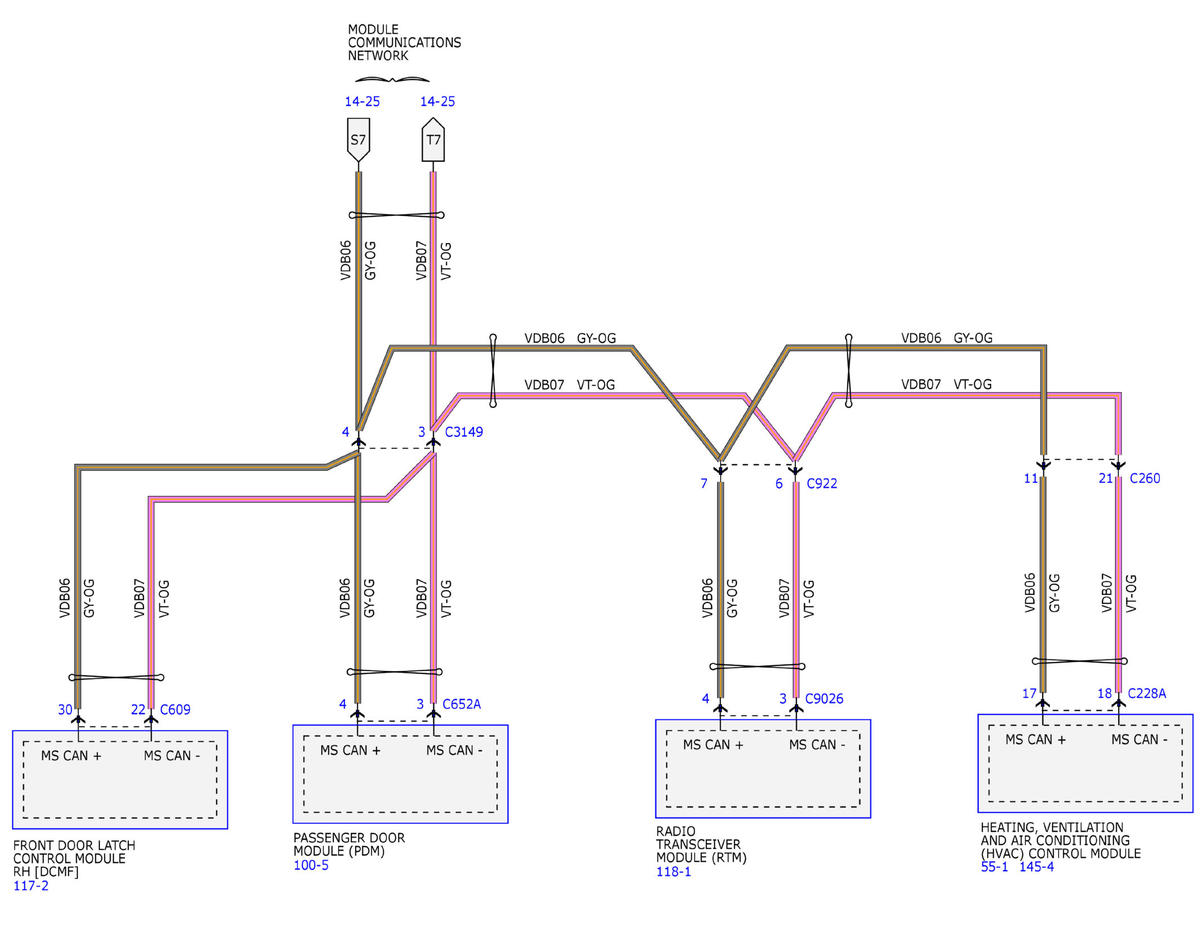

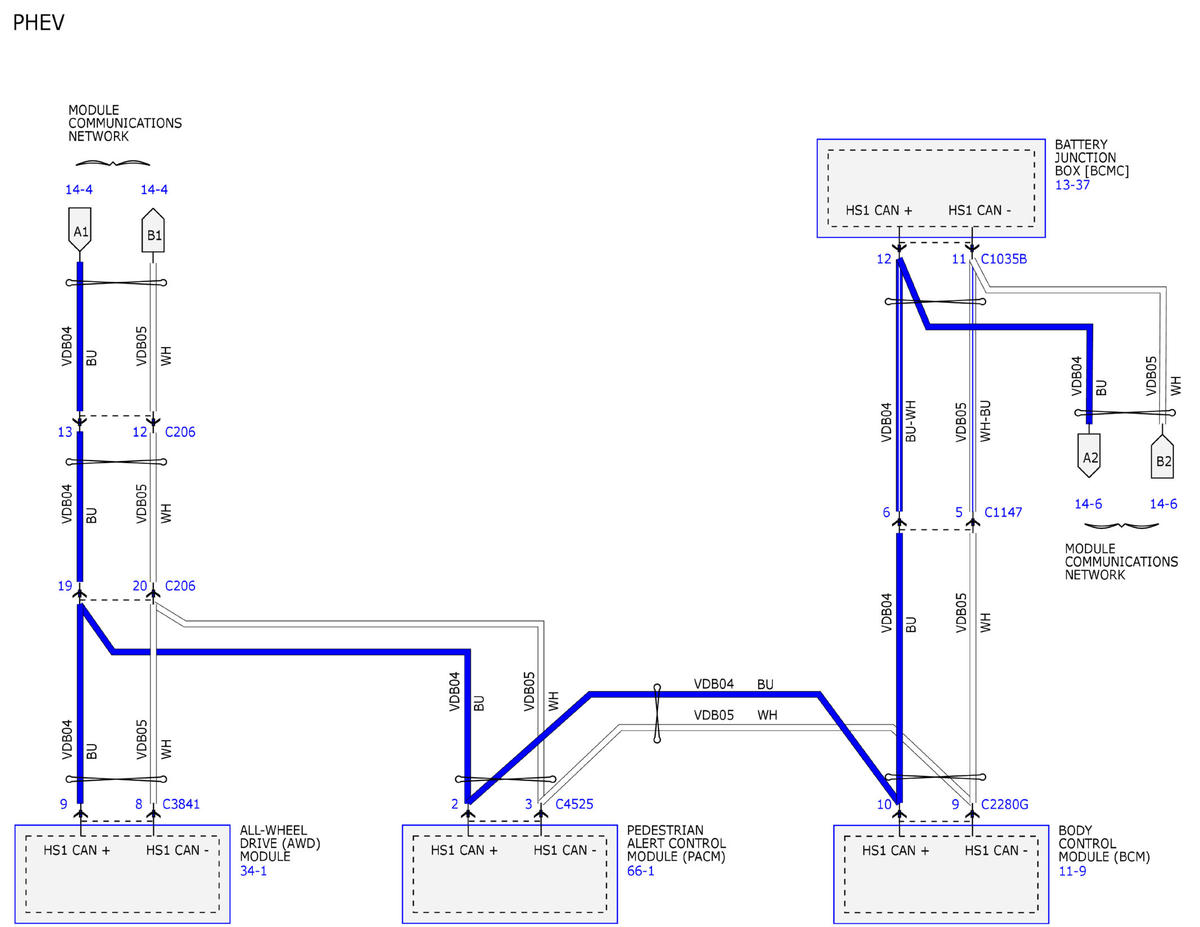

Fig 5: Module Communications Network Wiring Diagram (5 Of 29)
Courtesy of FORD MOTOR COMPANY

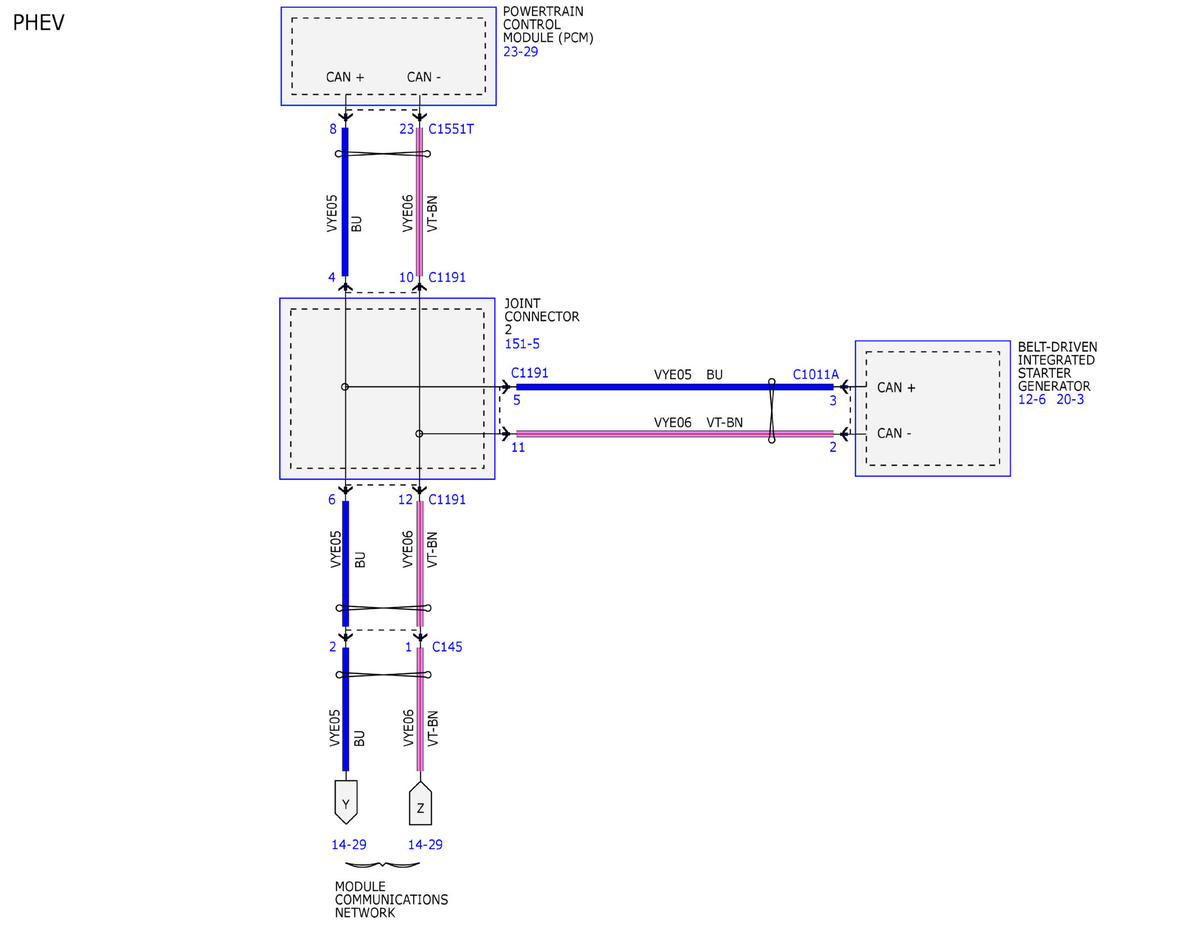

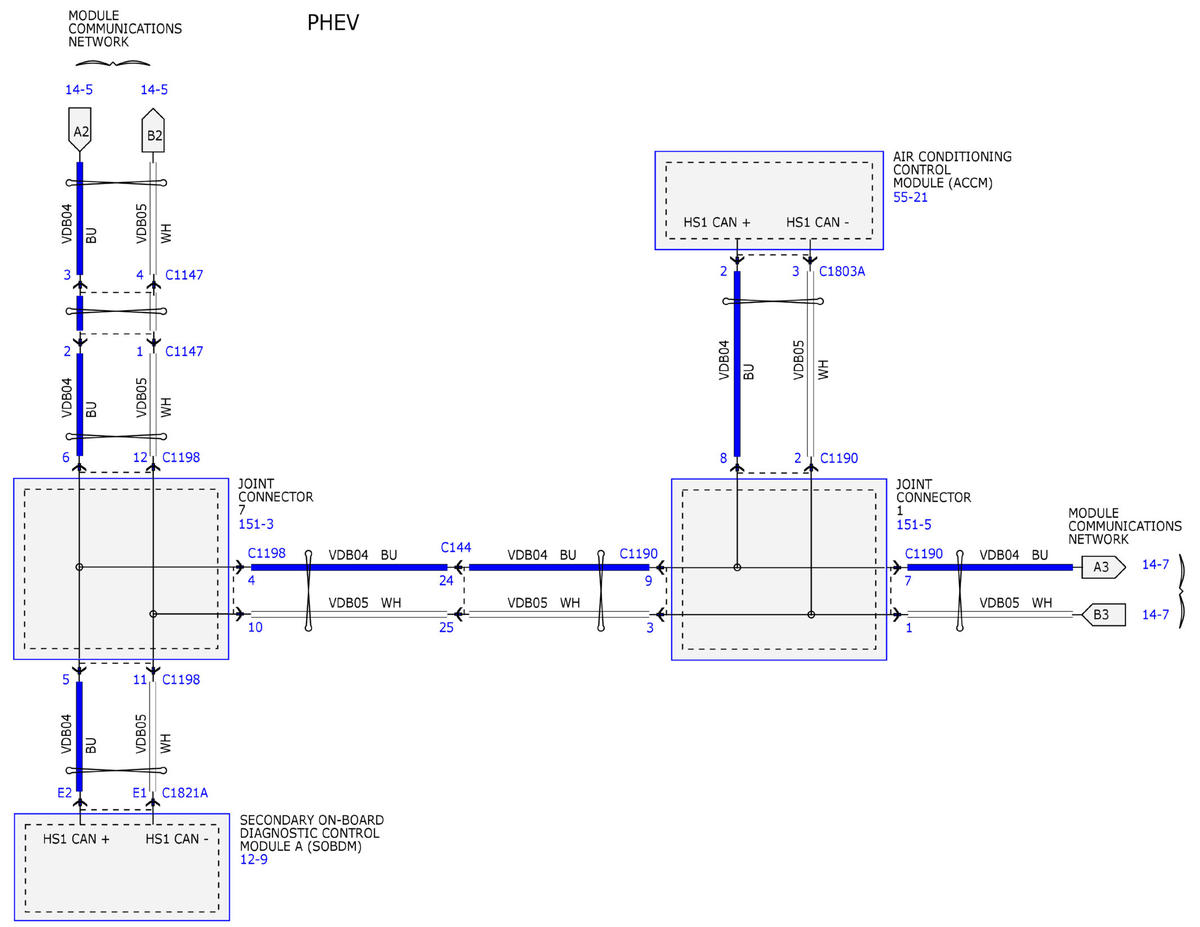

Fig 6: Module Communications Network Wiring Diagram (6 Of 29)
Courtesy of FORD MOTOR COMPANY

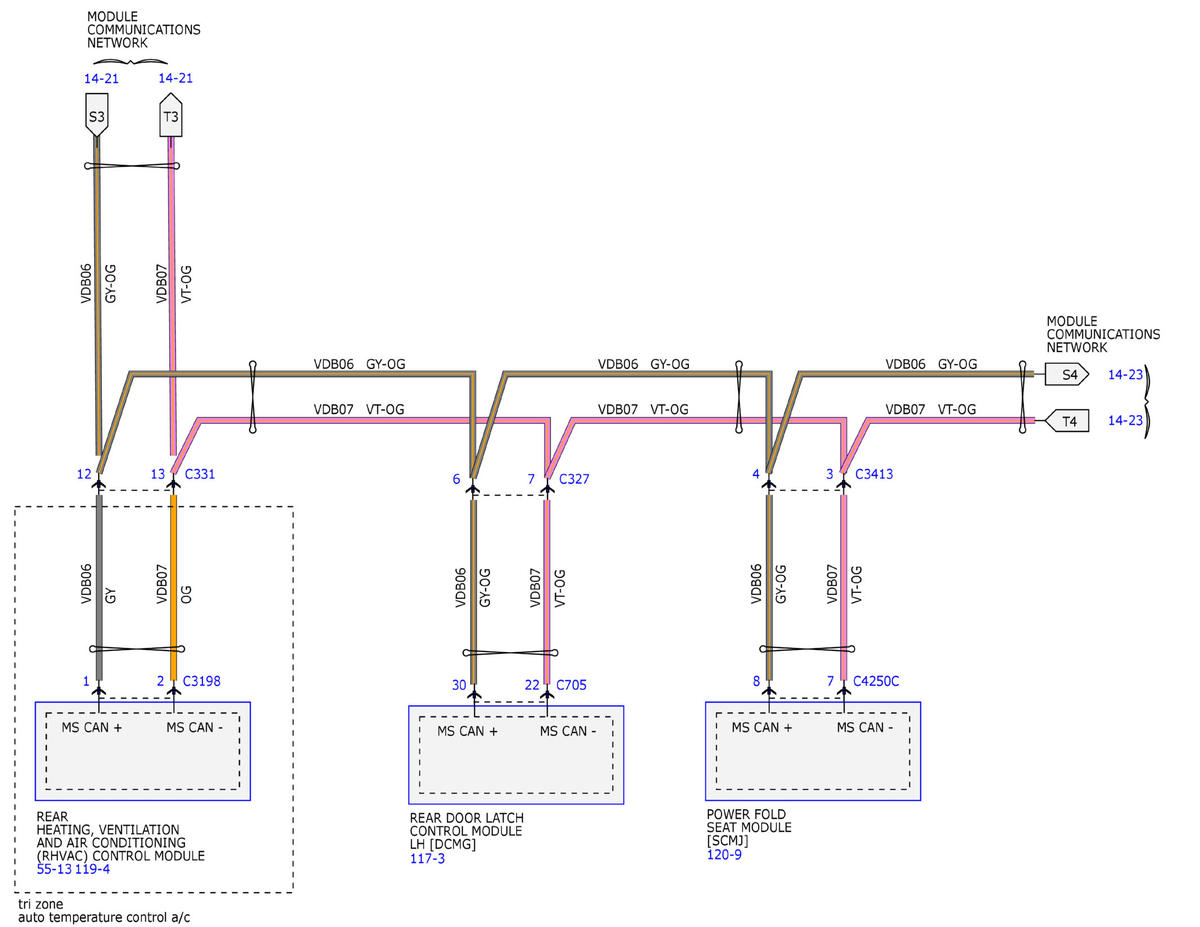

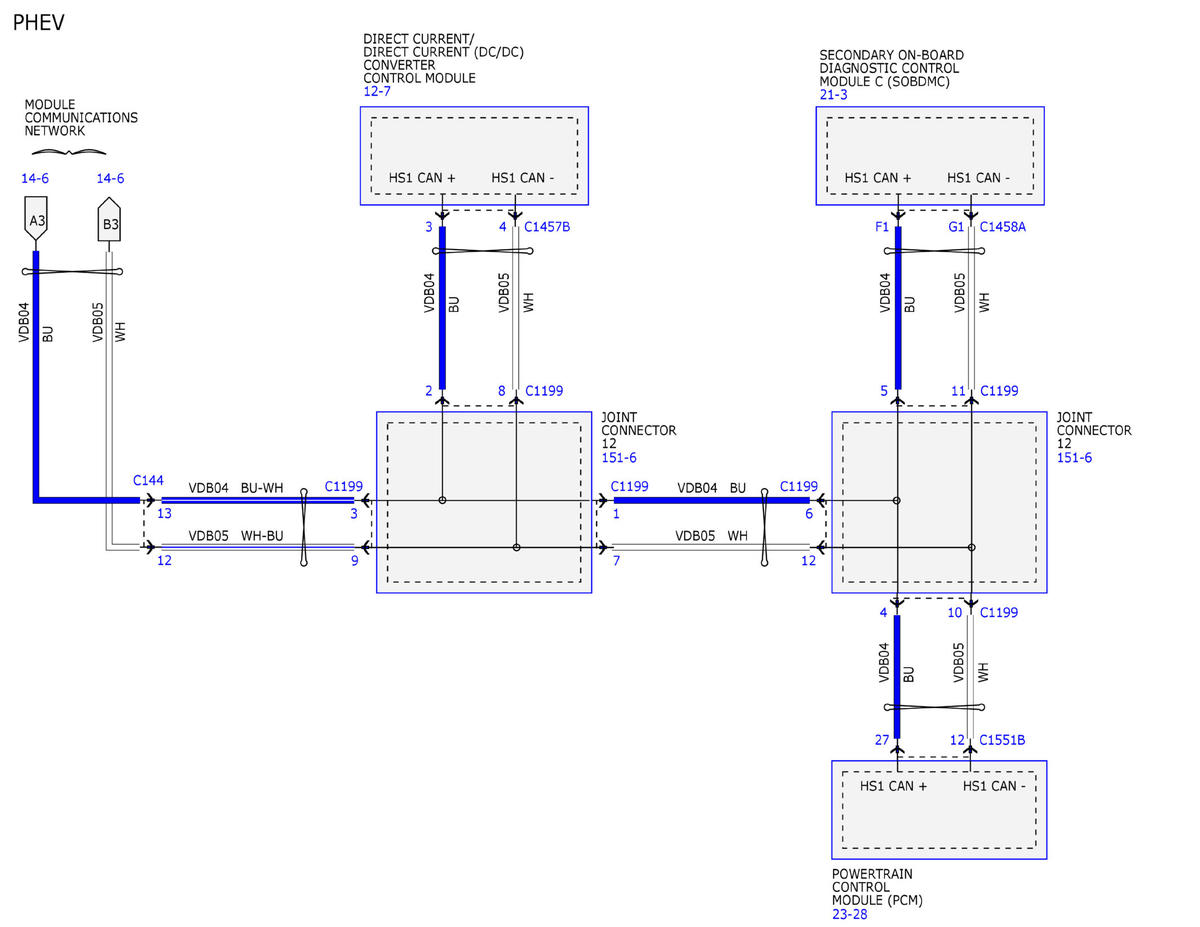

Fig 7: Module Communications Network Wiring Diagram (7 Of 29)
Courtesy of FORD MOTOR COMPANY

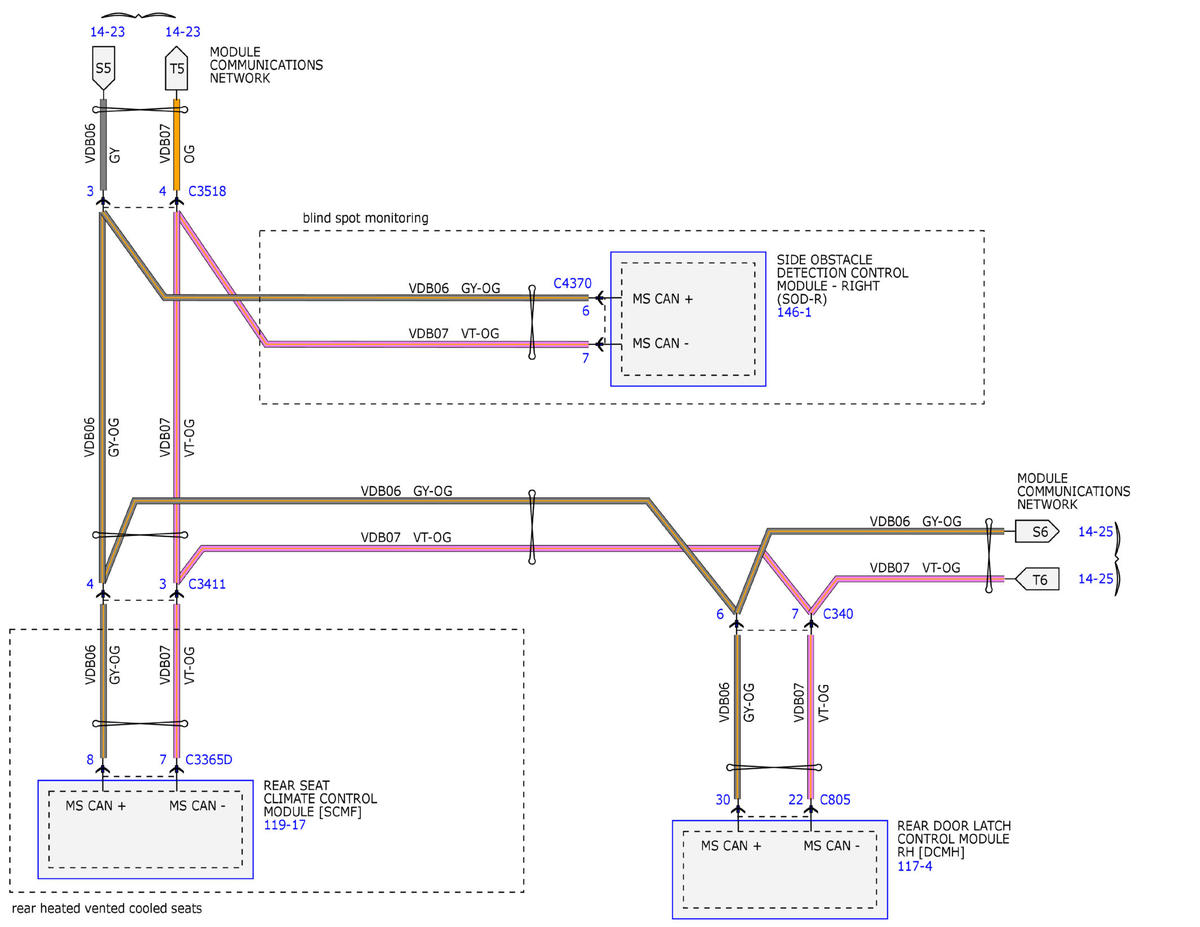

Fig 8: Module Communications Network Wiring Diagram (8 Of 29)
Courtesy of FORD MOTOR COMPANY

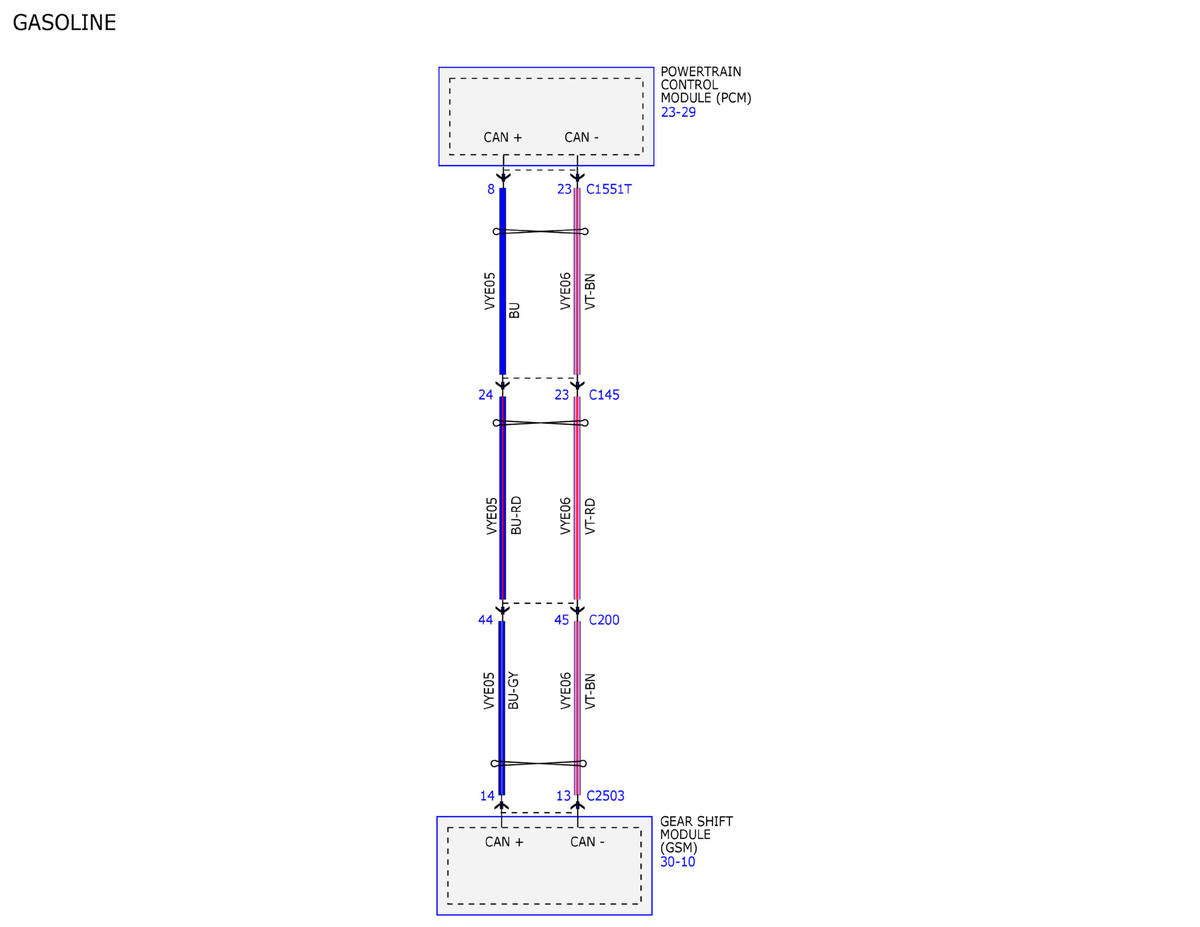

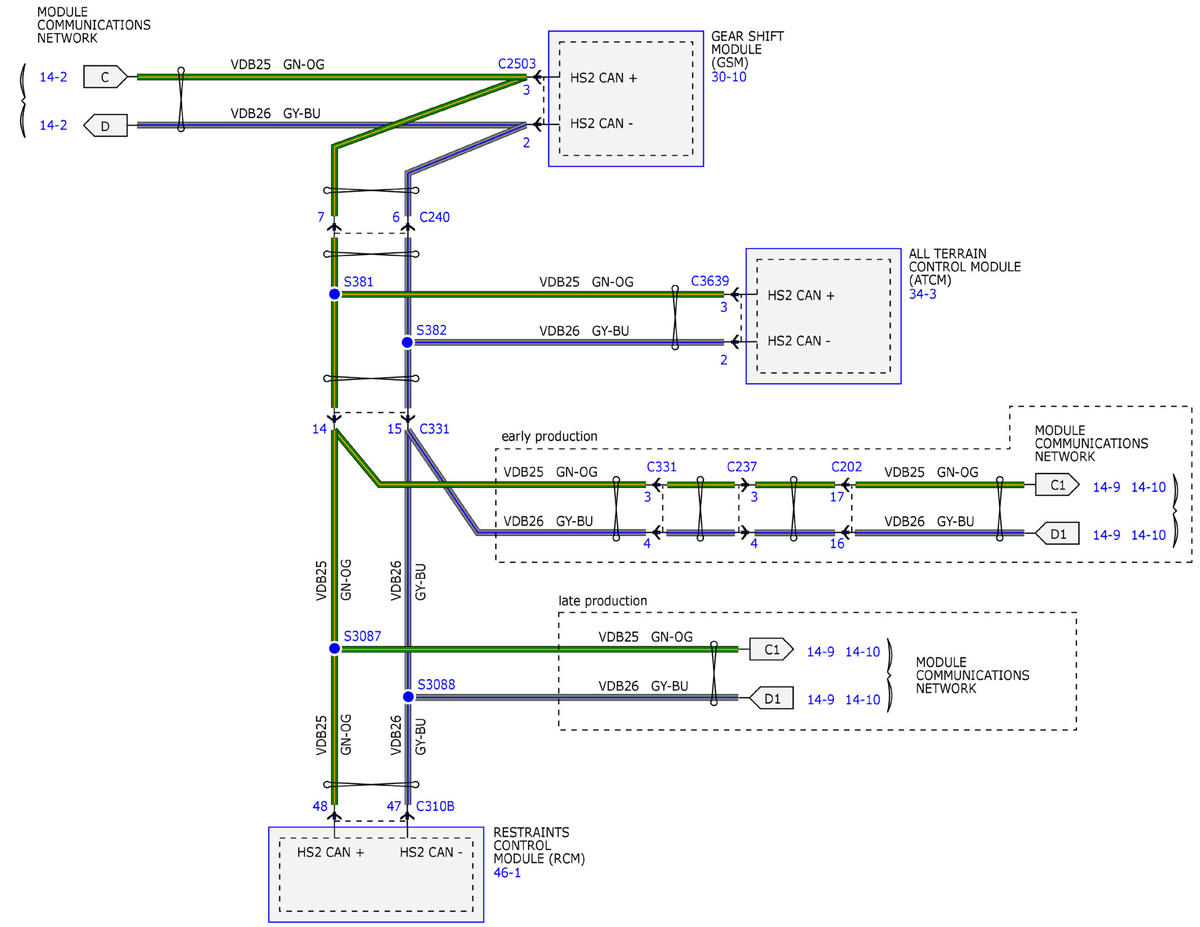

Fig 9: Module Communications Network Wiring Diagram (9 Of 29)
Courtesy of FORD MOTOR COMPANY

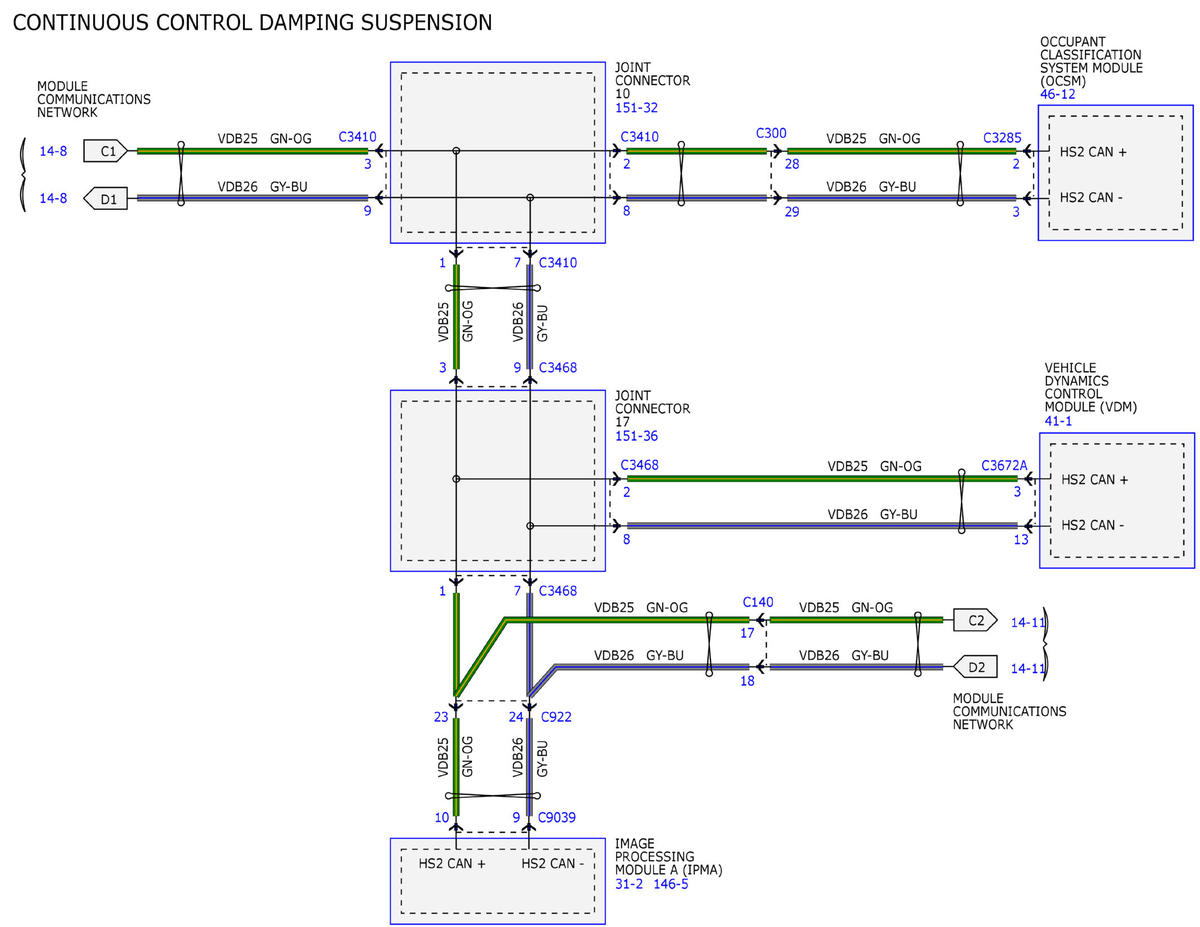

Fig 10: Module Communications Network Wiring Diagram (10 Of 29)
Courtesy of FORD MOTOR COMPANY

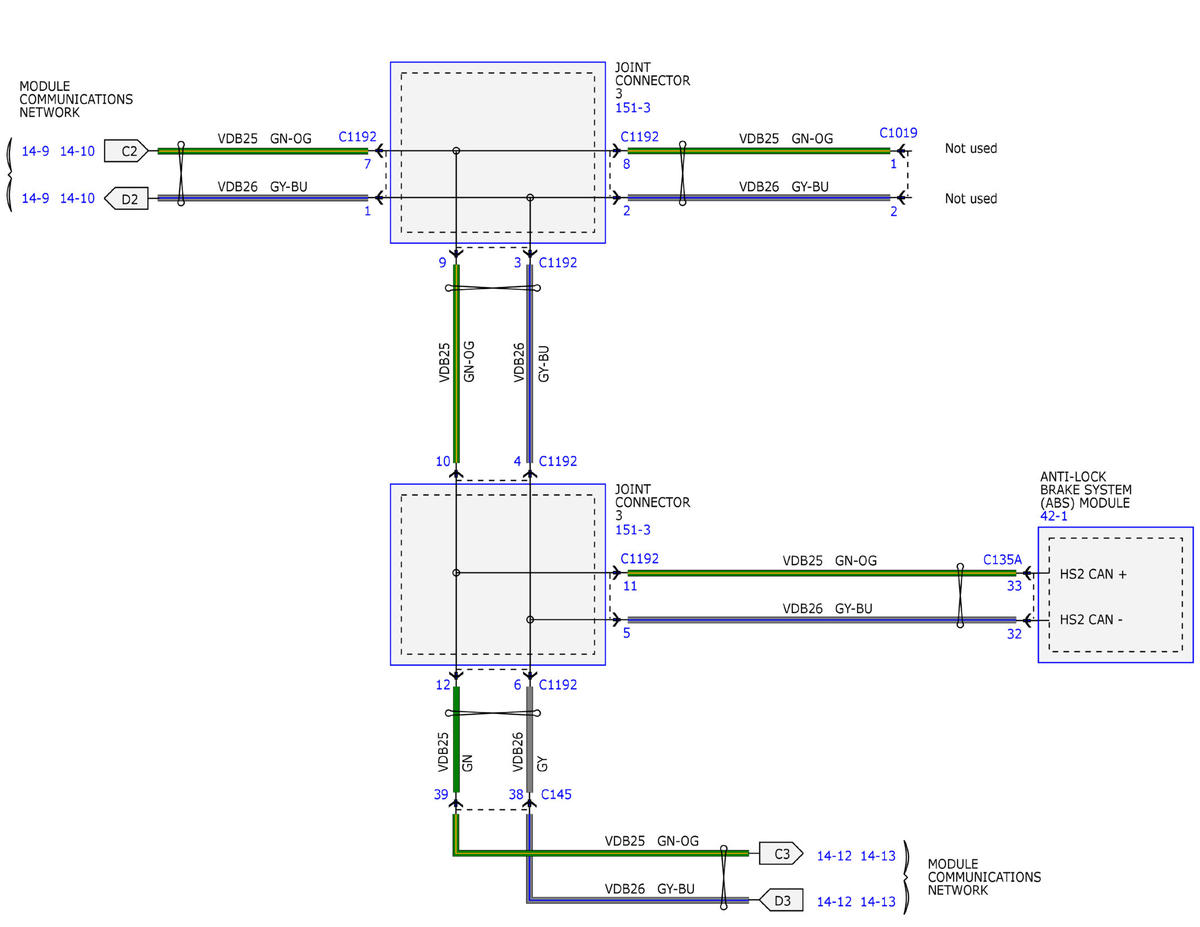

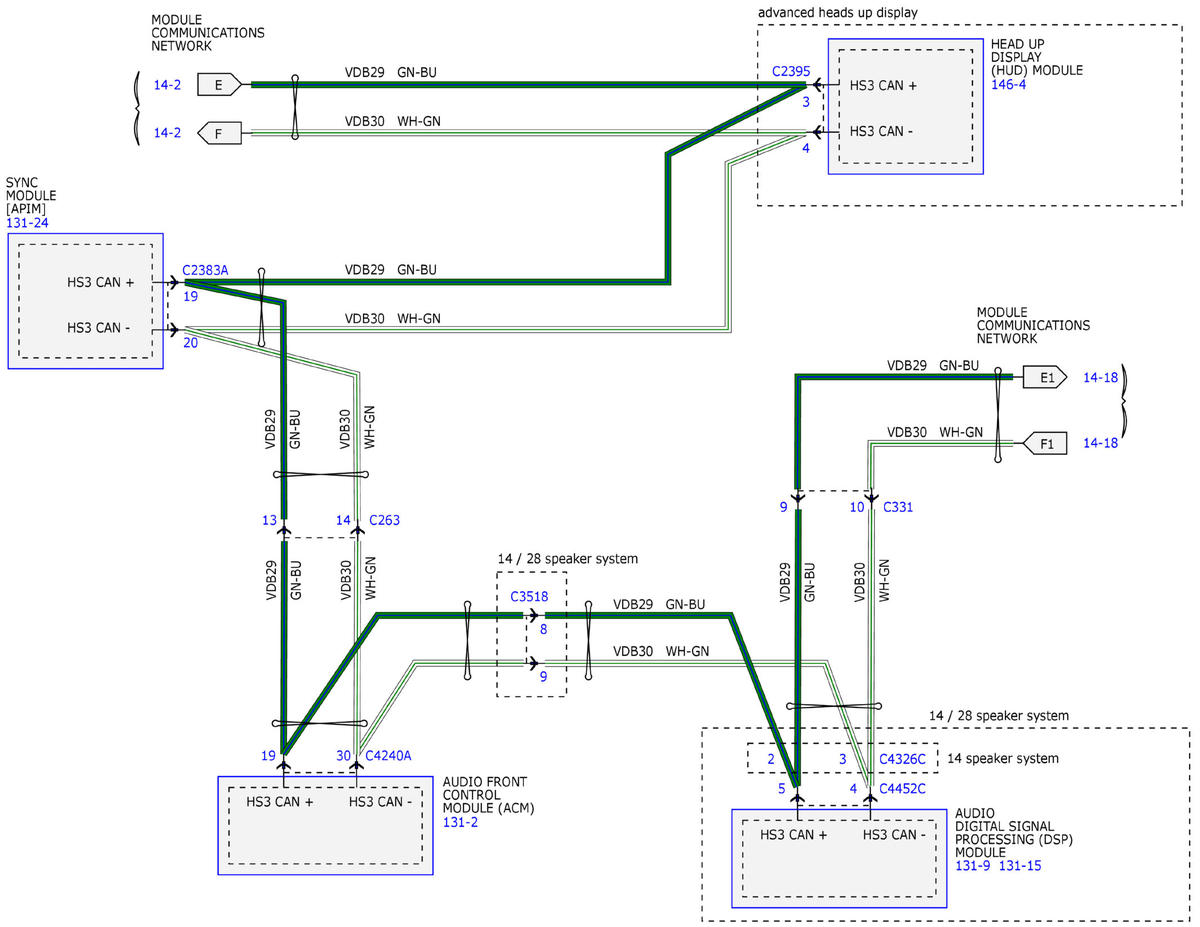

Fig 11: Module Communications Network Wiring Diagram (11 Of 29)
Courtesy of FORD MOTOR COMPANY

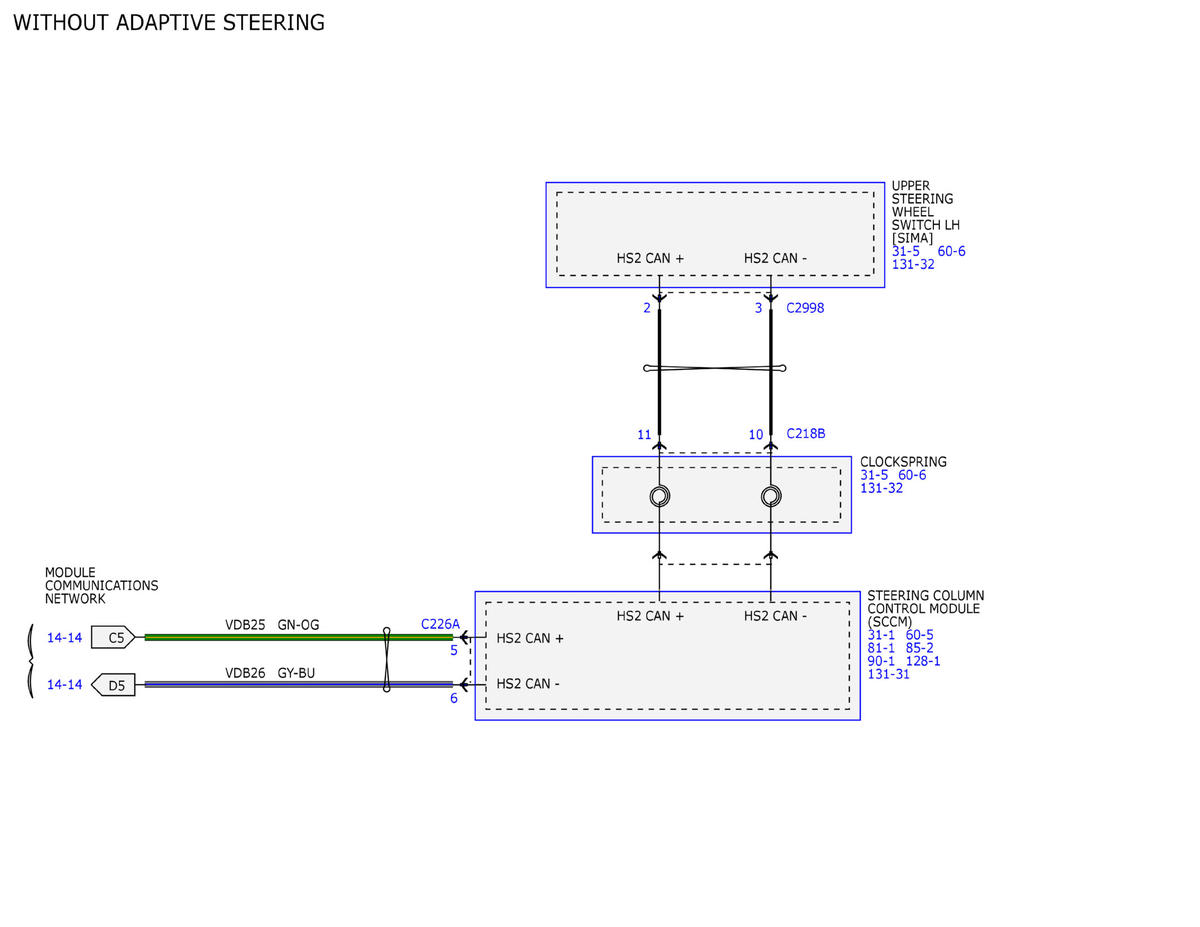

Fig 12: Module Communications Network Wiring Diagram (12 Of 29)
Courtesy of FORD MOTOR COMPANY

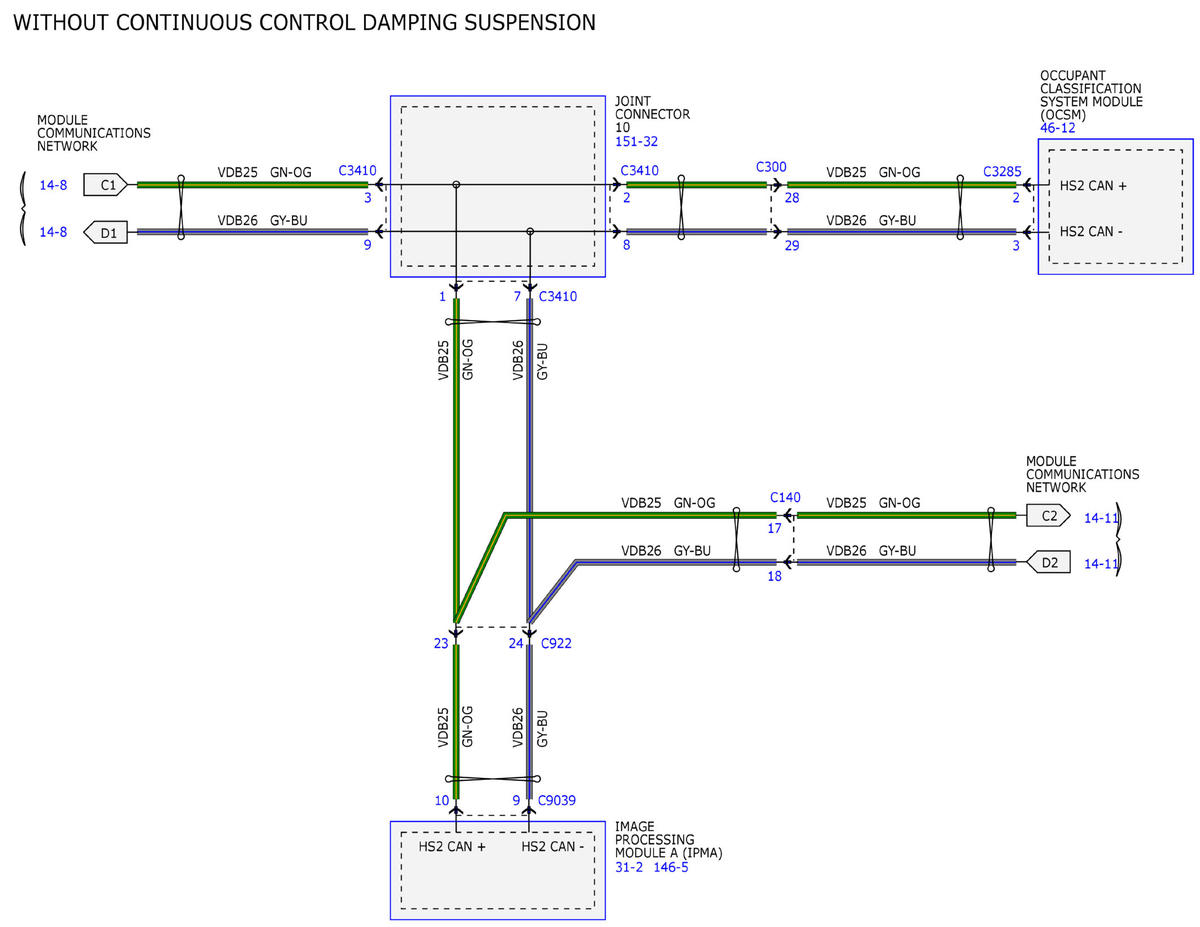

Fig 13: Module Communications Network Wiring Diagram (13 Of 29)
Courtesy of FORD MOTOR COMPANY

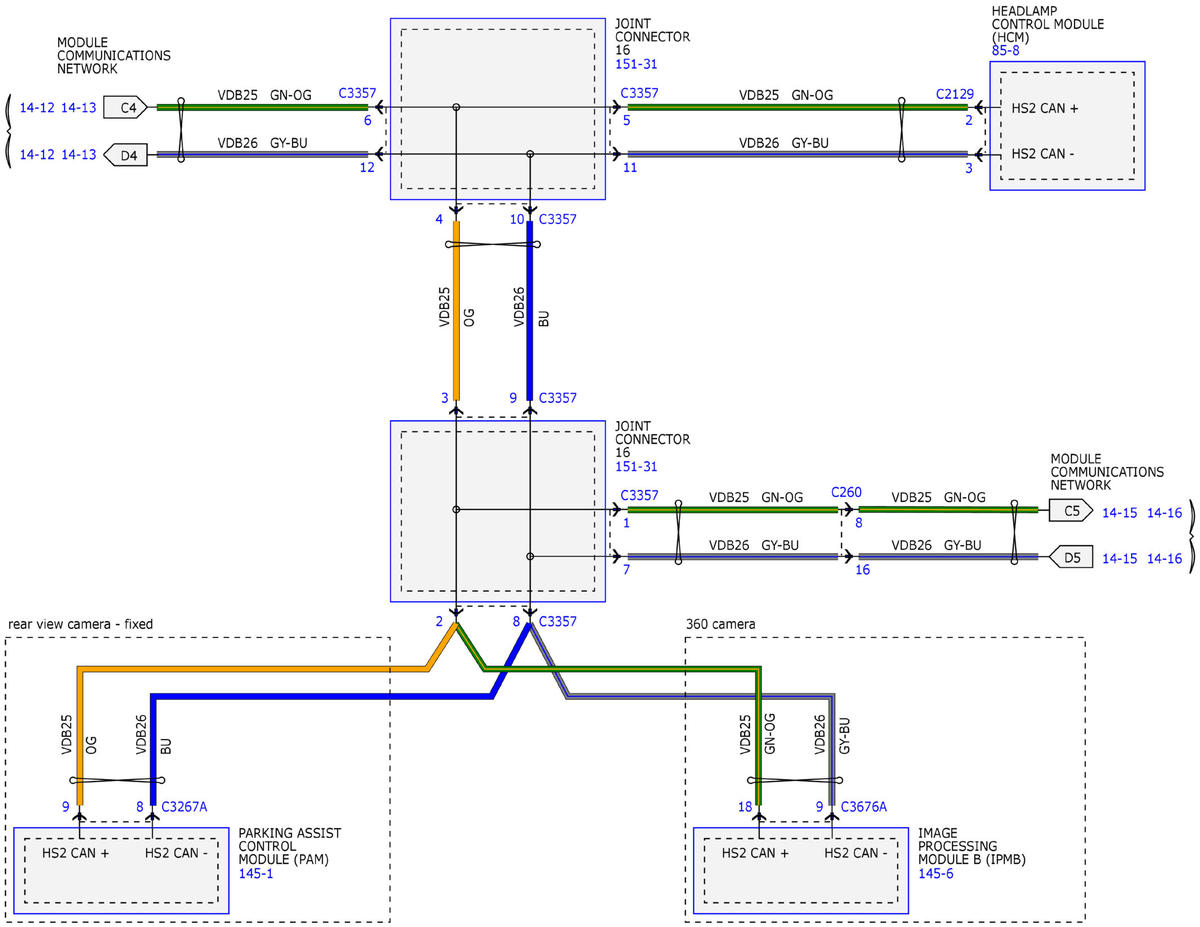

Fig 14: Module Communications Network Wiring Diagram (14 Of 29)
Courtesy of FORD MOTOR COMPANY

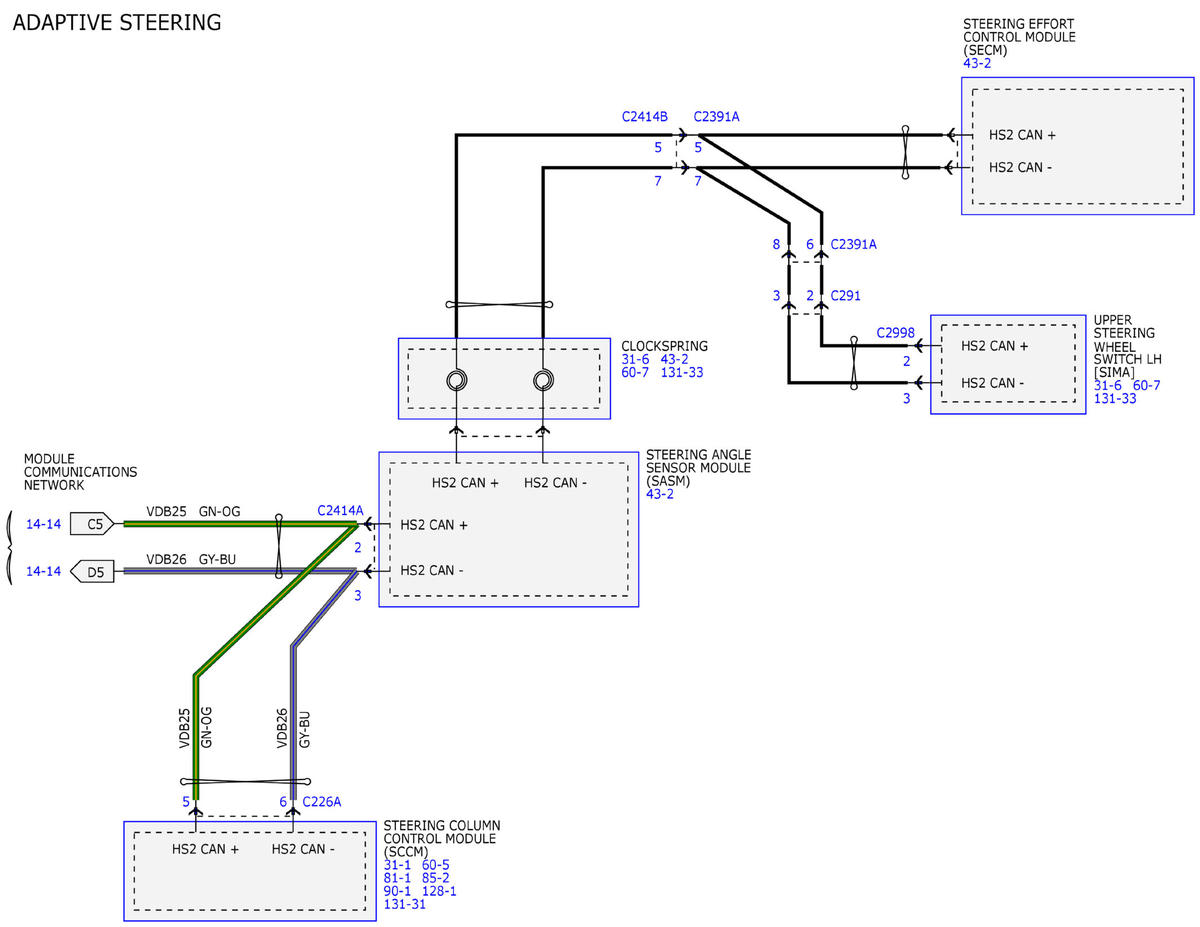

Fig 15: Module Communications Network Wiring Diagram (15 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 16: Module Communications Network Wiring Diagram (16 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 17: Module Communications Network Wiring Diagram (17 Of 29)
Courtesy of FORD MOTOR COMPANY

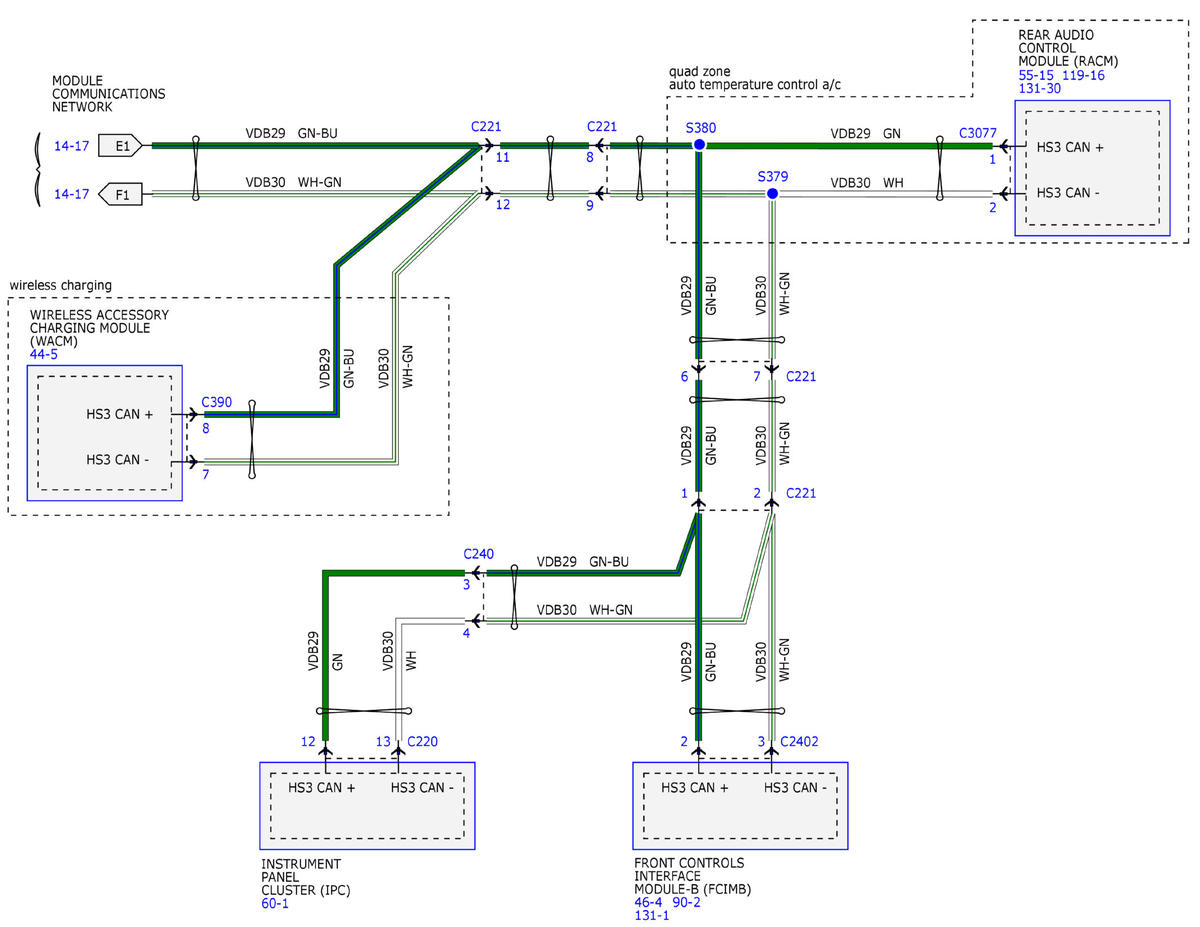

Fig 18: Module Communications Network Wiring Diagram (18 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 19: Module Communications Network Wiring Diagram (19 Of 29)
Courtesy of FORD MOTOR COMPANY

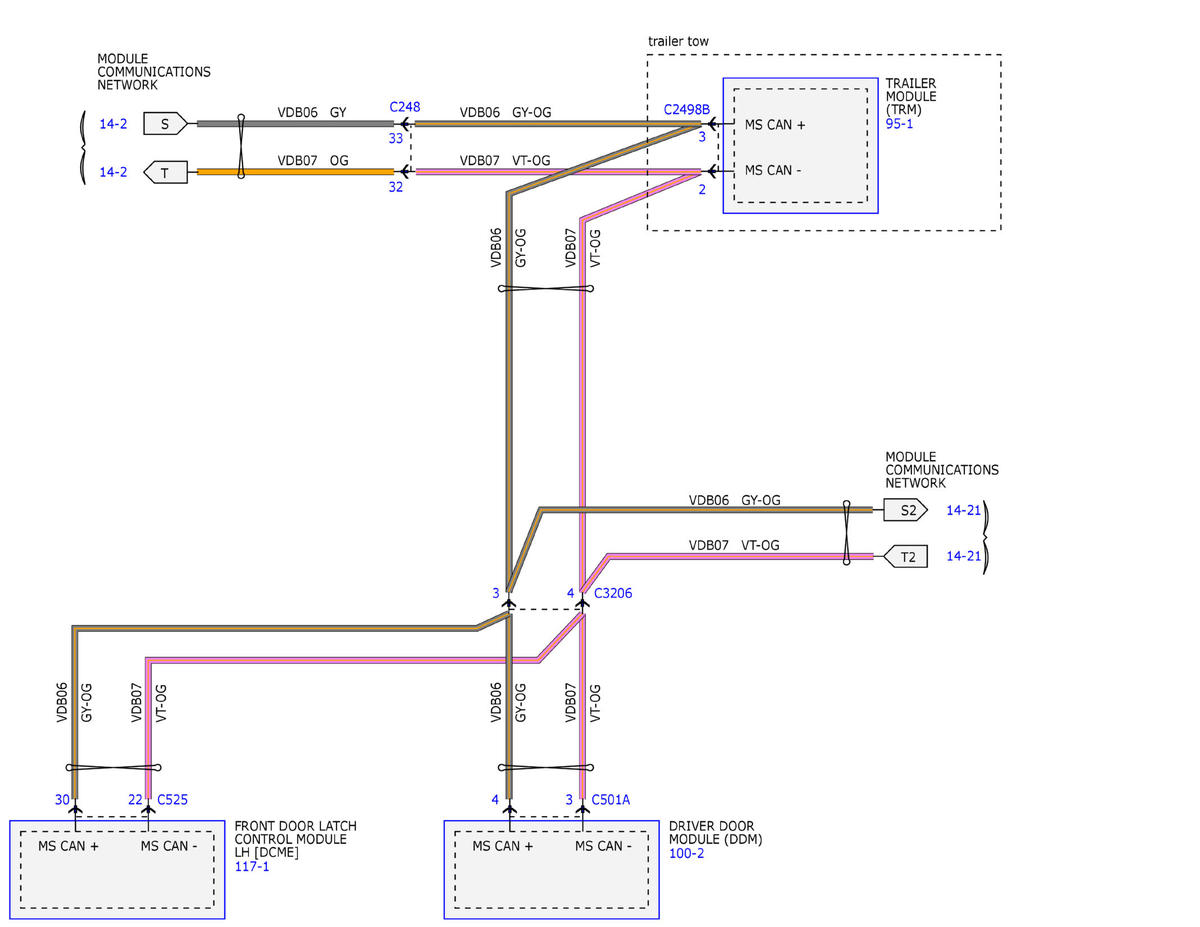

Fig 20: Module Communications Network Wiring Diagram (20 Of 29)
Courtesy of FORD MOTOR COMPANY

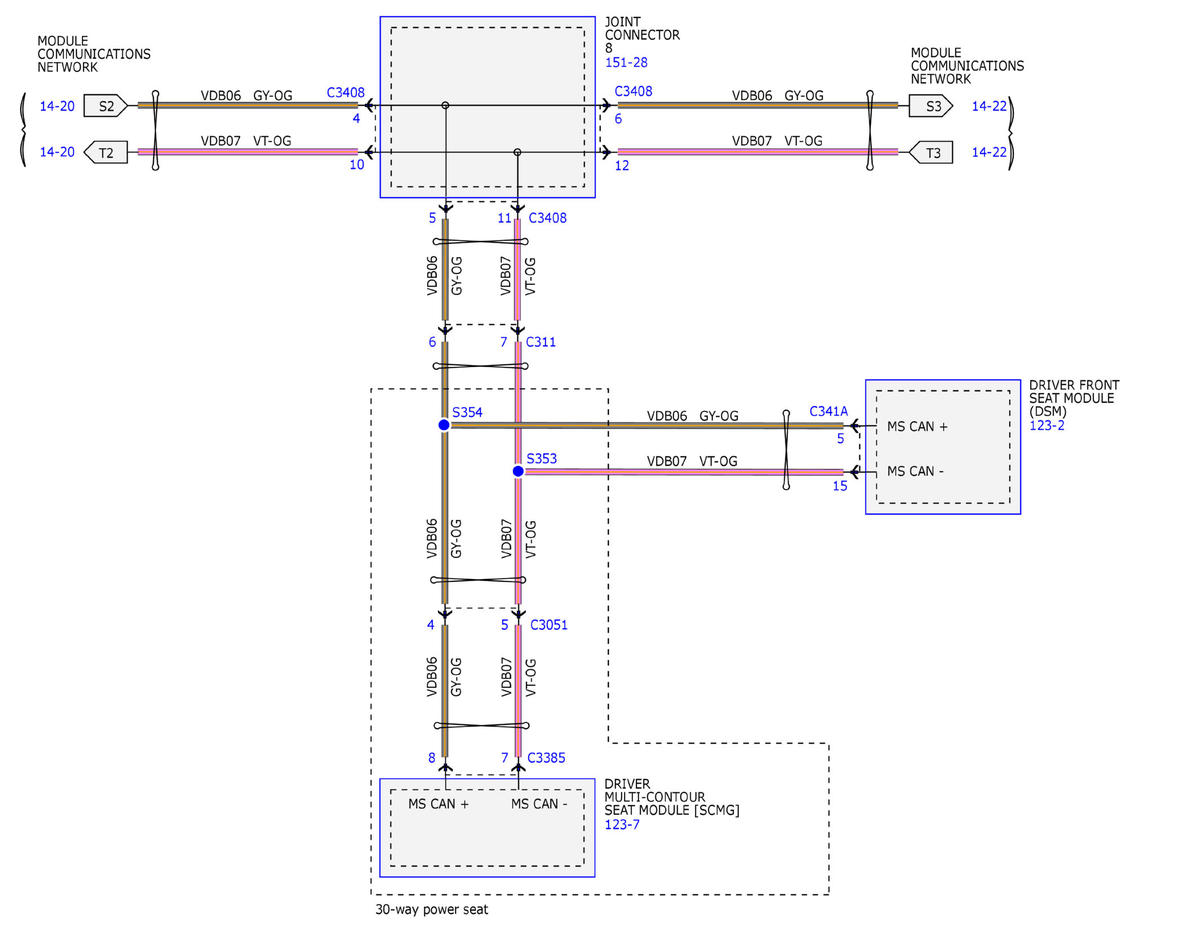

Fig 21: Module Communications Network Wiring Diagram (21 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 22: Module Communications Network Wiring Diagram (22 Of 29)
Courtesy of FORD MOTOR COMPANY

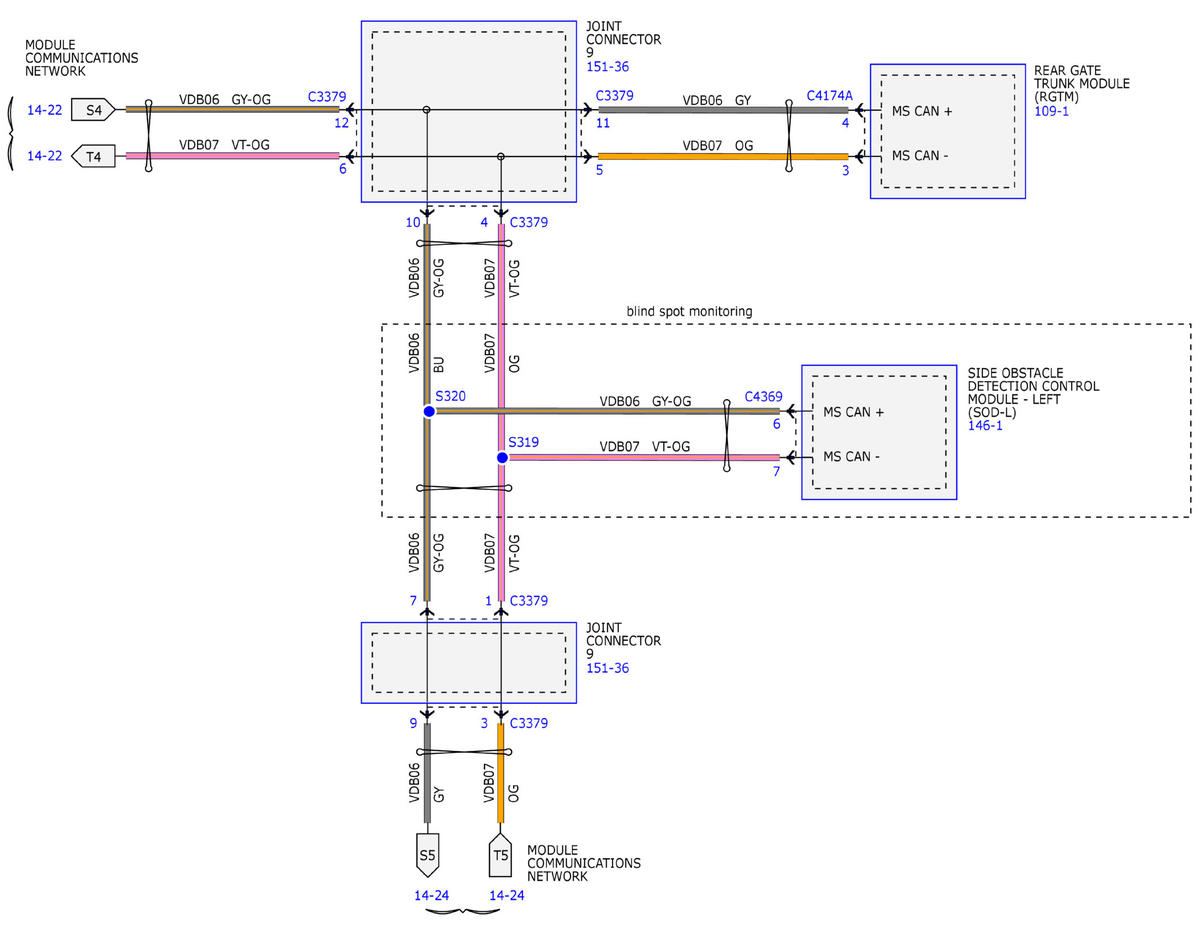

Fig 23: Module Communications Network Wiring Diagram (23 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 24: Module Communications Network Wiring Diagram (24 Of 29)
Courtesy of FORD MOTOR COMPANY

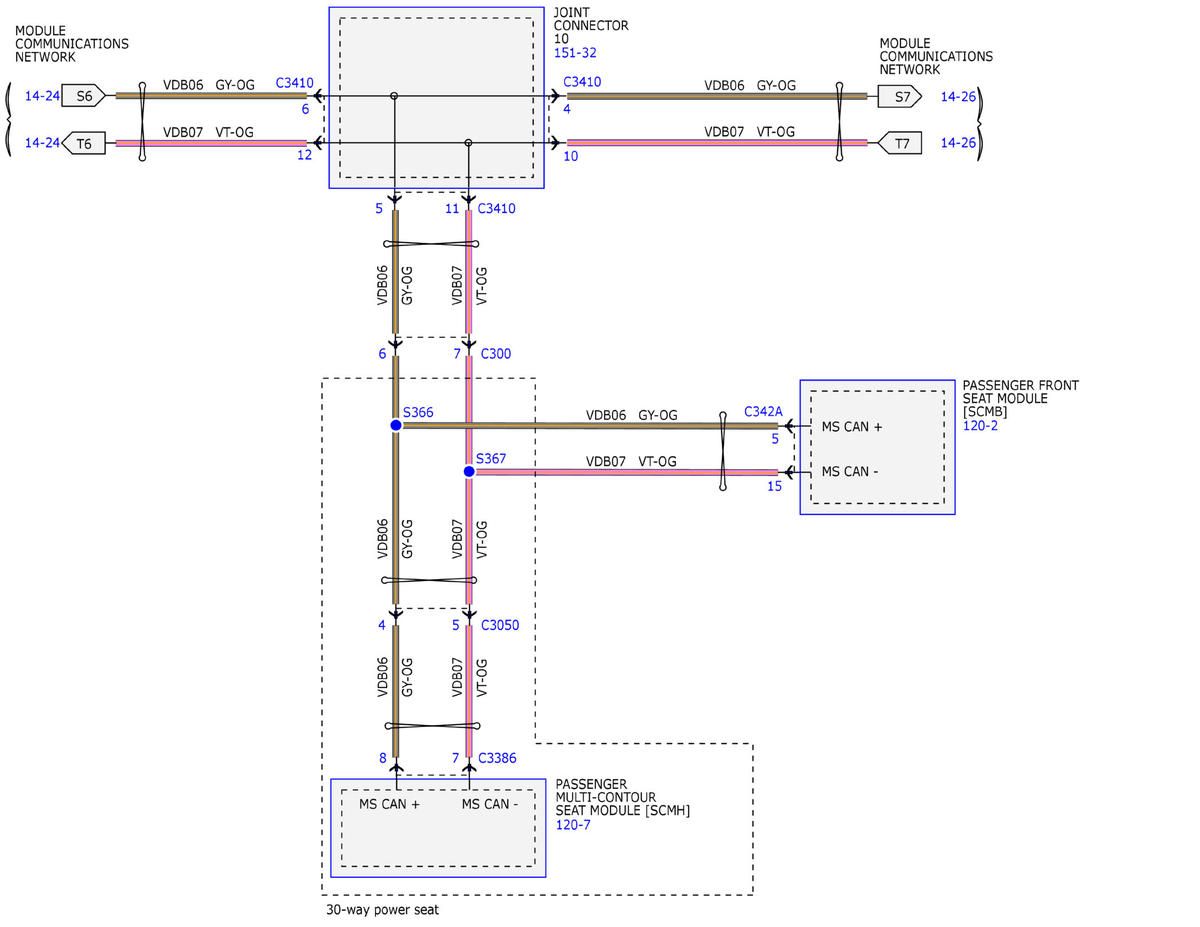

Fig 25: Module Communications Network Wiring Diagram (25 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 26: Module Communications Network Wiring Diagram (26 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 27: Module Communications Network Wiring Diagram (27 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 28: Module Communications Network Wiring Diagram (28 Of 29)
Courtesy of FORD MOTOR COMPANY

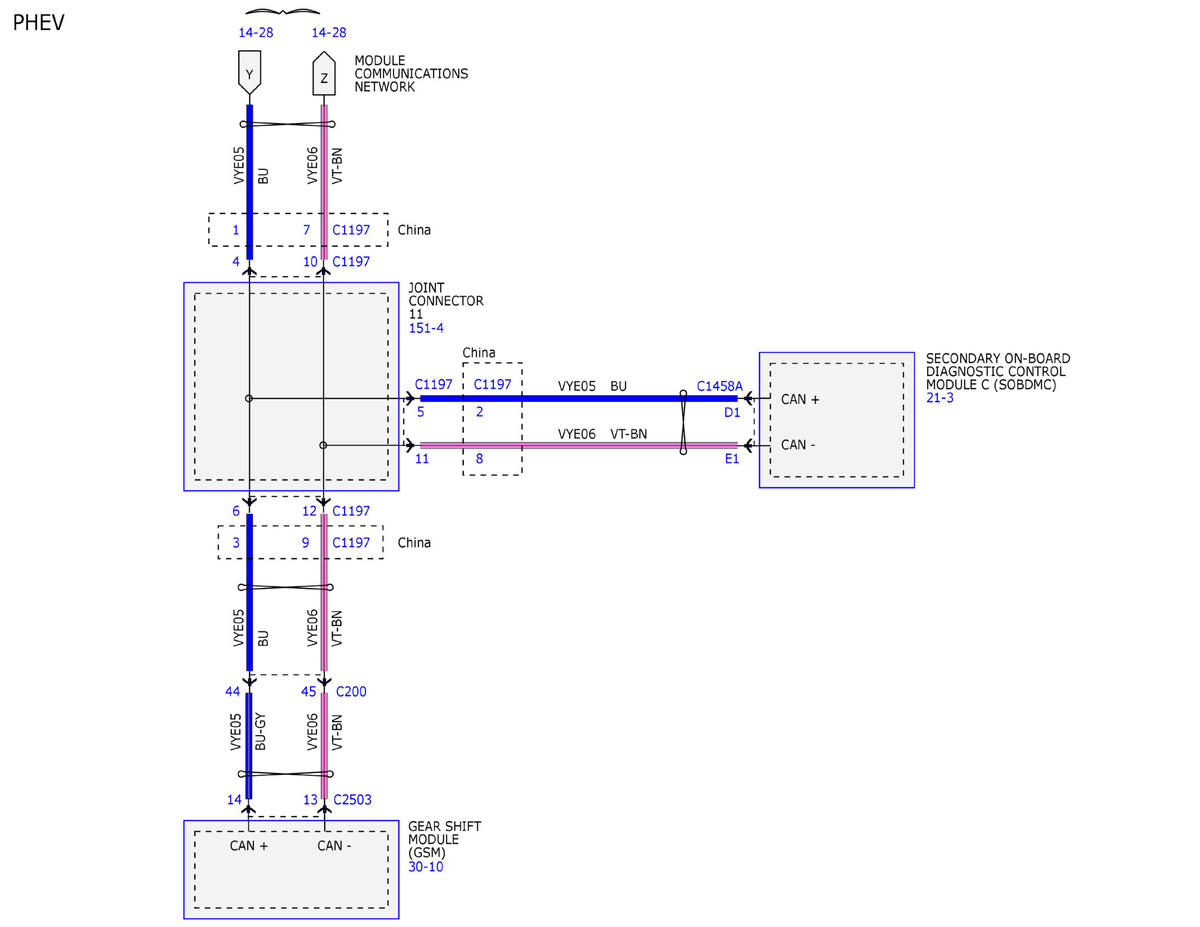

Fig 29: Module Communications Network Wiring Diagram (29 Of 29)
