Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. Remove the steering column control switch.

    1. Disconnect the electrical connector.
    2. Remove the retainer and remove the steering column control switch.

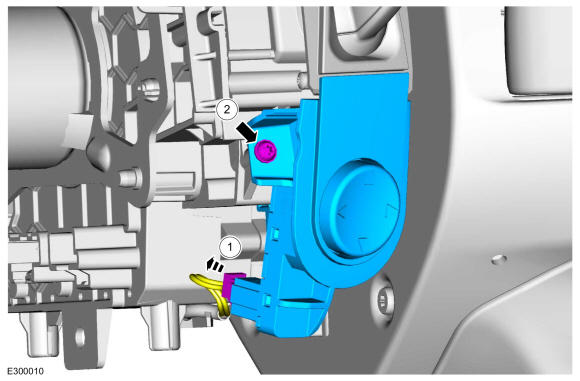

GFD530742Courtesy of FORD MOTOR COMPANY
