Wireless Accessory Charging Module (WACM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation. If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the WACM following the on-screen instructions.

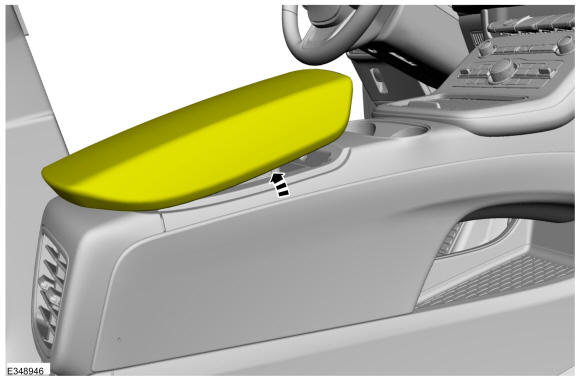

  2. Fully open the floor console storage bin.
    GFD621501Courtesy of FORD MOTOR COMPANY

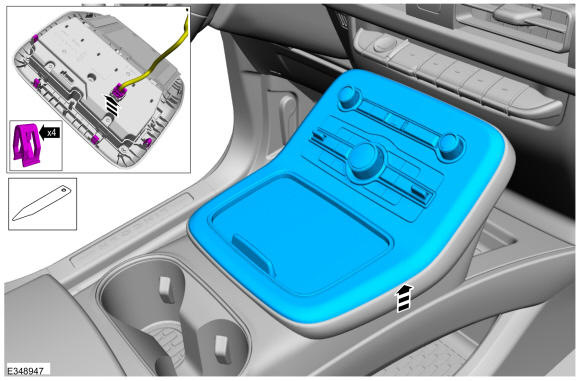

  3. Release the retainers and remove the trim panel.

    • Disconnect the electrical connector.

    GFD621502Courtesy of FORD MOTOR COMPANY

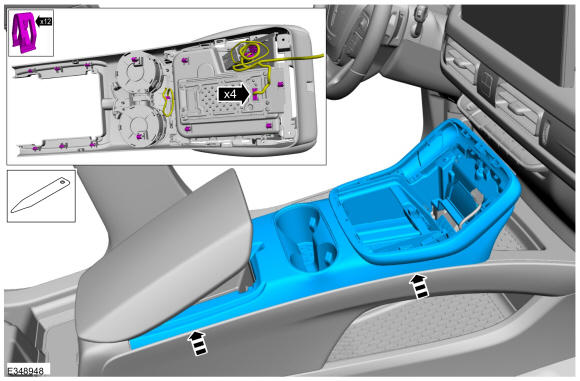

  4. Release the retainers and remove the floor cosnole upper trim panel.

    • Disconnect the electrical connectors.

    GFD621503Courtesy of FORD MOTOR COMPANY

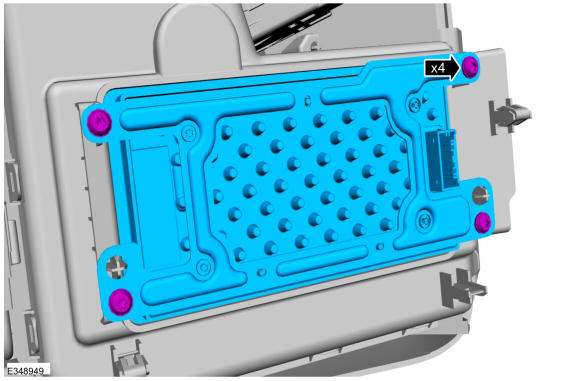

  5. Remove the screws and the WACM
GFD621504Courtesy of FORD MOTOR COMPANY
