Body Control Module B (BCMB): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary if the BCMB is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCMB following the on-screen instructions.

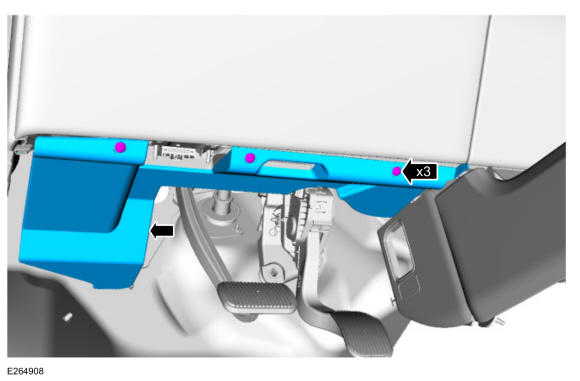

Remove the retainers and lower panel.

Courtesy of FORD MOTOR COMPANY

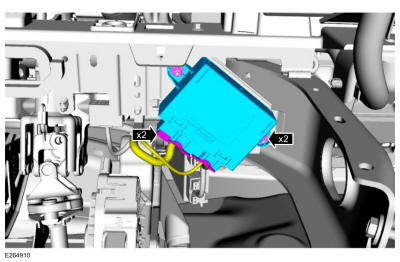

Remove the nuts, disconnect the electrical connectors and remove the BCMB.

Courtesy of FORD MOTOR COMPANY
