Driver Door Window Control Switch: Removal

  1. Remove the driver door trim panel. Refer to: Front Door Trim Panel .

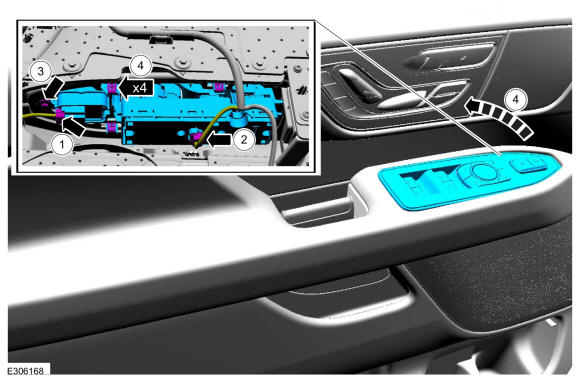

  2. Remove the driver door window control switch bezel assembly.

    1. Disconnect the driver door lock control switch electrical connector.
    2. Disconnect the driver door window control switch electrical connector.
    3. Remove the screw from driver door window control switch bezel assembly.
    4. Release the retaining clips and remove the driver door window control switch bezel assembly.

    GFD545739Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

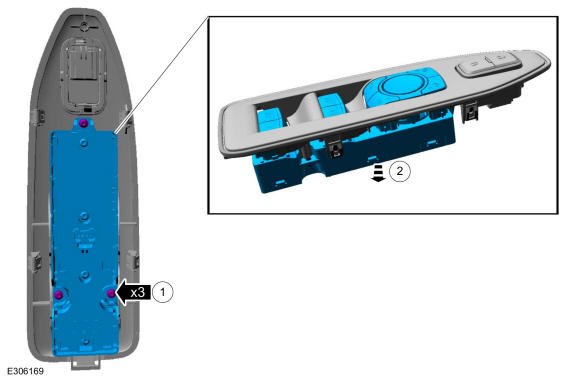

    Remove the driver door window control switch.

    1. Remove the screws from driver door window control switch.
    2. Remove the driver door window control switch.

GFD545740Courtesy of FORD MOTOR COMPANY
