Oil Pressure Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine front cover. Refer to: Engine Front Cover 3.5L EcoBoost .
  2. Remove oil pressure control solenoid.

    Torque

    : 89 lb.in (10 Nm)

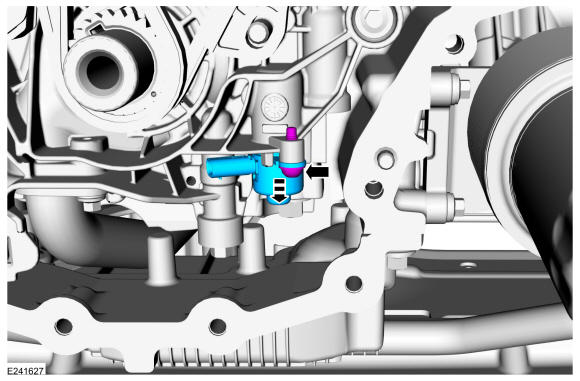

GFD543495Courtesy of FORD MOTOR COMPANY
