Ignition Coil-On-Plug: Installation

Both sides

1. Inspect the ignition coil-on-plugs. Replace any damaged ignition coil-on-plugs. Replace any of the ignition coil-on-plug boots with cracks, rips or tears.

   Courtesy of FORD MOTOR COMPANY

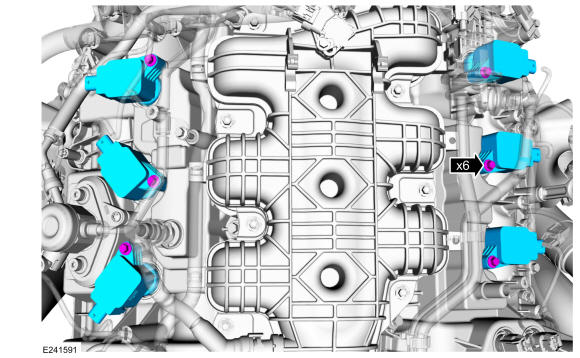

2. 1. Install the ignition coil-on-plugs.
   2. Install and tighten the ignition coil-on-plug retainers.

      Torque

      :Stage 1: 62 lb.in (7 Nm)

      Stage 2: 50°

   Courtesy of FORD MOTOR COMPANY

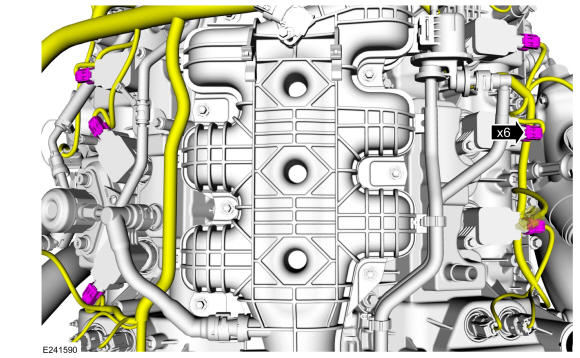

3. Connect the ignition coil-on-plug electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   Left side

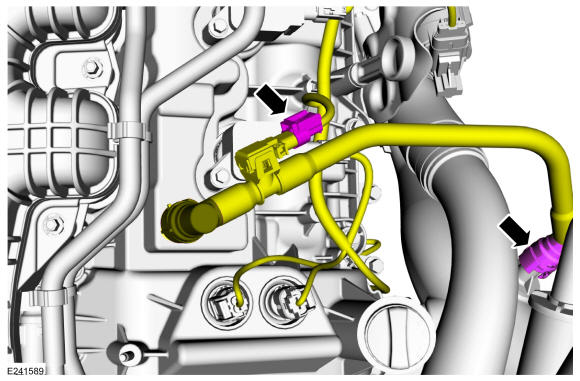

4. Connect the crankcase ventilation tube, then connect the electrical connector. Refer to: Quick Release Coupling 3.5L EcoBoost .

   Courtesy of FORD MOTOR COMPANY

   Both sides

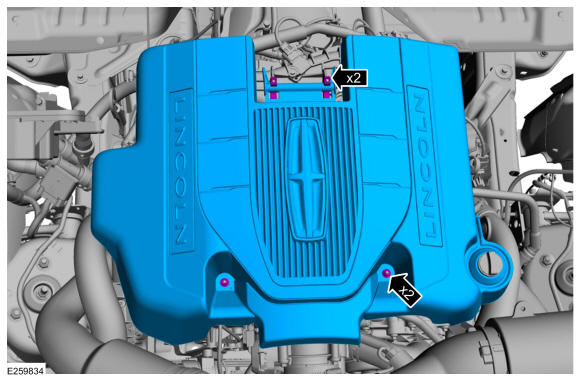

5. Install the engine appearance cover into the rear retainers, then install and tighten the engine appearance cover retainers.

   Torque

   : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
